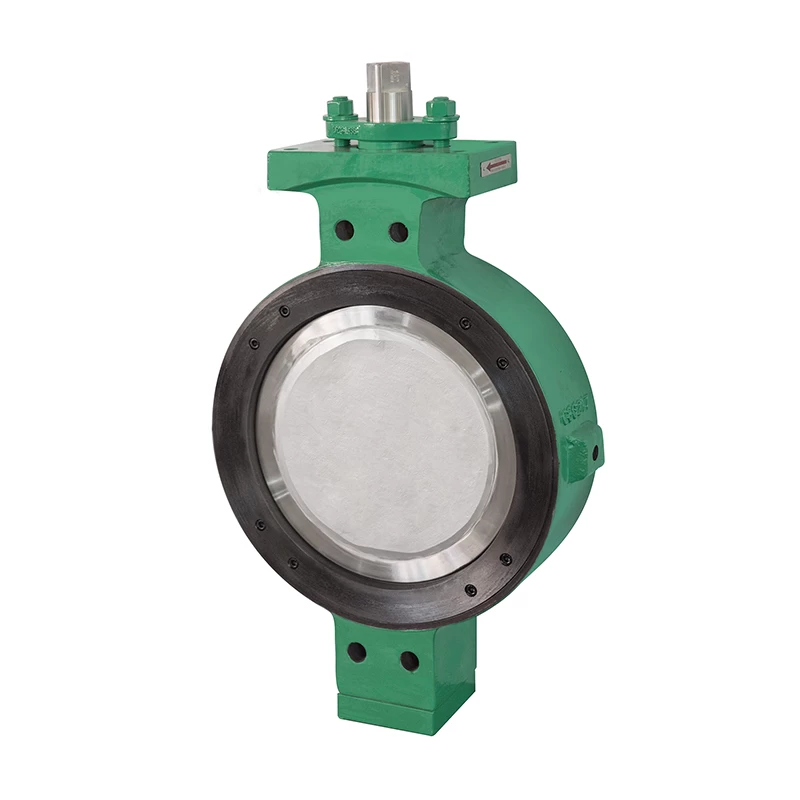

High Pressure Wafer Type High Performance Butterfly Valve
FEIDA high pressure high performance butterfly valve is an innovative double offset design product which is designed especially for high pressure working service. This butterfly valve has a unique structure with ultra reliable sealing performance, wide working conditions and low operation torque.
Main product features:
1. One million operations
2. Zero leakage in both direction
3. Easy maintenance
4. Independent and internal test
Product Description
Design
|
API 609/ASME B16.34
|
End Connection
|
Wafer/Lug/Double flanged
|
Operation
|
Manual/Pneumatic/Electric
|
Size Range
|
NPS 2"-60"(DN50-DN1500)
|
Pressure Rating
|
ASME Class 300-600(PN25-PN40)
|
Body Material
|
Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
|
Seat Material
|
PTFE, RPTFE, PPL
|
Temperature
|
-29β to 250β
|
Application: Petrochemical, Water treatment, PSA, Power plant, Dry air compressor etc.
