The herb color sorter typically consists of a feeding system, conveyor belts, cameras or sensors, image processing software, and an ejection system. As the herbs pass through the machine, they are scanned by high-resolution cameras or sensors that capture detailed images. The image processing software analyzes the images, comparing them to pre-set color standards or customer-defined parameters.

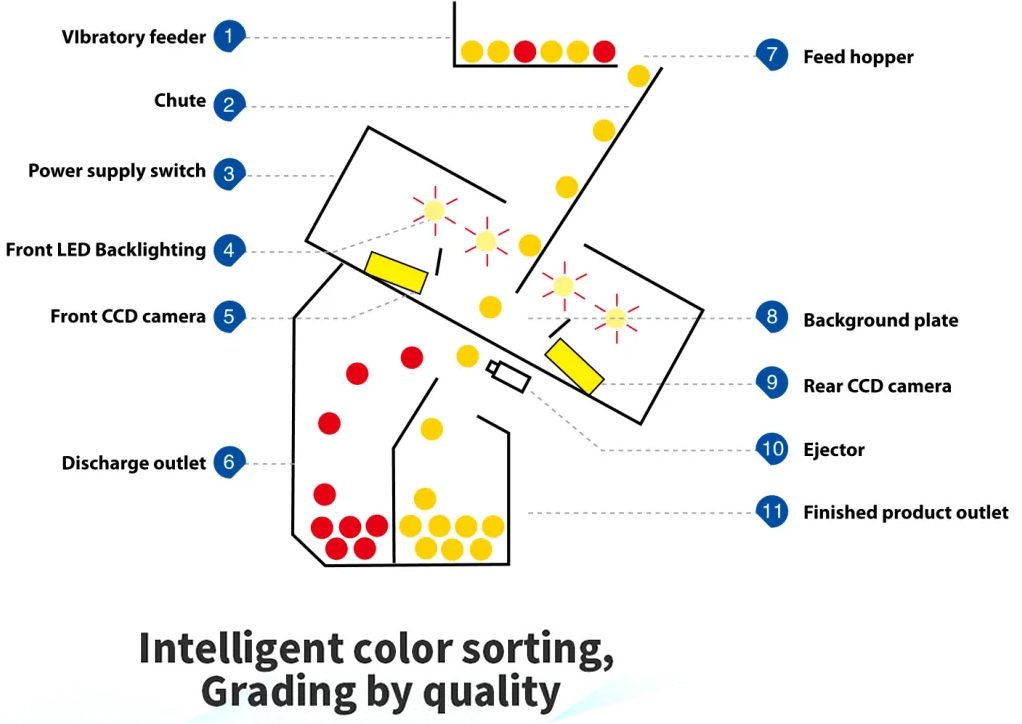

Herb Color Sorter Core Components
Technical Parameters
| Model |
Power(KW) |
Sorting accuracy |
Power vottage (V/HZ) |
Air pressure (Mpa) |
Air consumption (M3/MIN) |
Dimensions (MM) |
Weight(KGS) |
| MINI-32 |
0.5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<0.5 |
420*1100*1820 |
100
|
| R1-64 |
0.8 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
880*1504*1760 |
300
|
| R2-128 |
1.3 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
1314*1504*1760 |
400 |
| R3-192 |
1.9 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<3.0 |
1650*1504*1760 |
500 |
| R4-256 |
2.4 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
1986*1504*1760 |
650 |
| R5-320 |
3.0 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.0 |
2322*1504*1760 |
800 |
| R6-384 |
3.6 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.5 |
2658*1504*1760 |
1000 |
| R7-448 |
4.1 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.0 |
2994*1504*1760 |
1200 |
| R8-512 |
4.7 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.5 |
3330*1504*1760 |
1400 |
| R10-640 |
5.8 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<8.0 |
3666*1504*1760 |
1800 |
| BSC-300 |
1.5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
2330*960*1630 |
430 |
| BSC-600 |
2.0 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
2330*1260*1630 |
550 |
| BSC-1200 |
3.5 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
3240*1860*1630 |
1200 |
Choose TOPSORT Color Sorter, Really Rest Assured
* More intelligent software, can distinguish all kinds of atherosclerosis spice easily and totally improved the accuracy of selection.
* Humanization true color screen, visual effect is more clear, operation is more easier.
* Color + shape sorting, can reject different colors and shapes, high net selection rate.
* Full coverage gradual air purification, water, oil, dust full filtration, no omission, zero pollution, comes with ash cleaning system, real-time inductive ash cleaning, zero delay, more clean。
* Integrated anti-collision and non-destructive design, soft landing and flexible discharge, effectively reducing the material broken, food-grade contact materials, the whole process of safety care, health quality is guaranteed
* Intelligent dimming system, using low-temperature concentrated LED light source, intelligent dimming, 16 million kinds of color mixing, energy saving and more durable; matching AI color restoration technology, independent correction of color correction, high restoration, ultra-fidelity.
* Frequency conversion blowing system, equipped with intelligent frequency conversion solenoid valve, 13 billion times long-lasting spraying, no air leakage, low power consumption; application of adaptive spraying technology, 0.05 milliseconds fast response, no tail gas, low take-out.

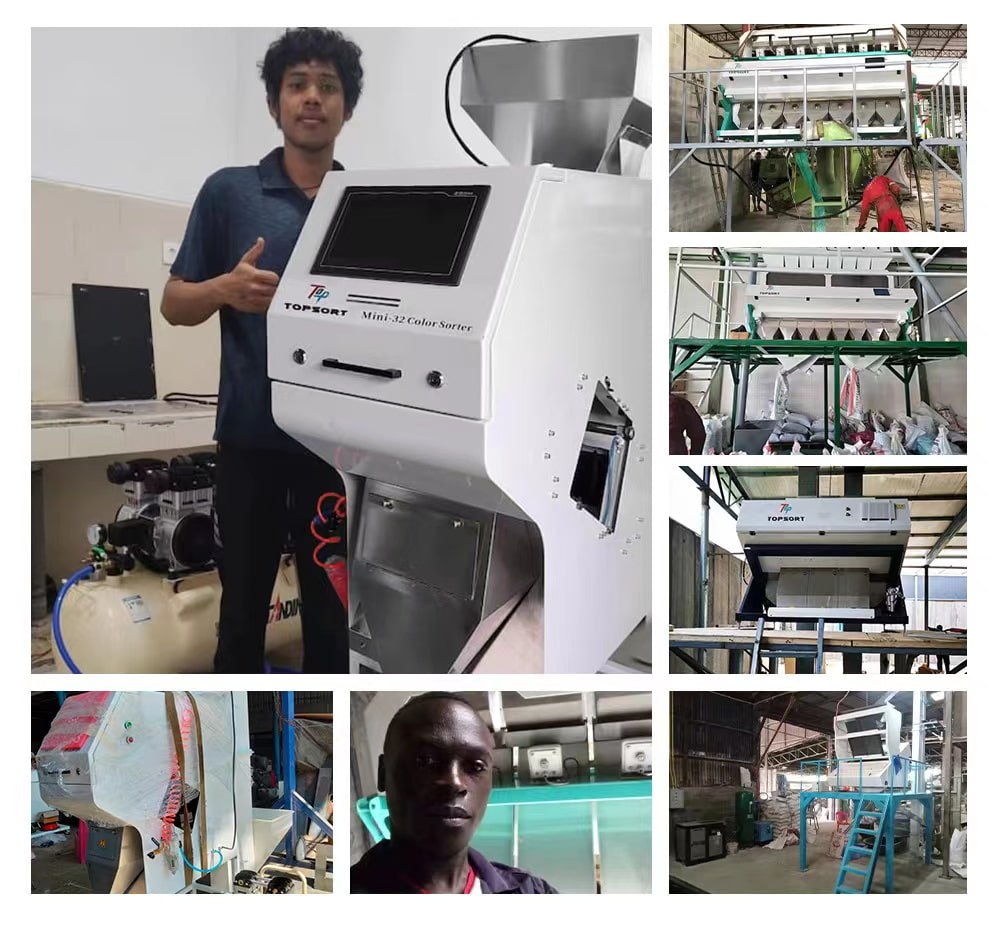

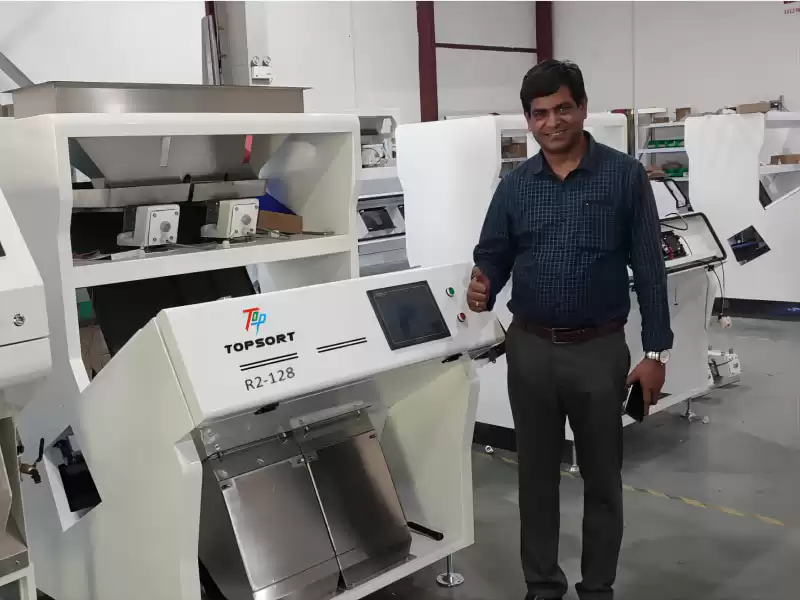

Customer Cases
Package And Delivvery
Package Details
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details
Within 3-5 working days after received 30% deposit.
Our after-sales service commitment: Professional and Fast
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for two years;
5.Provide 7*24 hours consultation and urgent service for users.
