17AM thermal protector for transformers
17AM temperature thermal switch has a very wide range of applications. It can not only be used in various household appliances, heating appliances, motors, but also an indispensable part of transformers. 17AM thermal cutoff switch is small in size, but plays a role that cannot be ignored.It can protect the transformer from damage caused by overheating.
Features
Small size design.
Temperature is 100% calibrated.
Snap action.
Both temperature and current sensitive.
Types and length of wires are optional.
Multiple terminals are available.
100% comply with ROHS.
Specifications
|
Item No.
|
17AM
|
|
Electrical specifications
|
20 amps/16 volts DC
|
|
10 amps/250 volts AC
|
|
20 amps/125 volts AC
|
|
Operating temperature range
|
50°C~180°C
|
|
Temperature Tolerance
|
± 3°C, ± 5°C
|
|
Case material
|
Metal
|
|
Case size(mm)
|
24.2*9.5*4.5
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

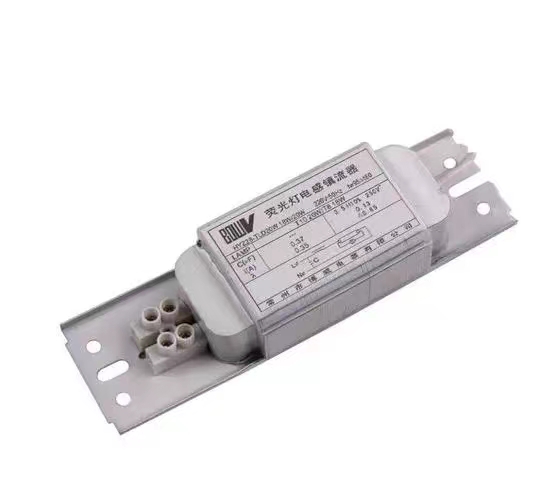

| Ballasts |

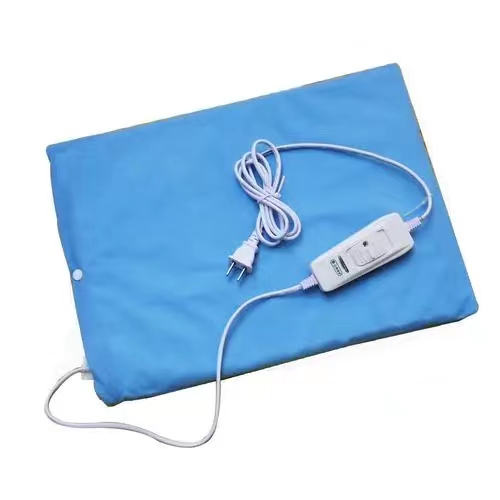

Heating pads |

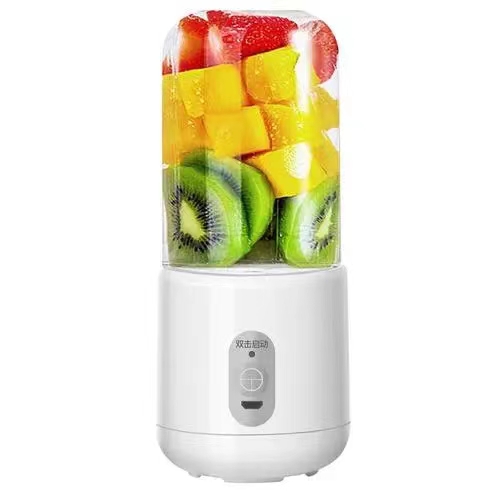

Juicers |

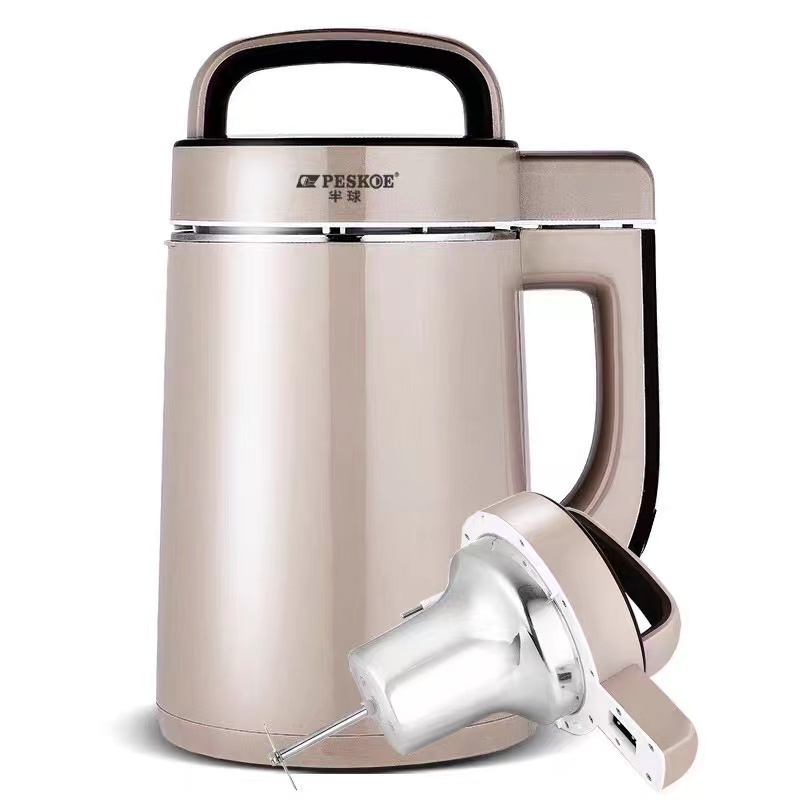

Soybean milk machines |
 |
 |
 |
 |

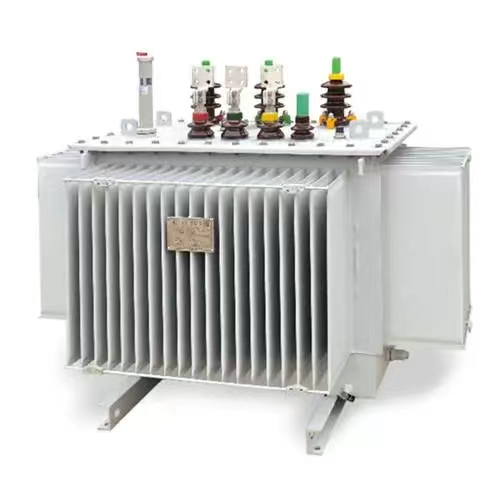

| Transformers |

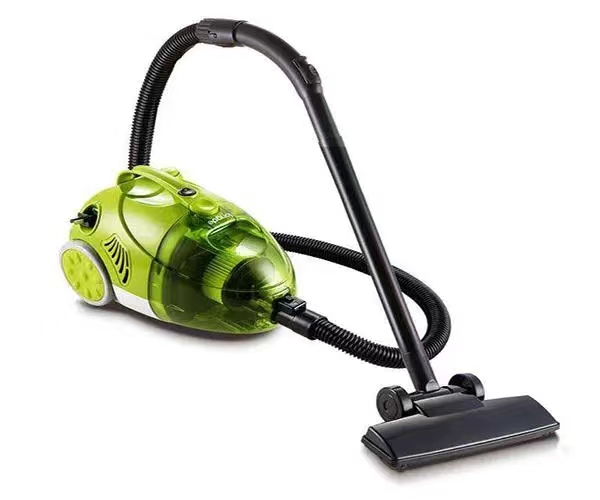

Vacuum cleaners |

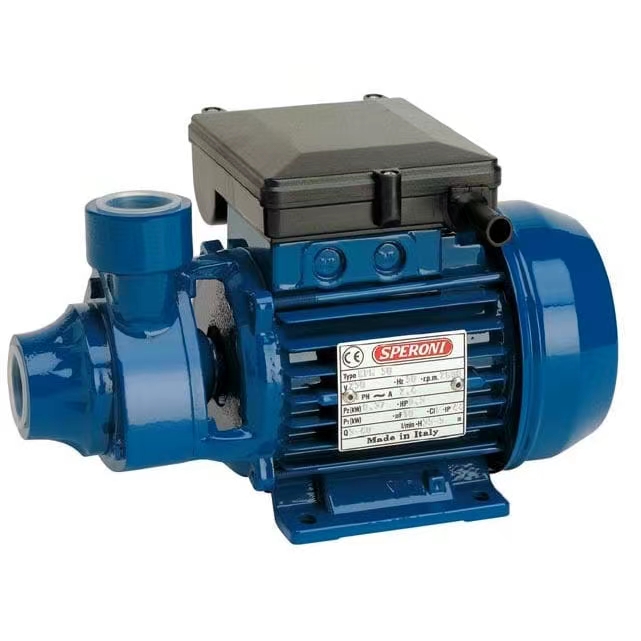

Water pumps |

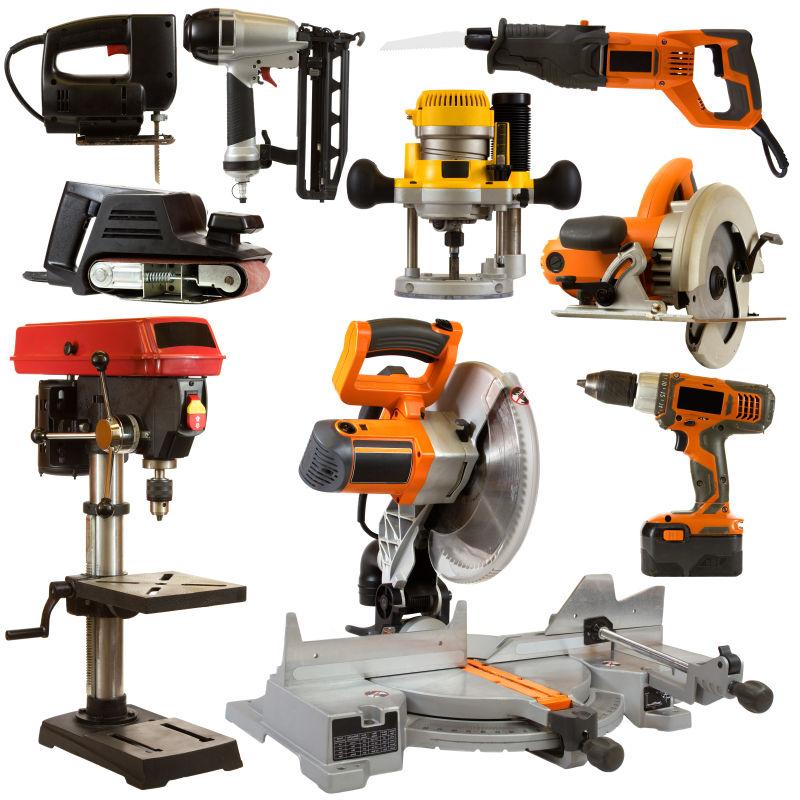

Electric tools |

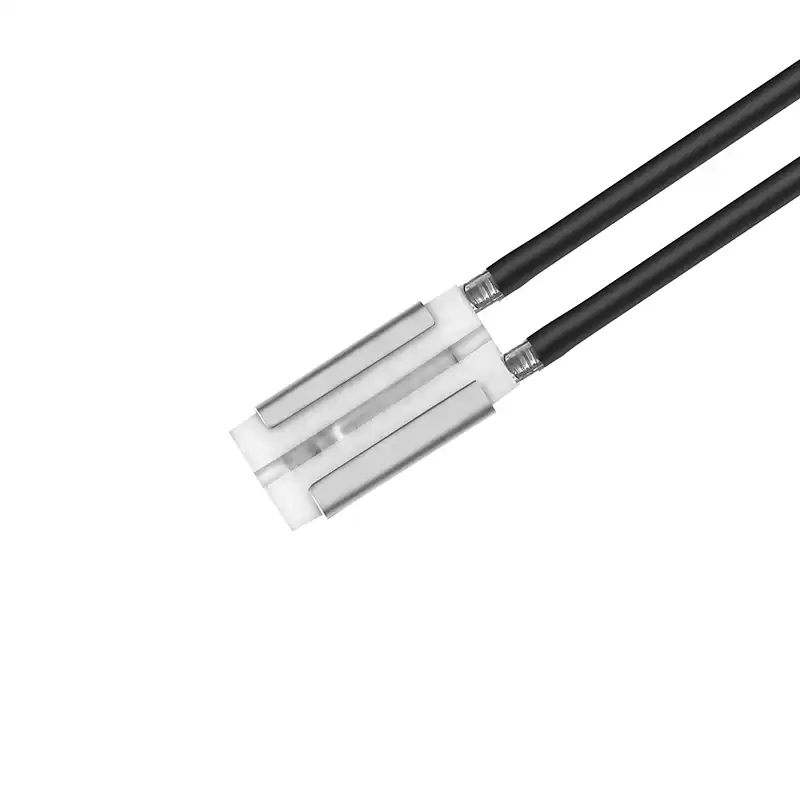

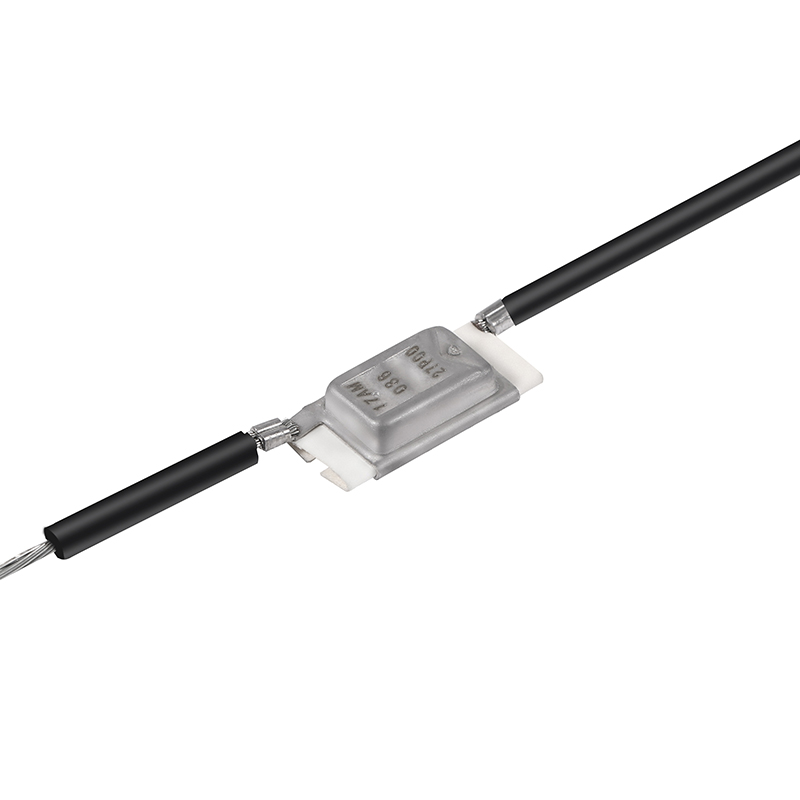

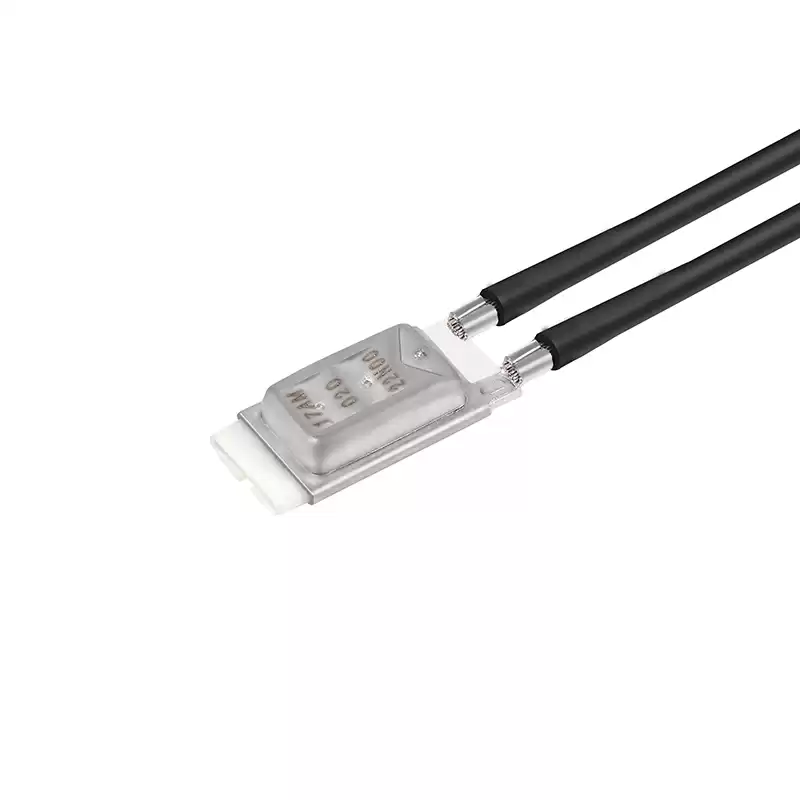

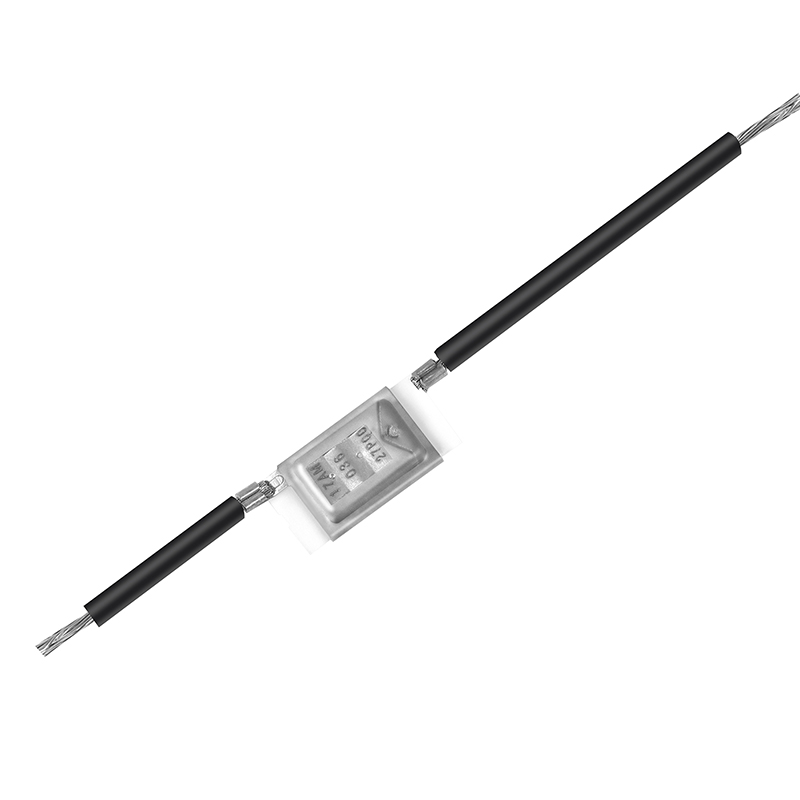

Product display

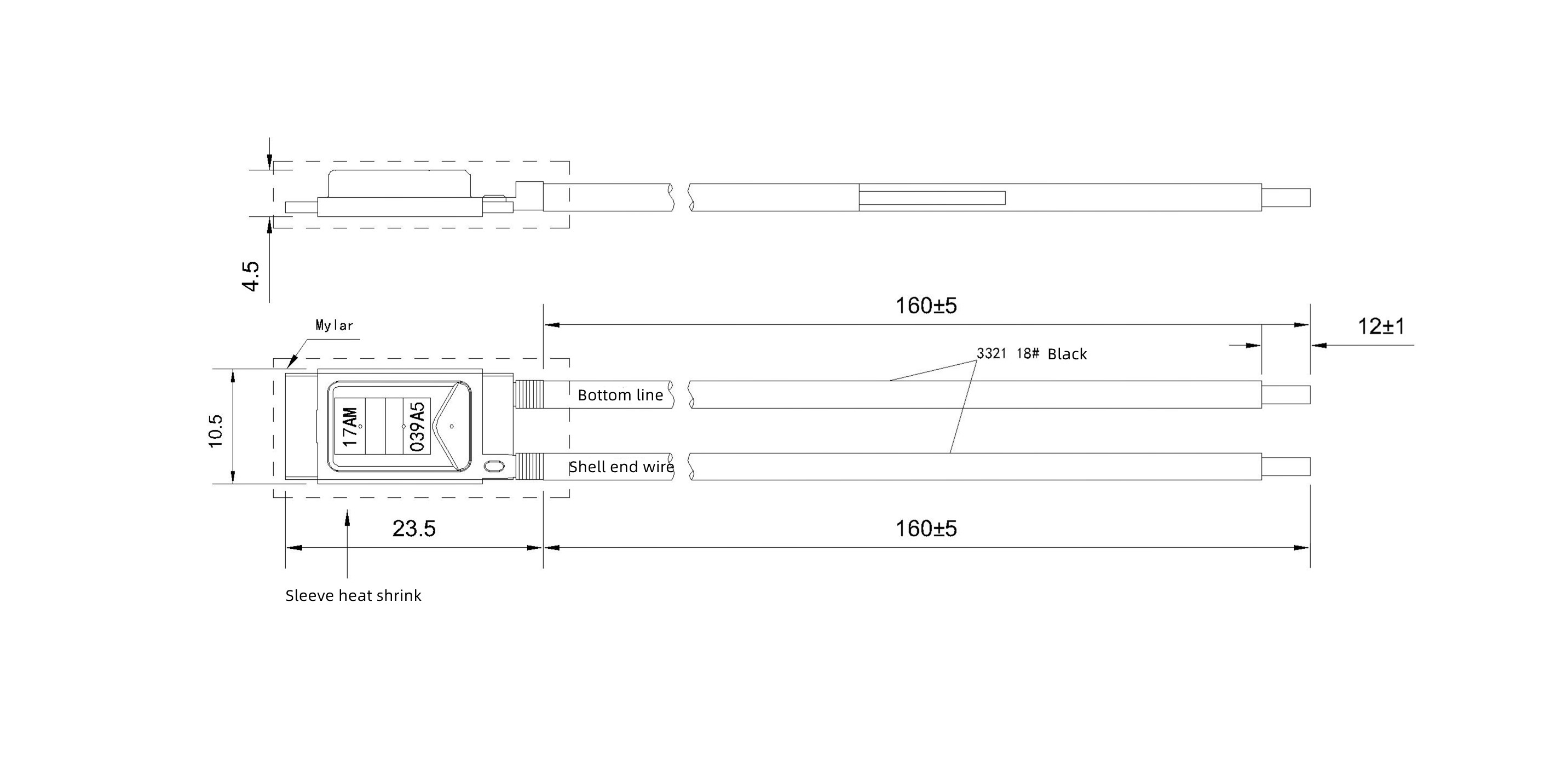

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
