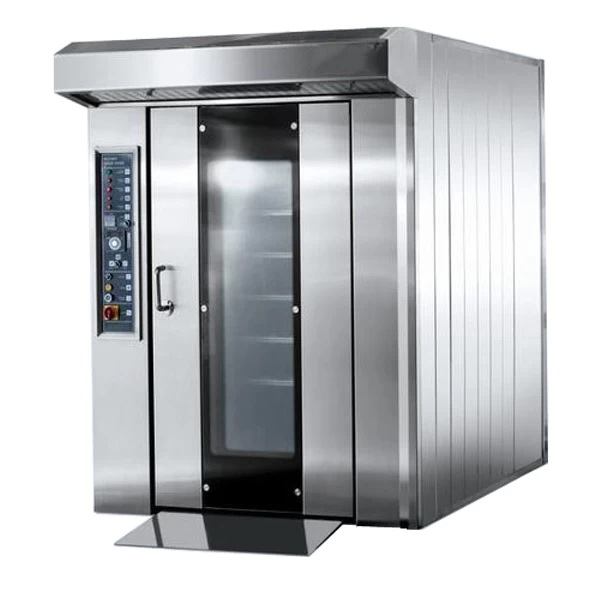

High Quality 32 Trays Bakery and Pastray kitchen Electric Bread Rotary Rack Oven
Function:
Sui for all types of bread, cake, biscuit,etc.
Production capacity: 60-100trays per hour
Baking Feature:
--Platform rotating rack design
--2 layers PU cotton(total thickness:135mm),excellent heat preservation
--France & Taiwan imported critical component
--Special designed system to ensure uniform hot-fair and temperature inside the oven
--Five-step adjustable air hole to meet request of different products in different seasons
--Automatic exhaust fan to prevent hot-air affect operator when opening the door
--Temperature range:5-300ºC
--Automatic plate on the bottom outside the door, convenient for rack input&output
--Capacity: 1 rack (32 trays/rack); Tray size:400*600mm; Exterior size(CM):264*181*270
--Luxirious appearance, high capacity,saving energy,human resourse and space
--Reasonable body design,rarefied manufacturing material, long service life
--Current:380V (or to be ordered) Power:53KW Electric Feature
--Special monitoring device for heating process,rotary table,exhaust fan,etc.
--Two different hot-air speeds to meet different types of products
--Rotary table stops/runs automatically when the door opens/closes
--With timer and alarm for better control of baking time
|
Model
|
HX-16D-01
|
HX-32D-01
|
HX-64D-01
|
|
Products Name
|
16 Trays Electric
Rotary Rack Oven
|
32 Trays Electric
Rotary Rack Oven
|
64 Trays Electric
Rotary Rack Oven
|
|
Dimension(mm)
|
1900*1400*2500
|
2550*1600*2500
|
2800*2600*2500
|
|
Packing Dimension(mm)
|
2000*1500*2600
|
2650*1700*2600
|
2900*2700*2600
|
|
Power
|
35kW
|
51kW
|
72kW
|
|
Trolley
|
16 Trays per trolly
|
32 Trays per trolly
|
64 Trays per trolly
|
|
Voltage
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
|
Net Weight
|
1600KG
|
1800KG
|
1600KG
|
|
Electric Bread Rotary Rack Oven Details:
1. Machinese warranty 1.5 year. (Free parts and express
costs).
2. Durable heater warranty 3 years.
3. With steaming function.
4. Heat exchanger material inside : S.S. #304
5. A/C contractor: Schneider (France)
6. Electric relay: Omron(Japan)
7. Temperature controller and timer: CHAO (Taiwan)
8. Oven body inside S.S #201 1.5mm; outside S.S. #201 1.5mm:
9. Double layer PU cotton insulation: 145 mm thickness
10. Accessory: two trolley for free. Material SS #201
11. Tray Size:600*400 mm Distance of tray to tray 100mm.
12. Temperature 25-300 degree.
13. Excellent hot air circulation system.
|
Rotary Rack Ovens Product Features
Δ Controlled system from Germany.
Δ Inside & outside: Material, SS #201 ; Thinkness, 1.5mm
Δ Buner imported from Japan/Italy (Olympia, Riello)
Δ Heat insulation : Layer: 2lyaer; Thinkness. 140mm; Material: Import from Taiwan
Δ Electric componenets imported form Germany
Δ Heat exchanger: Material:SS #304; Thinkness:2mm; Heating pipe thinkness:2.5mm
Δ Base plate:6mm
Δ Trolley material. SS#201
Δ Rotating rack arm: 30*30*3mm; SS#201
Δ Good steam systems
Δ Heated wind counter folw systems
Δ Tray size 400*600mm/460*720mm
Δ 12tray/16tray/32tray/64tray/72tray is optional.
Package:
Wooden crate or follow customer's requirements.
Carton Box+Foam+Plastic Bag+Wooden Crate.
Delivery Time:
Normally most of our goods have in stock, after received the payment, we can delivery the goods within 5 days. But it require 15 to 30 days for production if no have stock.
