50 people capacity high quality 10x10m aluminium pagoda tent for sale
Pagoda tent structures provide the means to create eye-catching tensile roof structures.
They are available in a variety of square sided units from 3m through to 10m in clear span width.
Standard size: 3x3m, 4x4m, 5x5m, 6x6m, 8x8m, 10x10m
|
Model
|
Size(m)
|
Eave height(m)
|
RIdge height(m)
|
Main profile size(mm)
|
|
PGA03
|
3x3
|
2.5
|
4.3
|
65x65x2.5
|
|
PGA04
|
4x4
|
2.5
|
4.8
|
65x65x2.5
|
|
PGA05
|
5x5
|
2.5
|
5.4
|
65x65x2.5
|
|
PGA06
|
6x6
|
2.5
|
5.9
|
65x65x2.5
|
|
PGA08
|
8x8
|
2.6
|
6.0
|
122x68x3
|
|
PGA10
|
10x10
|
2.6
|
6.5
|
122x68x3
|
Details for large 8x8m, 10x10m pagoda tent
Frame:6061/T6 hard press extruded aluminium alloy frame with 4 channels, 122x68x3mm, anodized, anti-rust,
Roof cover: 850g/sqm double pvc coated blockout polyester fabric( waterproof , UV-protection , flame -retardant)
Side cover: 650g/sqm double pvc coated translucent polyester fabric(waterproof , UV-protection , flame-retardant.
Connectors: Hot-dip galvanized steel.
Fixed method:
Expansion bolts into the concrete ground
Steel nails into soft ground
Weight plate applied for any ground

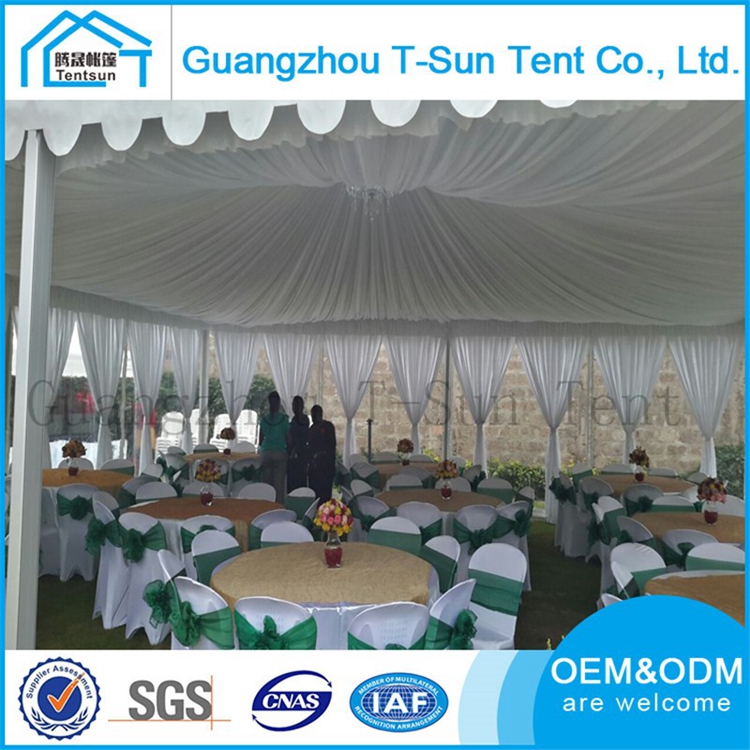

Decoration available: like roof linings, side wall curtains, chandeliers etc.
