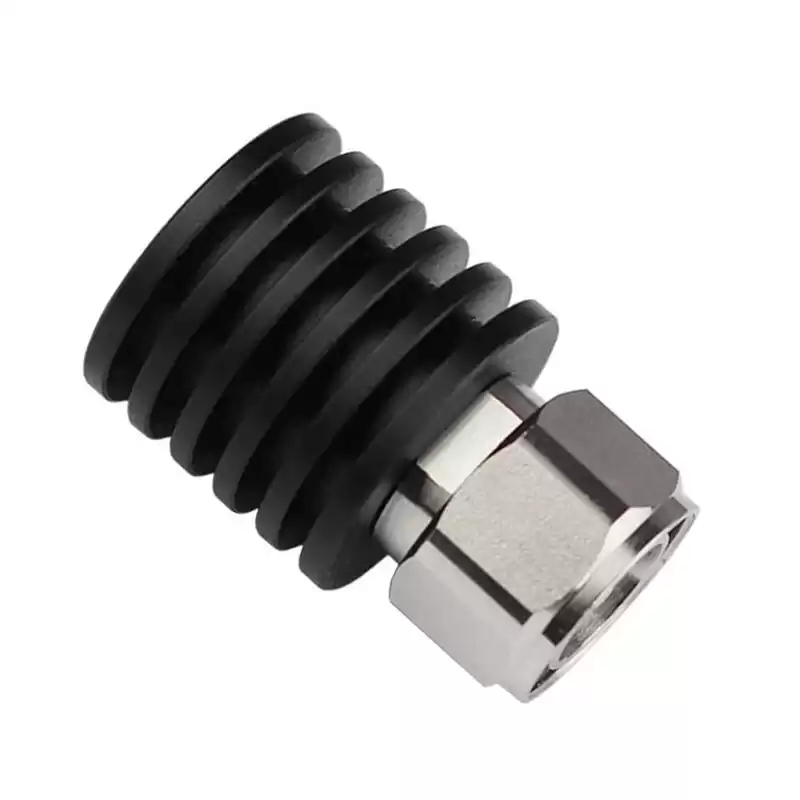

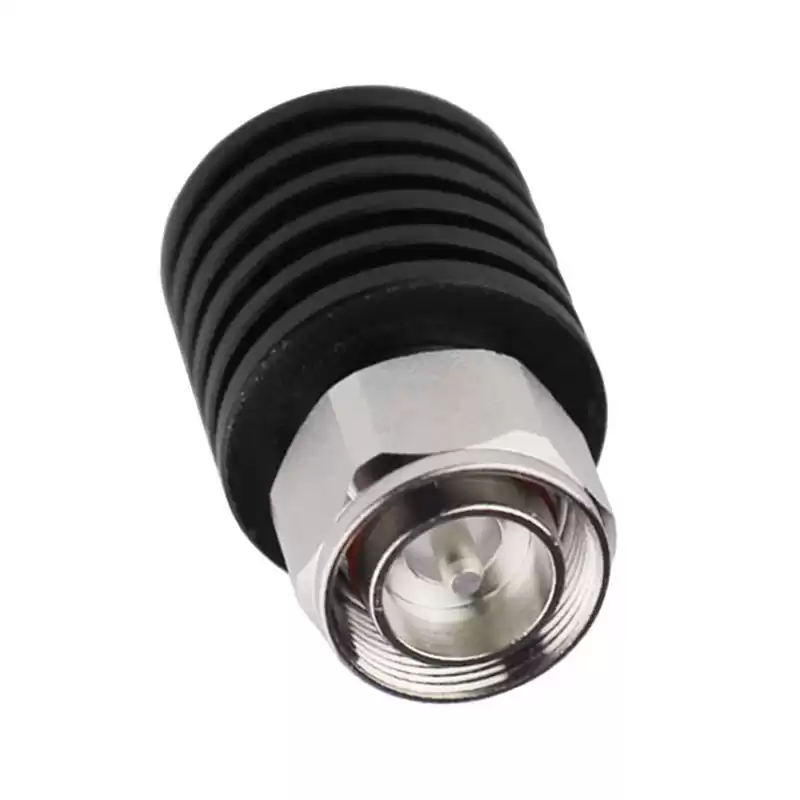

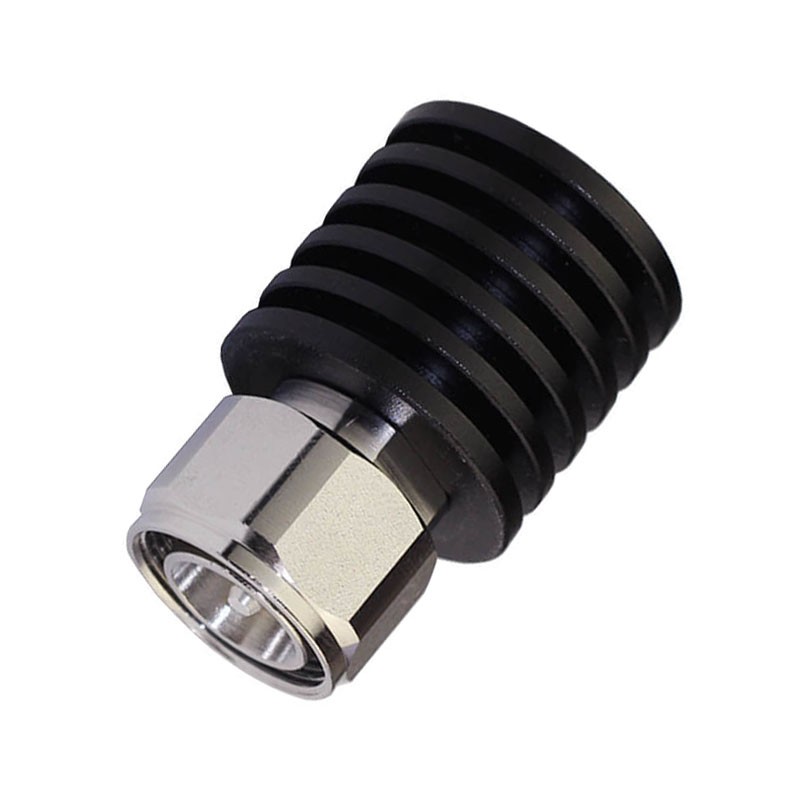

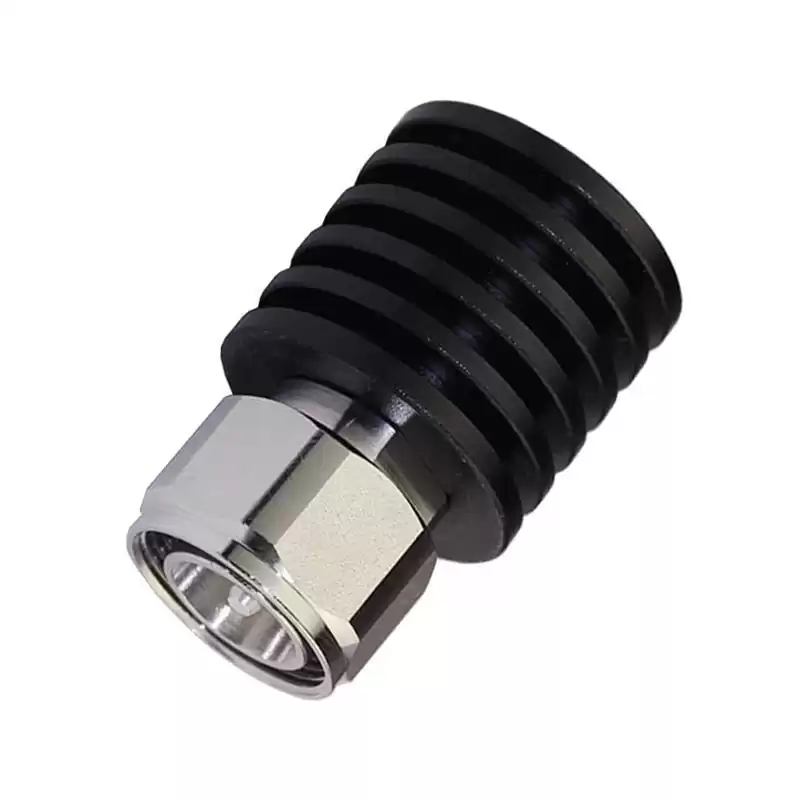

High Quality 5W Dummy Load DC-6GHz 50ohm MINI DIN 4.3-10 Male Connector RF Load for IBS DAS
The 5W 4.3-10 dummy load (also known as 5W 4.3-10 termination or 5W 4.3-10 RF load) has a 4.3-10 connector that is male. This 5W 4.3-10 male load / termination is rated for a maximum frequency of 6GHz. ROHO's 4.3-10 male termination load is a rf load termination with a 50ohm impedance; 5W 4.3-10 male load termination is one of RF, microwave and millimeter wave components,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~6GHz |
| Connector |
4.3-10 Male |
| VSWR |
≤1.2 |
| Power |
5W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
