High quality ACME ZOOM STAGE PAR

Outdoor ACME ZOOM STAGE PAR

Functional overview

STAGE PAR 600 ZOOM IP has stability, uniform RGBW color mixing system and rainbow effect, also with advanced RDM function, built-in programs are available. You can change the DMX address code, reset the lighting, transform the voice control mode by console. STAGE PAR 600 ZOOM IP is novel and small, net weight only 15.4Kg, which greatly saves the transportation cost. The shell is made of die-casting aluminium, with IP65 protection rating, it can be used in outdoor throughout the year. It is suitable for large-scale performances, evening parties, concerts, outdoor performances, urban lighting projects and other places, is a new star in the field of LED PAR.

Features

• Light Source: 22x30W RGBW LED
• Uniform RGBW color mixing and rainbow effect
• 0~100% smooth dimming
• Outstanding strobe effect with variable speed
• Advanced RDM function
• Built-in programs for selection
• Can change the DMX address code, reset the lighting, transform the voice control mode by console
• Flicker free management
• Dust-proof and oil-proof design
• Protection rating: IP65
• Maximum QTY of connnection:
  120V，60Hz: 3 sets；
  230V 50Hz: 5 sets

Technical & Specification

Light Source

• Light Source: 22x30W RGBW LED
• LED life expectancy: 30000 hours

Optical System

• Advanced optical system to ensure clear and excellent static effect
• Beam Angle: 6°~40°

Control and Program

• 4-buttons touch panel
• Display: OLED display
• Protocols: DMX512, RDM
• DMX Protocol modes: 3
• Control channels: 5,7,9
• Upgrade the firmware via DMX link

Electrical and Connectors

• Power supply with electronic auto-ranging
• Input voltage range: AC 100-240 V, 50/60 Hz
• Power consumption: 640 W
• Waterproof connector
• Data in/out: Waterproof 5-pin XLR

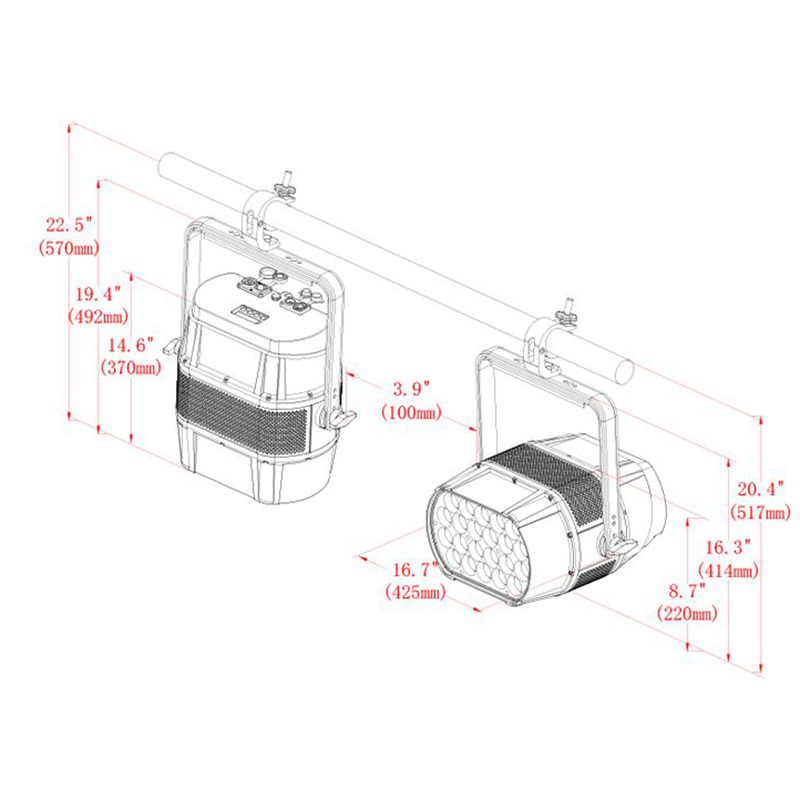

Fixture Specification

• Height: 370 mm (14.5")
• Width: 370 mm (14.5")
• Depth: 425 mm (16.7")
• Weight: 15.4 kg (33.9lbs)

Work Environment

• Maximum ambient temperature: 40°C
• Maximum surface temperature: 65°C
• Minimum operating temperature: 0°C
• Protection rating: IP65

Approvals

• CE Compliant is pending

Installation

• Horizontally or vertically mounting are available
• Operating position is universal
• The feet support with 3 locking points
• Safety cable attachment point

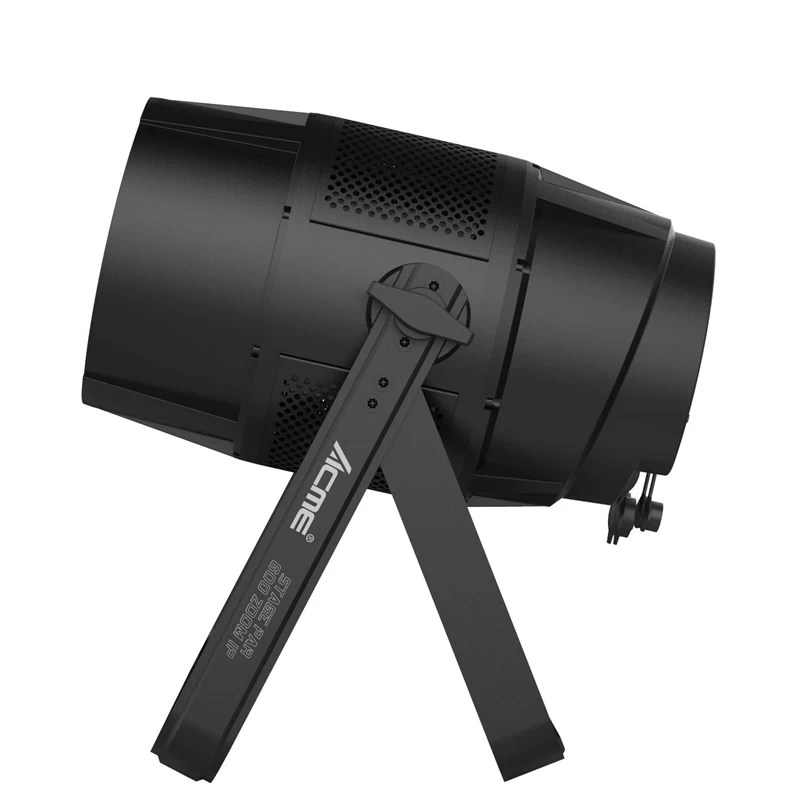

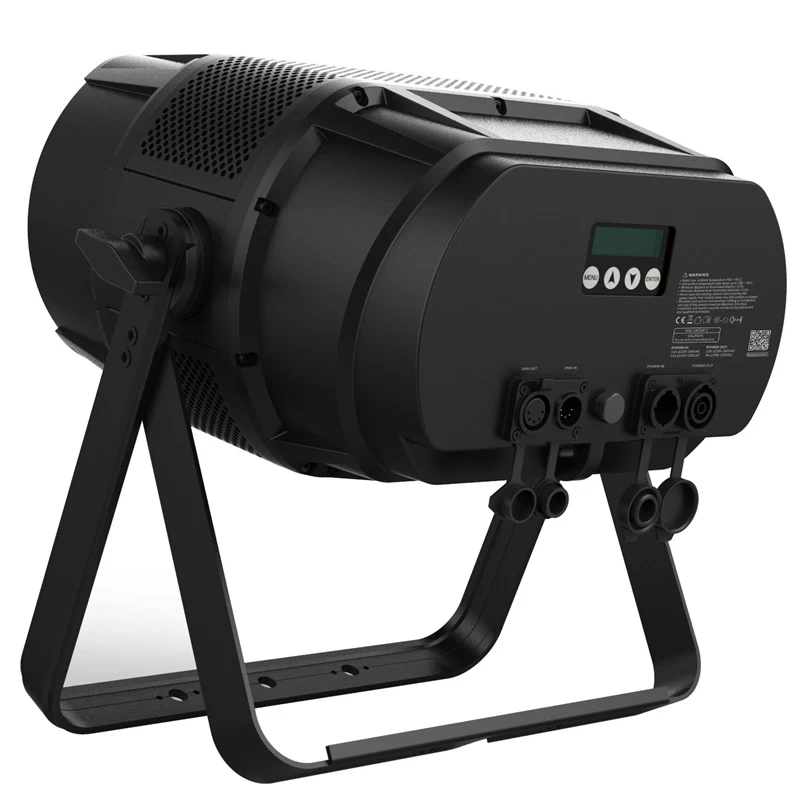

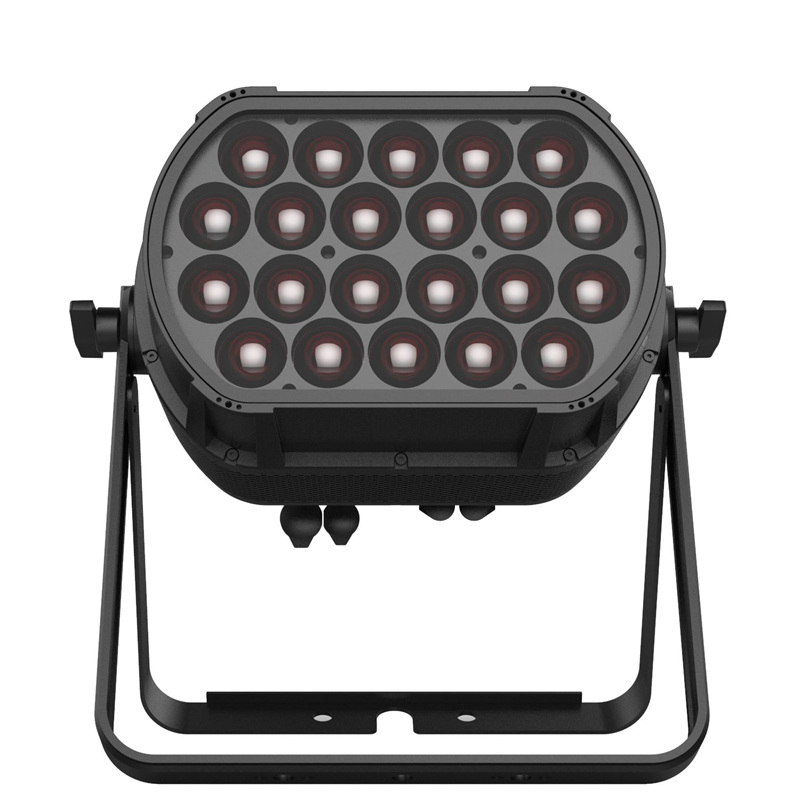

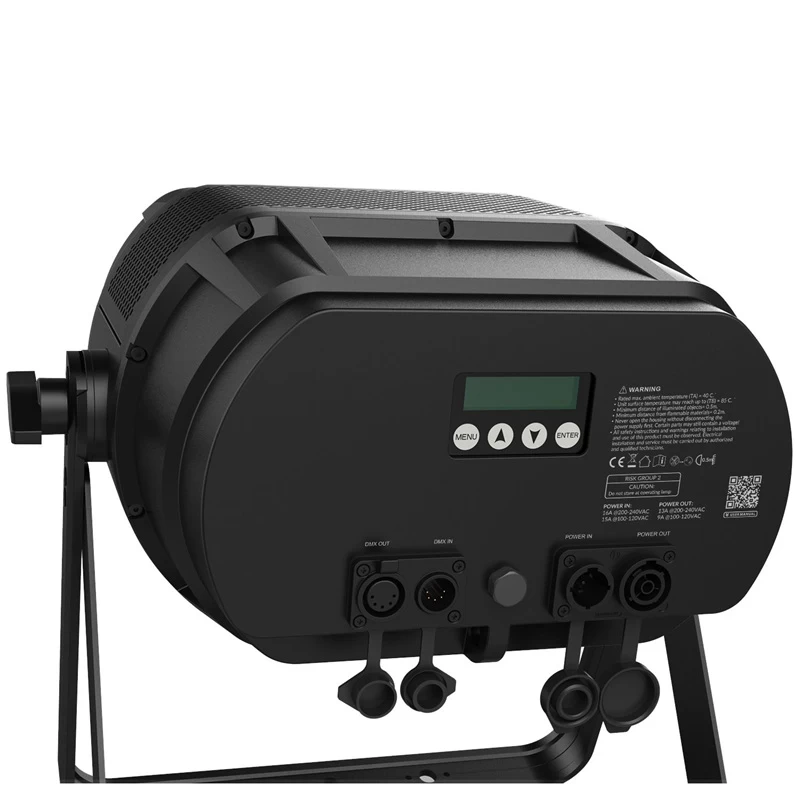

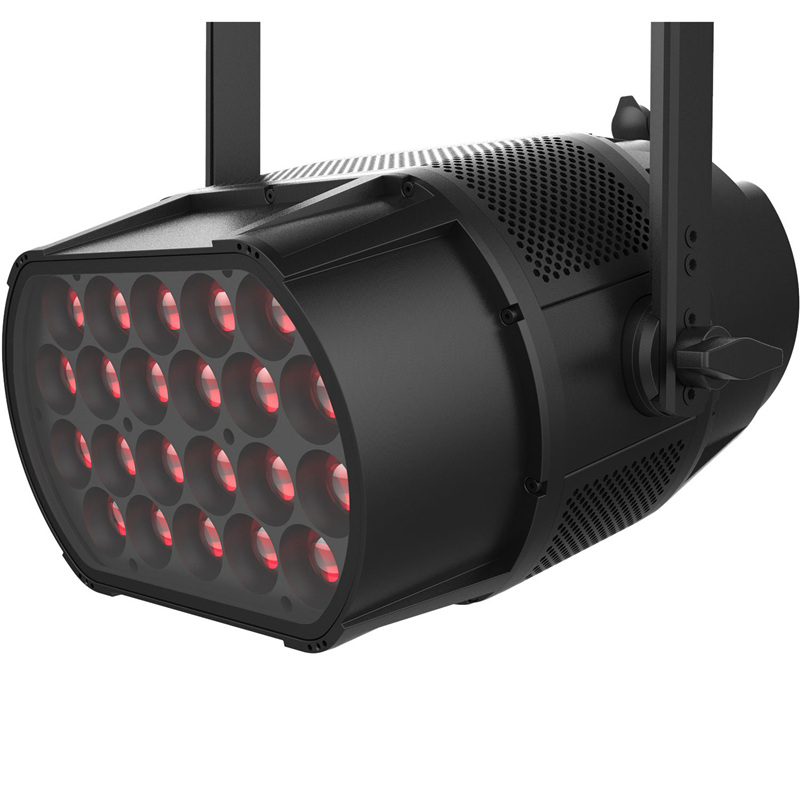

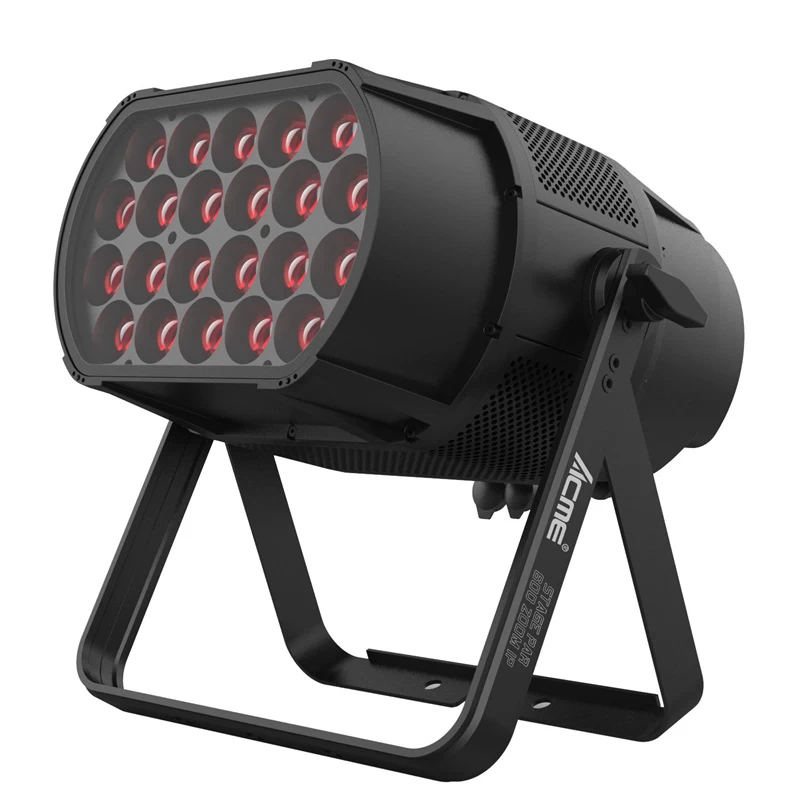

ACME ZOOM STAGE PAR Pictures
