Product Item:

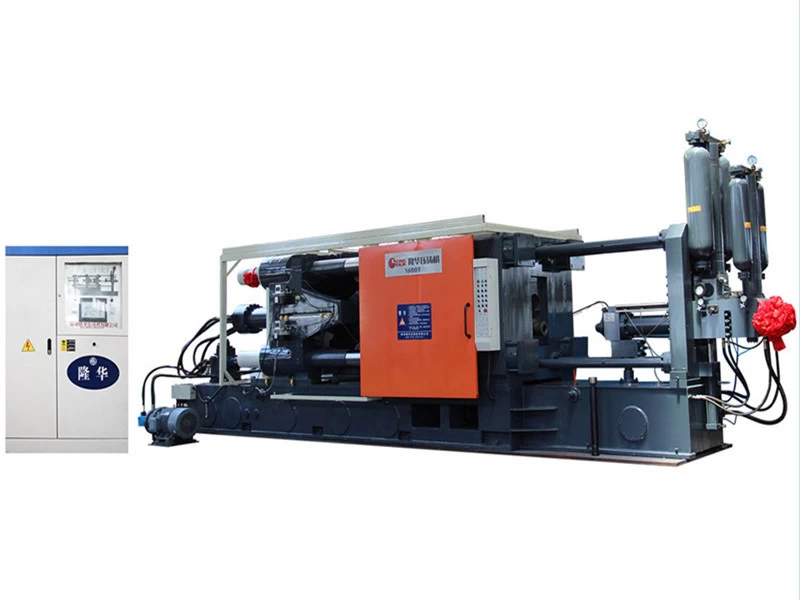

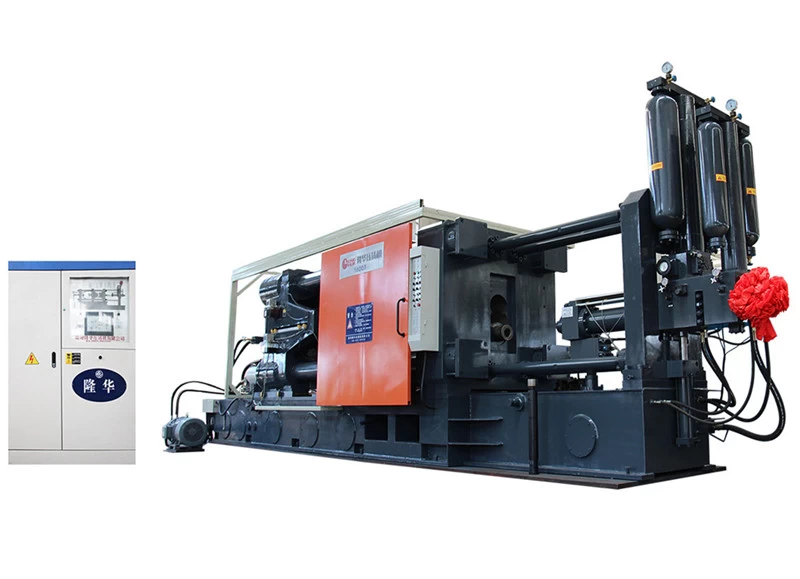

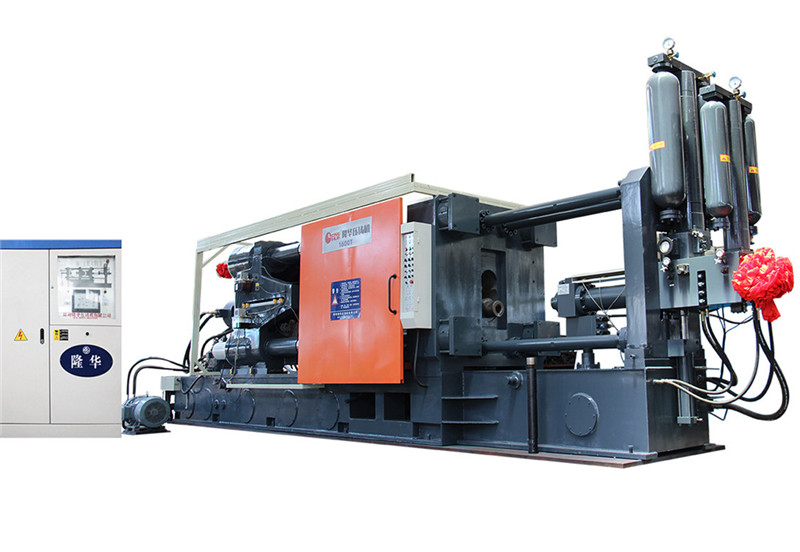

LH-1600T high quality die casting machine large scale casting industries machine
Product Description
This die casting machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.
LH SERIES OF STANDARD PARAMETER TABLE (LH-1600 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
16
|
|
CLAMPING FORCE
|
KN
|
16000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
1250*1250
|
|
TIE BAR DIAMETER
|
MM
|
￠260
|
|
DIE OPENING STROKE
|
MM
|
1200
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
1285
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
360
|
|
INJECTION POSITION
|
MM
|
--175 --350
|
|
PLUNGER DIAMETER
|
MM
|
￠110----￠150
|
|
INJECTION STROKE
|
MM
|
930
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
137---73
|
|
CASTING FIANGE PROTRUSION
|
MM
|
25
|
|
CASTING FIANGE DIAMETER
|
MM
|
260
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
|
