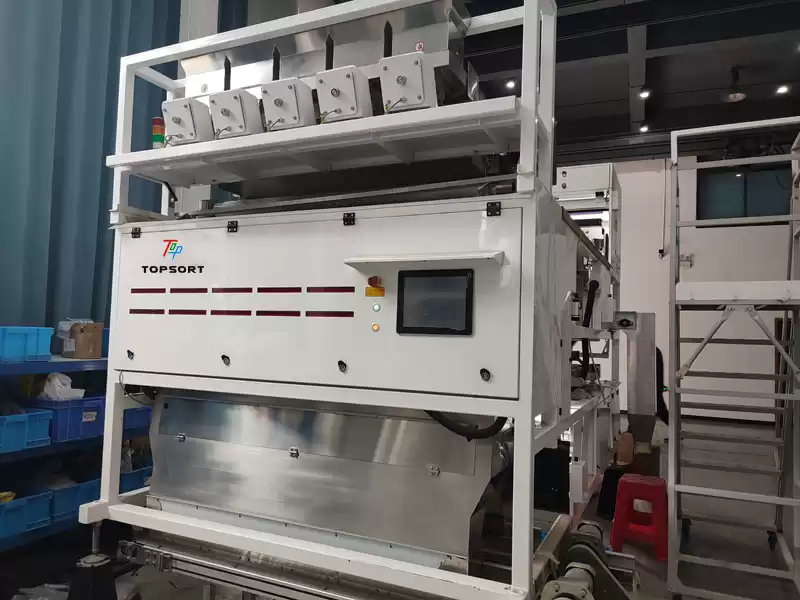

The fast belt-type ore machine TS5 is designed for the separation and purification of metallic and non-metallic ores in wet separation processes. TOPSORT wet sorting machine is perfectly suited to the sorting requirements of quartz ores, potassium feldspar, etc.
Efficient ore color sorter changes traditional beneficiation mode.The emergence of ore colour sorter machine has broken the traditional mineral processing bottlenecks such as re-election, flotation, magnetic separation and pickling. The ore sorting method is more scientific and environmentally friendly! Topsort Ore Color Sorting Machine, sorting ore by color, sorting a variety of ore efficiently, and realizing the “three highs” requirement of “high output”, “high efficiency” and “high precision” for ore sorting!
Good products naturally bring good benefits! Topsort Ore color sorter creates a new mineral processing mode for you, so that you can take a step faster and seize the new opportunity of the market!
Advantages of Topsort Color Sorter
1.The selection of various minerals by color and brightness, to achieve low cost.
2. The double-sided camera detects the material.The slightest difference in color and brightness (for example, in the selection, white/light gray and dark gray limestone, and different degrees of brown in quartz) can be reliably detected by the selection parameters.
3. The design of the far focal length can well protect the safety of the sorting box glass, and the dust will also be the principle glass, which can greatly reduce the number of cleaning. Let the machine run efficiently and stably.
4. The material is maximized by accurate detection and precise sorting. The Zhongke series products can be precisely adjusted according to the size of the materials to be selected, so that the injection of high pressure air is optimal.
5. Optimization of the suction components, automatic cleaning of the illumination source and long life of the compressed air components can reduce machine maintenance operations.
6. Wear-resistant steel, plus deoxidized steel, and some stainless steel effective protection, to ensure the durability of the machine.

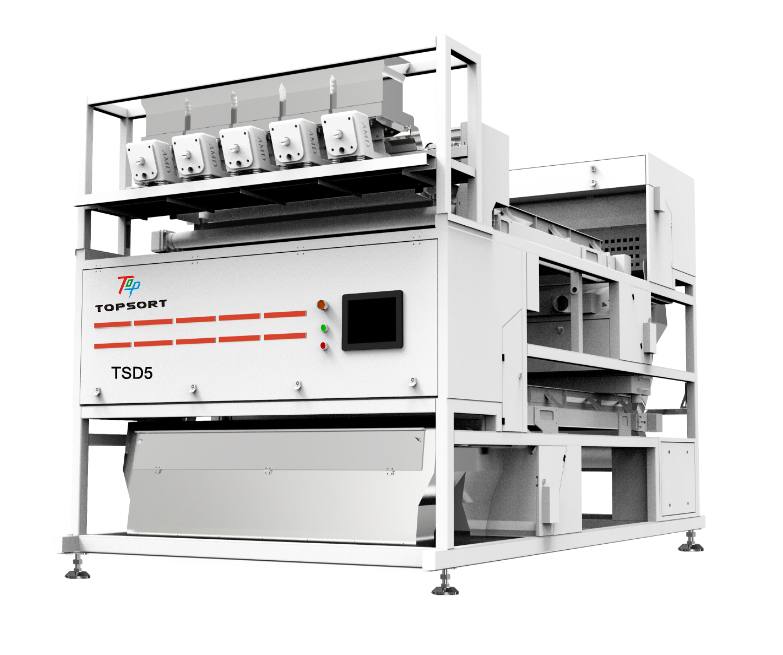

Crawler Mineral Color Sorter Technical Parameters
| Model |
TSD5 |
| Power |
16kw |
| Weight |
2830kgs |
| Dimensions |
3777*2183*2280mm |
| Power voltage |
380V/50HZ |
| Sorting accuracy |
99.99% |
| Capacity |
10-30mm:7-12t/h |
| Capacity |
30-50mm:9-15t/h |
| Air consumption |
<12m3/min |
| Air pressure |
0.6-0.8Mpa |

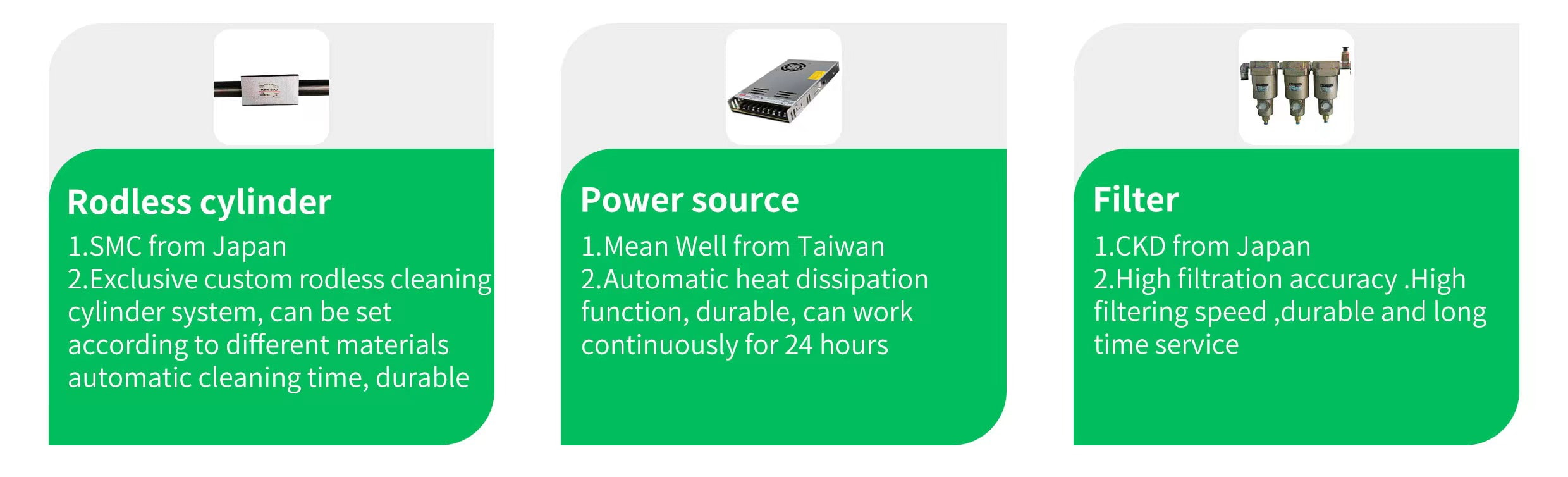

Mineral Color Separator Machine Core Components

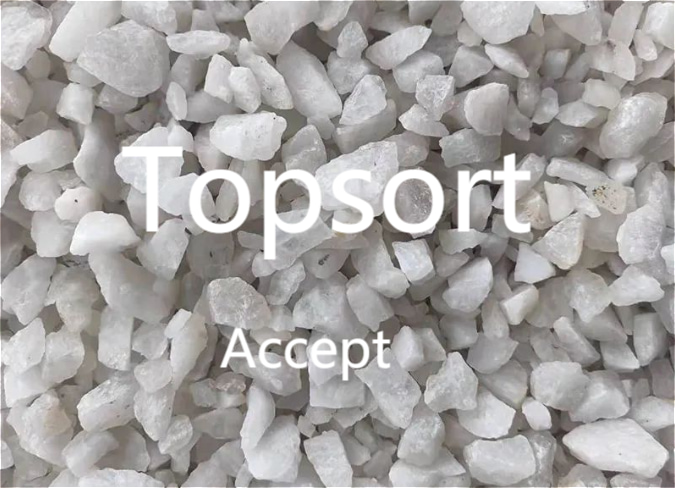

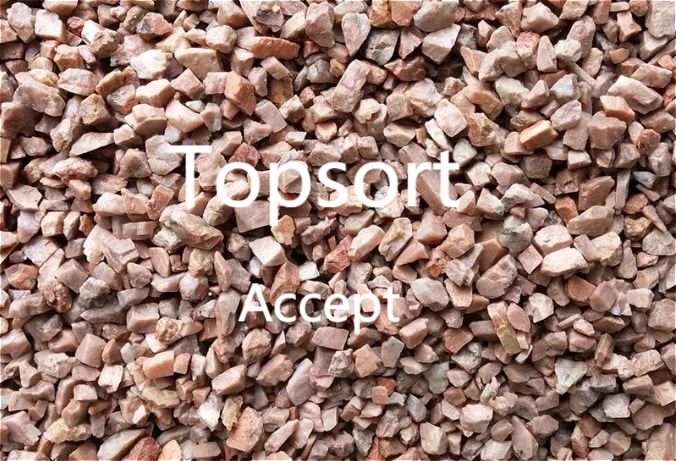

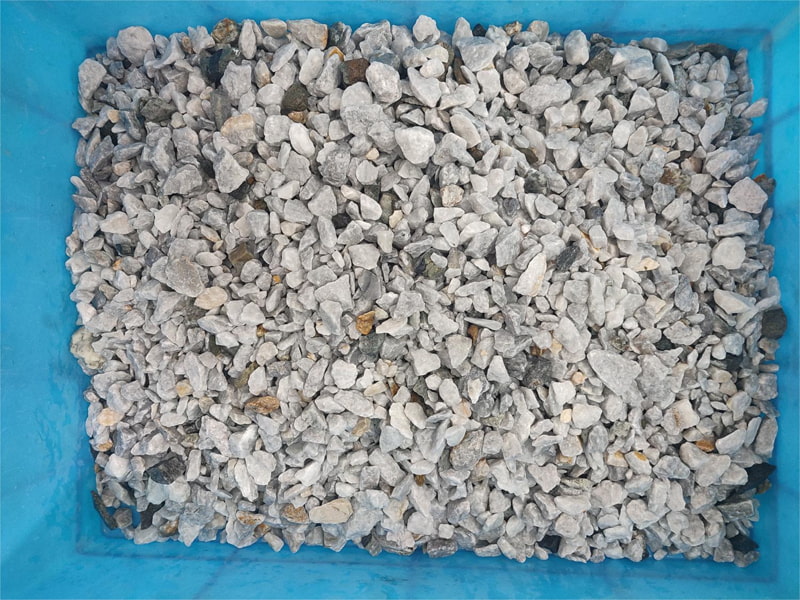

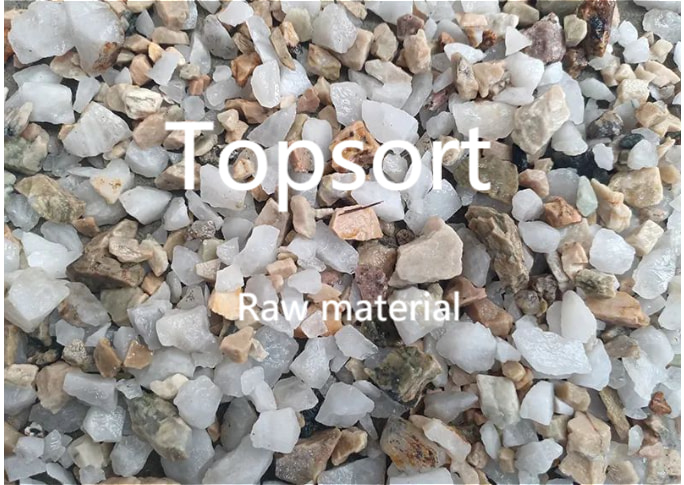

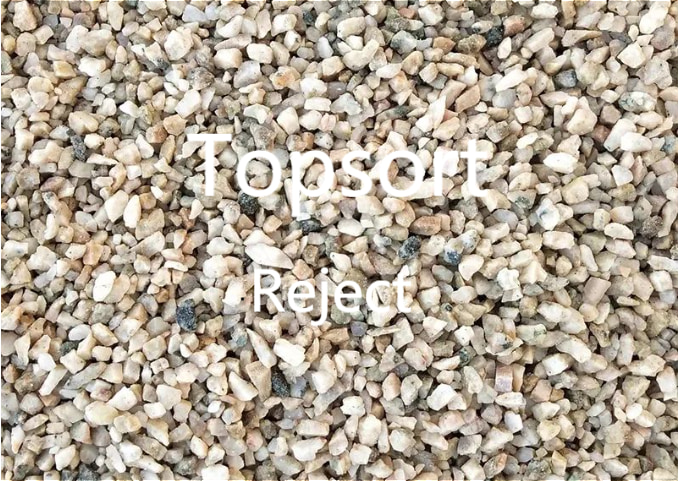

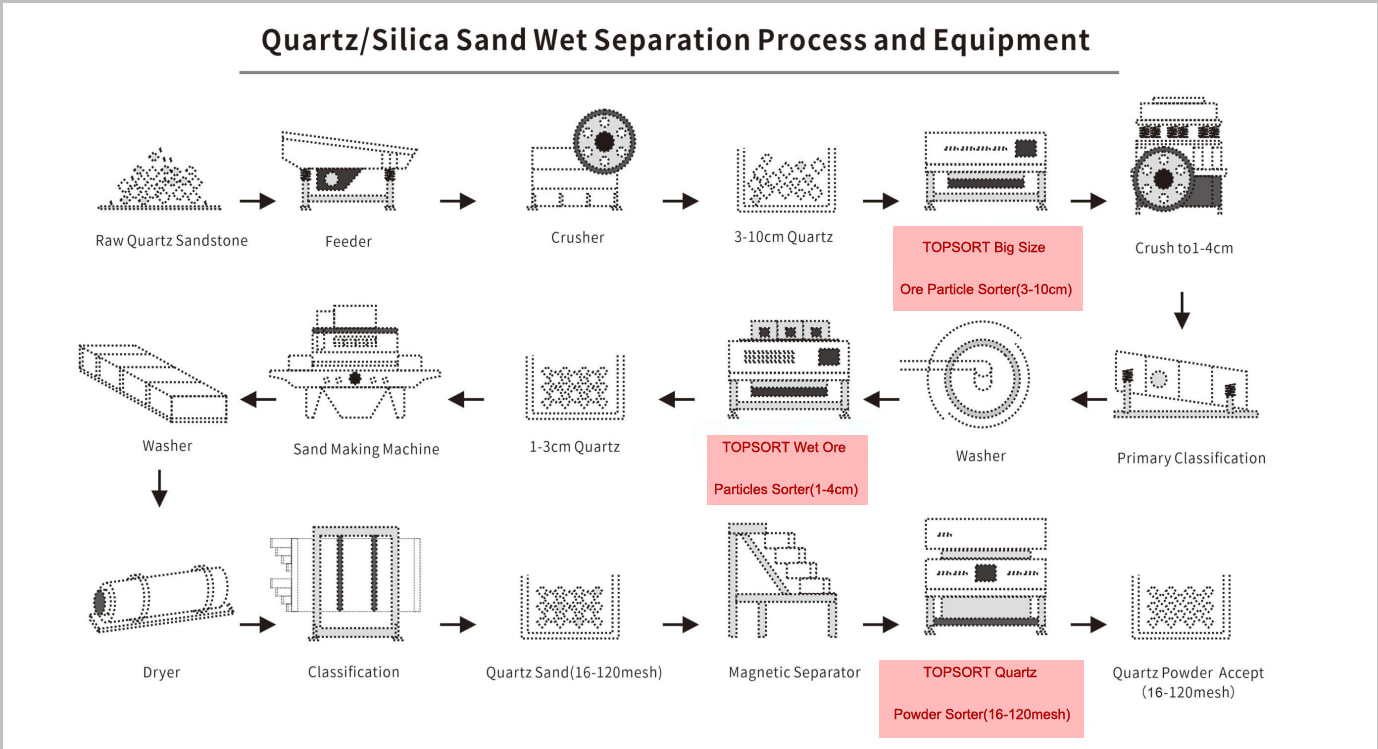

Sorting Solutions For Ore
Why Choose TOPSORT Color Sorter
Top technology
♣ Ultra HD imaging technology to see subtle defects with 4 times higher resolution；
♣ High computing power deep learning platform with 4 times more data processing power；
♣ Light source processing system, a unique three-color free switching background plate, the light source can be freely and flexibly switched, suitable for selecting different particles and sheet materials；
♣ Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking；
♣ Perfect after-sales service with big data + cloud interconnection.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote Control For Global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
Wealth Of Experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .
After Sales -service
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for two years;
5.Provide 7*24 hours consultation and urgent service for users.
