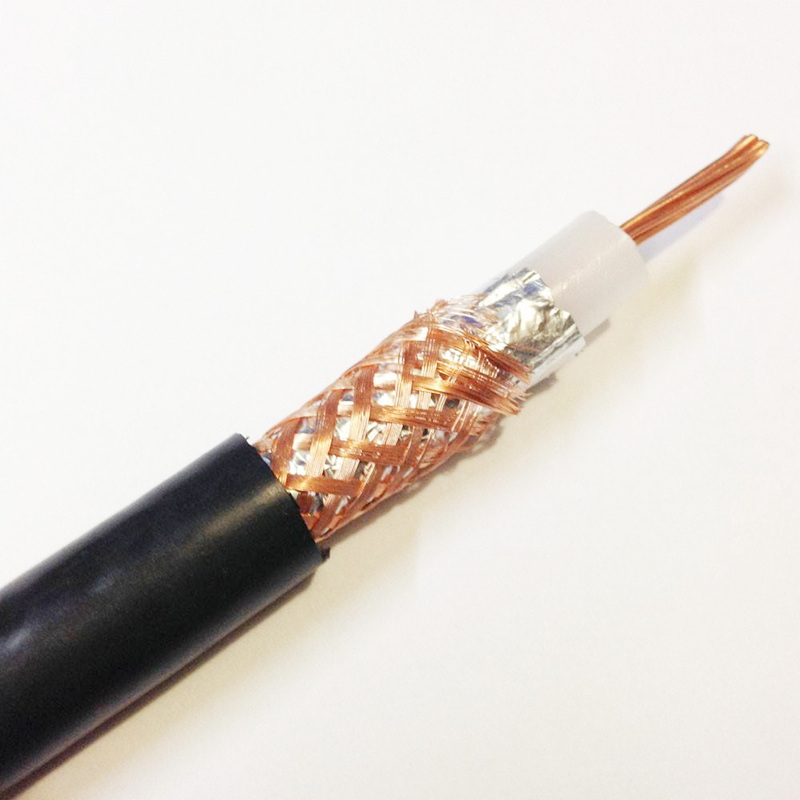

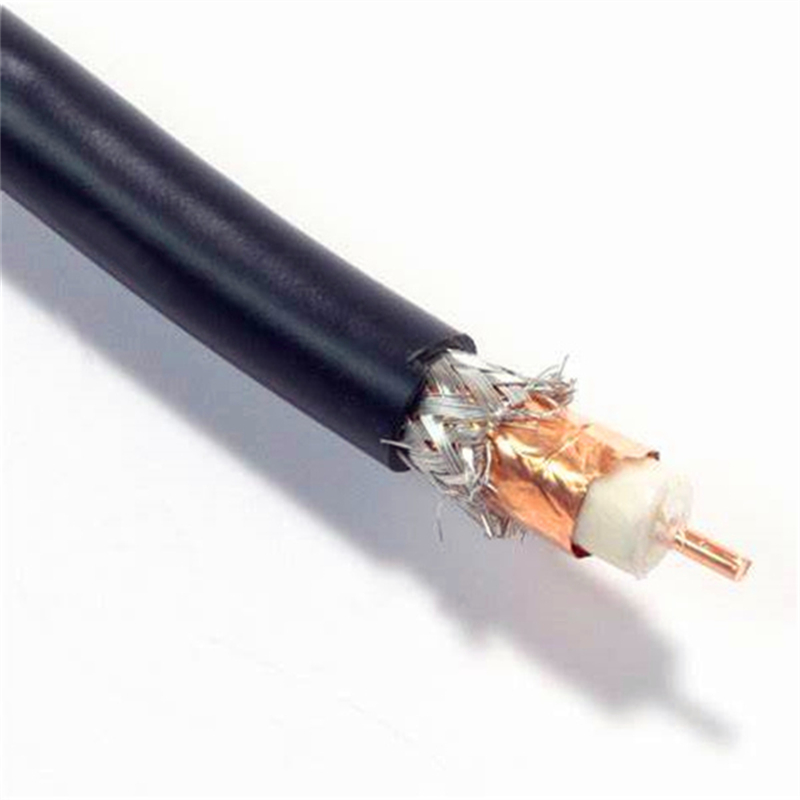

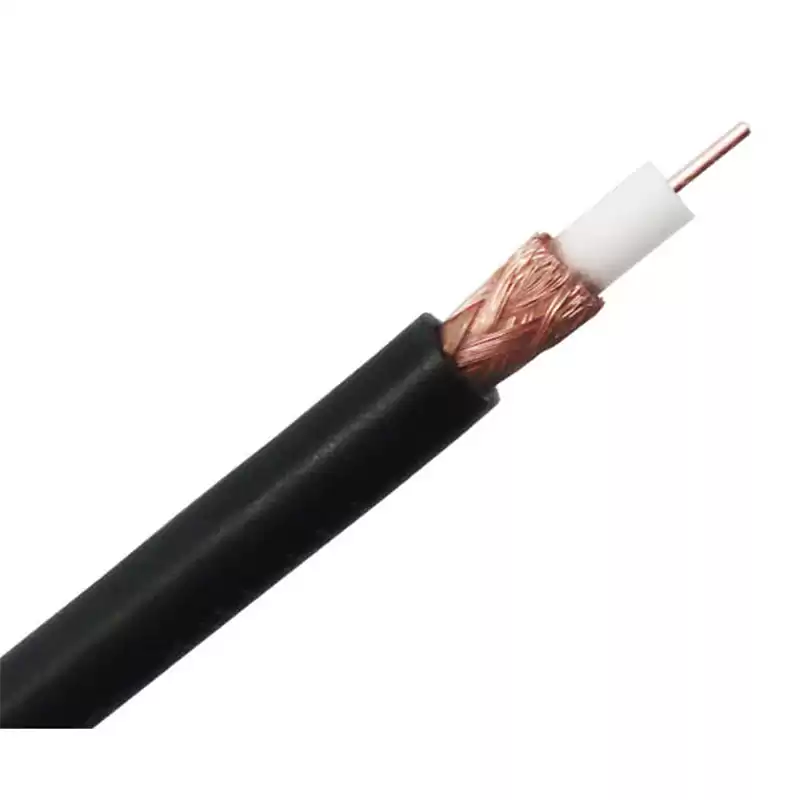

High Quality Factory SYWV75-5 Coaxial Cable
PRODUCTS NAME
High Quality Factory SYWV75-5 Coaxial Cable.
PRODUCTS KEYWORDS
Coaxial Cable, SYWV75-5, RG 6, RG 11, RG 59, CCTV cable, CATV cable, CT coaxial cable, Cable Television Connect Cable, factory cheap price.
PRODUCTS APPLICATION
High Quality Factory SYWV75-5 Coaxial Cable. Coaxial cable can be used for the transmission of analog and digital signals and is suitable for a variety of applications, among which the most important ones are television transmission, long-distance telephone transmission, short-distance connection between computer systems and local area networks. As a means of transmitting TV signals to thousands of households, coaxial cable has developed rapidly, which is cable TV. A cable TV system can load dozens or even hundreds of TV channels, and its transmission range can reach tens of kilometers. Coaxial cable has long been an important part of long-distance telephone network. Today, it faces increasingly fierce competition from optical fiber, ground microwave and satellite.
PRODUCTS FEATURES
High Quality Factory SYWV75-5 Coaxial Cable, can be divided into 2 kind of types, baseband coaxial cable and broadband coaxial cable. The coaxial cable has the follow features:
1. Excellent conductor medium, low attenuation and high signal transmission.
2. High performance physical foam insulation, low dielectric constant, small attenuation loss, and stable long-distance transmission.
3. The product has passed the ul444 certification and has excellent quality.
PRODUCTS RELATIVE-MERITS
High Quality Factory SYWV75-5 Coaxial Cable, advantages of coaxial cable: it can support high bandwidth communication on a relatively long line without repeater. However, their disadvantages are also obvious: first, they are large in size, and the diameter of the thin cable is 1.02mm, which requires a lot of space in the cable duct; Second, it can not bear entanglement, pressure and severe bending, which will damage the cable structure and prevent signal transmission; Finally, the cost is high, and all these disadvantages can be overcome by conventional network lines. Therefore, in the current LAN environment, many places can use network cable instead of coaxial cable.

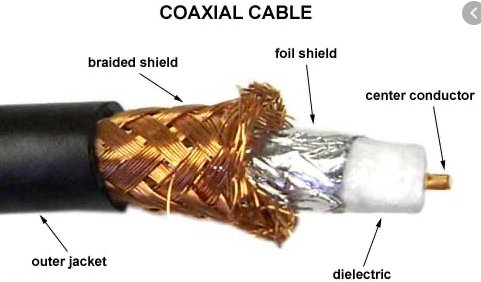

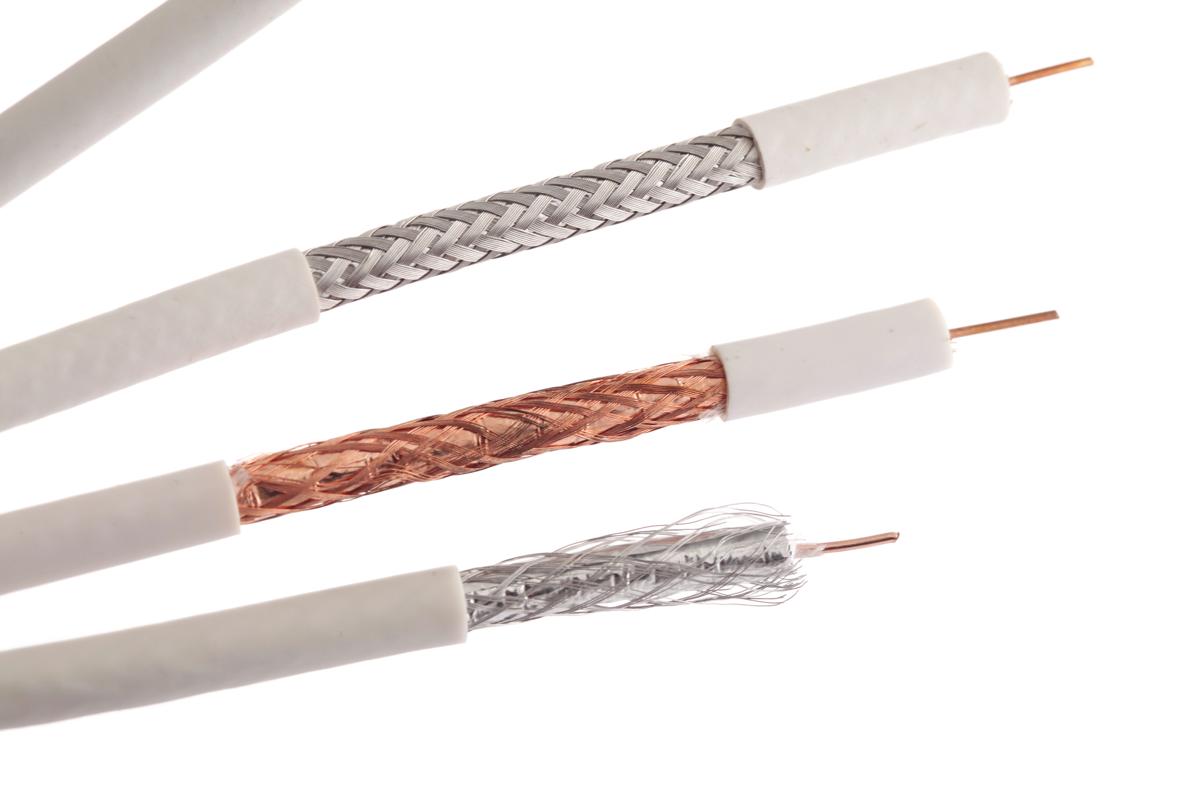

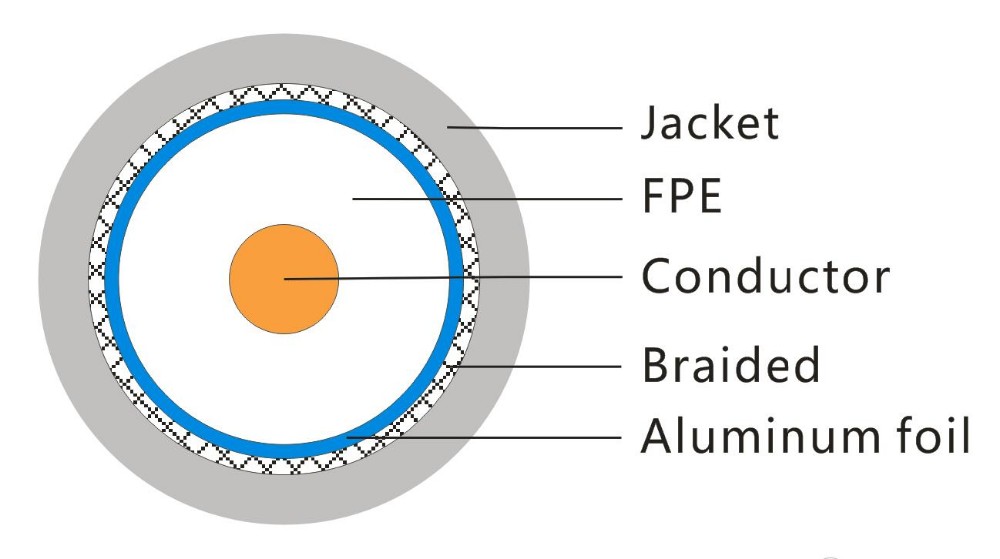

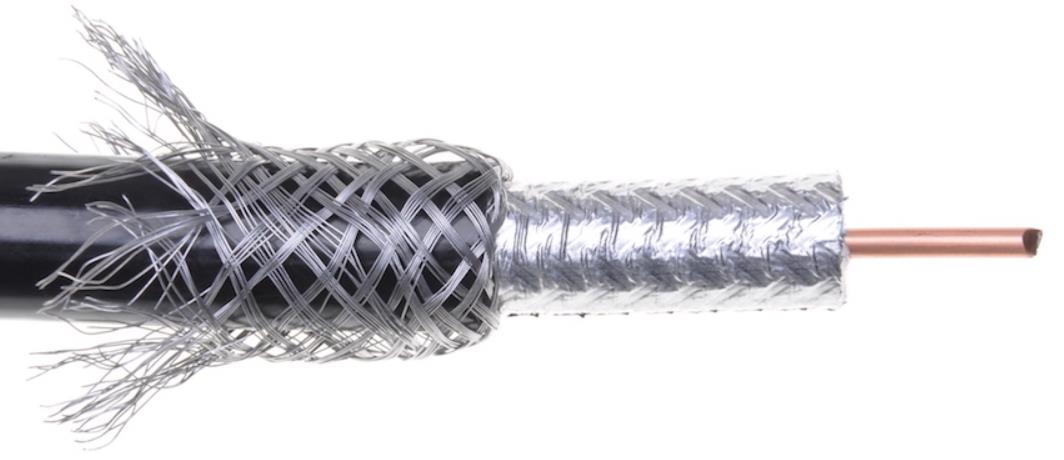

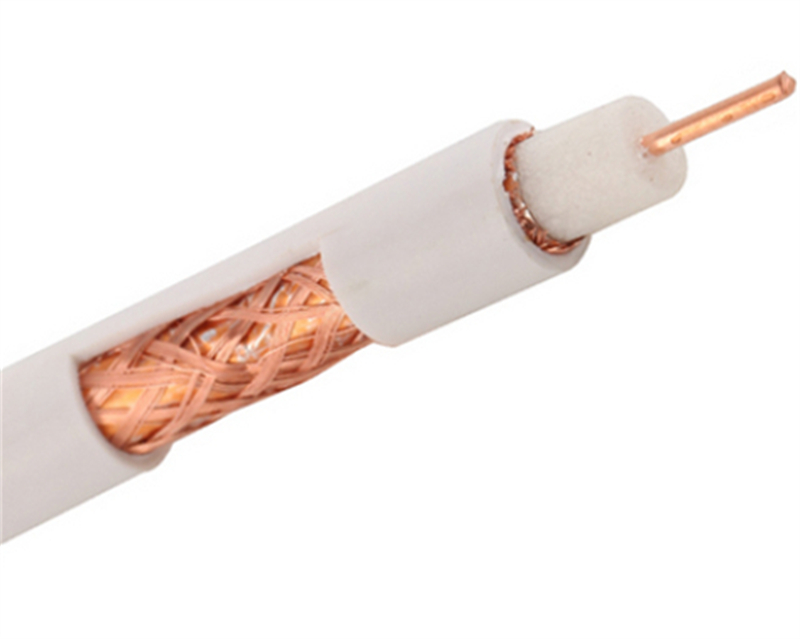

PRODUCTS STRUCTURER
High Quality Factory SYWV75-5 Coaxial Cable
1.Conductor Material: Plain annealed copper wire, solid Class 1.
2. Insulated Material: Foam PE (polyethylene).
3. Shielded Material: Aluminum Foil
4. Braided Material: Bare copper wire, or tinned copper wire.
5. Sheath Material: PVC (Polyvinyl Chloride).
PRODUCTS DIMENSIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
High Quality Factory SYWV75-5 Coaxial Cable.
|
|
Conductor Material
|
Plain annealed copper wires, Class 1.
|
|
Conductor Structure
|
1C x 1/1.02 mm.
|
|
Insulation Material
|
Foam PE (Polyethylene).
|
|
Insulation Thickness
|
1.89 mm.
|
|
Insulation Colour
|
white.
|
|
Shielded Material
|
Aluminum Foil, 100% coverage.
|
|
Braided Material
|
Bare Copper Wire, or Tinned Copper Wire; coverage: ≥70%。
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
1.20 mm.
|
|

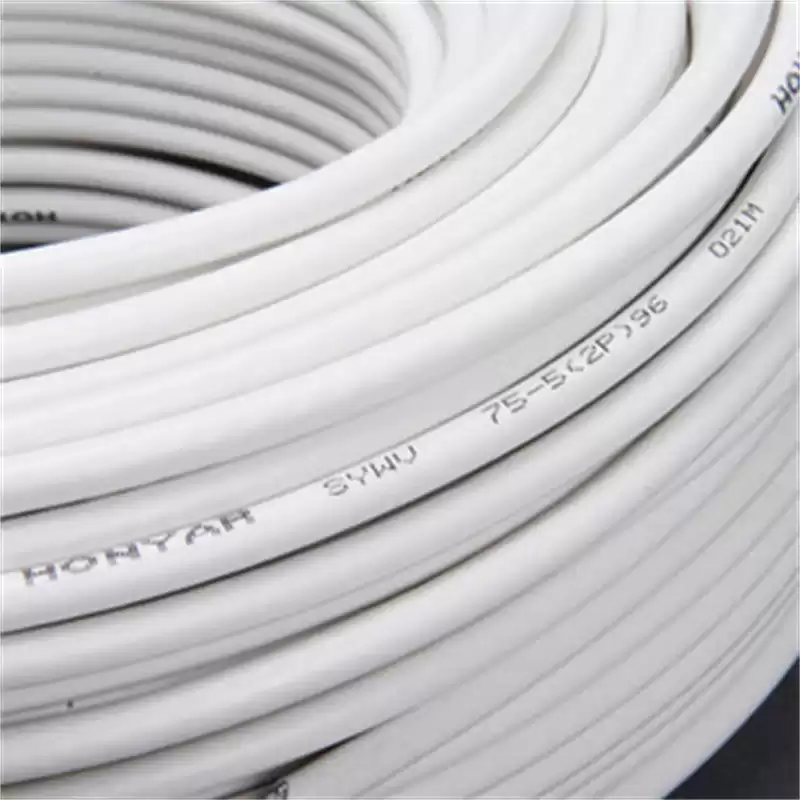

Sheath Colour
|
White, brown, orange, grey, blue, or black.
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
7.2 mm.
|
|
About Net Weight
|
40 kg/box.
|
|
Production Standard
|
GY/T 135-1998,UL444,EN 50117,JIS-C3501,MIL-C-17G.
|
|

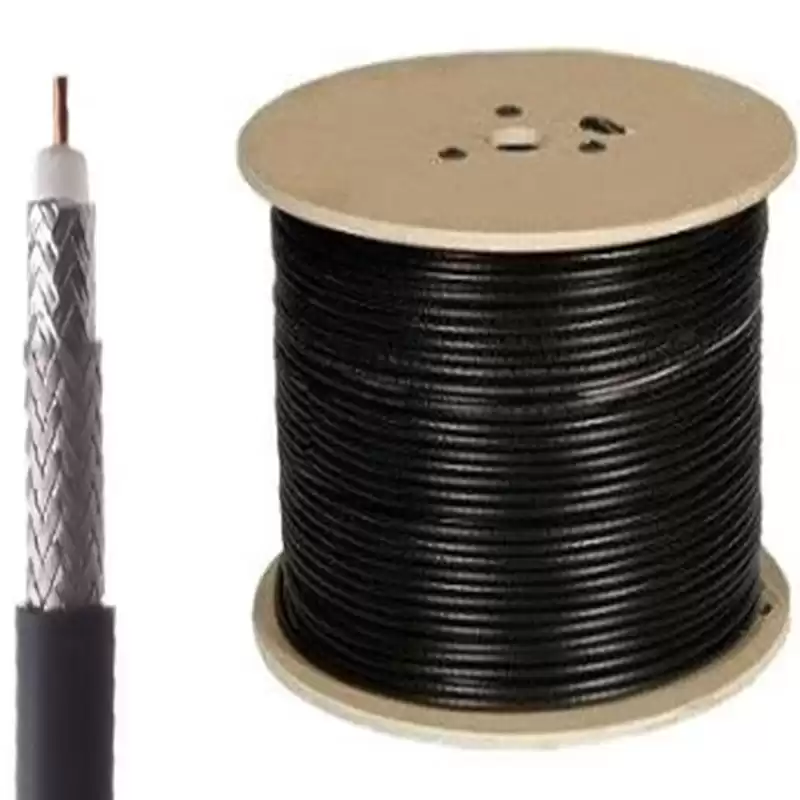

Packing Type
|
100 Meters per roll, the rolls will be loaded on Wooden Pallet;
the wooden pallet must be showed the IPPC logo.
|
