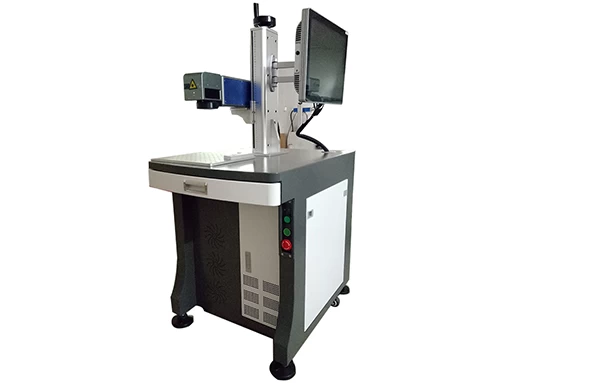

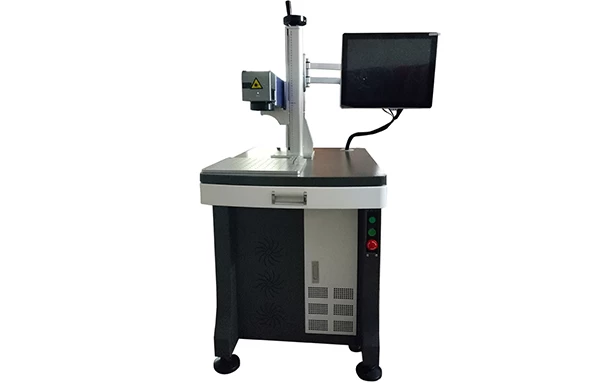

High Quality Fiber Laser Marking Machine 20W 30W 50W
Function:
Rapid etching of data or images onto metal and synthetic materials without the need for any pretreatment.
High speed fiber marking machine parameters:
|
Model
|
DS-FIBER20W
|
|
Laser
module
|
Maxphotonic
|
|
Laser
power
|
20W/30W/50W
|
|
Wave
length
|
1065±10nm
|
|
Beam
quality M2
|
<2
|
|
Laser
Repeat frequency
|
20KHz-100KHz
|
|
Stardard
Marking Scope
|
110*110mm , 200*200mm
|
|
Marking
Speed
|
≤7000mm/s
line speed
|
|
Marking
Depth
|
≤0.5
|
|
Minimum
Line Width
|
0.02mm
|
|
Mininum
character
|
0.15mm
|
|
Repeated
accuracy
|
±0.002mm
|
|
Overall
power draw
|
≤650W
|
|
Power
Supply
|
220V±10%
50Hz AC 4A
|
|
Cooling
Mode
|
Built-in
Air Cooling
|
|
Humidity
|
5%-75%
no dew
|
|
Temperature
|
10℃-35℃
|
|
Laser
module life
|
>50000hrs
|
|
Software
graphics
|
AutoCAD、Coreldraw、Photoshop
supports PLT、PCX、DXF、BMP
|
|

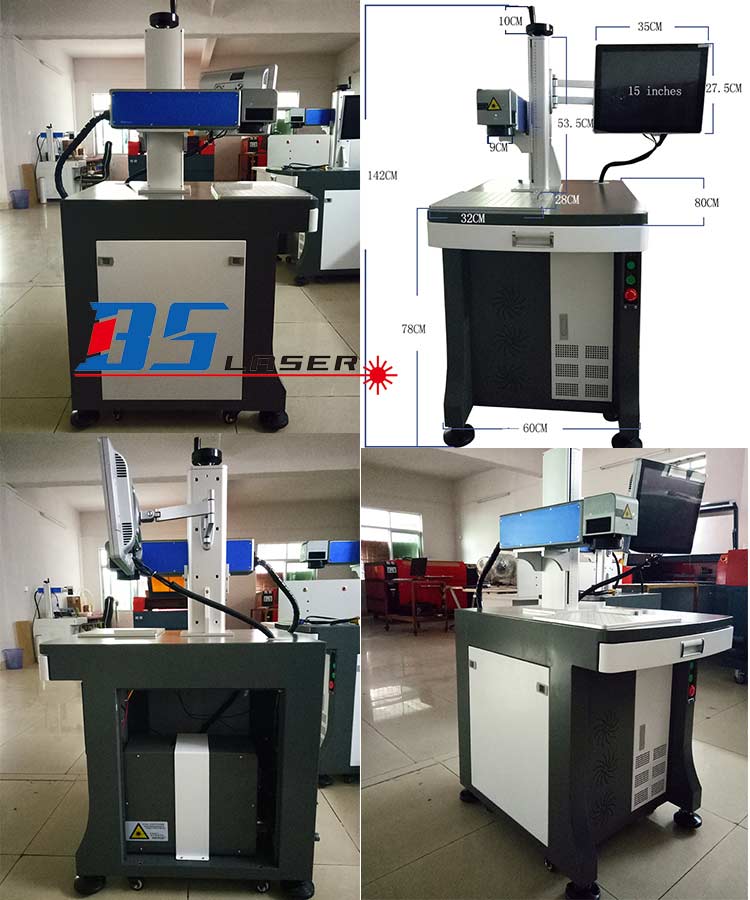

Dimension
|
L80*W60*H142CM Packing: L100*W85*H159CM
|
|
Applications
|
Series
numbers,bar code ,2D code.marks ,logo...
|
|
Advantages
|
Market No1 Max laser
cost-effective,no consumables very less maintenance,durable marking machine
by BSL laser company
|
Control operation software : In English ,By Beijing JCZ TECHNOLOGY CO.,LTD
Typical application area
The surface marking of metal and nonmetal or the finished product:such as
the stainless steel ,aluminum alloy,copper,brass,gold bullion ,ceramics ,synthetic
material,rubber and leather,harware & tools ,faucet ,clutch,bearing,bearing
bush ,gears ,spiracle ,piston ring ,sttel pipe ,steel plate.
Electronics circuit:The laser
printer of resistance capacitance ,inductance ,cry stal oscillator ,printed
circuit board,integrated circuit,computer keyboard,electrical access card
,mobile shell,wristwatch ,button ,various types of instruments and control
panel.
Suppllies and the clothing
industry:The marking of cosmetic,foodstuff,stationery ,brand-name
panels,product packing box color carton,a variety of paint products
cigarrets,craft and so on.
Products Features
1.Advanced high speed galvanometer scanning system.
2.Automatically generated date, time, serial number, and QR code marking.
3.All-in-One industrial computer ,compact and easier for trouble-shooting
4.Maintenance-free.no periodical consumables needed.
5.The rotating device has the functions of marking on plane, on arc and cylindrical objects.
6.Air cooling,no need water chiller. 220V 50Hz/60Hz
