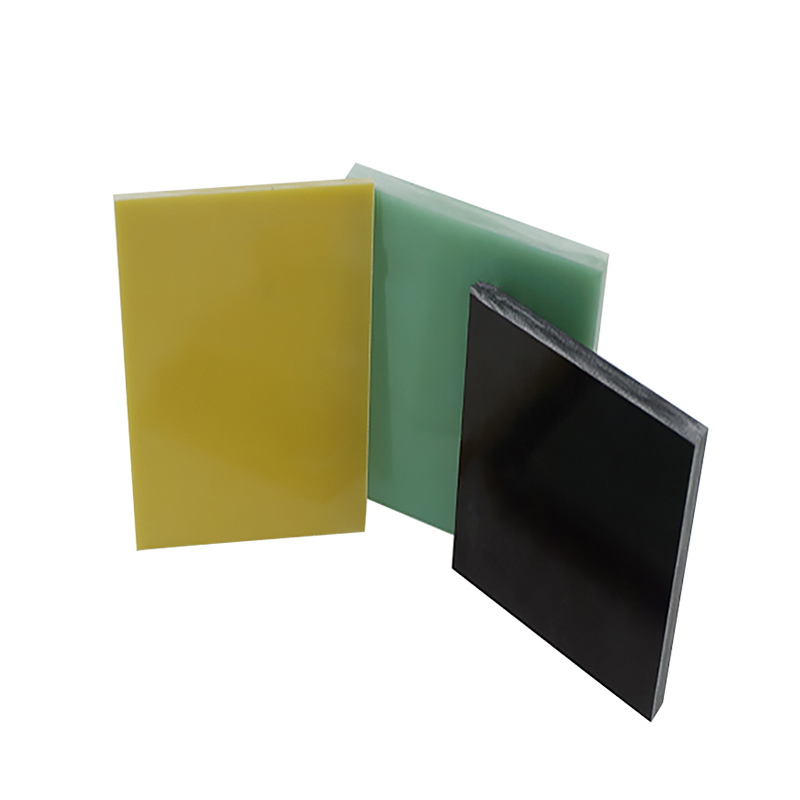

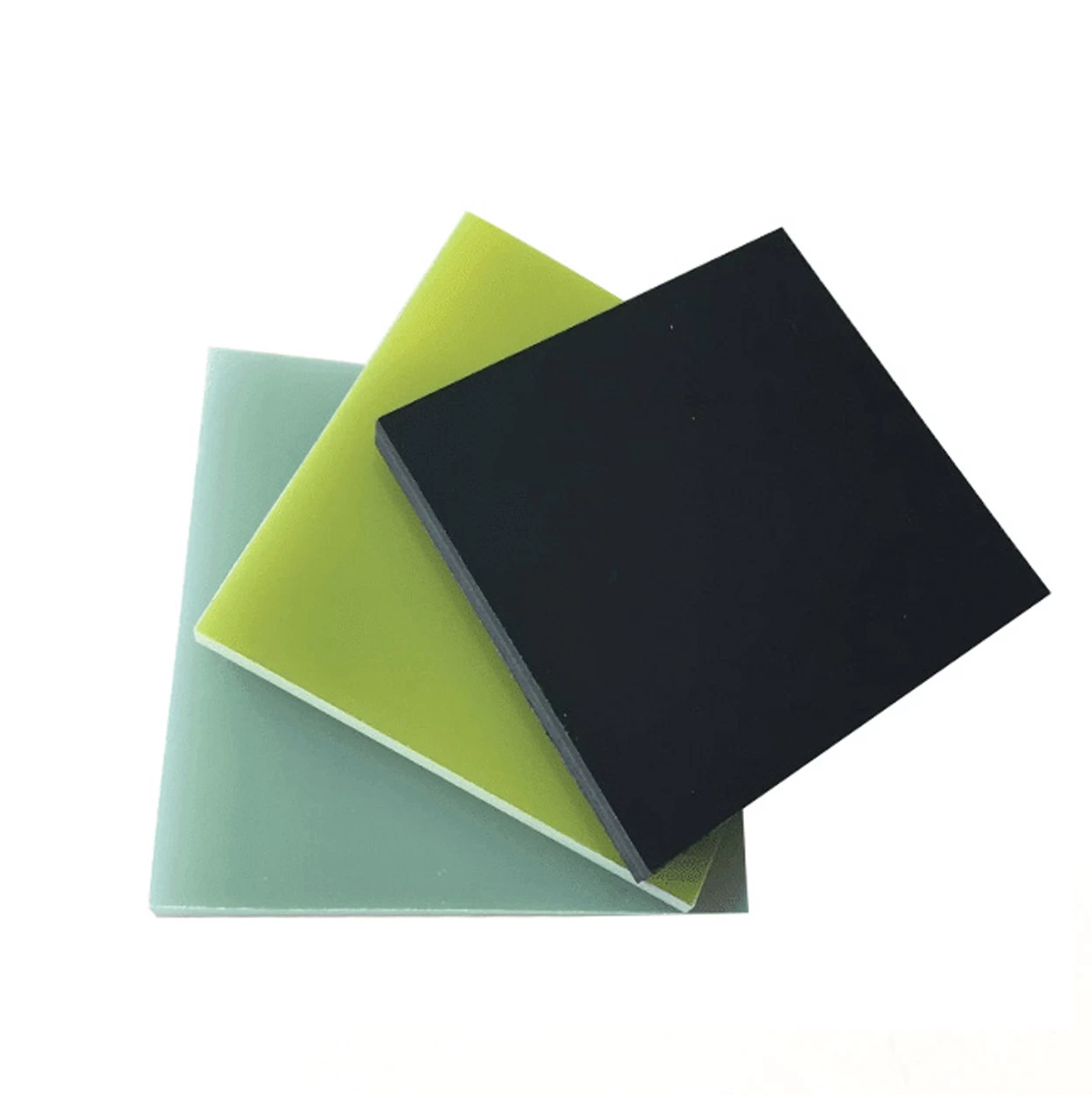

FR-4 green/yellow/black board is made of imported non-alkali glass fiber cloth impregnated with imported epoxy resin and flame retardant, adhesive, etc. Which by processing under pressure and heat,It’s rigid insulating laminated sheet.
The product has the following characteristics:
1. Rich variety and high accuracy tolerance
2. Excellent flame retardant (UL 94 V-0 Grade)
3. Excellent voltage resistance (electrical strength≥16Kv/mm)
4. Excellent resistance water absorbency (water absorption rate≤0.2%)
5. Excellent heat resistance (Class F)
6. Excellent thermal impact (operating temperature -273 ℃ to +155 ℃)
7. Excellent mechanical strength & Automatic Machining
8, RoHS, Reach certified products
FR-4 Laminates Sheet Technical Date sheet
|
Item
|
Test method
|
Unit
|
Typical Values
|
|
Physical
Properties
|
Color
|
Visual inspection
|
--
|
Light/Green/Yellow
|
|
Specific Gravity
|
IEC 60893-2:2003
|
g/cm³
|
1.90-2.15
|
|
Water absorption
|
ISO 62:2008
|
%
|
<0.3
|
|
Electrical
Proerties
|
Electric strenght ┴
|
IEC 60893-2:2003
|
KV/mm
|
≥14(3.0mm)
|
|
Breakdown Voltage //
|
IEC 60893-2:2003
|
KV
|
≥60
|
|
Volume Resistivity
|
IEC 60893-1980
|
Ω.m
|
≥1.0*10¹²
|
|
Surface Resistivity
|
IEC 60893-1980
|
Ω
|
≥1.0*1014
|
|
(1 MHZ)Dielectric constant
|
IEC 60893-2:2003
|
--
|
4.0-5.5
|
|
(1 MHZ)Dissipation Factor
|
IEC 60893-2:2003
|
--
|
0.04-0.05
|
|
Proof Tracking Index PTI
|
IEC 60893-2:2003
|
V
|
≥200
|
|
Insulation resistance after immersion 24Hrs in Water
|
IEC 60893-2:2003
|
Ω
|
≥5*1010
|
|
Mechanical
Properties
|
Flexural Strength ┴
|
IEC 60893-2:2003
|
Mpa
|
≥340
|
|
Charpy Impact strength //
|
IEC 60893-2:2003
|
KJ/m2
|
≥60
|
|
Tensile Strength
|
IEC 60893-2:2003
|
MPa
|
≥300
|
|
Bond Strength//
|
IEC 60893-3-4:2003
|
N
|
≥8000
|
|
Compressive Strength┴
|
IEC 60893-2:2003
|
MPa
|
≥350
|
|
Flame
Resistance
Properties
|
Flame resistance
|
IEC 60893-2:2003
|
--
|
V-0
|
|
Temperature Index
|
IEC 60085:2004
|
°C
|
155
|
|
Toxicant Content
|
E662
|
--
|
Low
|
|
Others
|
Acetone Resistance
|
boiled
|
Min
|
30(OK)
|
