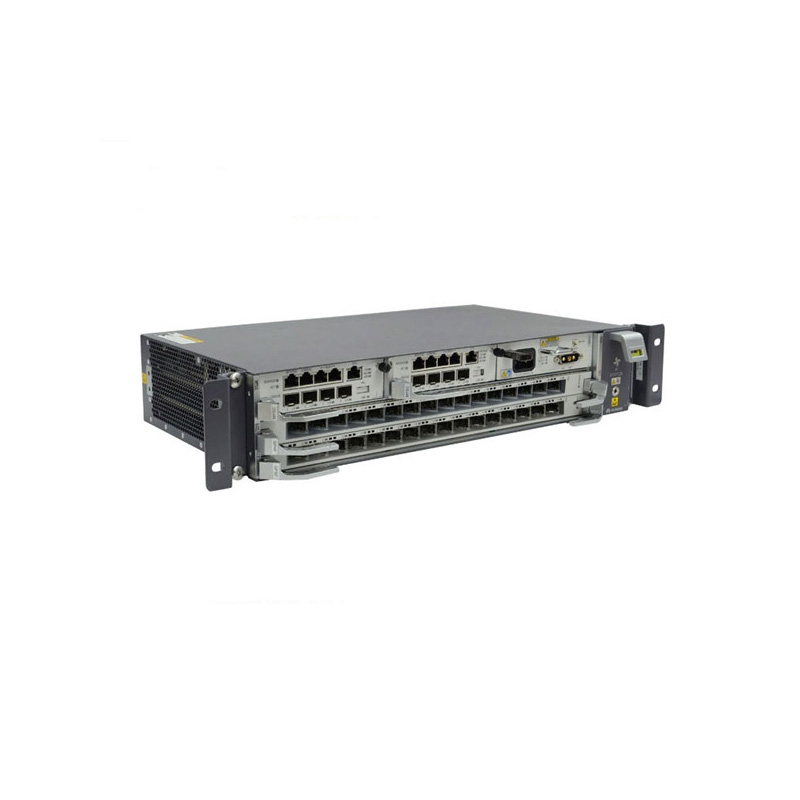

High quality Huawei OLT MA5800-X2 GPON OLT optical line terminal
Product Description
TheMA5800 is the industry's first intelligent aggregation OLT with a distributed architecture that is positioned as the next-generation OLT for NG-PON. The product is designed to help operators create networks with more bandwidth, higher speeds and smarter connectivity with better service.
The OLT terminal provides access to GPON, 10G PON, including XG-PON and XGS-PON, and P2P 10GE/GE. It supports deployment in FTTH, FTTD, FTTB, and FTTC networks , and is applicable in scenarios such as home access, enterprise access, and wireless Internet access to combine all services into a single fiber network. The MA5800 functions as a high capacity aggregation device in the network.
By aggregating traffic from ONTs, MDUs and campus switches, it simplifies the network architecture.
Huawei SmartAX MA5800 X2 OLT is the industry’s first distributed architecture intelligent aggregation OLT platform, positioned as the next-generation OLT for NG-PON. The MA5800-X2 has three characteristics of ultra-wideband, full convergence, and intelligence to meet the needs of the development of ultra-wideband networks that are wider, faster, and smarter, and to provide users with a better business connection experience. Help customers build a “broader, faster, smarter” access network to provide a better business experience.
|
Item
|
Specs
|
|
Without hanging size (width x depth x height)
|
442 0mmx268.7mmx88.1mm
|
|
With IEC specifications hanging size (width * depth * height)
|
482 6mmx268.7mmx88.1mm
|
|
With ETSI specifications (width * depth * height)
|
535.0mmx268.7mmx88. 1mm
|
|
Full weight (with IEC mounting ears)
|
9.4kg
|
|
Power supply
|
DC (dual power backup) turbulence + battery backup
|
|
Rated voltage
|
AC power supply: 110V/220V
|
|
DC power supply: -48V/-60V
|
|
Operating voltage range
|
DC power supply: -38.4V ~-72V
|
|
AC power supply: 100V ~ 240V
|
|
Maximum input current per channel
|
DC power supply: 20A
|
|
AC power supply: 8A
|
Product Details
Our Advantages
We have Huawei MA5800 X2 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei MA5800 X2, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei MA5800 X2 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
