High Quality Humidifier Circuit Board Pcb Assemblies Service

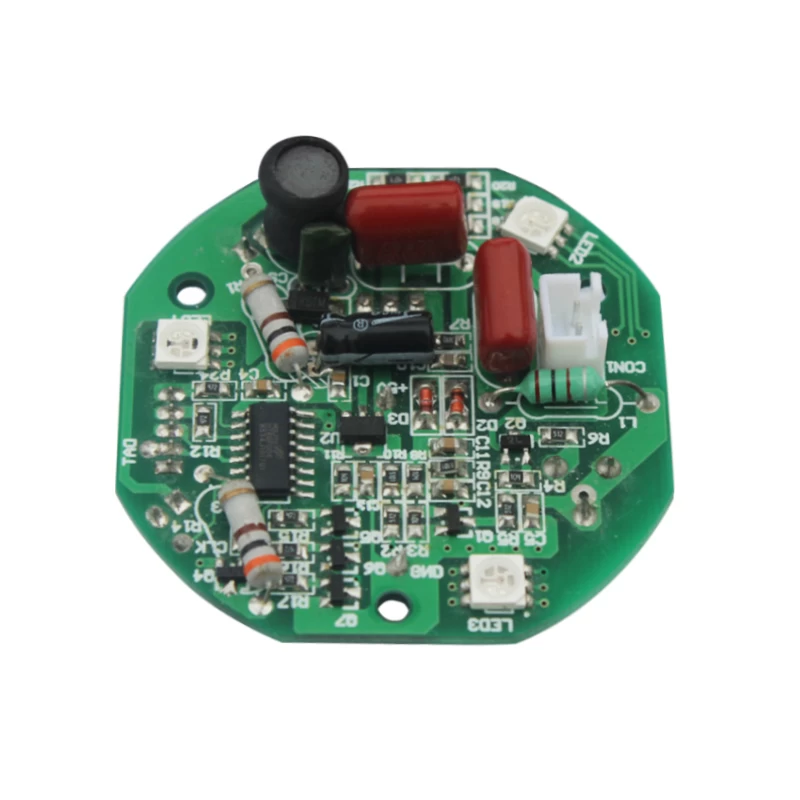

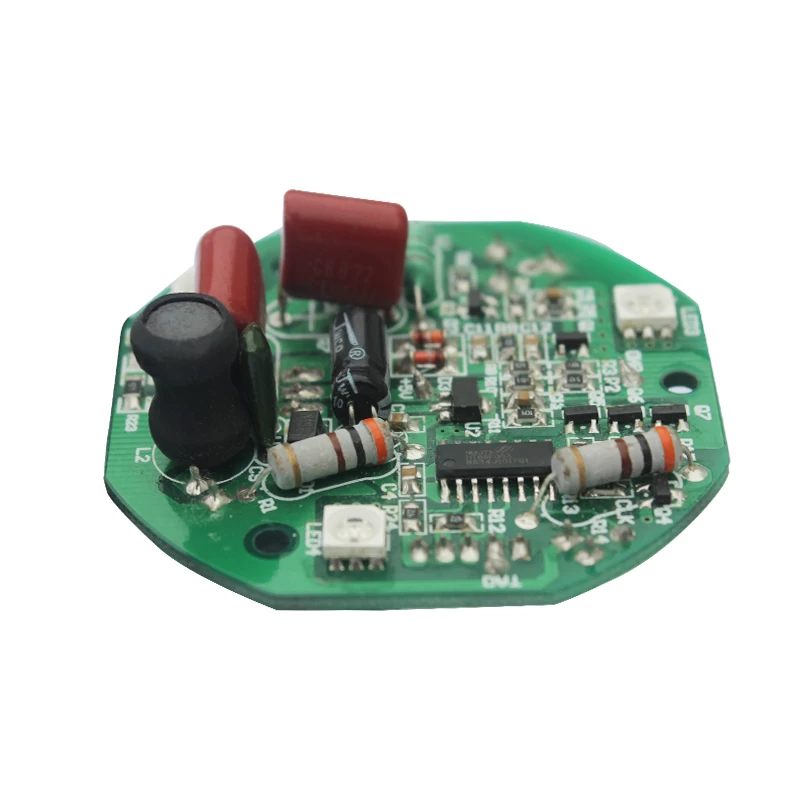

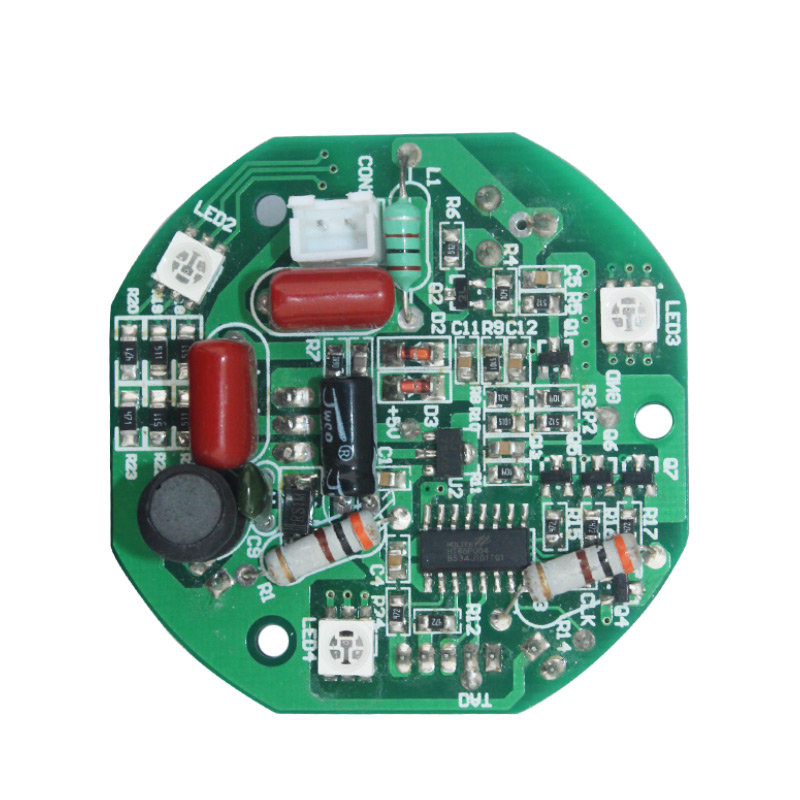

Humidifier control board pcb assembly turnkey

Increase air humidity: it can effectively increase indoor humidity, moisten dry air and make the air fresh




Humidifier control pcb assemblies service

1. Layers:  Single Sided,2 to 18 Layer

2. Board material type:  FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more

3. Compound material lamination:  4 to 6 layers

4. Maximum dimension: 610 x 1,100mm

5. Dimension tolerance: ±0.13mm

6. Board thickness coverage: 0.2 to 6.00mm

7. Board thickness tolerance:  ±10%

8. DK thickness:  0.076 to 6.00mm

9. Minimum line width:  0.10mm

10. Minimum line space:  0.10mm

11. Outer layer copper thickness: 8.75 to 175µm

12. Inner layer copper thickness: 17.5 to 175µm

13. Drilling hole diameter (mechanical drill): 0.25 to 6.00mm

14. Finished hole diameter (mechanical drill): 0.20 to 6.00mm

15. Hole diameter tolerance (mechanical drill): 0.05mm

16. Hole position tolerance (mechanical drill): 0.075mm

17. Laser drill hole size: 0.10mm

18. Board thickness and hole diameter ratio: 10:1

19. Solder mask type: Green, Yellow, Black, Purple, Blue, White and Red

20. Minimum solder mask: Ø0.10mm

21. Minimum size of solder mask separation ring: 0.05mm

22. Solder mask oil plug hole diameter: 0.25 to 0.60mm

23. Impedance control tolerance: ±10%

24.Surface finish: Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger



Humidifier control panel:

It works by heating water to 100 degrees in a heated body to create steam, which is sent out by a fan. So electric heating humidifier is the easiest way to humidify



Humidifier control panel pcb assembly production process:

1. Driil

2. PTH line

3. Image transfer

4. Cu Tin plated

5. Etching

6. Soldermask

7. Silkscreen

8. Surface finish

9. Routing

10. Testing

11. Packing


Humidifier control panels features:

1. stable and reliable performance, and can obtain higher humidification control accuracy.


2. The electric heating tube is designed with low power response rate and density, and adopts special scale inhibition treatment, so it has a long service life.


3. The water surface decontamination (foam) device removes the mineral impurities floating on the water surface and removes the surface dirt to the maximum extent. The water tank is equipped with special solenoid valve, which can control the drainage regularly, and can completely remove the minerals and impurities.


4. Minimum maintenance work. Scientific and technological achievements are adopted to solve the problem of internal scaling.


5. Safe circuit design, three-level circuit protection: short circuit, overheating, leakage protection function to avoid the user's worry. Anti-dry burning design. When the heating element is out of the water, the anti-dry burning device is started and the power is cut off to protect the heating element from being damaged.
