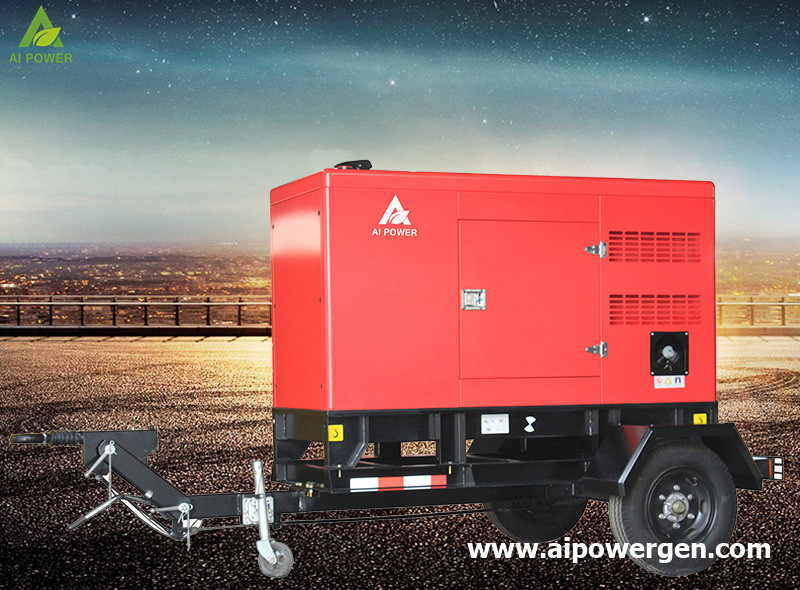

High Quality Korea Doosan Diesel Generator 250kva 200kw Portable Generator Set With Doosan Engine P126TI

Doosan Diesel Generator 250kva 200kw With Doosan Engine P126TI



Product Description

High Quality Korea Doosan Diesel Generator 250kva 200kw Portable Generator Set With Doosan Engine P126TI

AI power Doosan series generator set adopts Doosan engine as the power source. Doosan group founded in 1896 is one of the largest consortium in Korea. Doosan started producing diesel engines for the first time in 1958. Doosan went into full production under the license of MAN technology in 1975, and ISUZU technology in 1979. Furthermore, Doosan began to produce the CNG engine in 1998, so our reinforced line up from Diesel engine to Natural Gas engine could supply more choices and meet the various needs of our customers. Doosan acquired Daewoo Machine in 2005 to strengthen the ability of designing and producing the engine.

Engine:

Engine manufacture
Doosan Infracore Co., Ltd
Engine brand
Doosan
Engine model
P126TI
Engine speed (rpm)
1500
Engine Standby Power
272
Engine Prime Power
241
Engine Type
4-Cycle, In-line, 6-Cylinder, water cooled, Turbo charged & intercooled
Bore x Stroke (mm)
123 x 155
Displacment (litre)
11.051
Compression Ratio
17.1:1

Alternator:

Alternator brand
Stamford
Alternator model
UCDI274K
Control system
Self excited
A.V.R.
Included
Voltage regulation
±1%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
12
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings prime(kva/kw)
250/200
Output ratings standby(kva/kw)
275/220
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single
Product Details
1.Control panel
2.High quality 3P Circuit breaker and terminal output
3.Strong hoisting structure
4.Durable stainless steel hinges

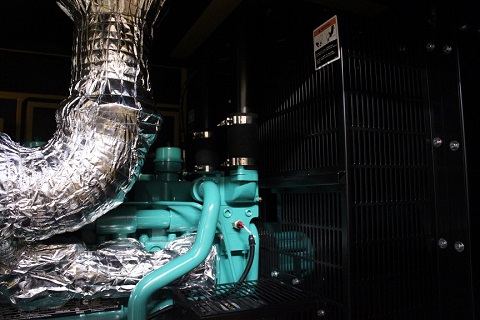

5.High performance exhaust silencer
6.Radiator coolant refill
1.Assembled by Doosan diesel engine and high quality branded alternator.
2.Radiator and fan with safety guard, or heat exchanger.

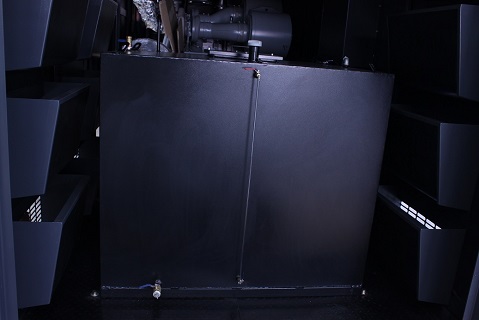

3.Heavy duty steel base frame with great capacity fuel tank for options.
4.Vibration damping supports between engine/alternator and base frame.
5.Heavy duty industrial type exhaust silencer with flexible bellow.
6.High capacity sealed lead acid battery with battery cable.
7.Intelligent control panel, Deepsea or Comap brand for options.

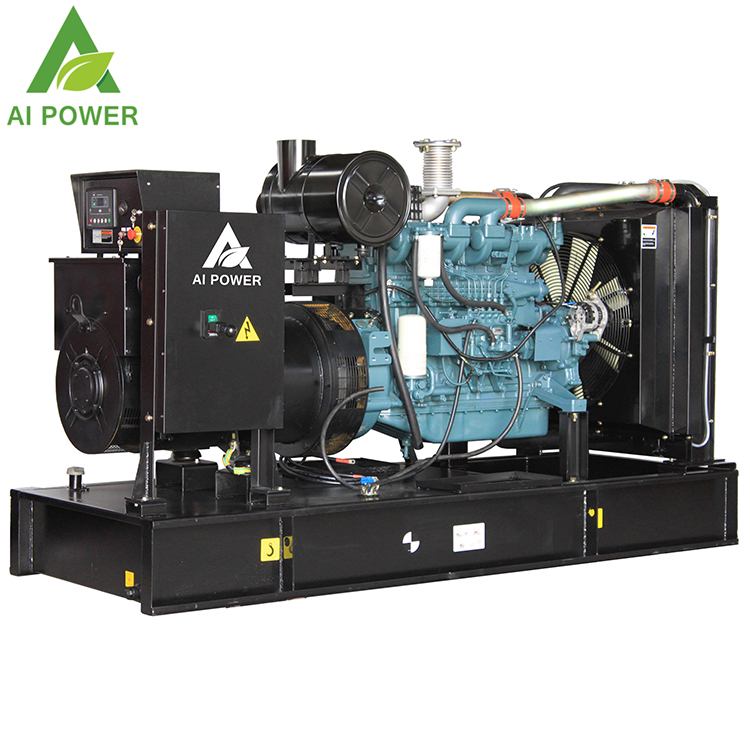

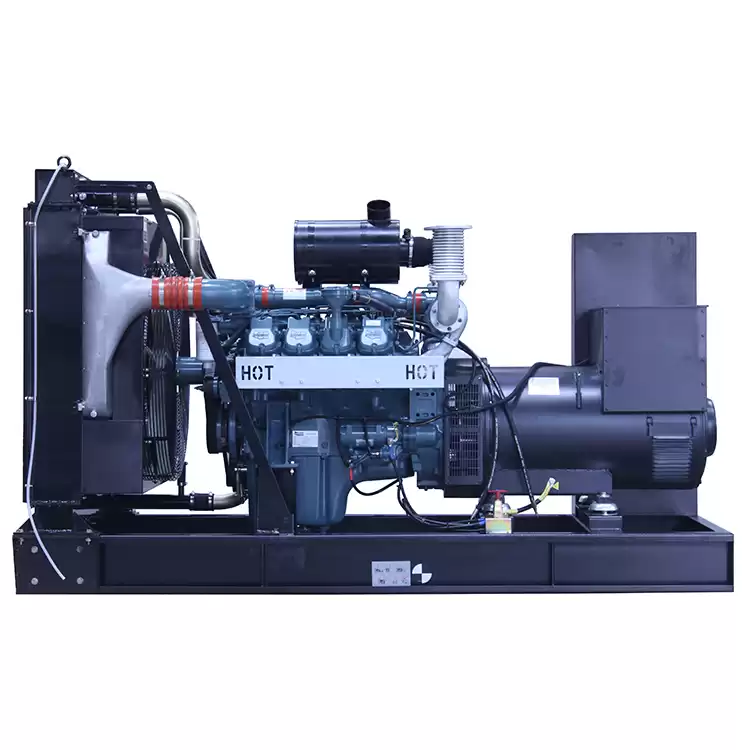

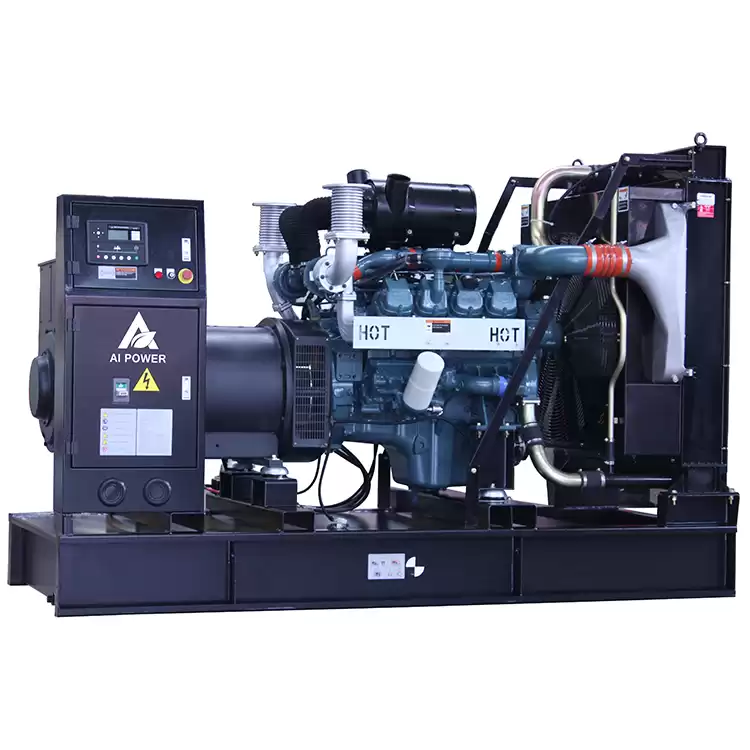

Open Type.
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

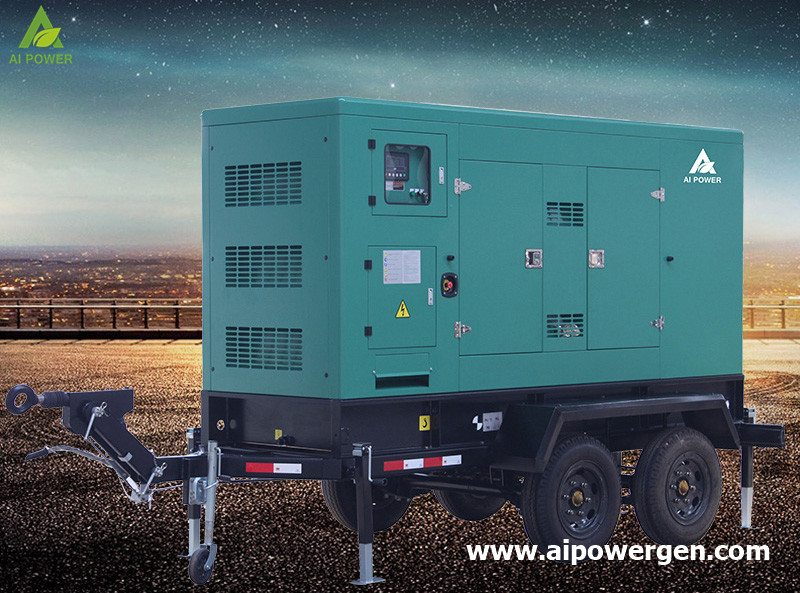

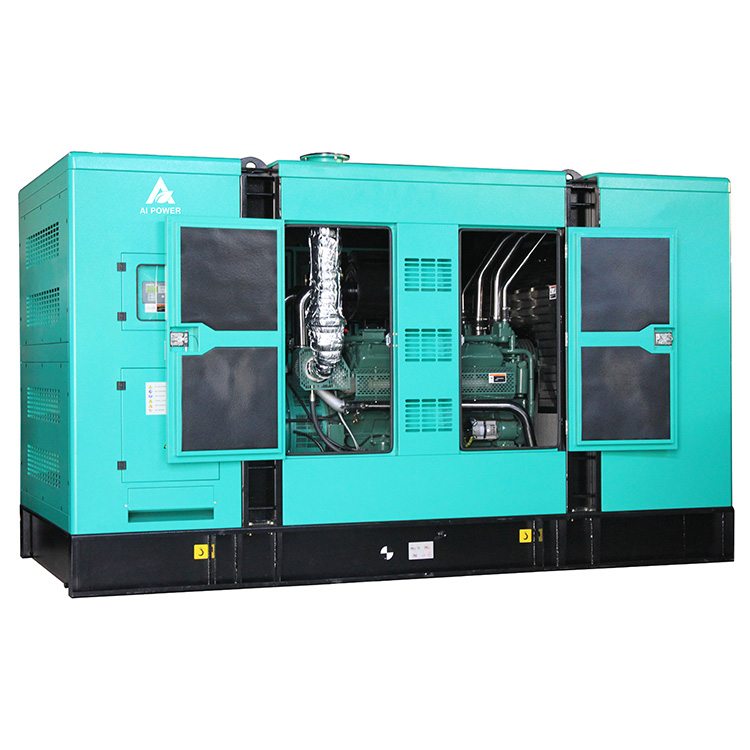

Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20', 40' and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.

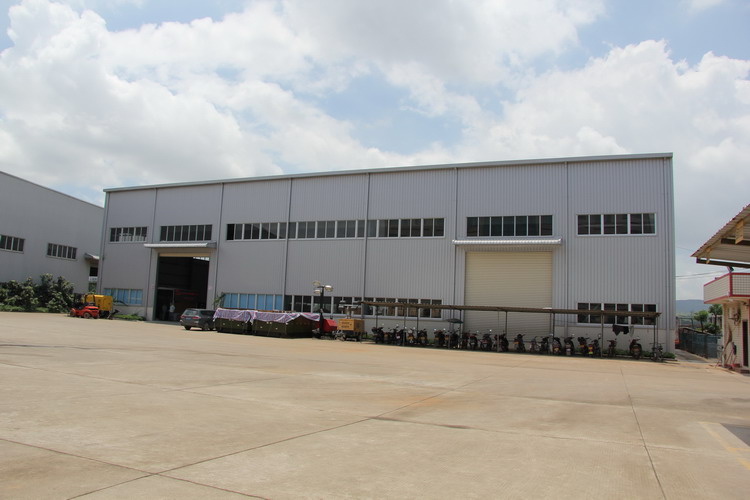

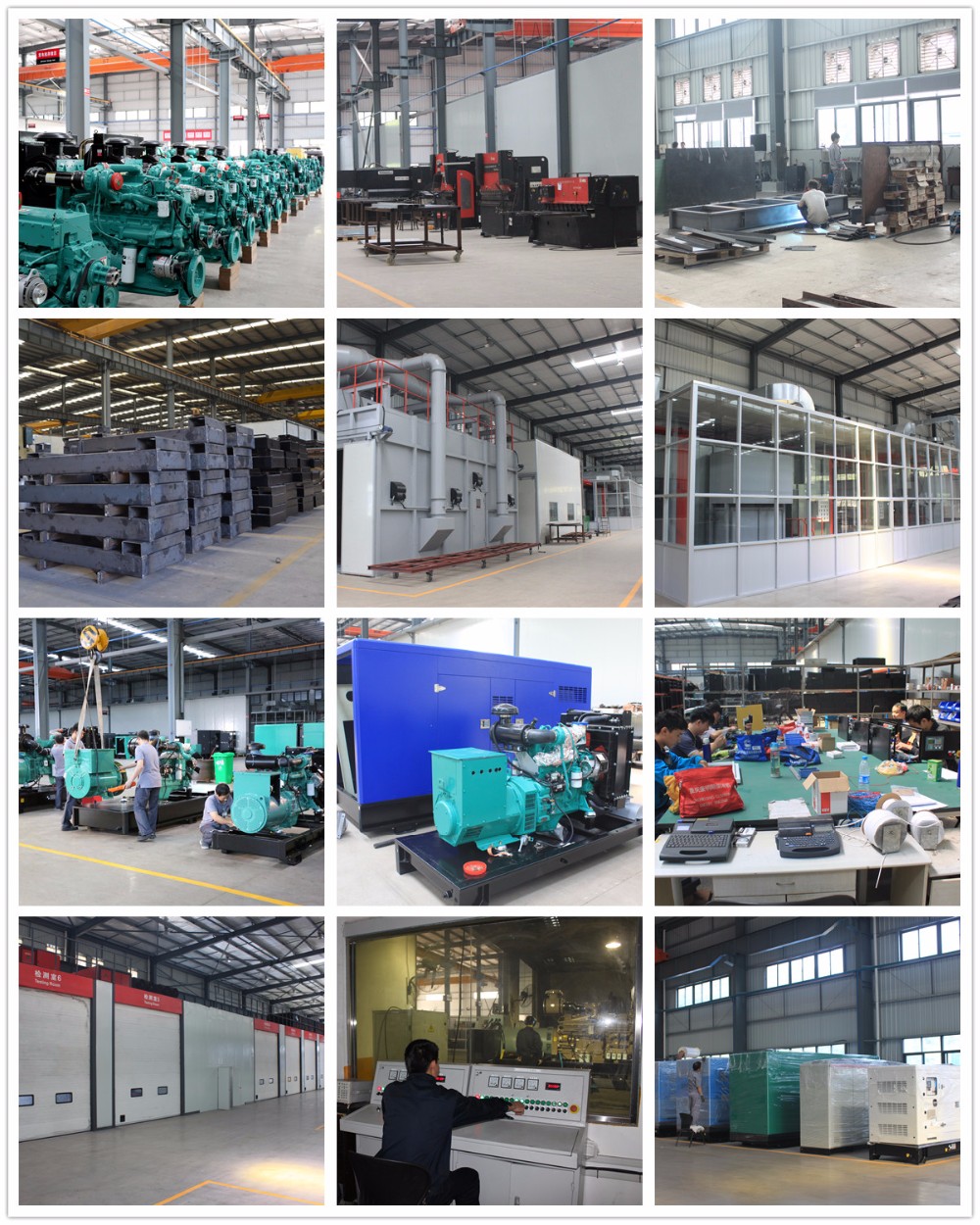

AI Company
Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply.Our company aim to create a better life for the world by supplying better power solutions. Continually improving products' quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers' greatest satisfaction.

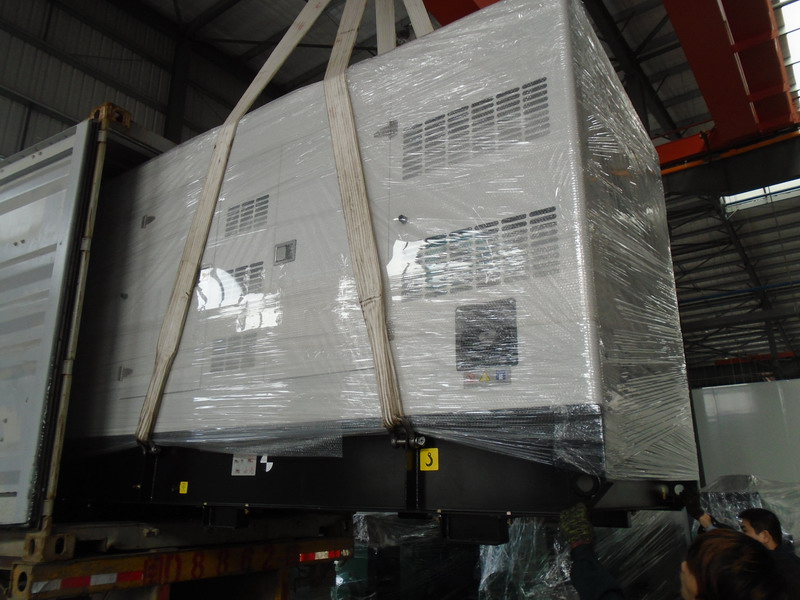

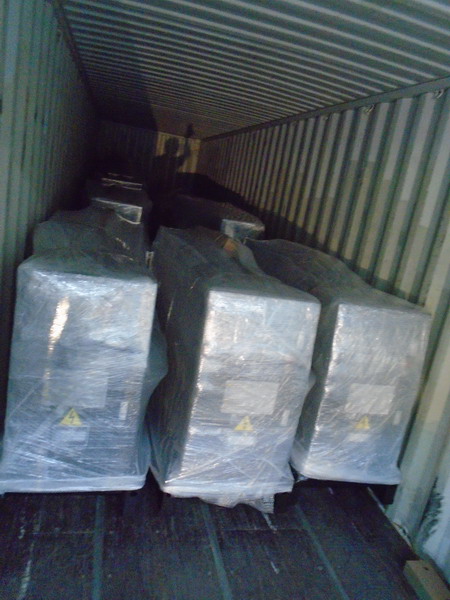

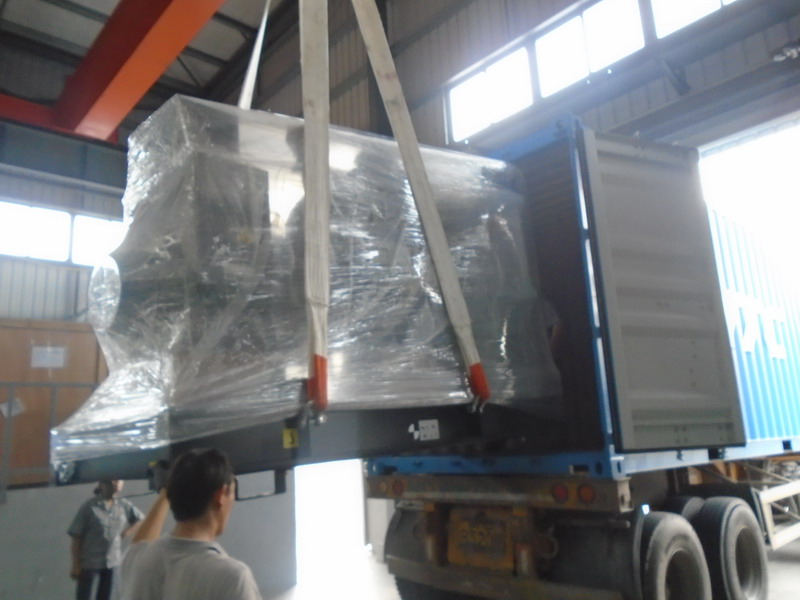

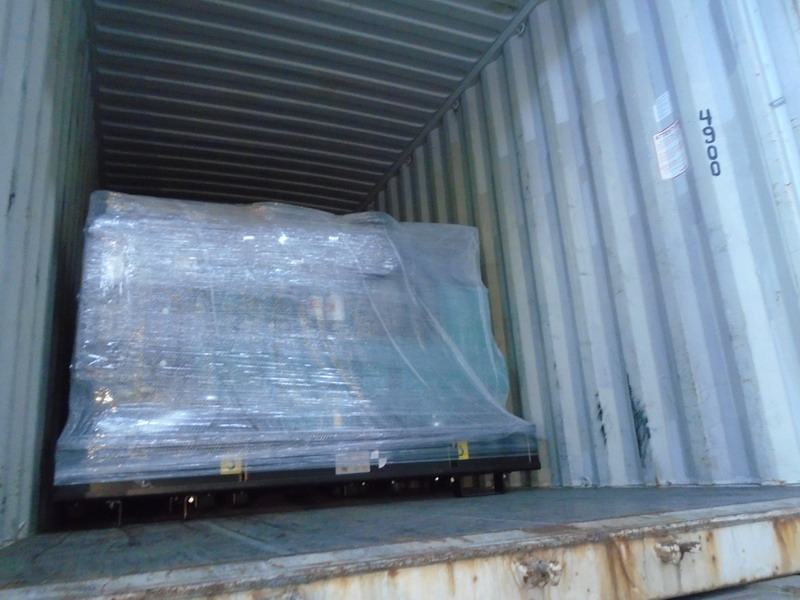

Packing & Delivery
FAQ
1. What is your warranty period?
A:Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
A:Yes. Gensets powered by USA famous engine, with UK famous engine, Doosan, Volvo, Iveco have the global warranty service. And the alternators Stamford, Leroysomer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
A:T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.
4. Can the generators be customized?
A: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, industrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
5. Can you use our logo?

A: Yes. For mass orders, we can use customer's logo instead of ours.
