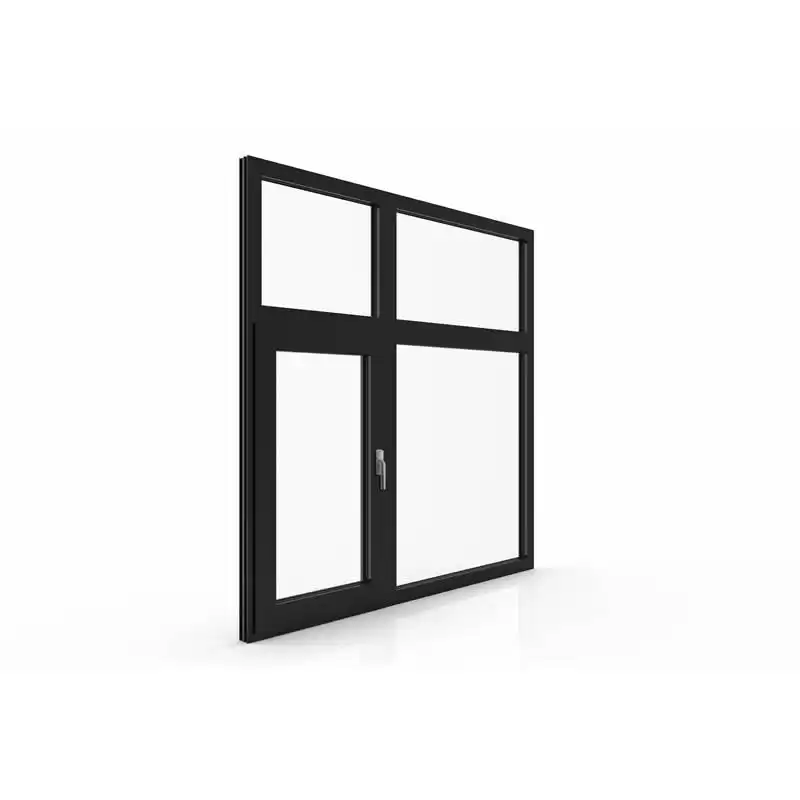

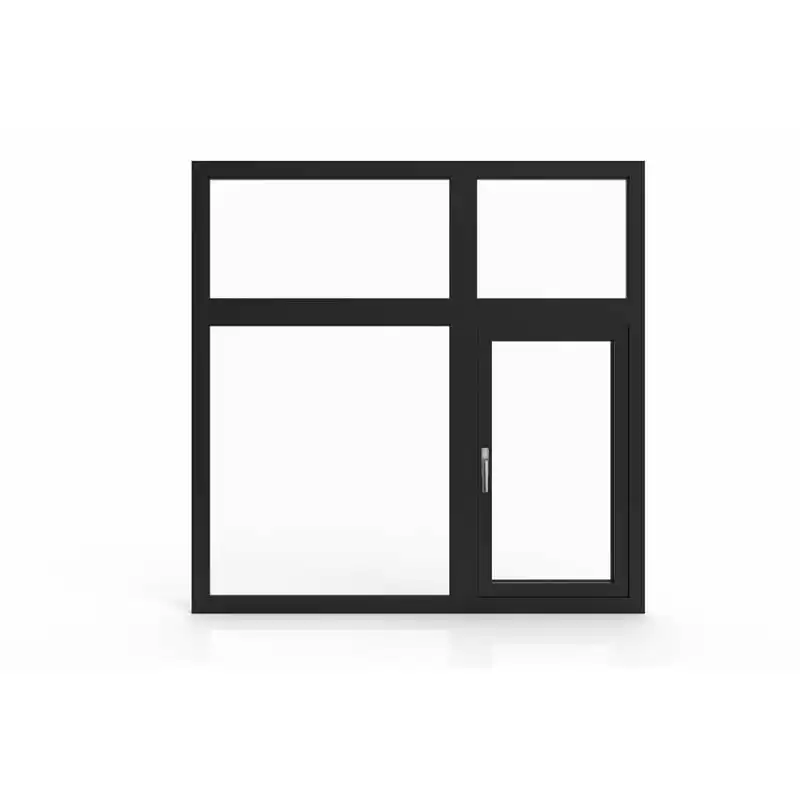

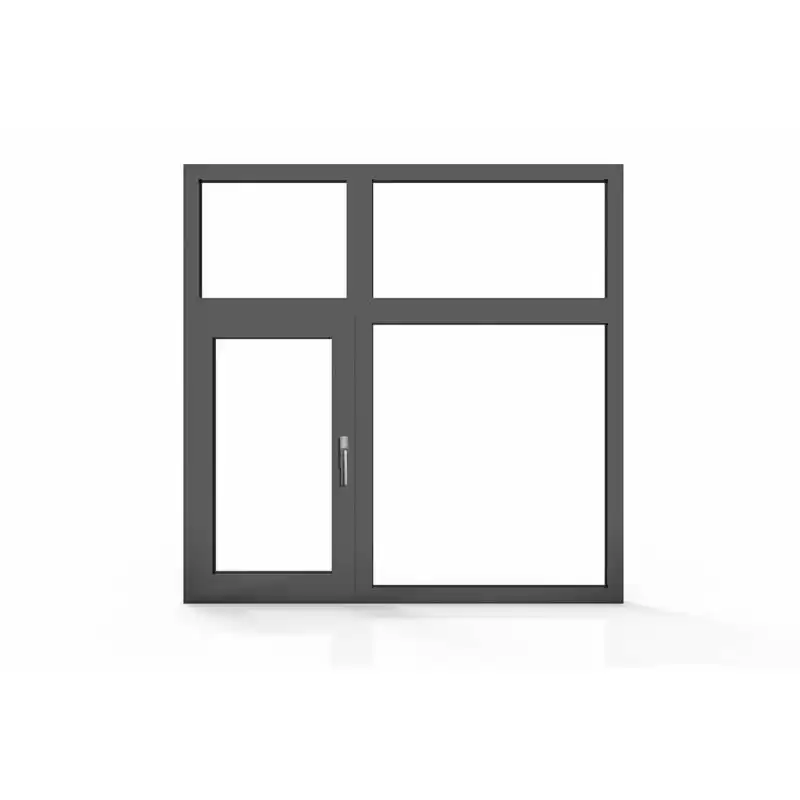

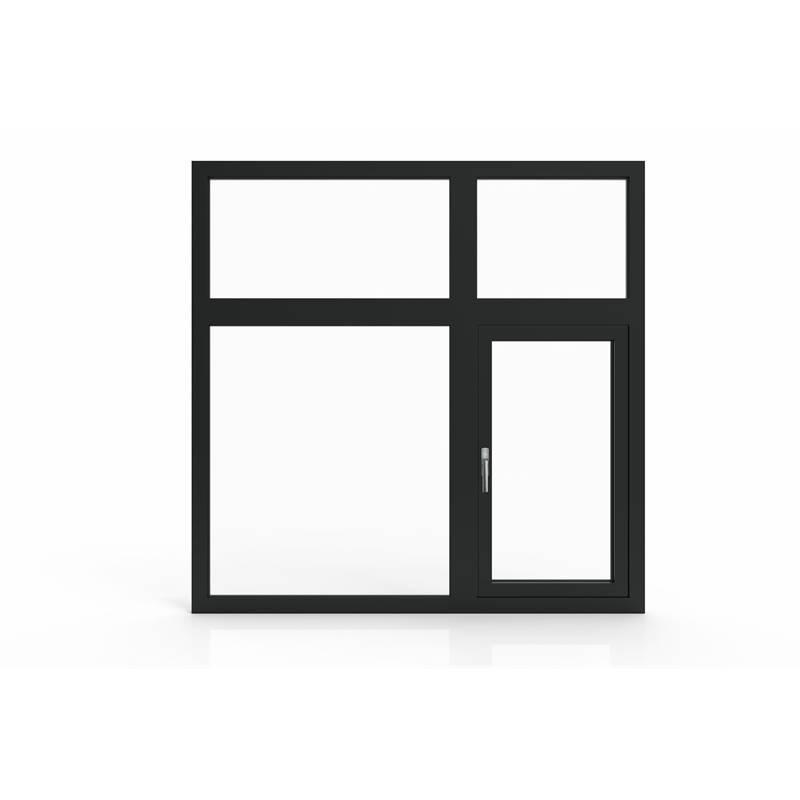

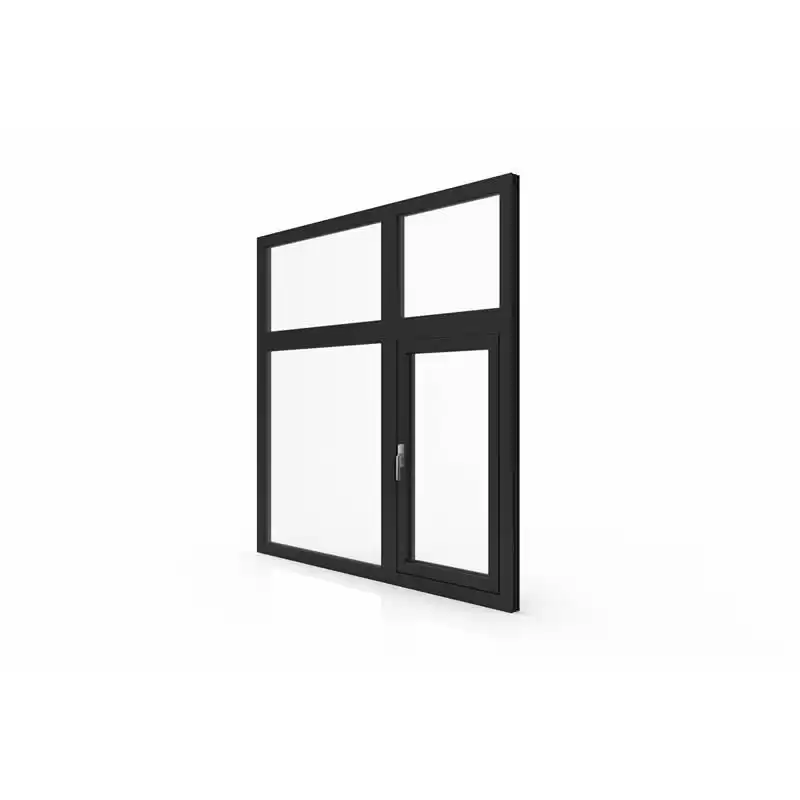

High Quality latest design Hw49/100 Aluminium Casement/Awing Window with Steel Fly Screen

HW49/HW100 series is an outside inside casement system for elegant window, having multi opening ways of opening outside, inside, awning and tilt-turn.

Inward side glass bead solves the security problems in low buildings and the safety installation problems in high buildings.


  • CustomAvailable
  • Opening PatternHorizontal
  • Screen Netting MaterialSteel
  • MaterialAluminum Alloy
  • Product OriginChina
  • Glass
  • Position
  • Shape
  • Grade
  • Surface Finishing



High Quality latest design Hw49/100 Aluminium Casement/Awning Window with Steel Fly Screen



An awning window has hinges at the top of the frame, and swings outward from the bottom. They can open with the simple crank of a handle or with the basic glide of the Easy-Slide Operator hardware. Awning windows are great in places that could use extra ventilation and light. Because of the top-hinged design, these windows naturally prevent water from entering while open, even when it’s raining.

Aluminium awning windows are versatile to fit many different styles and rooms around the home. They can be installed higher up on a wall to maintain privacy or lower on a wall for easy operation. Awning windows are extremely energy efficient, especially since wind blowing on the outside can create an even tighter seal.



FEATURES
  • Features a sleek and modern form
  • Push out and crank out versions available
  • Exclusive rotating handle design
  • Numerous configurations and sizes available
  • Available in heights up to 5 feet or widths up to 8 feet
  • Thermally efficient to perform in demanding climates
  • Available with screen options and Lock Status Sensor



Parameters
Suitable Width/Height of Sash
(mm)
Visible Width/Height
(mm)
Aluminium width
(mm)
Glass(Thickness)
Casement Window
-Width  300-800mm
-Height 300-1800mm
-Weight 45kg

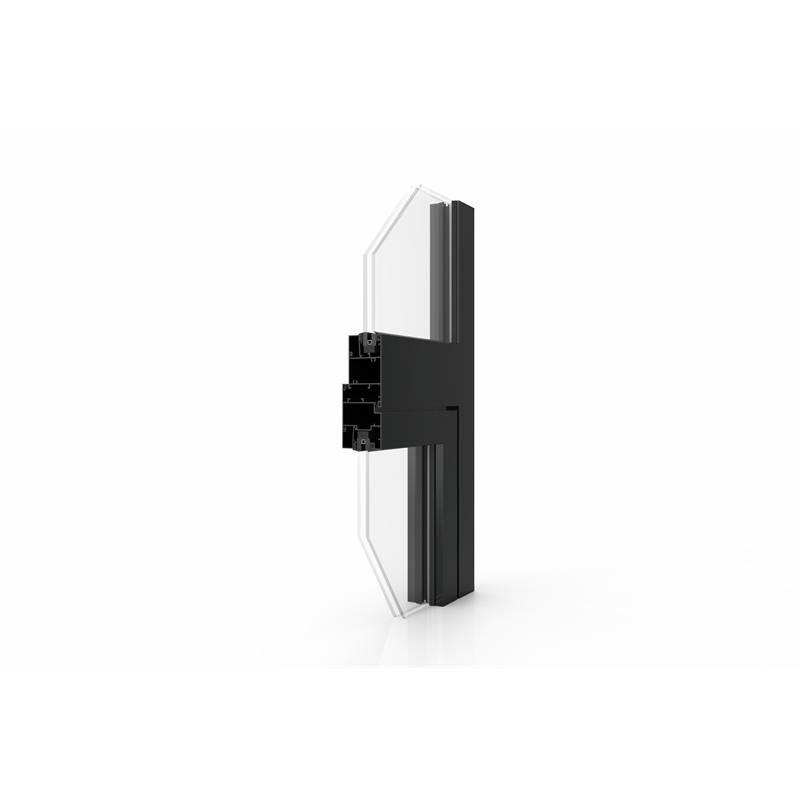

HCW49
Frame Width  51mm;
Sash  Width  74mm.
HCW100(with steel fly screen sash)
Frame Width  49mm;
Sash  Width  74mm.
HW49
Frame Depth  49mm
Sash  Depth  49mm
HW100(with steel fly screen sash)
Frame Depth  100mm
Sash  Depth  49mm
SGU:
4-10mm
DGU:
14-35mm




Performance
Heat Preservation Performance
W(m2.k)
Sound Insulation Performance
(DB)
Watertight Performance
(Pa)
Airtight Performance
Wind Load Resistance
(KPA)
6+12A+6 Low-E,2.3-2.8,
level 5/6
35DB
level 4
500PA
level 5
level 6 4.1KPA
level 7



WHY CHOOSE US

Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.

Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.

System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.



FAQ

Q: Are you trading company or manufacturer?

A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience.  And you are warmly welcomed to visit us.

Q: How long is your delivery time?

A: Generally it is 15-20 workdays after receiving payment.

Q: Do you provide samples for free? What's the MOQ?

A: The new die samples are free for approval and inspection. The MOQ is 8-10tons

Q: What is the payment terms?

A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
