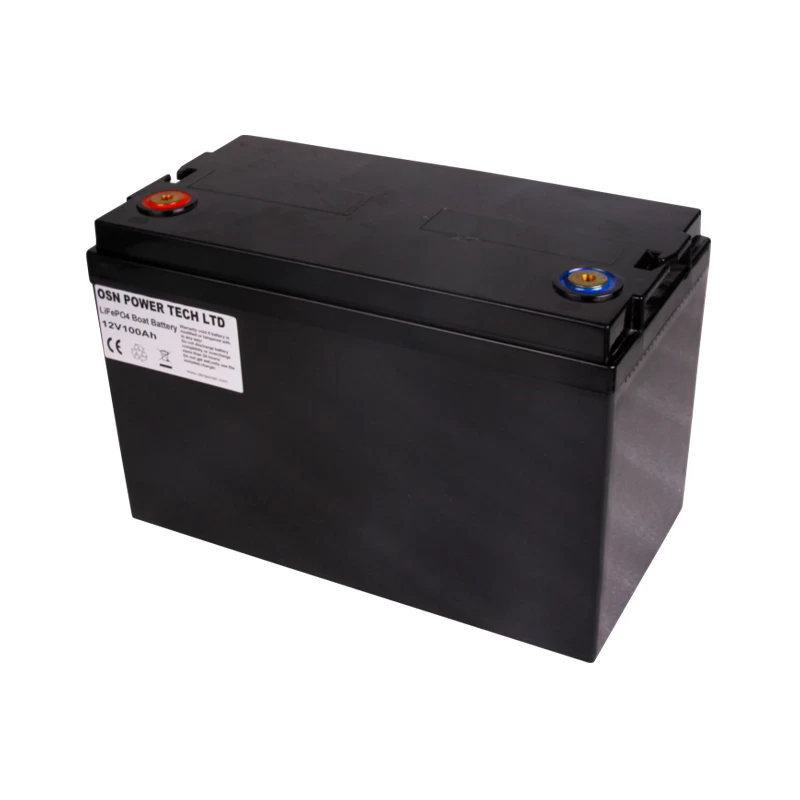

High Quality LiFePO4 Marine Battery Deep Cycle 12V 105AH Battery Pack For Sale
- High energy Density:More energy can be stored in the same space
- Super Long Cycle life: More than 3500 times cycle life with 80%DOD
- Easy to connection: Can be replaced directly, all case made by BCI standard.
Product Name
High Quality LiFePO4 Marine Battery Deep Cycle 12V 105AH Battery Pack For Sale
Highlights
- High energy Density:More energy can be stored in the same space, which may be a good choice for small boat .
- Super Long Cycle life: More than 3500 times cycle life with 80%DOD
- Easy to connection: Can be replaced directly, all case made by BCI standard.
- Waterproof: Can reach IP65
- Super fixed: avoid the terminal loosening in the boat bumps
Specification for LiFePO4 12V 105AH Marine Battery
|
LITHIUM ION PHOSPHATE MARINE BATTERY |
|
|
|
|
|
ELECTRICAL SPECIFICATIONS |
TEMPERATURE SPECIFICATIONS |
|
Nominal Voltage: 12.8 Volts |
Discharge Temperature: 45-60 range C |
|
Nominal Capacity: 105Ah |
Charge Temperature: 45-60 range C |
|
Capacity @ 25A: 252minutes(4.2hours) |
Storage Temperature: 20-30 range C |
|
Energy:1260Wh |
BMS High Temperature Cut-Off: 85 range C |
|
Resistance: =5mOhms @ 50%SOC |
Reconnect Temperature: 75 range C |
|
Discharge Efficiency: 99.5 % |
|
|
Self Discharge: 0.04mV/h |
|
|
Maximum Modules in Series: 4S |
|
|
|
|
|
DISCHARGE SPECIFICATIONS |
CHARGE SPECIFICATIONS |
|
Maximum Continuous Discharge Current:100Amps |
Recommended Current Charge:50Amps |
|
Peak Discharge Current:200Amps |
Maximum Current Charge: 150Amps |
|
Recommended Low Voltage Disconnect:11 Volts |
Recommended Charge Voltage:14.6Volts |
|
BMS Discharge Voltage Cut-Off: 8Volts |
BMS Charge Voltage Cut-Off: 15.6 Volts |
|
Reconnect Voltage:8 Volts |
Reconnect Voltage:14.6 Volts |
|
Short Circuit Protection: Automatic load recovery |
Balancing Voltage: 14.4Volts |
|
after short circuit/overdischarge/overcurrent protection |
|
|
|
|
|
MECHANICAL SPECIFICATIONS |
|
|
Dimensions:(L x W x H):330*176*220 mm with M10 terminal |
|
|
Weight: About 14kg |
|
|
Enclosure Protection: IP54 |
|
More Feature:
- Warranty: Warranty for 3 years, can be extended to 5 years
- Customized service: The battery pack can be customized according to the battery slot size.
- Battery pool shell selection: custom shells according to customer preferences: plastic lead acid instead of shell, stainless steel shell, acrylic shell
- Can be connected in series and parallel according to customer needs
Application

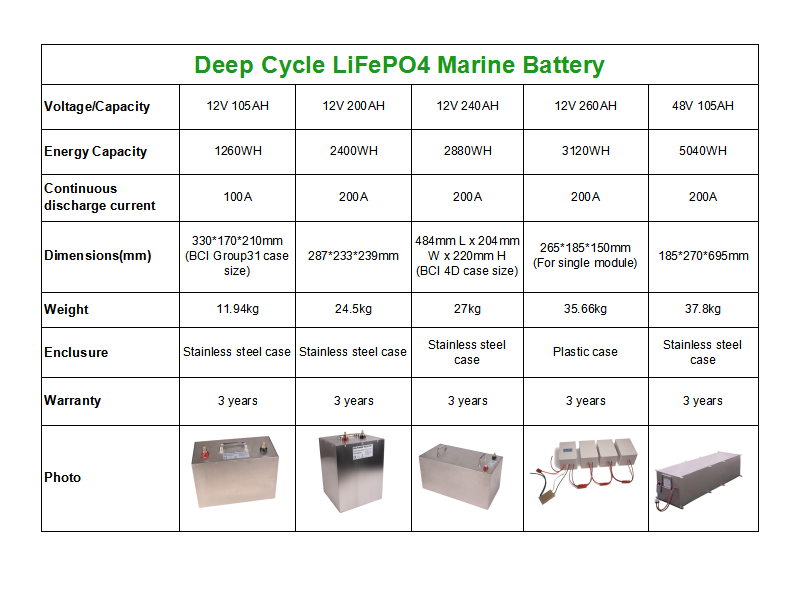

Related Product:
Please contact us at service@osnpower.com or +86-18575517952 for most suitable 12V battery solution for your Marine battery.
