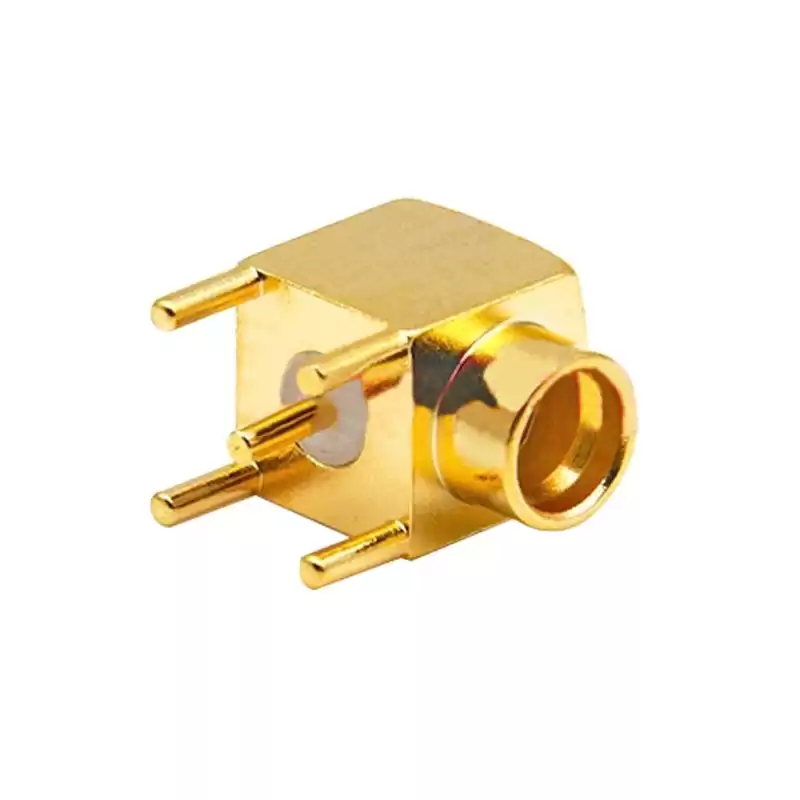

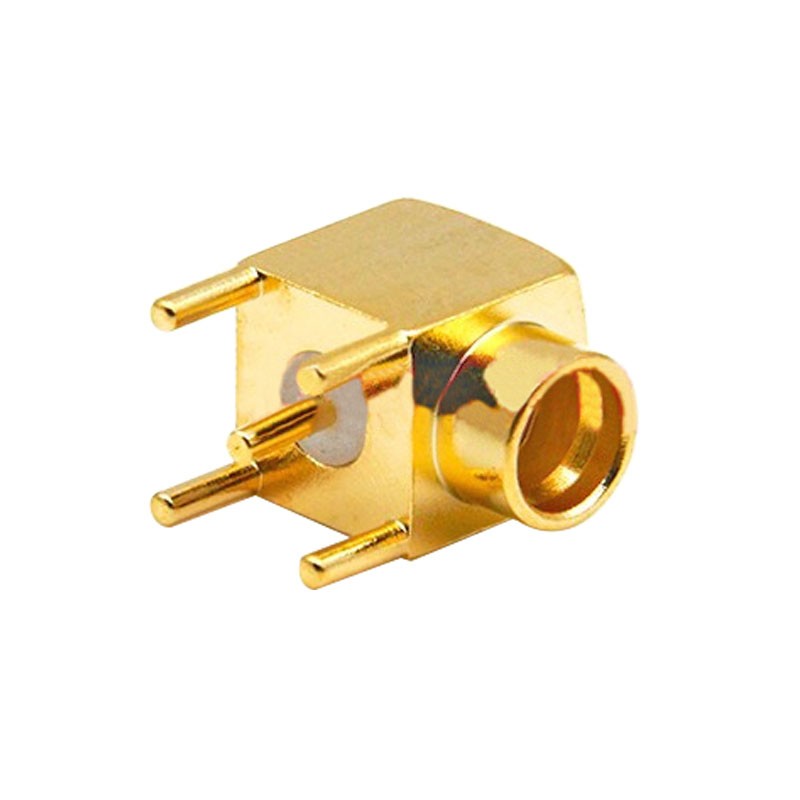

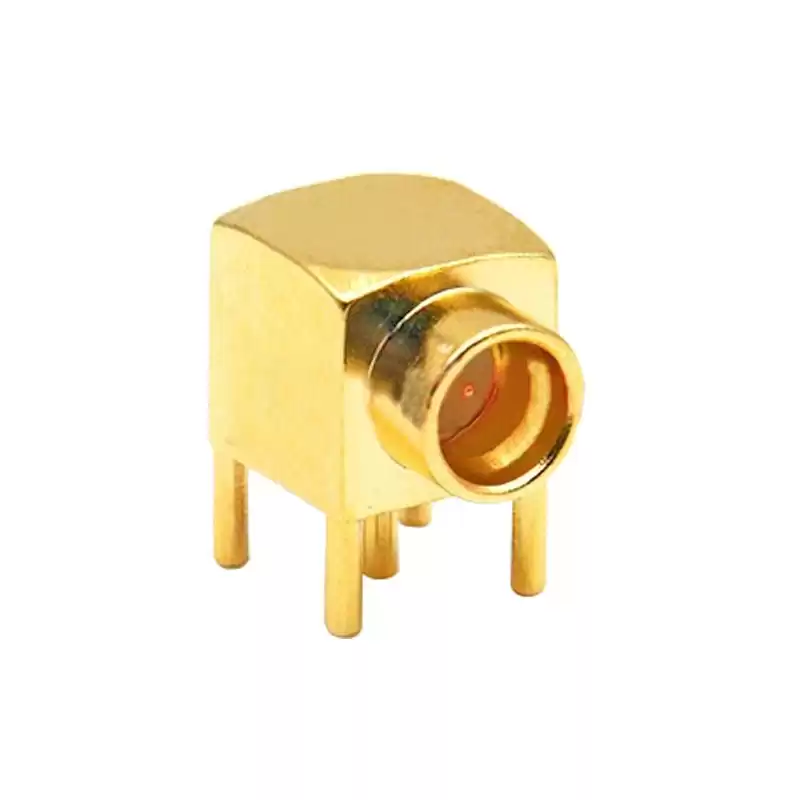

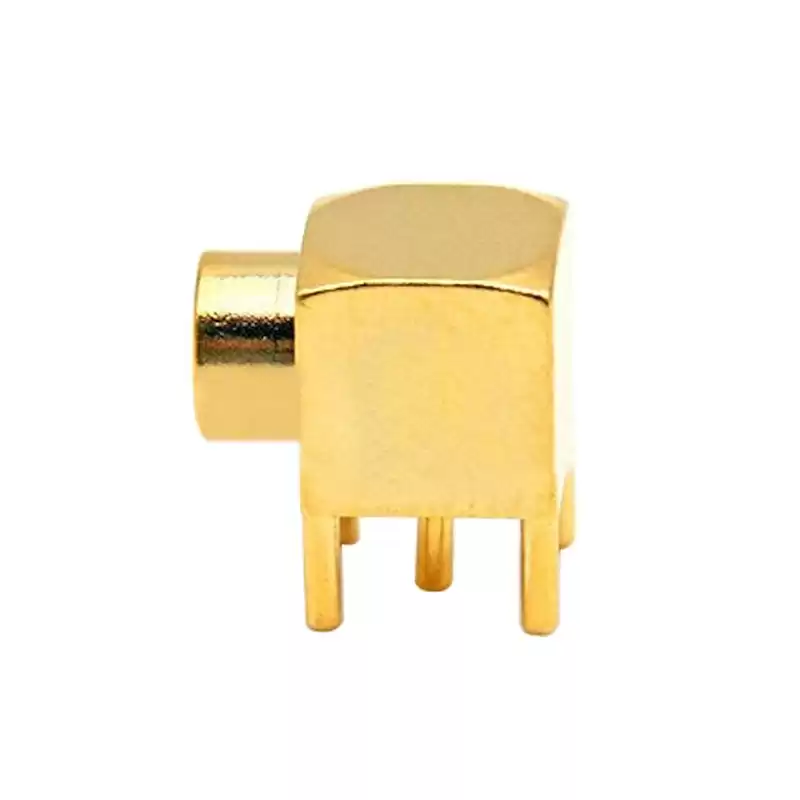

High Quality SMP Male Right Angle Connector Solder Attachment Thru Hole for PCB
The SMP connector is a subminiature interface in the same scale as MMCX connectors but offers a frequency range of DC to 40 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.Available in a cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax. The receptacles are designed for surface, through hole, or end launch mounting; this SMP male PCB connector has an interface type of thru hole and a 50ohm impedance, attachment method uses shield/contact solder, its right angle body is brass with gold plating.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50 Ohm |
| Frequency Range |
18GHz |
| Voltage Rating |
335 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage |
500 VRMS Min |
| VSWR (Return Loss) |
|
| DC - 18 GHz |
1.2 (-21 dB) Max |
| 18 - 26.5 GHz |
1.3 (-18 dB) Max |
| 26.5 - 40 GHz |
1.7 (-12 dB) Max |
| Insulation Resistance |
5000 MΩ Min |
| Center Contact Resistance |
6 mΩ Max |
| Outer Contact Resistance |
2 mΩ Max |
| RF Leakage |
-85 dB Max (DC - 4 GHz) |
| Insertion Loss |
.1 √(f(GHz)) dB Max |
| Power Handling |
32 W @ 1 GHz @ 25ºC |
| Environmental |
|
| Temperature Range |
−65°C to +165°C |
| Mechanical |
|
| Mating Cycles |
100 Min |
| Coupling Mechanism |
Psuh-On |
| Interface Specification |
MIL-STD-348 |
| Engagement Force |
≤ 15.0 lbs (40 N) |
| Disengagement Force |
≤0.5 lbs (2N) |
| Mechanical Misalignment |
|
| Axial |
0.25 mm |
| Radial |
0.51 mm |
| Min Board to Board Distance |
9.1 mm |
Applications
- Broadband
- Military
- Instrumentation
- Medical
- Medical
- Quantum Computing
