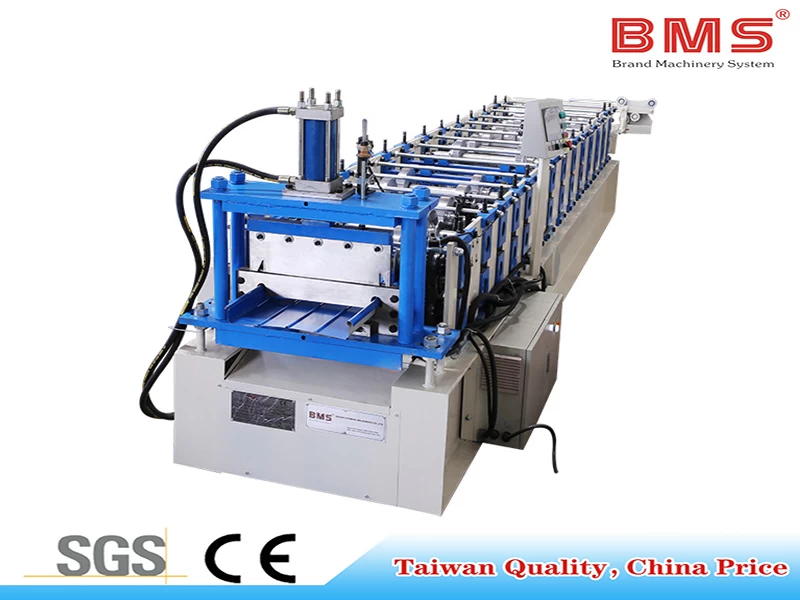

Standing Seam Roof Forming Machine For YX65-300/400/500/600/700
Please Click Here To View The Video

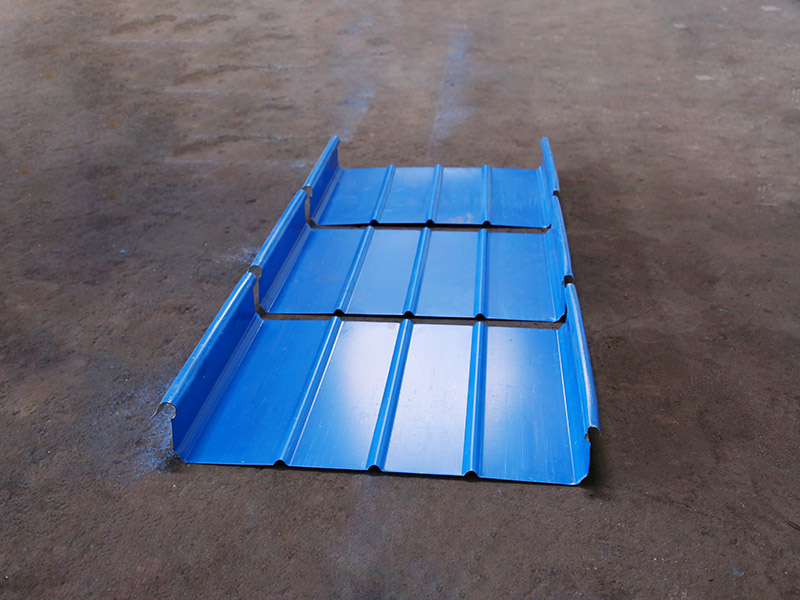

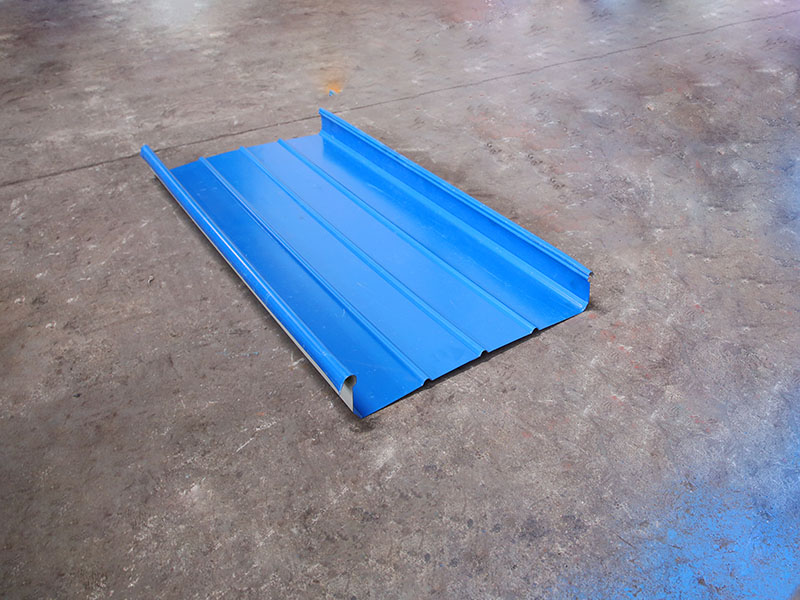

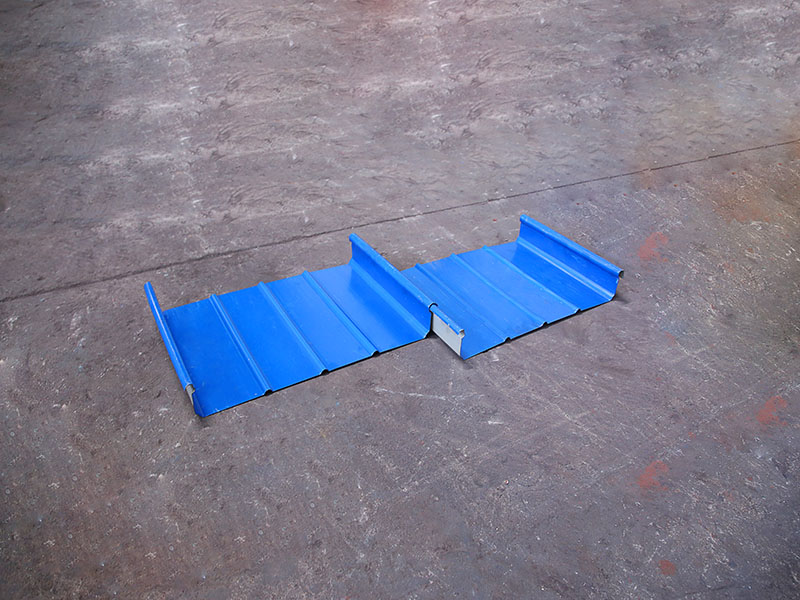

Profile
(Change Size By Spacer)

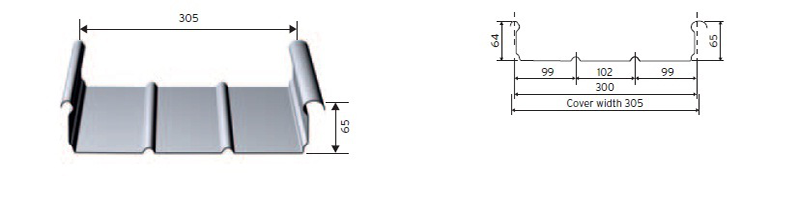

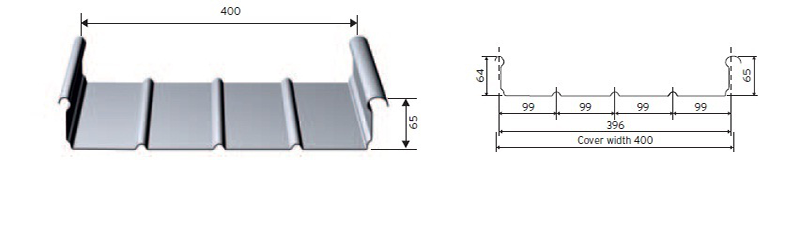

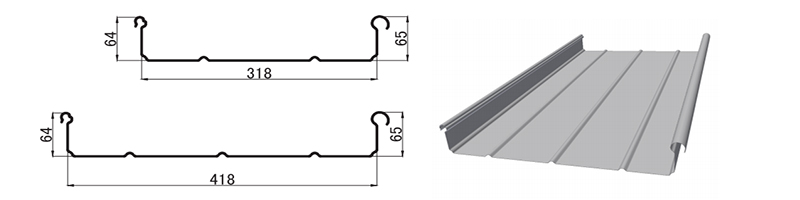

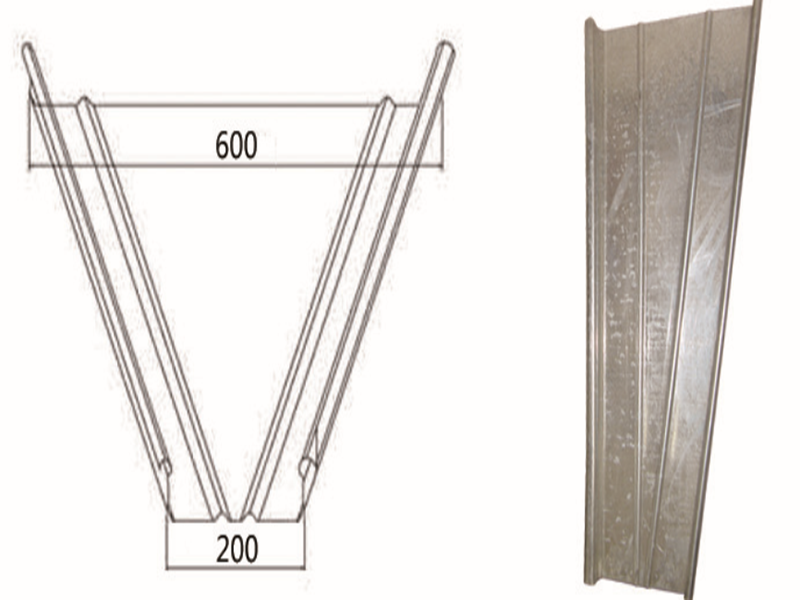

Optional Profile Drawing With Typer:
Similar as KALZIP/LYSAGHT/BEMO/KINGSPAN style standing seaming roof panel roll forming machine
Material
Effective width:300/400/500mm
Feeding width: about 472/575/675mm
Material Thickness: 0.35-0.8mm
Applicable material:Galvanized Steel(GI)
Cold roll steel(CRC),with yield strength 235-550Mpa
Work Follow
Decoiler→Manual Pre-Cutter→Guide Feeding →Roll Forming System→Hydraulic Post Cutter →Exit Rack
Machine Components
1) Manual Decoiler: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop.Max Feeding width: 700mm,coil ID range 508mm±30mm.
Capacity: Max. 5 Ton.
2) Manual Pre-Cutter
With manual pre-cutter for easy operation and save material:The pre-cutter is connected with PLC control system,PLC is calculating profile length within roll forming. Once
material is required to change,PLC is calculating the length for total quantity and remind operator production finishes and able to manual shearing material before roll forming so as to change material for new production.
It is the advanced function and good for production to save material, no waste.

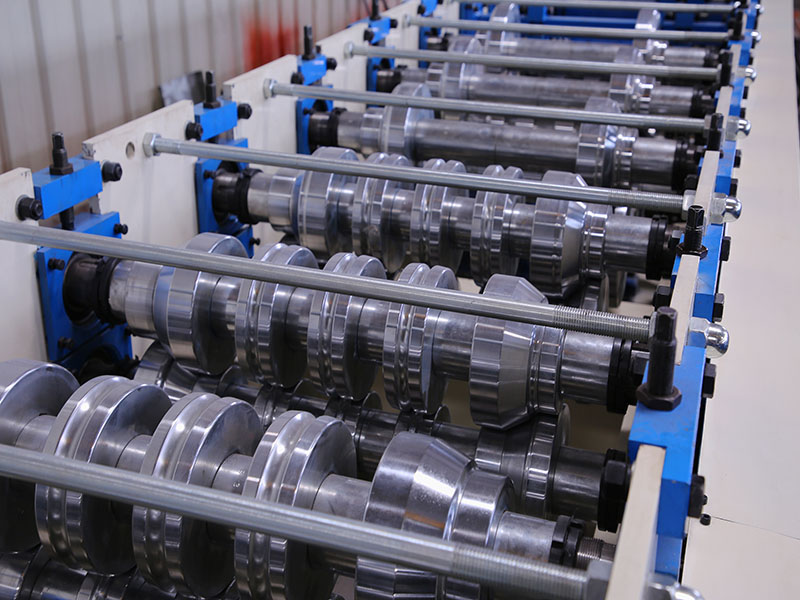

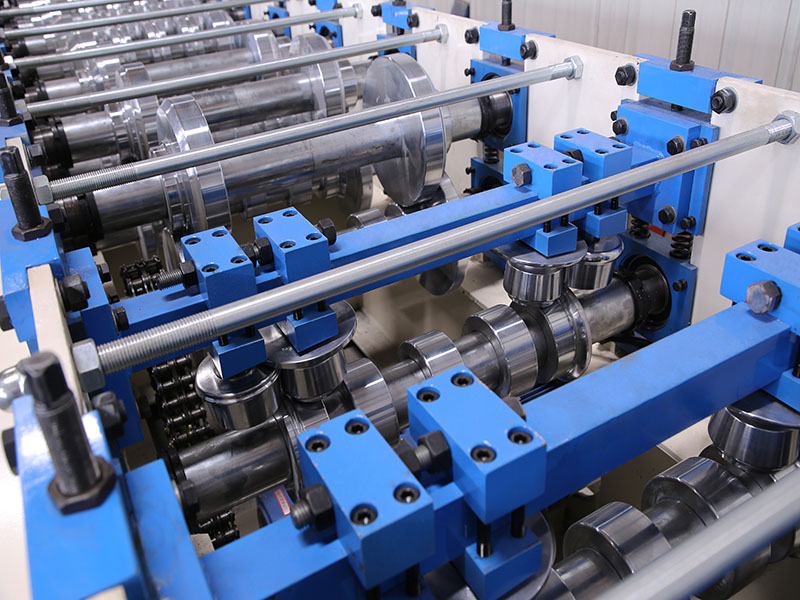

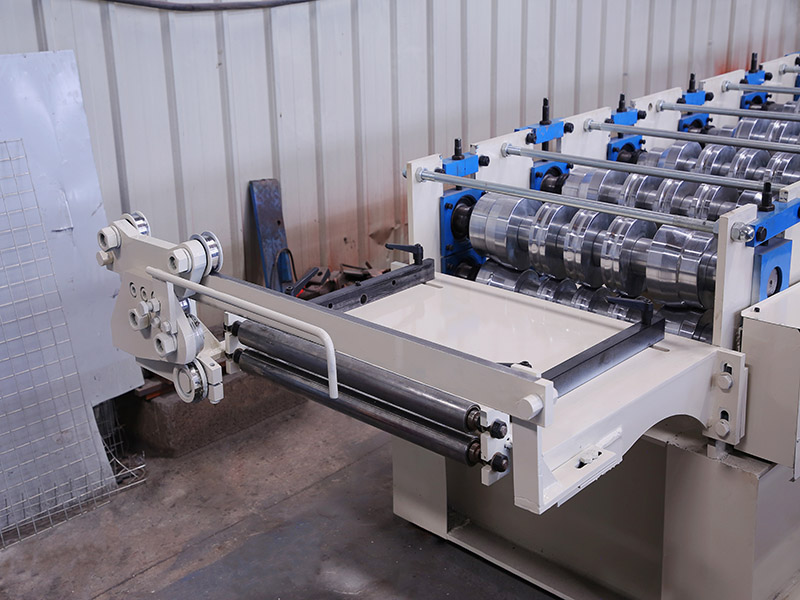

3) Main Machine
With feeding material guide, body frame made from H400 type steel by welding.
Side wall thickness: Q235 t18mm.
Rollers manufactured from 40Cr Steel,CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).
Shafts Diameter=ф75mm,precision machined.
Main Motor=7.5KW,Frequency speed control.
Gear/Sprocket driving,about 14-step to form.

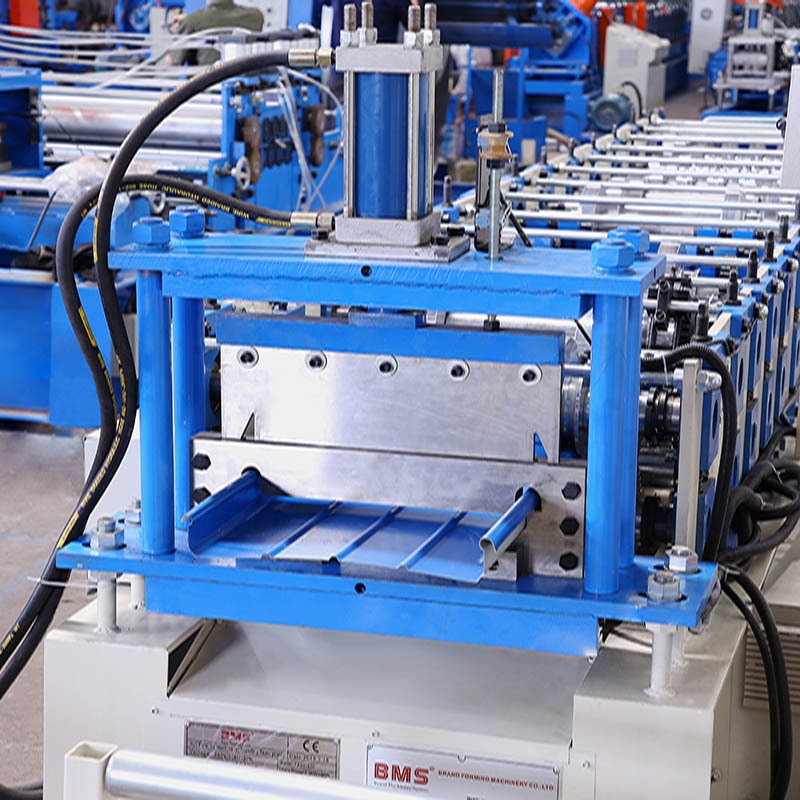

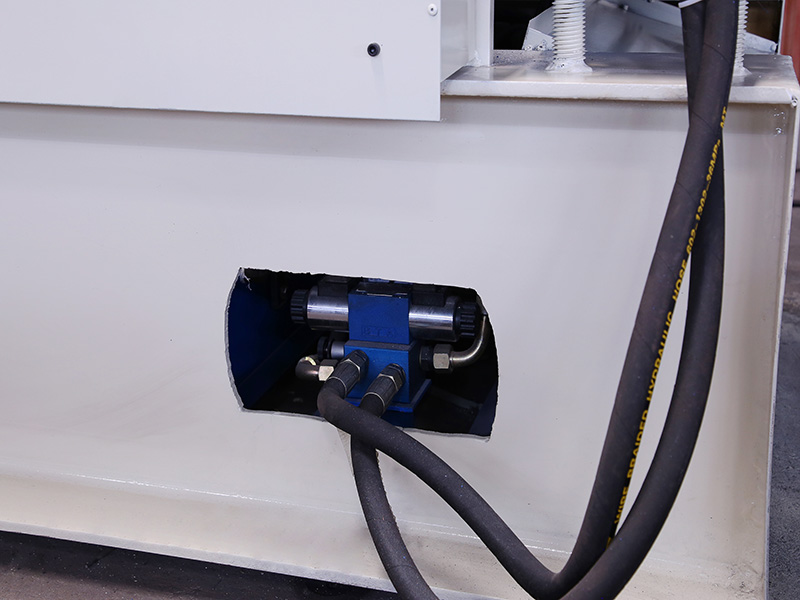

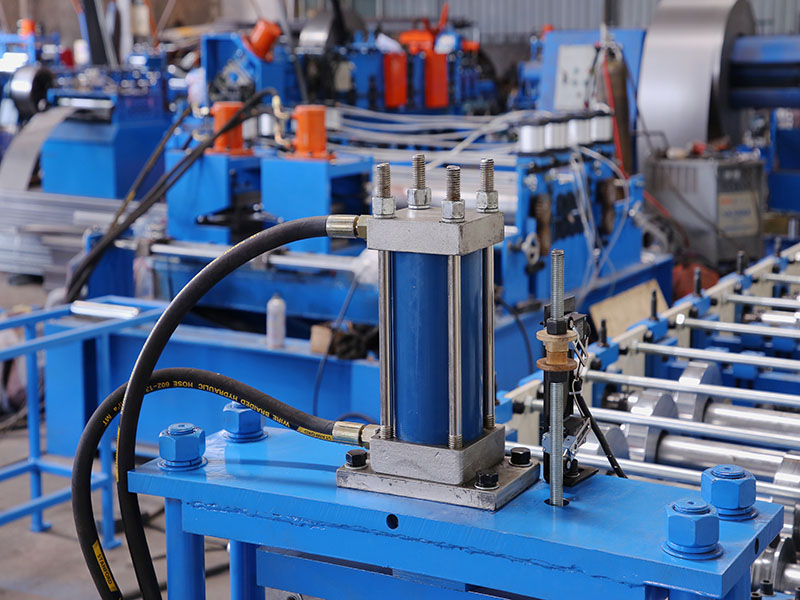

4) Post Hydraulic Cutting Device
Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking.
Hydraulic motor: 3KW.
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
The cutting power is provided by the main engine hydraulic station.

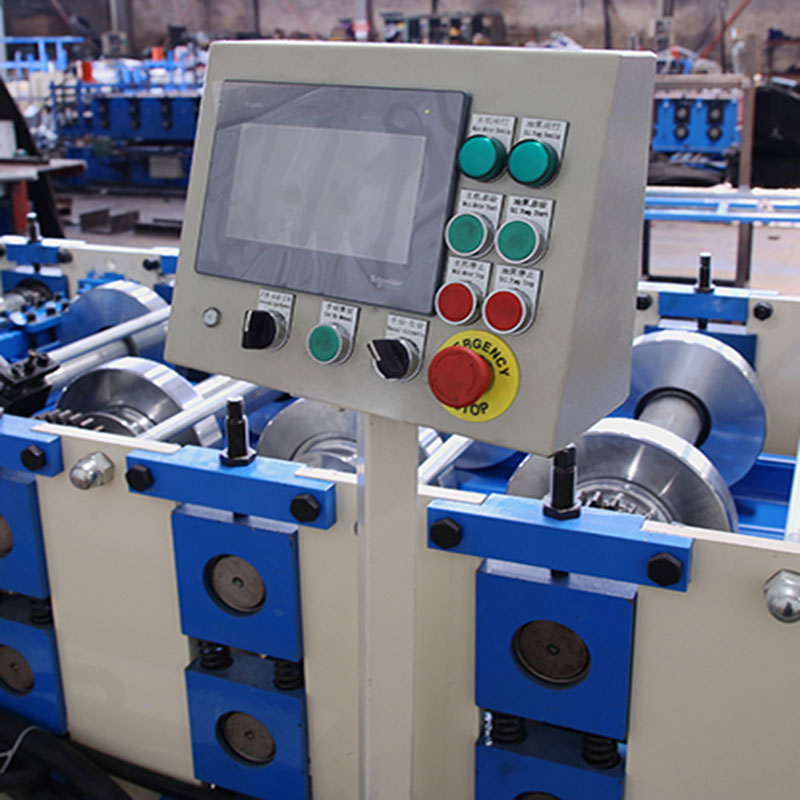

5) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

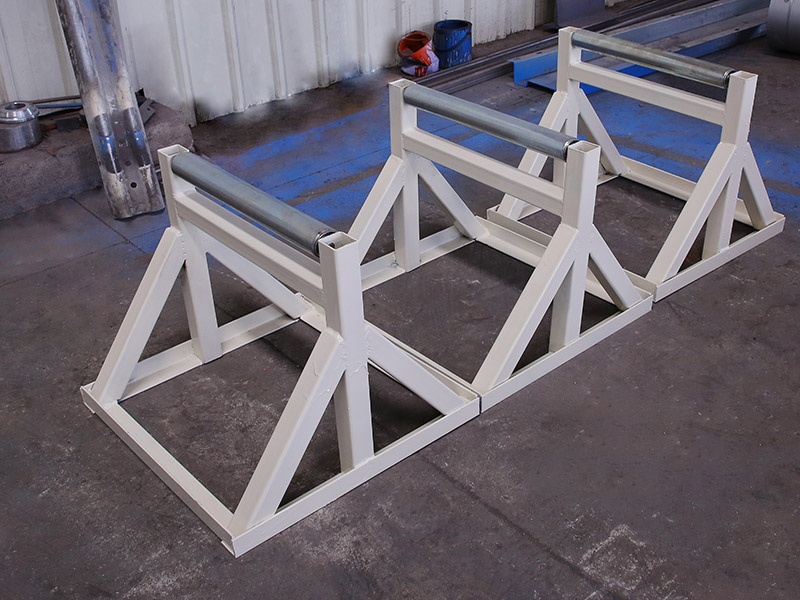

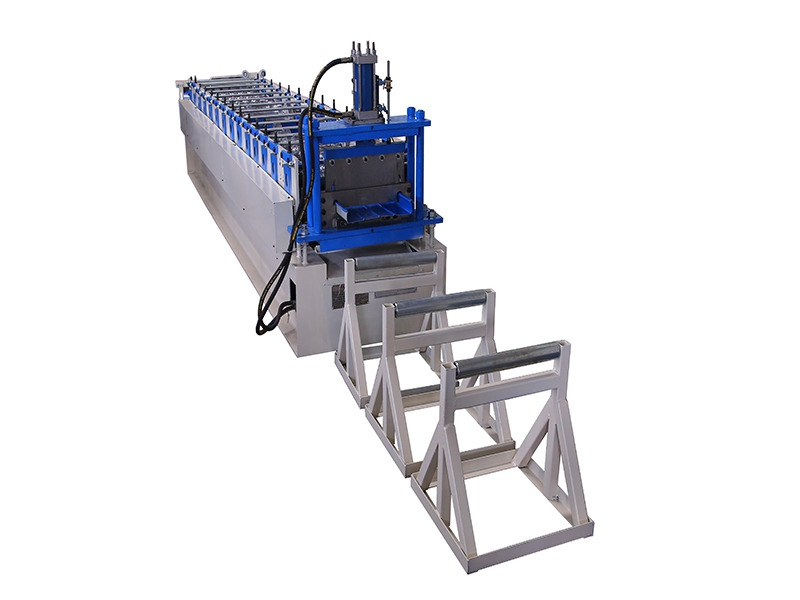

6)Exit Rack
Un-powered, Three units,with rollers on it for easy movement.
7)Product Show
Customer Come To Our Factory To Inspect The Machines

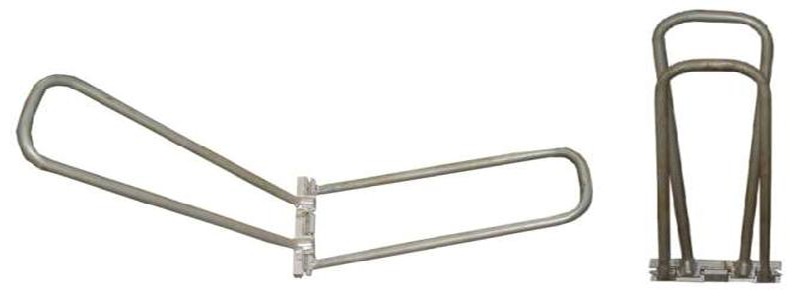

Manual Edge-Locking Pincers
Electric Seaming Machine One Unit
Packing Style

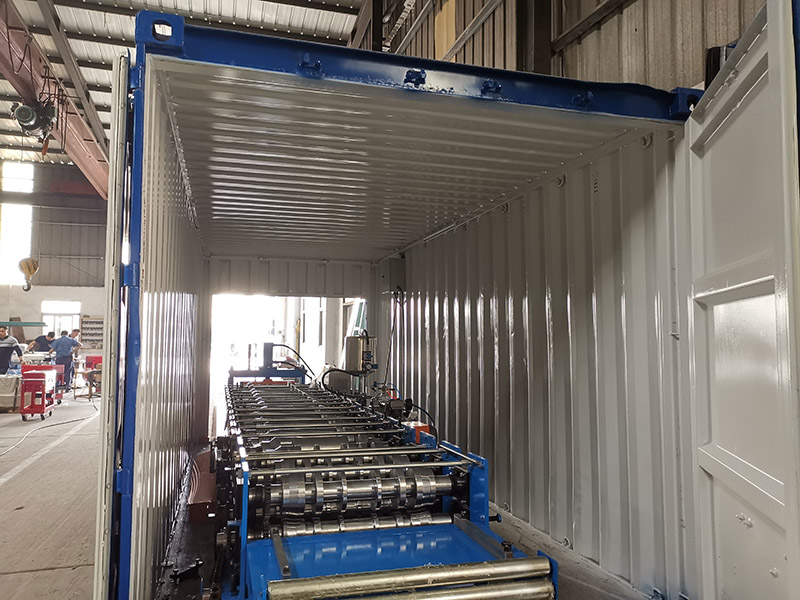

With ONE 20’GP SECOND-HAND CONTAINER:
Rebuild by the seller make sure that container rebuilt is fasteness and safe electricity
After-Sale Service
1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms Of Trade
1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 45 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
