Our Solar Steel Ground Mounting System With Screw is the most economical ground mounting system for Large scale solarinting system.We create an economical and reliable solutions for photovoltaic projectson a free surface.
We use the high-quality Carbon Steel to make sure will sustain strong wind load and snow load resistance . The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites . Patented and certifiedsystem design ensure projects safety and quick installation
|

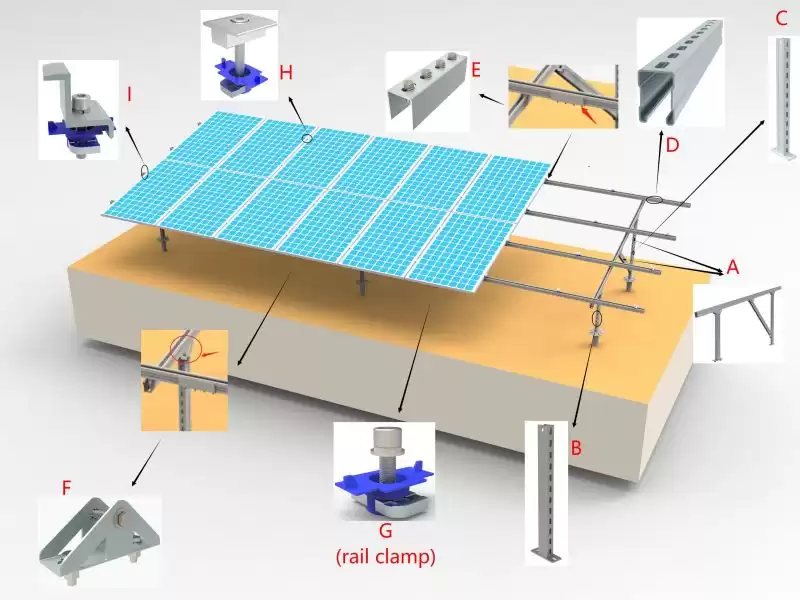

A

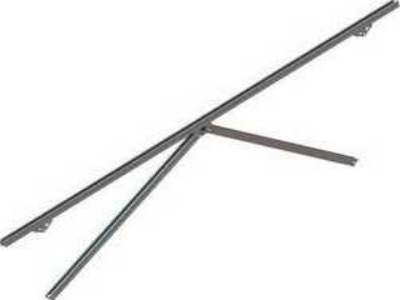

XHF-SGl-B-PRE, pre-assembled beam
|
B

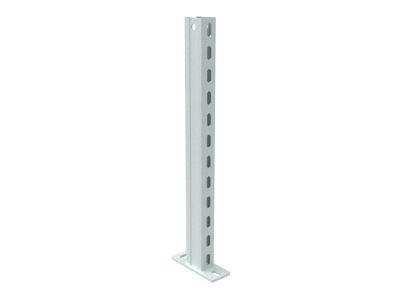

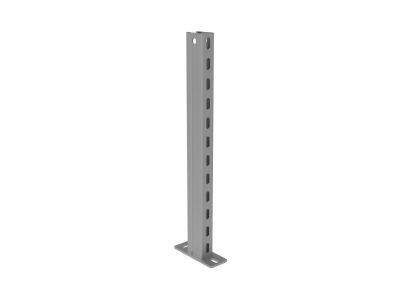

XHF-SG1-FL, front leg
|
C
XHF-SG1-RL, rear leg
|
|
D

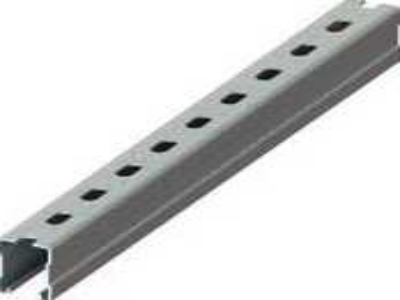

XHF-R04, steel rail
|
E

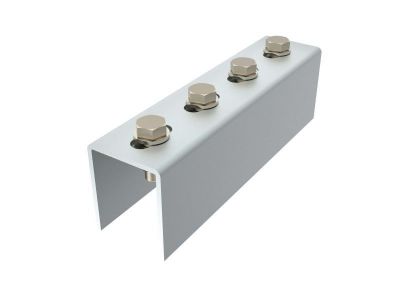

XHF-R04-S, rail splice
|
F
XHF-SG1-TC, 01# steel connect
|
|
G
XHF-BR-04, 04# rail clamp
|
H

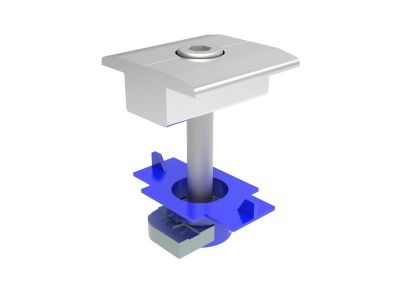

XHF-IC-40C, 40mm mid clmp
|
I

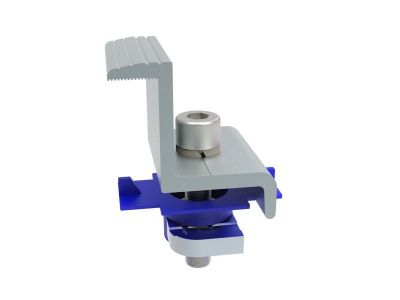

XHF-SC-40C, 40mm end clamp
|
|
Parameters
|
|
Application
|
Open Filed
|
Module Tilt Angle
|
5-40 degree
|
Max Wind Speed
|
60 m/s
|
Snow Load
|
1.4 KN/m2
|
Material
|
Q235
|
Surface
|
hot dipped galvanized
|
Foundation
|
Ground screw or concrete block
|
It is applicable for open field PV mounting system
There are two types foundation for your choose, one is ground screw, another is concrete block.
Vertical and horizontal module installation are possible
Variable module pitch from 5° to 40°
Maximum flexibility thanks to height-adjustable module clamps and end clamps
Other foundation variants on request, e.g. installation on concrete footings or with ground screws
Long service life, complete recyclability and corrosion resistance
|
Step 1: Fix front leg, rear leg
|
Step 2: Fix prepare beam
|
|
Step 3: Install rail on beam and fix panel by clamp on rail until finish.
|
|
