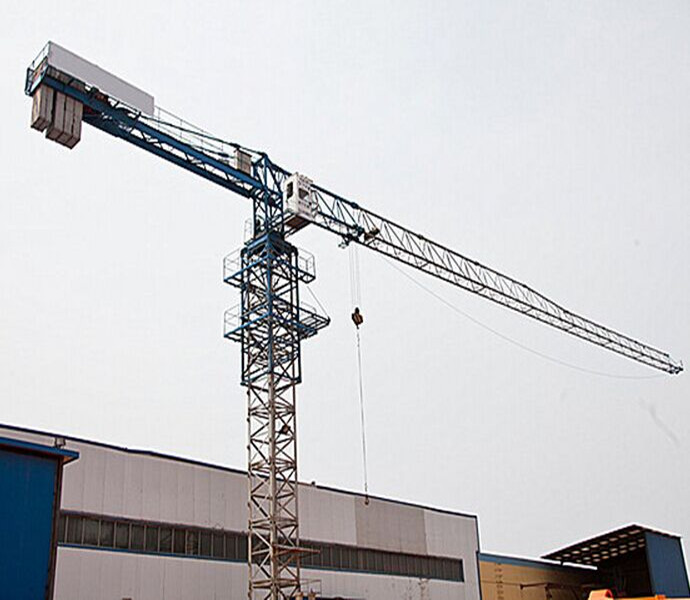

High Quality TCT5510-6 Zoomlion 6tonTopless Tower Crane
1. high quality tower crane, Jib=55m, Max Load=6T; Tipload=1.0T
2. hydraulic lifting tower crane/flat top topless construction tower crane
3. China-made high quality tower crane, China good tower crane manufacturers with best price
4. high efficiency, CE approved, ISO and GOST certification, oversea service available
If you need used tower crane, we can help you to find as per your request.
Safety devices: 1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device 9): black box
Technical Parameters
Rated hoisting moment
kN.m
|
800
|
Lifting height
m
|
Rope fall
|
Free-standing stationary crane
|
Anchored crane
|
α=2
|
40.5
|
220
|
α=4
|
40.5
|
110
|
Working radius
m
|
Max. working radius
|
55
|
Min. working radius
|
2.5
|
Max. lifting capacity
t
|
6
|
Hoisting mechanism
|
Rope fall
|
α=2
|
α=4
|
Speed
m/min
|
8.88
|
40
|
80
|
4.44
|
20
|
80
|
Lifting weight
t
|
3
|
3
|
1.5
|
6
|
6
|
1.5
|
Power
kW
|
24/24/5.4
|
Traction mechanism
|
Speed
m/min
|
50/25
|
Power
kW
|
3.3/2.2
|
Slewing mechanism
|
Speed
r/min
|
0~0.8
|
Power
kW
|
5.5
|
Outstanding Features
1. The tower crane equipped with a hydraulic self-raising mechanism andfrequency-converting slewing mechanism.
2. The electric control system of the tower crane adopts the advanced “PLC + frequencyconverter” control mode of the present day.
3. The tower crane is equipped with all kinds of reliable safety devices.
4. The use of world-famous electric components such as OMRON, YASKAWA and Schneider.
5.Besides, there are also electric safety devices like anemoscopes and obstaclelights and mechanical safety devices to prevent the breaking of trolley axlesand wire ropes.
Why choose us
1.Cooperative professional tower crane manufactures in China
2.Exported to more than 30 countries with ISO9001&CE Certifications
3.Hydraulic self-climbing mechanism
4.Variable-frequency slewing mechanism
5.Varialbe-speed frequency PLC control System
6.Operation data display screen
7.Various safety devices
8.Safety monitoring system (Black Box)
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
