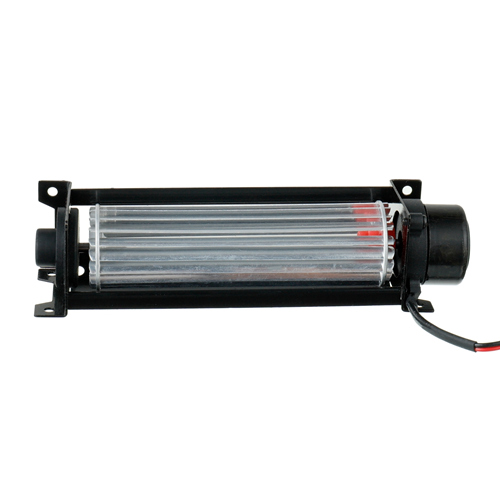

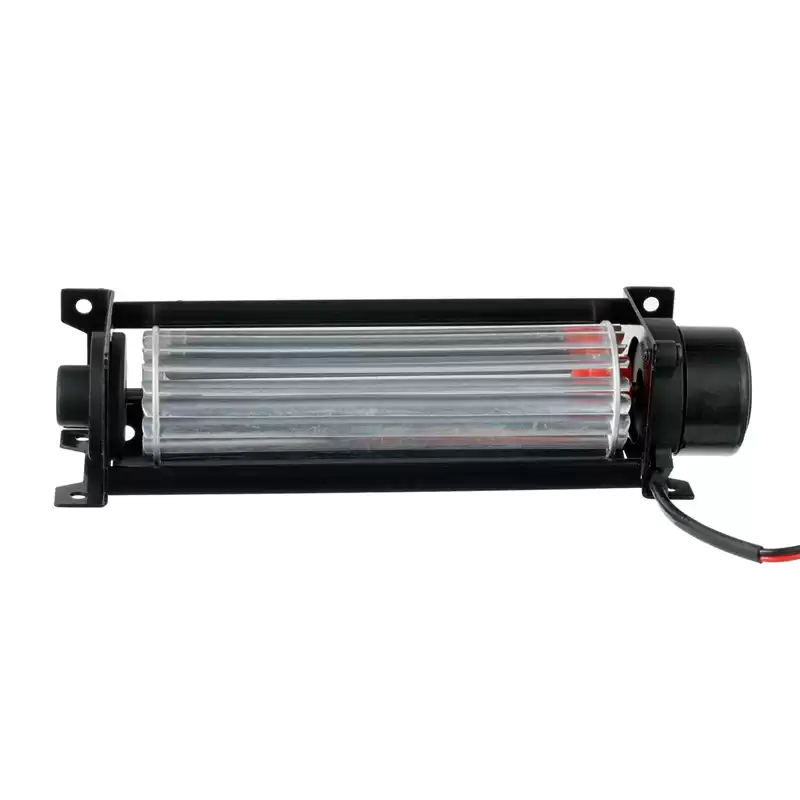

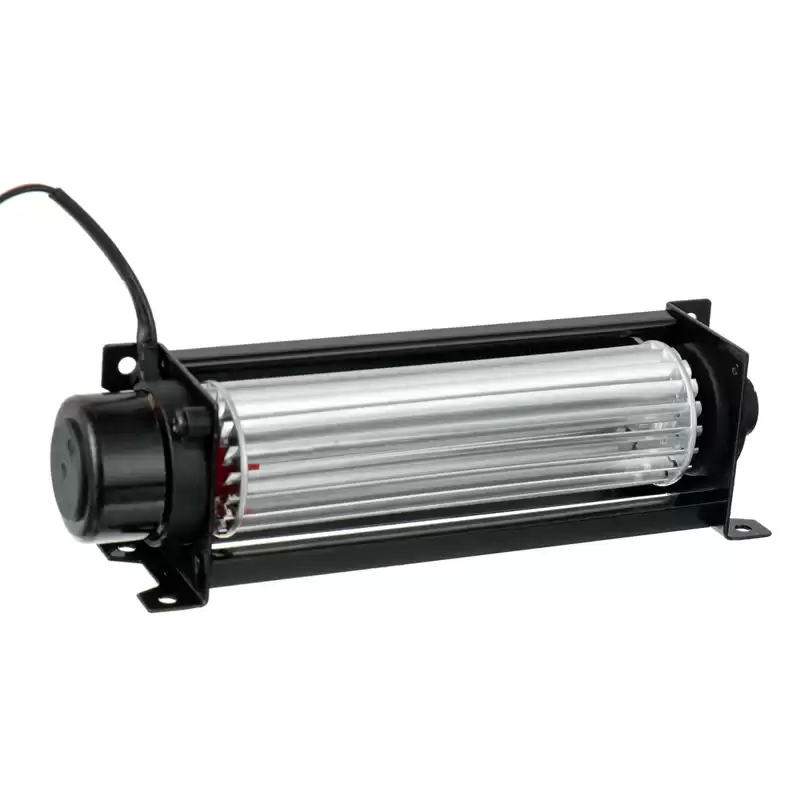

12Volt Radiator Sleeve Ball Bearing Air Cooling, High Speed 5000RPM Cross Flow Exhaust Fan. The characteristics of cross flow fan, such as large air volume, wide air outlet surface and low noise, have become ideal solutions for many applications.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

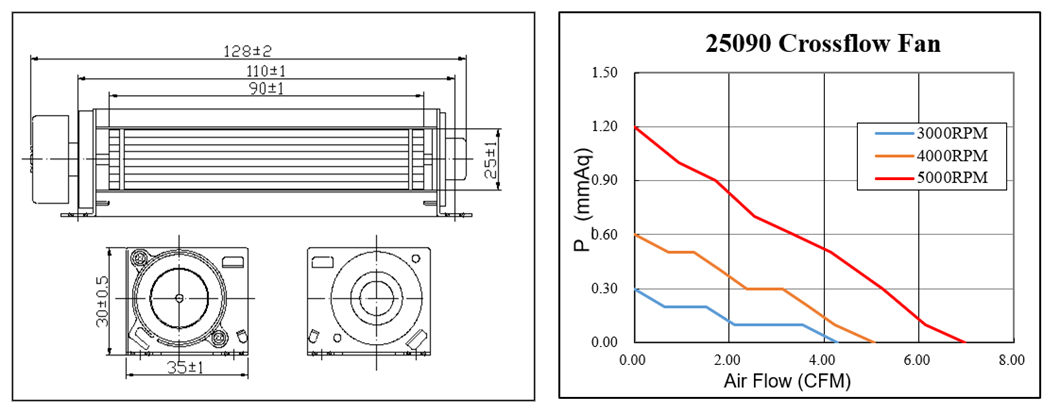

Dimension of impeller is 90mm(L)× 25mm(D) / The size of fan in inch is 3.54(L) in x 0.98(D) in; The outer frame size is 128.0 ± 2.0 mm /5.03 in; The center to center distance beween the mountiong holes is 110.0 ± 1.0 mm / 4.33 in.
-

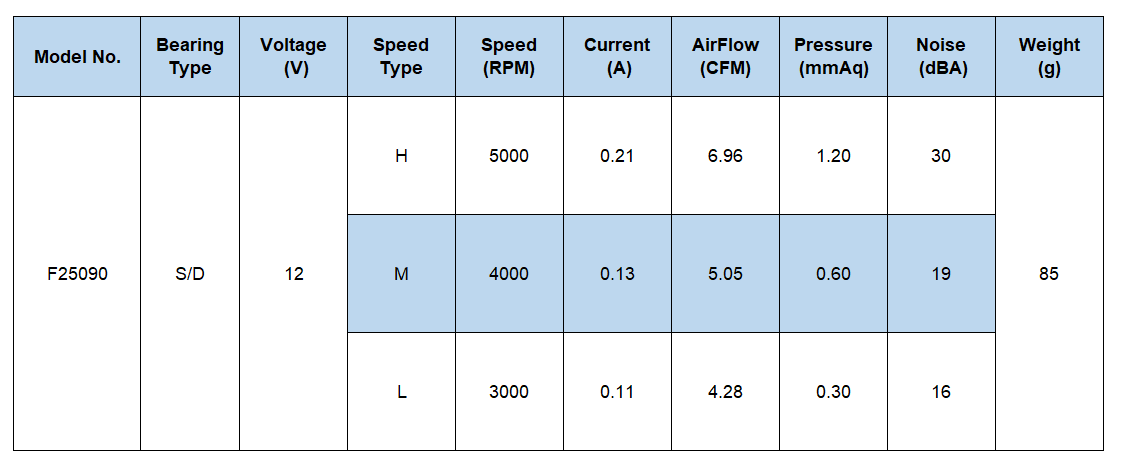

Operating Voltage Range: DC 12V | Current: 0.11 ~ 0.21 Amp | Speed: 3000 ~ 5000 RPM | Airflow: 4.28 ~ 6.86 CFM | Noise: 16 ~ 30 dBA | Pressure: 0.30 ~ 1.20 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
DC CROSS FLOW FAN 109x90x25mm
General Specification:
Frame: Cold Rolled Steel
Impeller: Aluminum Alloy
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
Excellent performance and impeccable quality;
-
CE, UL, RoHS and REACH environmental certificated;
-
Good quality bearing enhances the efficiency of the DC cross flow fan;
-
Fan blades are made of environmental protection and fireproof metal material;
-
The fan’s motor location can be changed from the right side to the left side by the factory at the customer’s request.
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
Application
DC/AC Cross flow fan is suitable for refrigeration and display cabinets, indoor units of split air conditioners, mobile air conditioners, air fresheners, dehumidifiers, low static pressure air duct machines, air curtains, heaters, electric fireplaces, air curtains, big summer fans, window air conditioners, domestic tower fans and other air equipment and household appliances.
-
Custom projects related to Air Conditioners, Refrigeration and display cabinets, Dehumidifiers, Sports equipments, and many other industrials.
-
Create a good cooling and ventilation systems to keep household appliances and other electronic equipments running at the ideal temperature and at the best speed.
