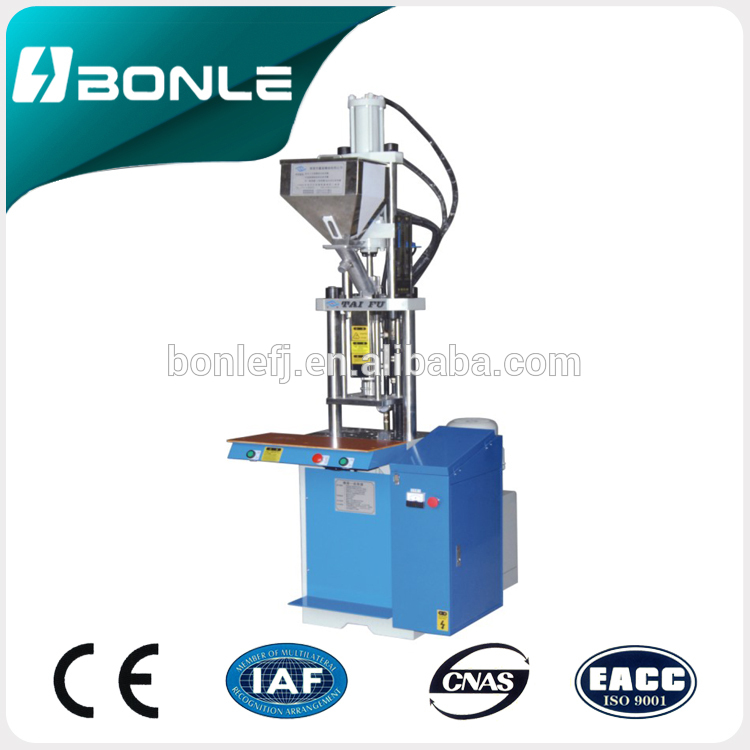

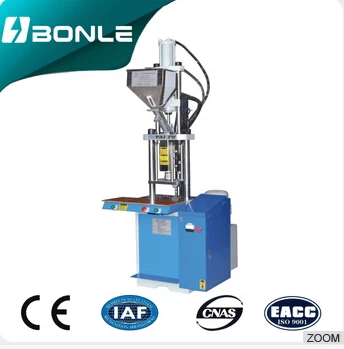

High quality vertical plastic injection molding machine

 supply,design and bulid production line



We supply injection molding machine and auxiliary equipment,

and can help customers design and bulid production line in your factory,

along with the necessary working process training.

1.Stands closes-fires from the prone position four columnsmol series to do in the identical horizontal plane 180° return lathe.

but the operator does in the fixed operation surface takes to put inlays,the work convenience also lives the efficiency to be high.

2. The surface localization,by is fixed lives,after may guarantee turns on lathe stops,can have the high accuracy the localization about,t

akes shape the mold accurately to gather the mold.

3.The aoca from inserts takes out and so onfrom sets,helps all from.

4.The 2 stations,have the special demand to be possible 3 to stand,4to stand in addition or more stations.to a more conv enient operation,and form does delimits,increase energy.




MODEL

V2-15

Injection unit

Srecw diameter (mm)

Φ22



Φ26



Injection capaclty  (cm2)

34

47

Injection weight(PS)          g(oz)

39(1.4)

55(1.9)

Max.Injection pressure Mpa(kgf/c2)

1625

1164

Injection rate              (cm2/s)

28

39

Screw stroke (mm)

90

Screw speed rotation (r.p.m)

0-150

Nozzle contact force (tf)

2.4

Clamping unit

Clamping force (tf)

15

Clamping stroke (mm)

200

Min.molud space (mm)

240

Overall size of platens(HxV)

/

(LxW)Max.mould helght (mm)

40

Platen size (mm)

/

Hydaullc ejector force (tf)

0.7

Ejector stroke (mm)

30

Others

System pressure       Mpa(kgf/cm2)

13.7(140)

Oil tank capacity (L)

90

Drive motor KW(HP)

2.2(3)

Shopping size LxW*H (m)

1.4*1.1*2.25

Shopping weight (t)

0.8

Machine weight (tf)

0.65
