Solar Panel Frame Roll Forming Machine
1.Main features of solar panel frame roll forming machine
The advantages of solar panel frame roll forming machine are as follows:
1.Accuracy Profile
2.Two profile in one machine, economic solution and space saving.
3.Easy operation, low maintenance cost
4.Beautiful appearance.

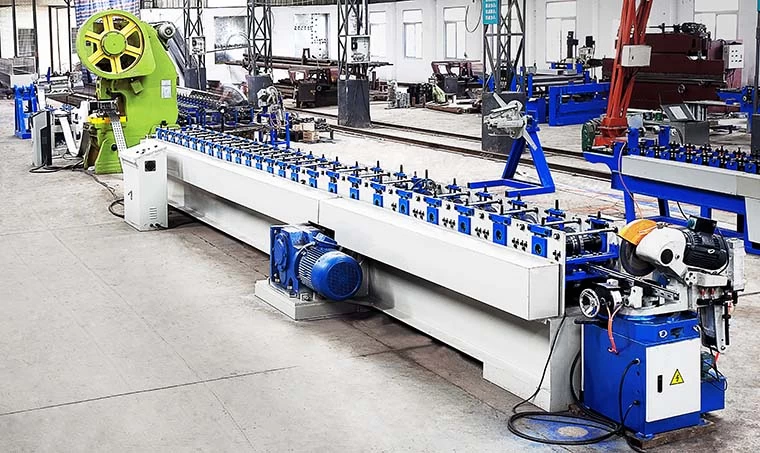

2.Detailed Images of solar panel frame roll forming machine
Machine Parts

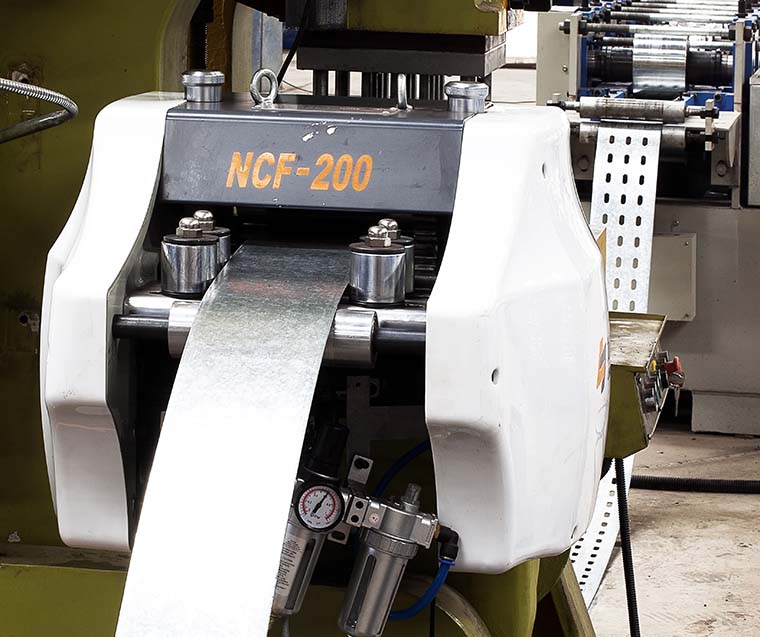

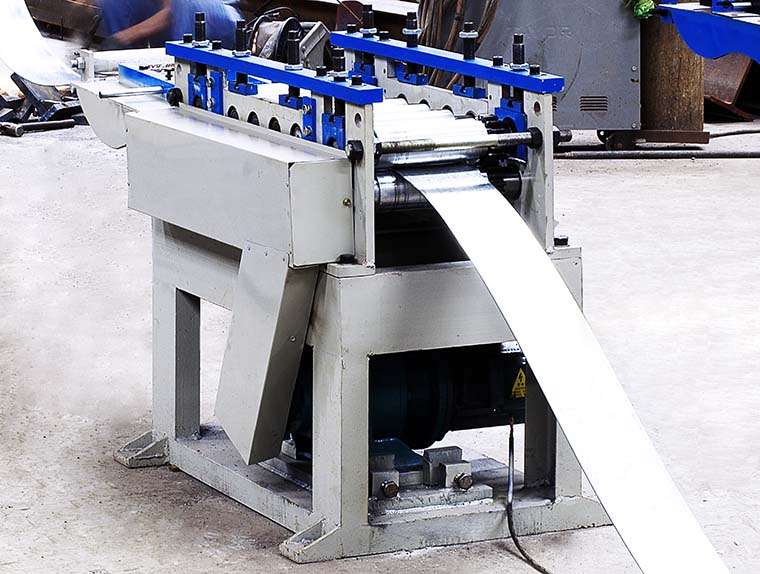

1) Solar panel frame roll forming machine straightened device
Brand: BMS Original: China

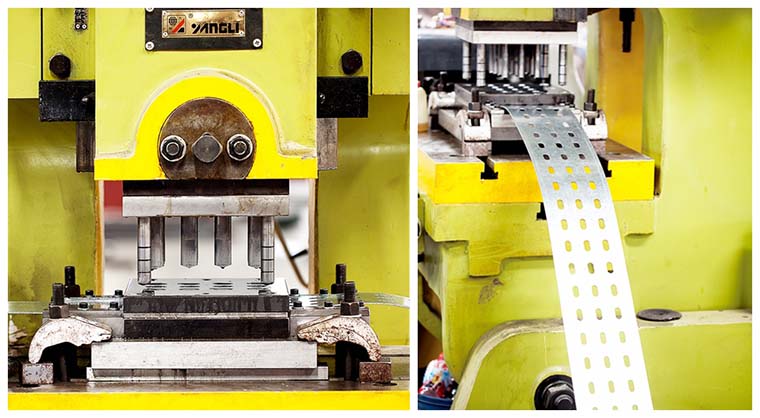

2) Solar panel frame roll forming machine puncher and the step into device
Servo-drive,punching motor=3.7KW,feeding material
63T pre-punching hole device, one set punch hole mold
Punching:China YANGLI
Puncher
Step into device

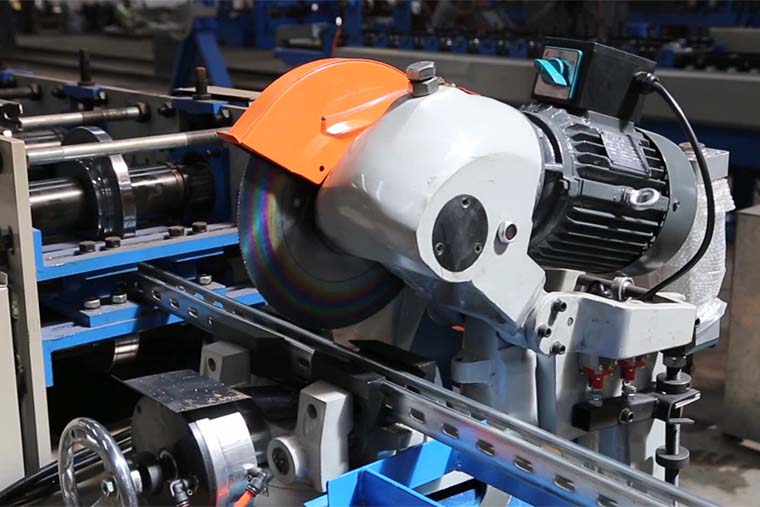

3) Solar panel frame roll forming machine pneumatic saw cutting device
Sawing motor: 3kw Sawing Device:China JIEDE
Cutting Blade Material:high speed steel cutting blade
Performance guarantee: Cutting should be smooth after adjustment.
With matched gas valve

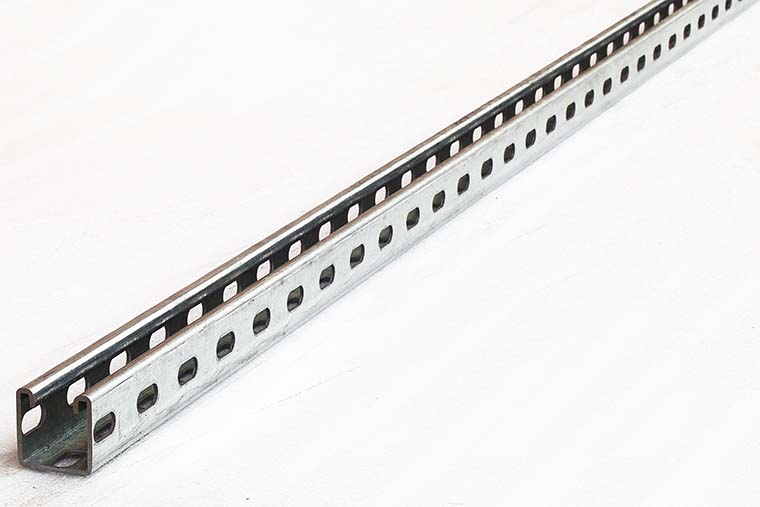

4) Solar panel frame roll forming machine product show
5) Solar panel frame roll forming machine forming flow chart
Decoiler---Straightened Device--Punching Machine、Stepped Device/Mold--
Auto Stop Device--Roll Forming Mill--Sawing device--PLC Control--Rack Exit
6) Metal door frame roll forming machine decoiler
ManualDecoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option
7) Solar panel frame roll forming machine exit rack
Un-powered,3 meters long ,one unit
Other detailes of solar panel frame roll forming machine
Suitable for material with thickness 2.0-2.5 mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form.
Main motor=11KW , Frequency speed control. Forming speed approx.8-12m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of solar panel frame roll forming machine
1. The warranty of solar panel frame roll forming machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
