High quality wrapped fiberglass liner plastic composite lpg gas cylinder

LPG composite cylinders are designed with ergonomics in mind, making them easy to lift and 50 percent lighter than conventional cylinders



LPG COMPOSITE CYLINDER

LPG composite gas cylinder is liquefied petroleum gas composite gas cylinder. It is made of composite material, which is lighter than traditional metal cylinders, has better corrosion resistance, and can adapt to different use environments to a certain extent. After strict design and testing, it can ensure safety under correct use and maintenance.



Mfg. Standard Norminal Working Hyd.test Pressure Design Wall Thickness Material Outer Diameter      Water Capacity Length(mm) Weight(kg)
EN 12245
ISO11119-3
20 30 1 HDPE 321 12.5 400 6.95
321 18.2 500 7.15
321 24.5 599 7.35
321 26.2 624 7.4
321 27.4 645 7.45
321 30.5 677 7.5
321 34.5 764 7.67

Range of Application:

  • Civil field: Gas supply for residential households, such as cooking, heating, etc.
  • Commercial catering: All kinds of restaurants, hotels and other commercial places stove fuel supply.
  • Gas vehicles: fuel storage containers such as LPG vehicles.
  • Portable equipment: Provides a fuel source for certain portable gas equipment.
  • Field work: Provide energy support in field construction, camping and other activities.

LPG composite cylinder

.


Why Choose Us?

  • Strong production capacity:With a self-built factory covering over 56,000 square meters and employing over 240 staff, the company has the capacity to produce 300,000
  • Direct sales from the source factory:By eliminating foreign trade companies, purchasers can directly access the manufacturer for one-stop procurement
  • 10 years of industry experience:The factory holds IATF 16949 and ISO 9001 quality management system certificates,
  • Customization capability:Our products can be customized according to your preferences, including color, size, thread, and logo.

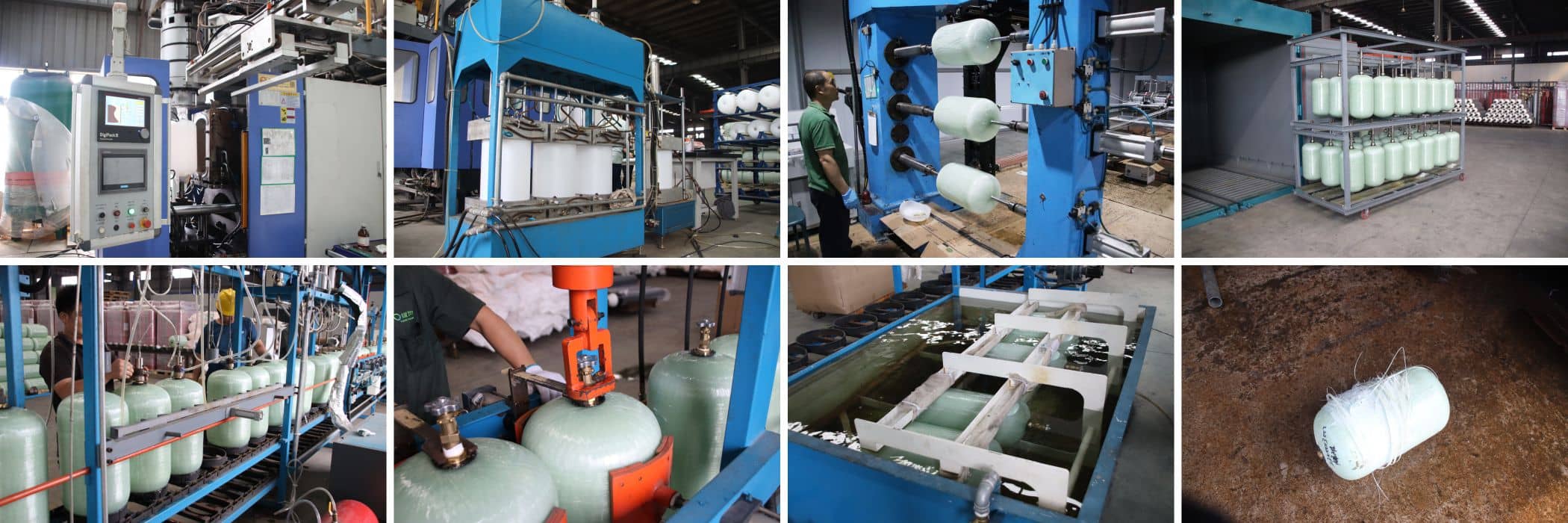

  • At present, the company has 6 gas cylinder spinning production lines, 3 heat treatment and tempering lines, 2 automatic production lines for machine adding, spraying and winding, and 1 LPG composite gas cylinder production line


lpg cooking gas cylinder



Quality Control

Our products strictly follow the international standards, with ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates.



Certificate of CNG cylinders



Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters.  We currently have a workforce of 240 employees, including 50 senior technical and management personnel.  Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.




Product Tags Low pressure gas cylinder          lpg composite gas cylinder          cooking gas cylinder          LPG composite air bottle          Portable LPG composite gas cylinders 30.5L          Explosion-proof cooking cylinders
