Product Name
150-174MHz RF Combiner also called a VHF combiner,a popular Low VSWR combiner.
Product Feature
◆ 3G/4G/5G LTE Coverage
♦ Low Insertion Loss &low vser
♦ Widely used for in-building Soloution
♦ IP67 applicationn
♦ All Sepcifications can be changed as your enquirements
Technical &Machenical Specifications:
|
Model No.
|
MNC-150-174 403-512-NF
|
|
Frequency
|
Port 1: Low 150-174NHz
Port 2:High 403-512MHz
|
Isolation
|
50dB
|
|
Impedance
|
50ohm
|
|
VSWR
|
≤1.4
|
|
Power handling
|
20W Avg
500W Peak
|
|
Application
|
Indoor/outdoor IP67
|
|
Connector
|
N-Female
|
|
Color
|
red
|
Services:
1. Professional skills support for RF High Quality150-174/403-512 MHz Combiner Dual Band Combiner with Low PIM Widely Used in IBS&BAS VHF Combiner
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

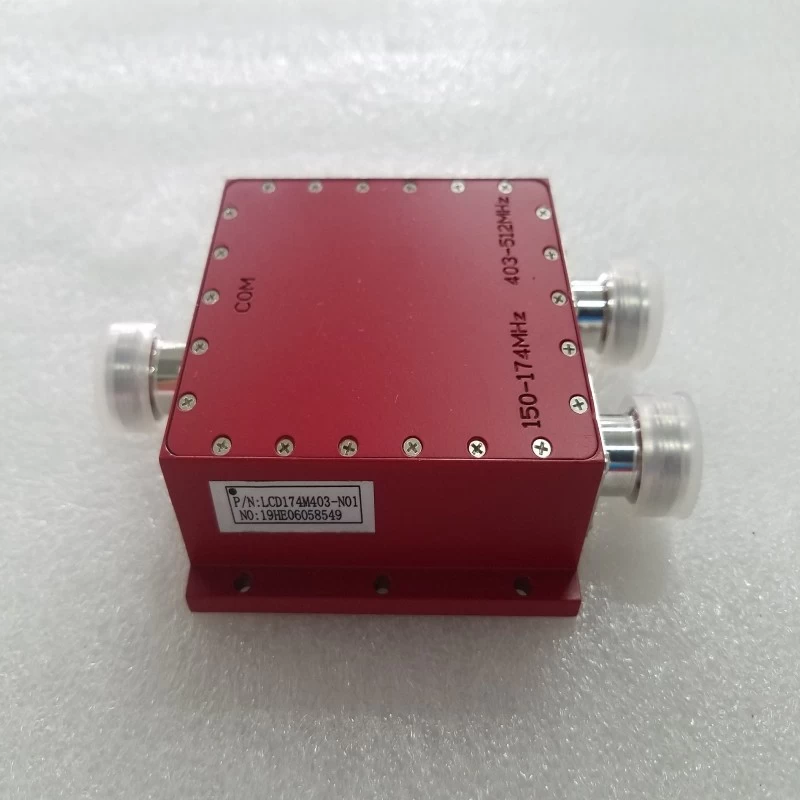

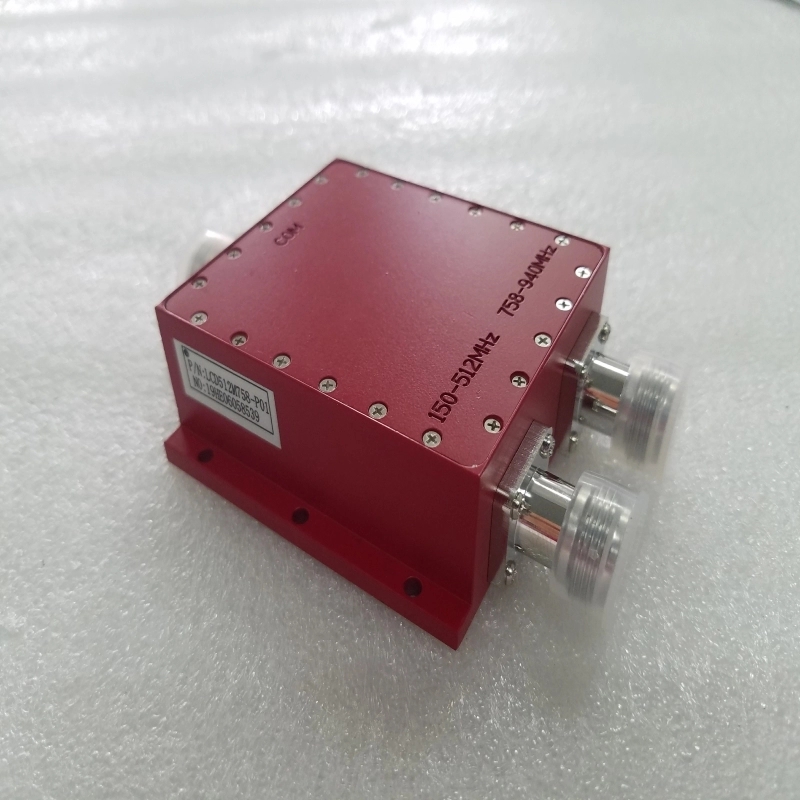

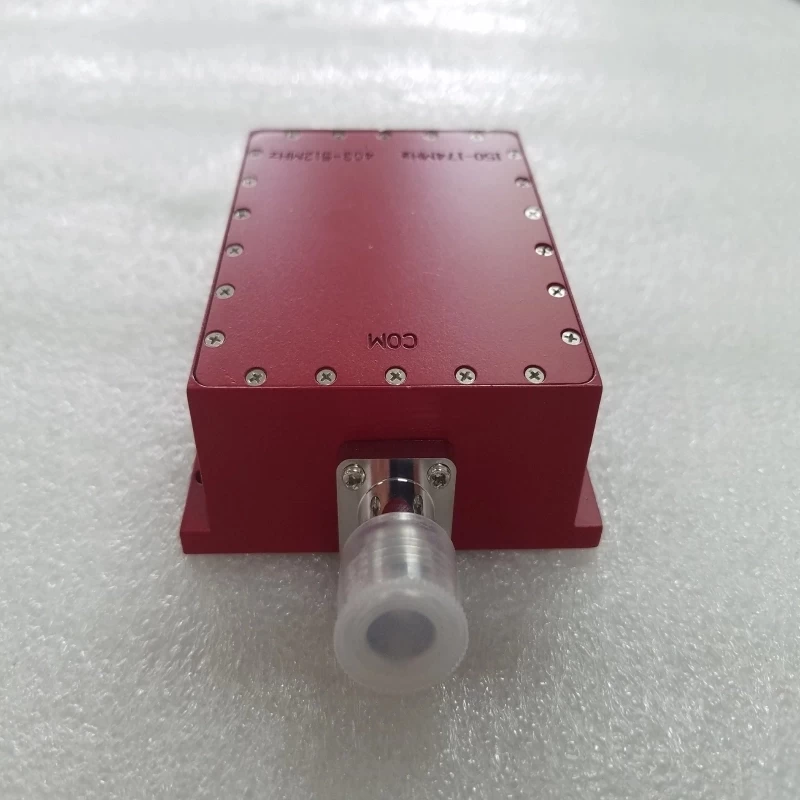

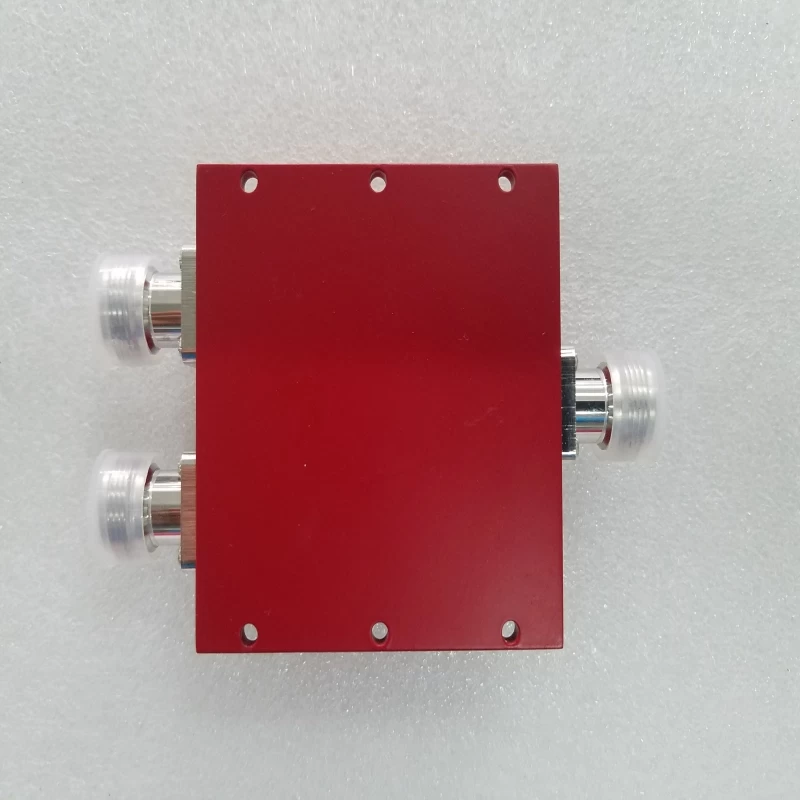

Detailed image:
