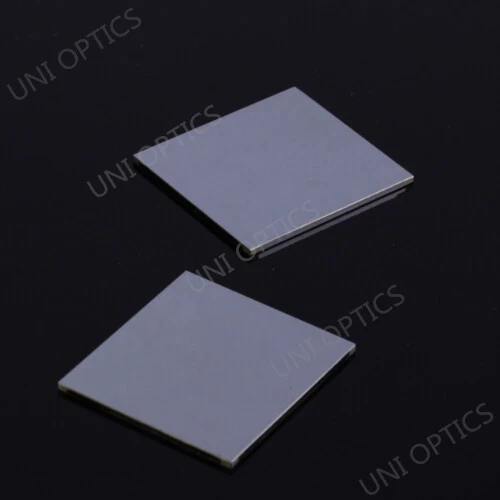

High Reflective Broadband Dichroic Mirrors

The dichroic mirror is a mirror with significantly different reflection or transmission properties at two different wavelengths, it’s characterized by almost complete transmission of light at certain wavelengths and almost complete reflection of light at other wavelengths. It can be widely used in Laser technology application.



1、What is Dichroic Mirrors?


The dichroic mirror is a mirror with significantly different reflection or transmission properties at two different wavelengths, it’s characterized by almost complete transmission of light at certain wavelengths and almost complete reflection of light at other wavelengths. It can be widely used in Laser technology application.



2、What are the feature of Dichroic Mirror offered by UNI Optics?


UNI Optics customizes the Dichroic Mirror with the following features:

High reflectivity

High damage threshold

Long life-time



3、What UNI Optics can do for you?



Specifications:


Substrate Materials: N-BK7, Fused silica, Pyrex

Dimensional tolerance: +/-0.1mm

Surface quality: 20-10

Parallelism: 1’

Flatness: λ/8 per 25mm@633nm

Bevel: Protective

One surface: Laser grade Polished and HR coating

The other surface: Fine ground

Angle of incident: 0° or 45°
