High Refresh Rate PH6 Outdoor LED Video Wall with 6,500 nits LED
An LED message board is an easy, low maintenance, and affordable way to convey messages to a wide variety of individuals. With our technology, you can display messages, graphics, animations and logos straight from your computer to the electronic message board.
Quick Detail:
1. MBI5024 drive IC;
2. All EPISTAR LED;
3. Not less than 6,500 nits;
4. 150 mm thickness of cabinet;
5. Plywood case packed.
Detail Description:
5V 40A power source, 1 pc supports 7pcs P6 outdoor LED module;Spare parts provided based on quantity;
Each cabinet uses 1 pc receiving card to make sure high refresh rate.
Application:

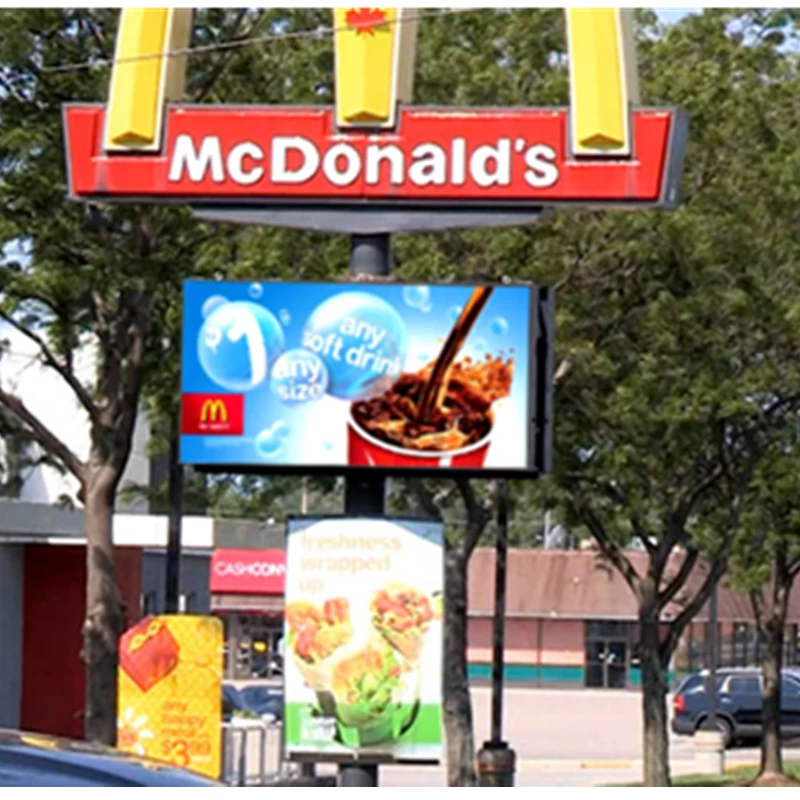

Outdoor LED billboard is used for highway advertising.
Feature & Function
Items P6
Classification of items Full color
Application environment Outdoor
Pixel pitch 6mm
LED lamps SMD3535
Optimum viewing distance 5m
Optimum viewing angle H:140°V:140°
Module size 192X96mm
Module resolution 32x16dots
Physical pixel 27777 dots/m2
Pixel constitution 1R1G1B
Cabinet size 768X768mm
Cabinet resolution 128X128dots
Cabinet material Iron coated epoxy
Cabinet structure outdoor fixed
Typical power consumption 800W/sqm
Driving method 1/8 scan Constant Current
Frame frequency ≥60Hz/s
Refresh Rate ≥400Hz/s
Luminance of White Balance ≥1200 Nits
Operating environment temperature -20°C - +45°C
Working voltage 110-220VAC+-10%
Grey Scale/ Color Displaying colors≥16.7M(Synchronized)
Brightness Adjustment 256 levels of each color
Input singal RF,S-Video,RGB,RGBHV,YUV,YC & Composition,etc
Software LED studio(LINSN)
Control system main controller card (sending card and receiving card)
Average level of no failure time >5000 hours
Life span >100,000 hours
Malfunction Dot Rate <0.0001
Warranty:
1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
