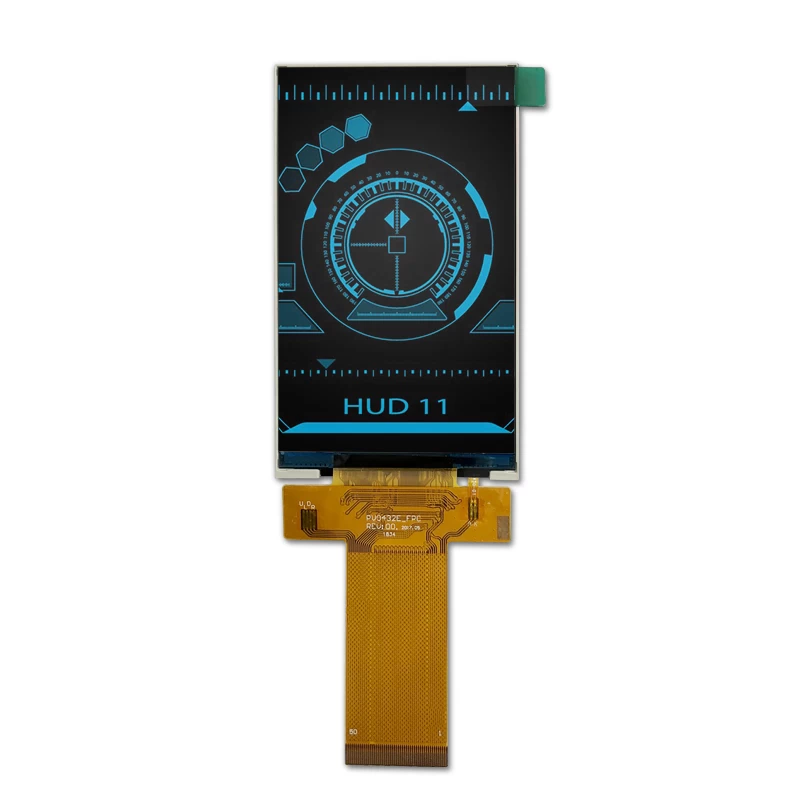

High resolution 4.3 inch ips lcd vertical screen 480x800 with high brightness
| Specification | ||
| Part No. | TST043WVBI-57B | |
| Outline Dimension(mm) |
60.9x104.5x1.9
|
|
| Active Area(mm) | 56.16x93.6 | |
| Resolution(dots) | 480*RGB*800 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 480RGB(H)xRGBx800(V) | |
| Touch panel |
Available to custom |
|
| Driver |
ILI9806E |
|
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | 4.3 inch IPS TFT | |
| Brightness | 520 nits | |
| View direction |
ALL |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface |
RGB |
|
| Module lifetime(Hours) | 50,000-100,000 | |
