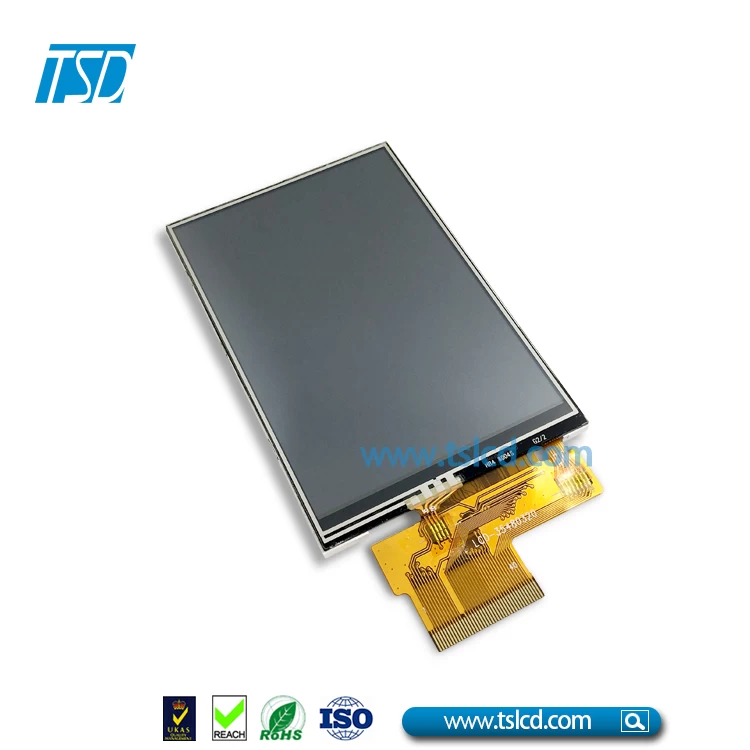

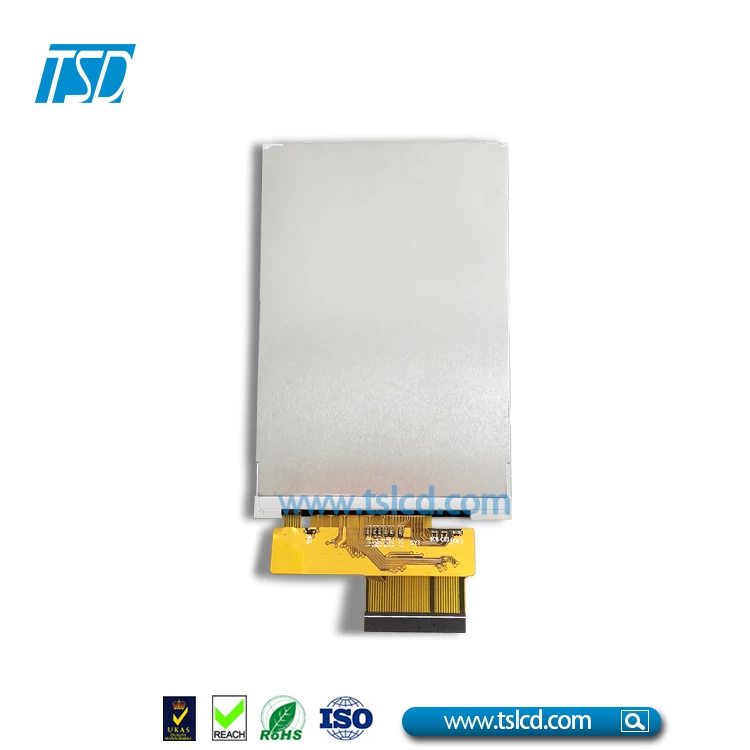

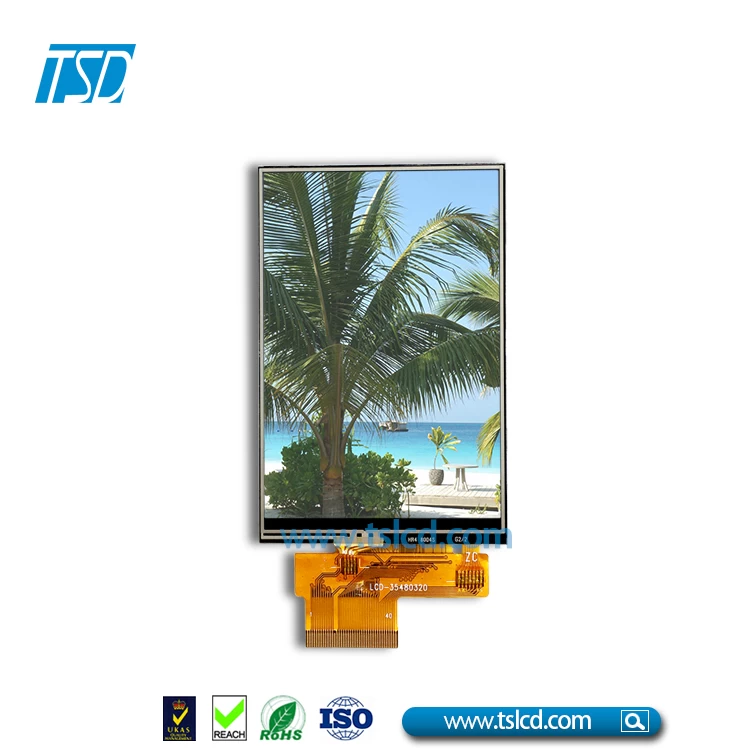

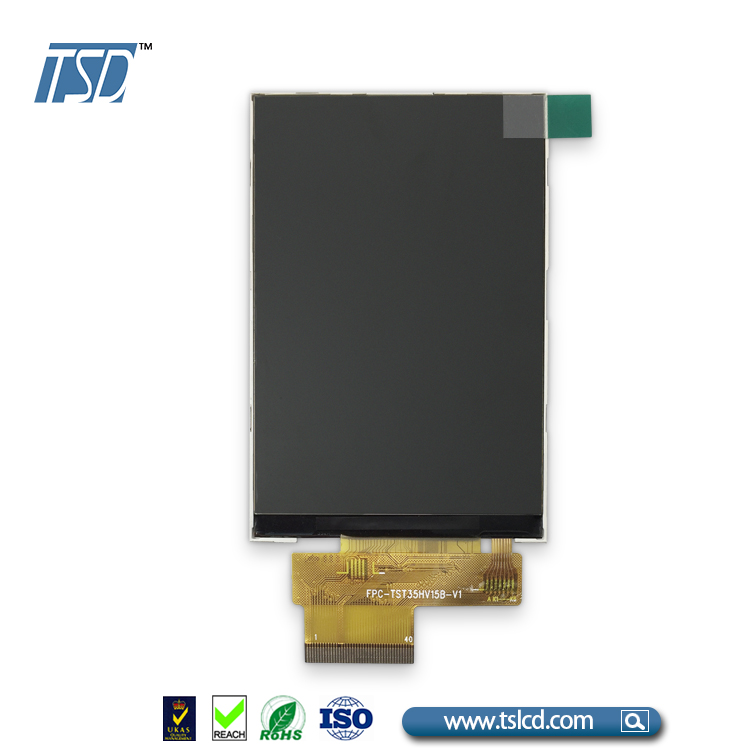

High resolution VGA 480x640 resolution 3.5 inch tft lcd dispplay with ILI9805C controller
|
Specification
|
|
LCD type
|
TFT, Transmissive
|
|
Display type
|
3.5 inch TFT LCD VGA, 262k color, normal white
|
|
Driver element
|
a-si TFT Active matrix
|
|
Outline Dimension(mm)
|
63.5x85.5x3.23
|
|
A.A.(mm)
|
48.96mm*73.44mm
|
|
Driver IC
|
ILI9805C
|
|
Item
|
3.5 inch tft lcd panel with MIPI Interface
|
|
Resolution(dots)_
|
480*RGB*640
|
|
Viewing Direction
|
6H
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
480(H)x 3RGB x 640(V)
|
Touch screen
|
Available to custom
|
|
Operating Volatge
|
2.8v
|
|
Pixel arrangement
|
RGB Stripe
|
|
Display mode
|
Normally white
|
|
Surface treatment
|
Antiglare, Hard-Coating(3H)
|
|
Weight(g)
|
TBD
|
Connector (IC)
|
COG (ili9805C)
|
|
Weight(g)
|
TBD
|
|
Interface
|
MIPI
|
|
Module lifetime(Hours)
|
50,000-100,000
|
