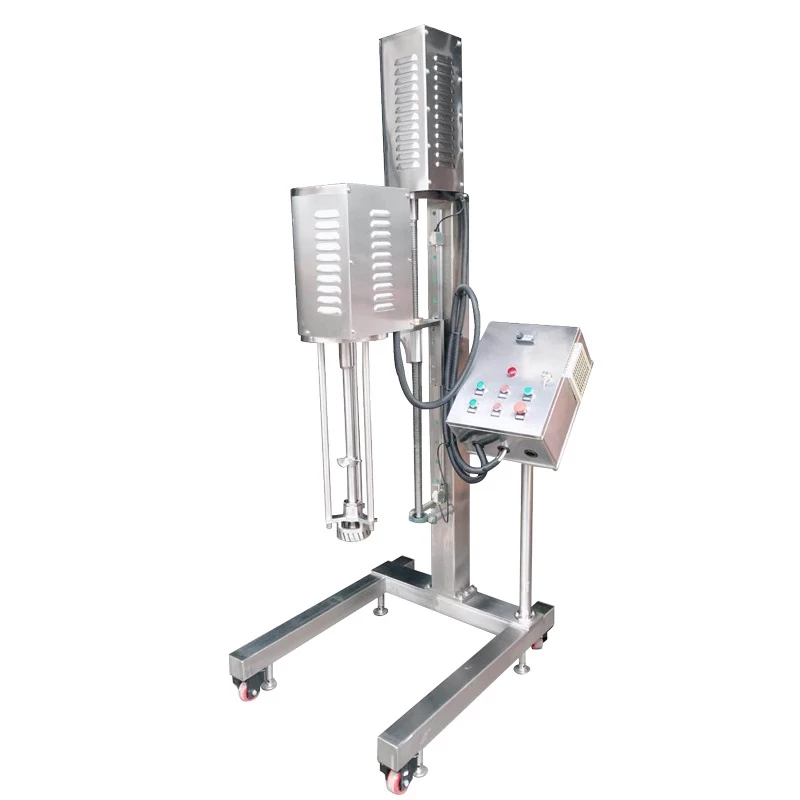

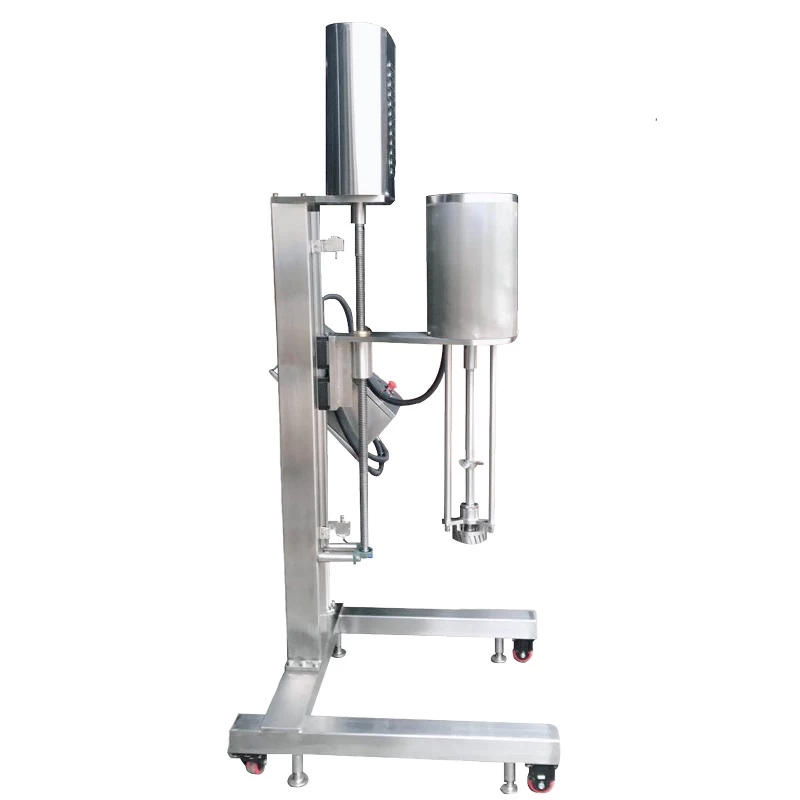

High shear dispersing homogenizing mixer machine
Customized And OEM Service Available
Product Description:
Due to the strong kinetic energy caused by High Shear Machine speed and high frequency mechanical effect produced by high speed rotation of the rotor, the material is subjected to a strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap between fixed and rotor, so that the High Shear Dispersion Emulsifier insoluble solid phase, liquid phase and gas phase are in phase. Under the joint action of mature technology and proper amount of additives, the emulsification is dispersed uniformly and finely in a moment, and the stable high quality products are finally obtained through high frequency circle cycle.
Characteristics of pipeline type high shear mixer:
1. large capacity, suitable for industrial continuous production on-line;
The 2. particle size distribution is narrow and the evenness is high.
3. provinces, high efficiency, energy saving;
4. the noise is low and the operation is smooth.
5. eliminate the quality difference between batch production.
6. the suction port of homogenizer can directly suck some raw materials into the stator after shearing and then flow out of the pump body.
7. Lab High shear dispersing homogenzier without dead angle, material 100% by dispersing shear;
8. has the function of short distance and low lift.
9. easy to use, convenient maintenance;
10. can realize automatic control.
Technical parameters
|
Powder(KW)
|
Litre fall height mm
|
Speed rpm
|
Mixing volumeL
|
Dispersion diameter diametermm
|
Weight
|
|
3
|
900
|
A; 0-1500
|
50/150
|
150
|
480
|
|
4
|
|
B;0-3000
|
80/200
|
150
|
500
|
|
5.5
|
1000
|
|
100/300
|
250
|
900
|
|
7.5
|
|
|
100/500
|
250
|
930
|
|
11
|
|
|
300/800
|
250
|
1050
|
|
15
|
1200
|
|
300/1000
|
300
|
1200
|
|
18.5
|
|
|
500/1500
|
300
|
1300
|
|
22
|
|
|
500/1800
|
300
|
1500
|
|
30
|
|
|
500/2000
|
350
|
2000
|
|
37
|
|
|
500/2000
|
350
|
2200
|
|
45
|
1400
|
|
800/3000
|
350
|
2500
|
