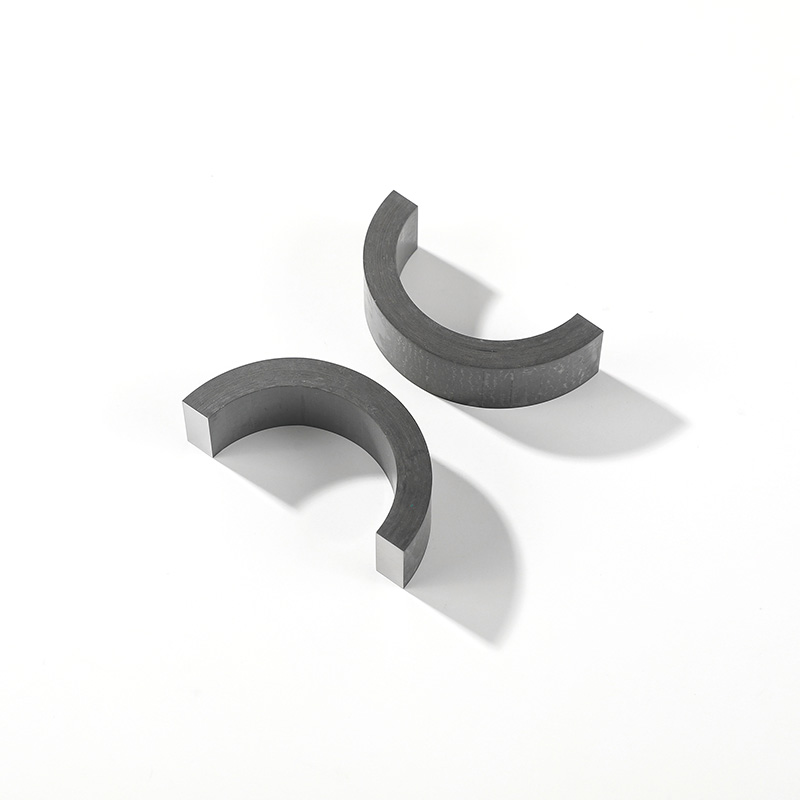

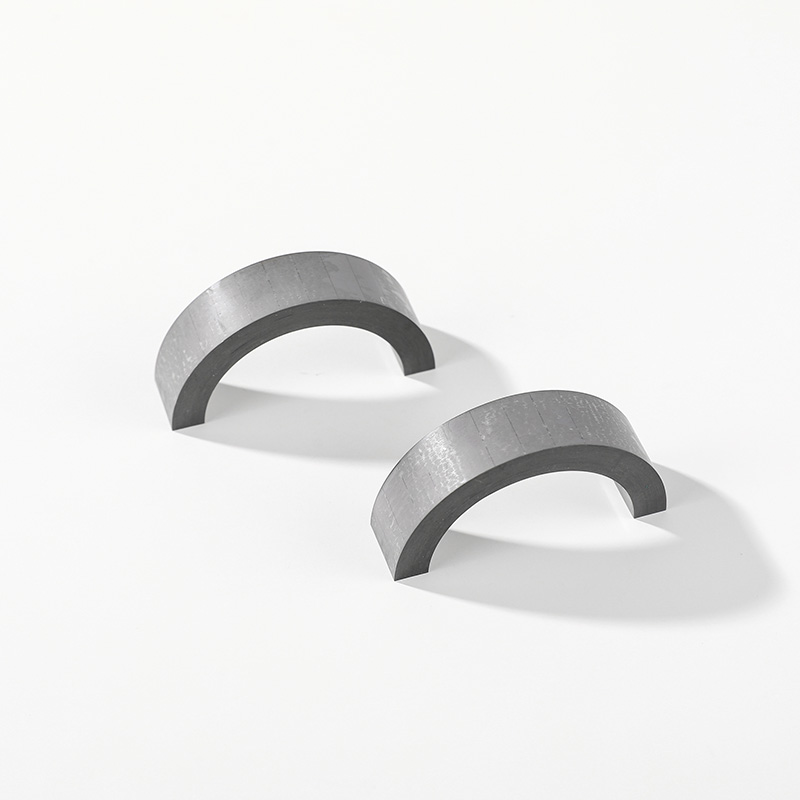

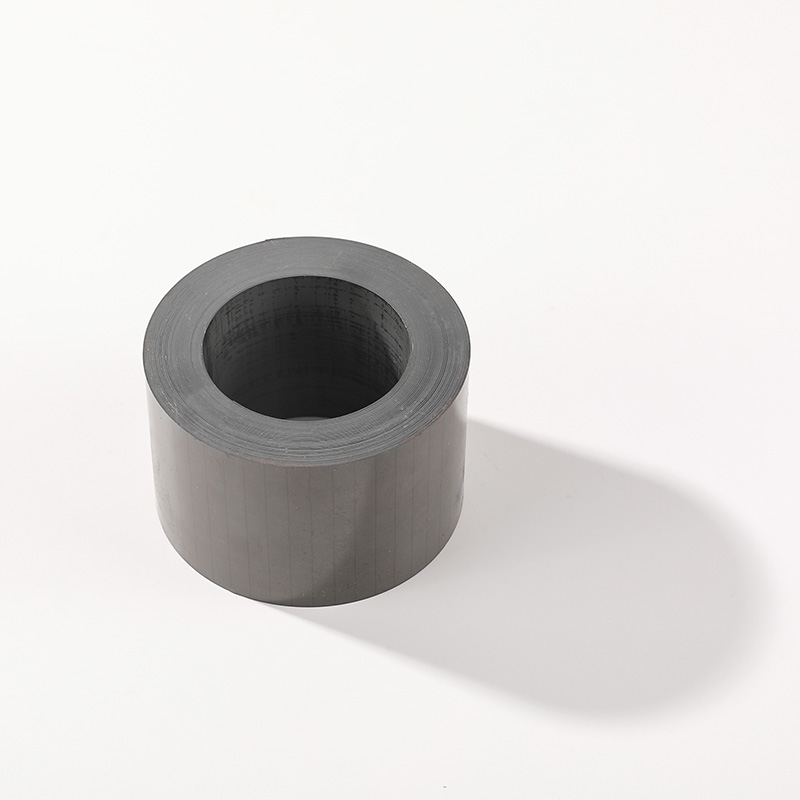

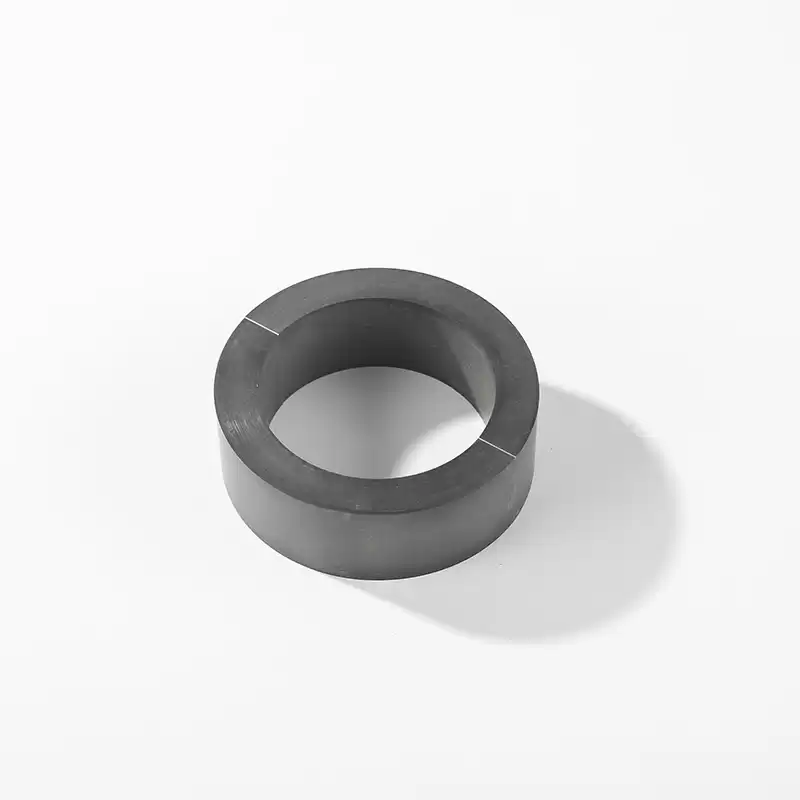

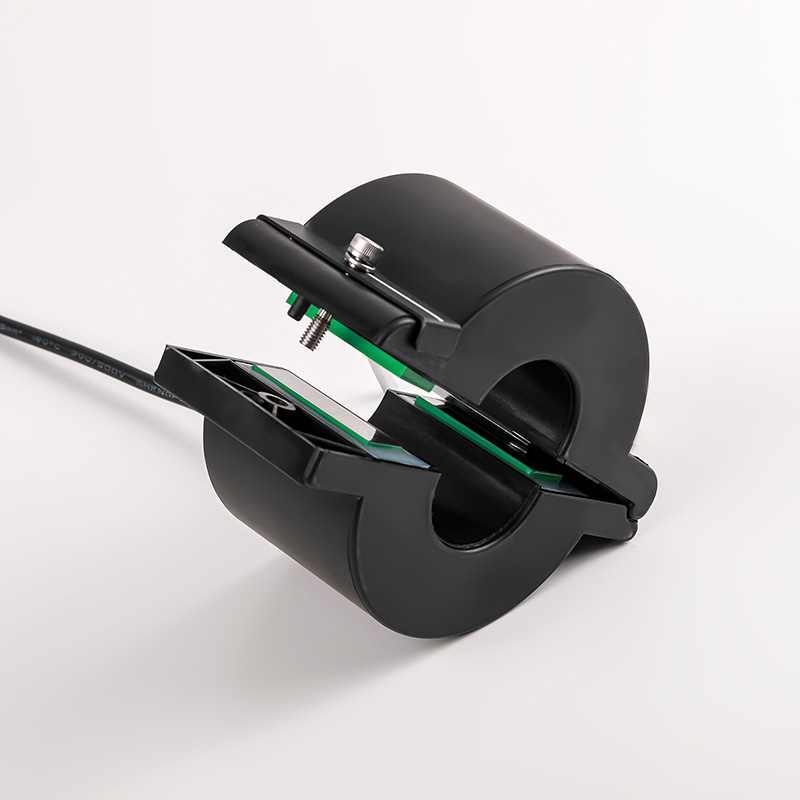

High Silicon Steel Permeability Current Transformer Cores Silicon Electrical Steel Core Transformer

Various sizes of toroidal cores are widely used in electronic equipment such as 50Hz, 400Hz transformers, inductors, chokes, chokes and other electromagnetic components.



Introduction:

Silicon steel is an alloy, adding a small amount of silicon in pure iron (generally below 4.5%) the formation of iron-silicon alloy known as silicon steel, this type of core has the highest saturation magnetic induction strength value of 20,000 gauss; due to their better magnetoelectric properties, but also easy to mass-produce, inexpensive, the impact of mechanical stress and other advantages, in the power electronics industry to obtain an extremely wide range of applications, such as power transformer Power transformers, distribution transformers, current transformers and other cores.

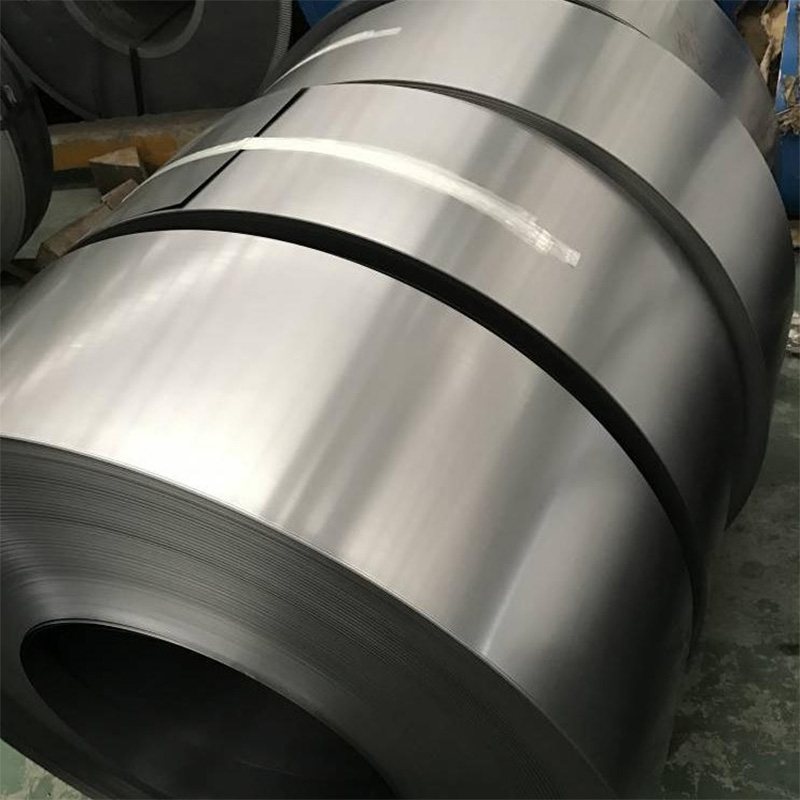

For small motors, reactors and relays, pure iron or low-silicon steel sheet; for large motors, high silicon hot-rolled silicon steel sheet, single-orientation or non-orientation cold-rolled silicon steel sheet; transformers are often selected single-orientation cold-rolled silicon steel sheet. In the frequency of use, commonly used strip thickness of 0.2 ~ 0.35 mm; in the use of 400Hz, often choose 0.1 mm thickness is appropriate. The thinner the thickness, the higher the price.



Silicon steel core can be customised

size ( d * D  * B )(mm)

Cross-sectional area(mm²)

weight(g)

volt-ampere characteristic(mV)

(1A excitation current output)

Magnetic circuit length(mm)
184*226*60 1260 7096 7.6 643.7
52.5*90.5*64 1216 2388 27.2 224.5
57*89*58 928 1861 17.3 229.2
55*81*68 884 1651 29.3 213.5
59*89*53 795 1616 19.8 232.4
55*87*40 640 1248 19.8 222.9
60*88*40 560 1139 13.8 232.4
41*72*25 387.5 602 14.1 177.4
66*91*30 375 809 9.9 246.5
59*79*30 300 569 7.3 216.7
62*82*30 300 593 8.8 226.1
59*77*30 270 504 7.3 213.5
59*85*12 156 309 3.6 226.1
55*75*15 150 268 3.3 204.1
61*85*12 144 289 2.1 229.2
60*82*11 121 326 3.9 222.9
43*57*15 105 144 4.3 157.1
24*35*10 55 45 3.1 92.6



Application:

High-voltage transmission lines/medium-voltage distribution networks/high-speed rail/underground mines/energy consumption monitoring/metallurgy/dock shore power/large pump industry/hydropower and wind power detection/water conservancy monitoring/new energy vehicles/smart power consumption/smart mines/civilian airports/others Industry application



Introduction of chemical rust prevention technology for silicon steel based on passivation technology

Basic Features:

  • New antirust technology;
  • Based on the principle of redox reaction, using a strong reducing agent in the solution containing metal ions will be reduced to metal, and deposited on the surface of the material to form a dense metal film layer;
  • The protective film is attached to the surface of the iron core in solid form, cannot be diluted, has strong adhesive force, is not easy to fall off, and is not easy to have chemical reaction with impurities in the air;
  • Long service life.



The silicon steel cores of Hmei Electronics can be customized to meet the various specifications of our customers. We can deliver high performance and high quality products quickly, if you have a need in this area, please leave a message below.
