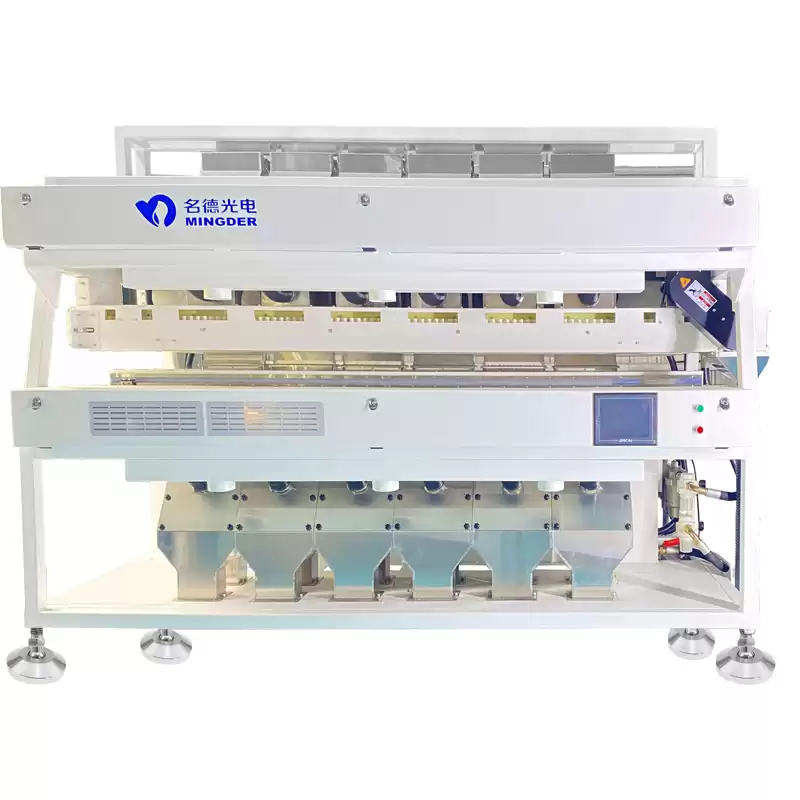

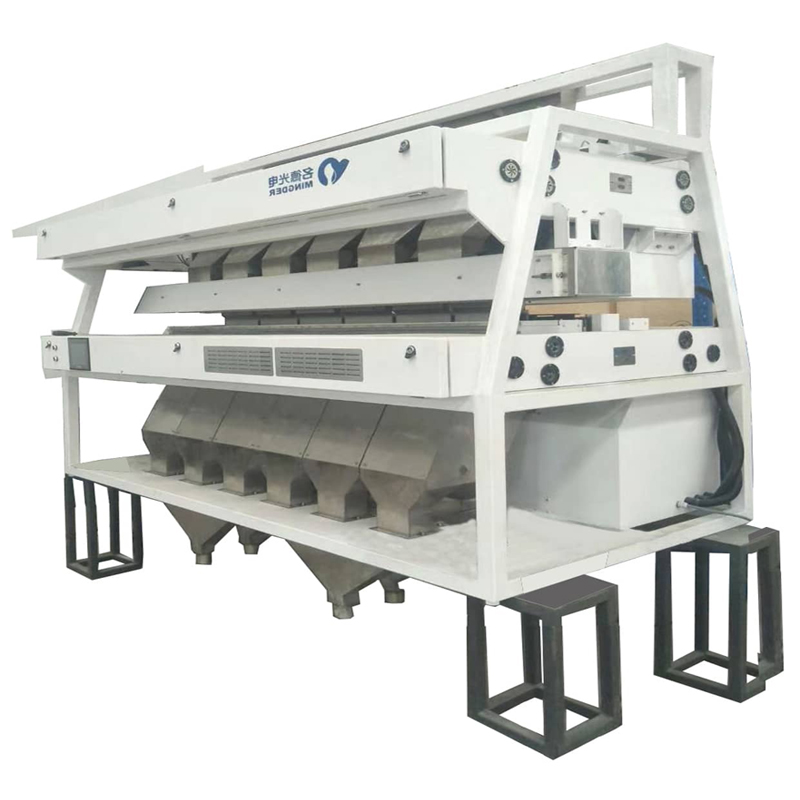

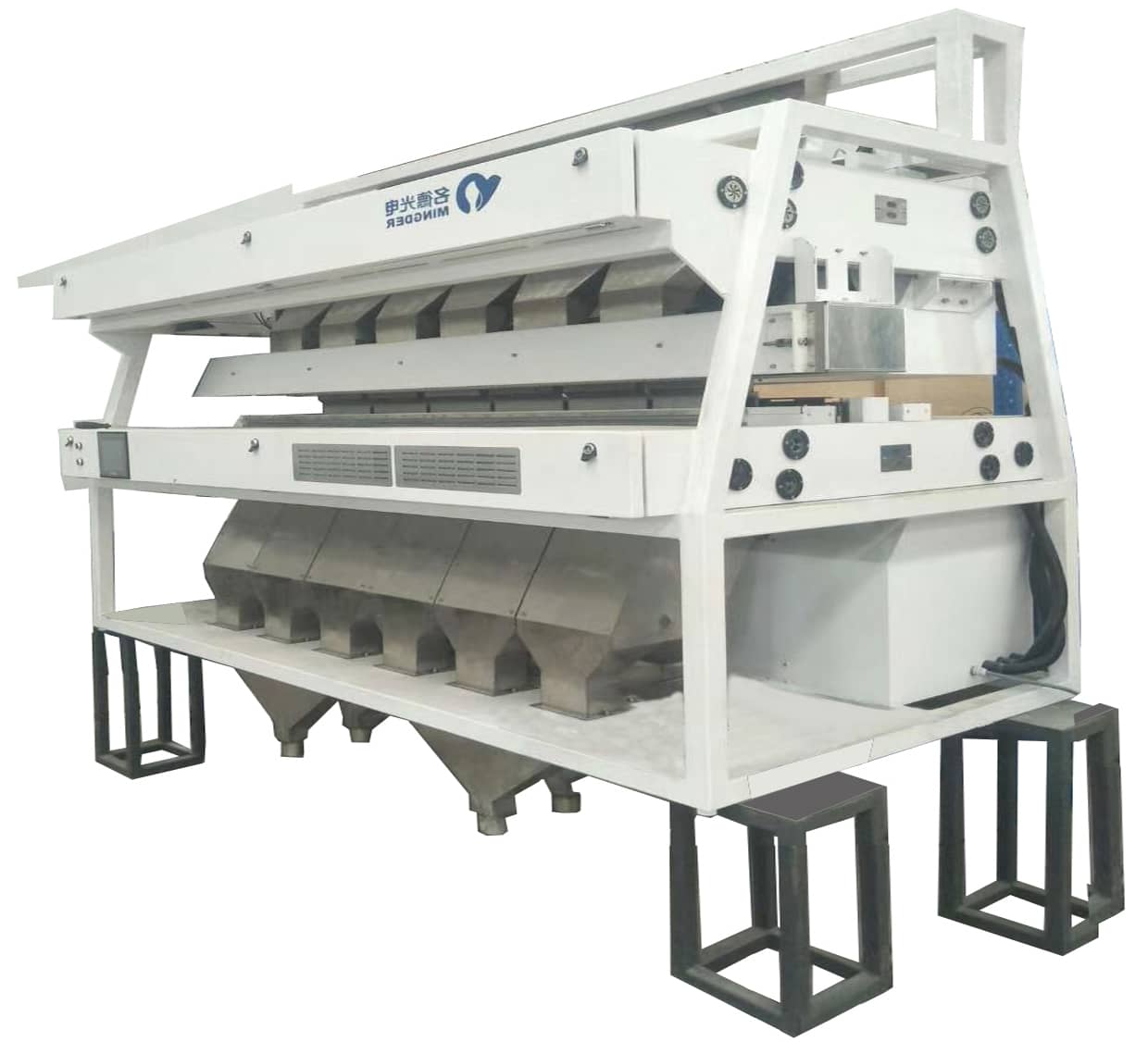

Ultra high definition lends Mineral sand color separator sorter Techniques
1,With ultra high definition lends and specially developed software,120mesh fine sand can be accurately identified,and the problem of unclear and inaccurate of food grain color sorter can be solved thoroughly.
2,The whole design of a number of patents,using the controlled way of feeding,completely solved the problem of the decline of the sorting effect caused by the wear of the chute.
3,Using cloud internet of things technology,real-time monitoring of device status and dynamic adjustment of parameters can be real-time,and one button operation is more convenient,and it reduces the requirements for on-site operators.
4,The main parts are imported with high quality ,and it is more reliable.
5,The rate of sorting accuracy will be higher, the times of sorting will be reduced,the optimized carryover will be lower and the rate of finished product will be higher
Technical parameters
|
Model
|
Feeding Capacity(T/H)
|
Optimized Carryover
|
Soring accuracy(%)
|
Power(kW)
|
|
MS-S5
|
3-9
|
1:8
|
99.9
|
2
|
|
MS-S6
|
3.5-10
|
1:10
|
99.9
|
2.3
|
|
MS-S8
|
4-11
|
1:10
|
99.9
|
2.6
|
|
MS-S10
|
5-12
|
1:10
|
99.9
|
3.2
|

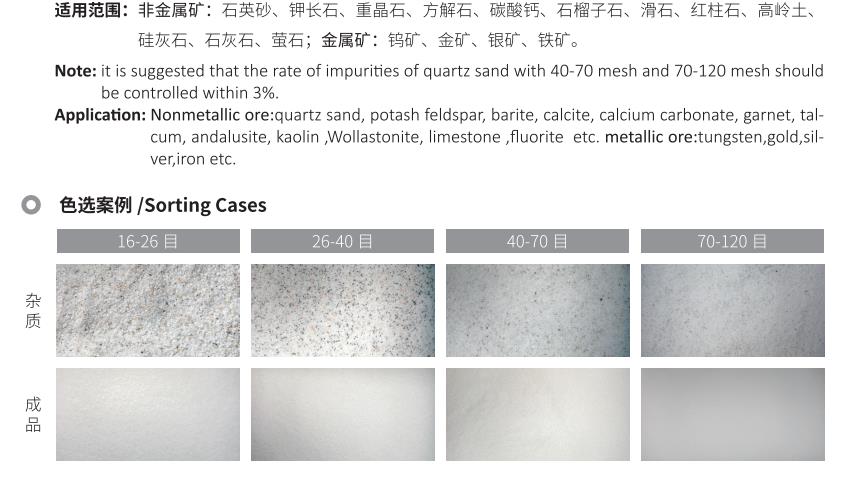

NOTE:it is suggested that the rate of impurities of quartz sand with 40-70 mesh and 70-120 mesh should be controlled within 3%
Application:Nonmetallic ore: quartz sand,potash feldspar,barite,calcite,calcium carbonate,garnet,talcum,andalusite,kaolin,wollastonite,limestone,fluorite,etc.
Metallic ore: tungsten,gold,silver,iron,etc.
