AI bean colour sorting machine release the burden of beans sorting.One -click to achieve to achieve 300+ miscellaneous grain materials sorting,exporting healthy and high-quality products for the world.
Chickpea colour sorting machines work by using a combination of light sensors and cameras to detect the colour of each individual chickpea. The machine then uses a sorting mechanism to separate the chickpeas into different bins based on their colour. This process is automated and can be done quickly and accurately, allowing for efficient sorting of large batches of chickpeas.
Bean Colour Sorting Machine Features
1.High-speed and accurate sorting: Chickpea colour sorting machines use advanced image processing technology to accurately identify the colour of chickpeas and sort them into different categories.
2.Easy to operate: The machine is designed with an intuitive user interface, making it easy for operators to control the sorting process.
3.Low maintenance cost: The machine requires minimal maintenance and can be operated for long periods of time without needing repairs or replacements.
4.Cost-effective: The machine is highly efficient and cost-effective, allowing users to save money on labour costs while still achieving high levels of accuracy in their sorting processes.

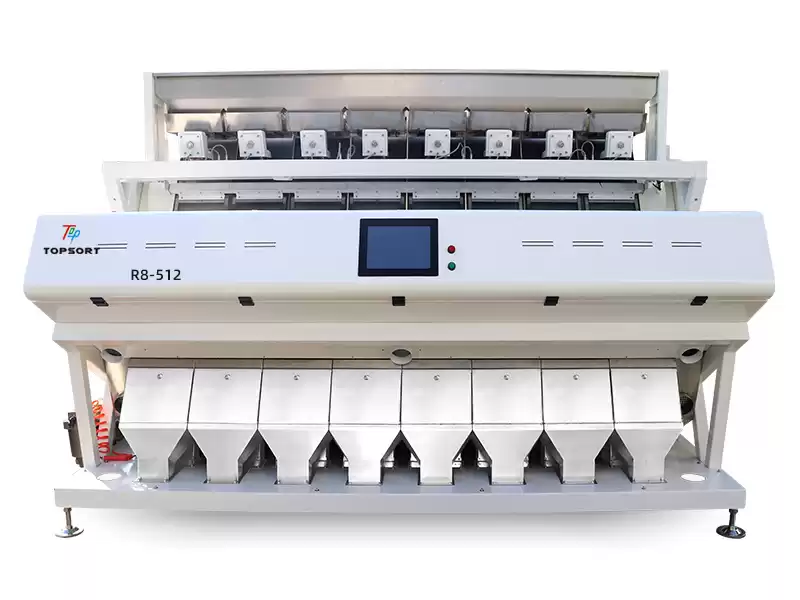

8 Chutes Bean Colour Sorting Machine Technical Parameters
| Model |
R8-512 |
| Channles |
512 |
| Power |
4.7kw |
| Weight |
1400kgs |
| Dimensions |
3330*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
8000-12000kgs/h |
| Air consumption |
<6.5m3/min |
| Air pressure |
0.6-0.8Mpa |
Superb Beans Sorting Sulotions
TOPSORT Bean Color Sorter Core Advantages
TOPSORT Colour Sorter In Our Customer Site
Why Choose TOPSORT Color Sorter
Top technology
1.Ultra HD imaging technology to see subtle defects with 4 times higher resolution；
2.High computing power deep learning platform with 4 times more data processing power；
3.Light source processing system, a unique three-color free switching background plate, the light source can be freely and flexibly switched, suitable for selecting different particles and sheet materials；
4.Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking；
5.Perfect after-sales service with big data + cloud interconnection. Realize 24-hour engineer online support.
Top quality
1.Equiped with imported famous brand key components to guarantee the reliability.
2.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
A wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .
More Models You Can Choose
Technical Paramters
| MODEL |
POWER |
VOLTAGE |
AIR PRESSURE |
AIR CONSUMPTION |
DIMENSIONS MM |
WEIGHT KGS |
| MINI-32 |
0.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
420*1100*1820 |
100 |
| R1-64 |
0.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
880*1504*1760 |
300 |
| R2-128 |
1.3KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜2.0m³/min |
1314*1504*1760 |
400 |
| R3-192 |
1.9KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜3.0m³/min |
1650*1504*1760 |
500 |
| R4-256 |
2.4KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜4.0m³/min |
1986*1504*1760 |
650 |
| R5-320 |
3.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.0m³/min |
2322*1504*1760 |
800 |
| R6-384 |
3.6KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.5m³/min |
2658*1504*1760 |
1000 |
| R7-448 |
4.1KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.0m³/min |
2994*1504*1760 |
1200 |
| R8-512 |
4.7KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.5m³/min |
3330*1504*1760 |
1400 |
| R10-640 |
5.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜8.0m³/min |
3666*1504*1760 |
1800 |
| BSC-300 |
1.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
2330*960*1630 |
430 |
| BSC-600 |
2.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜2.0m³/min |
2330*1260*1630 |
550 |
| BSC-1200 |
3.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜4.0m³/min |
3240*1860*1630 |
1200 |
| BSCD-1200 |
7.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.5m³/min |
4000*2450*2500 |
2000 |
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
