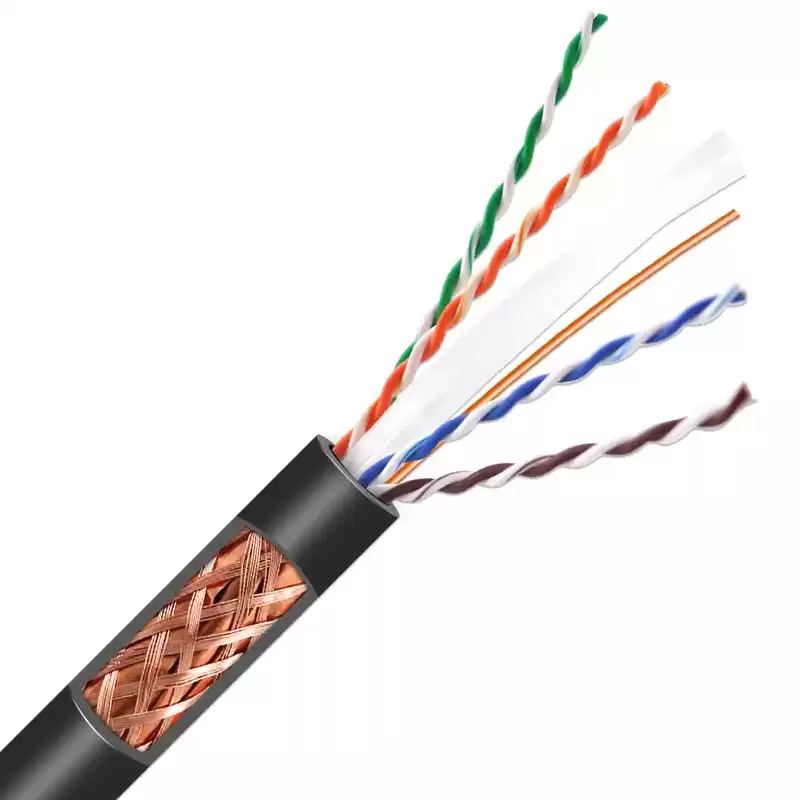

High Speed 23AWG Solid Bare Copper Cat6 SFTP Network Cable
CAT6 SFTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. Tinned Copper Screening gives protection against EMI and avoid signal loss. Better mechanical properties of cable.

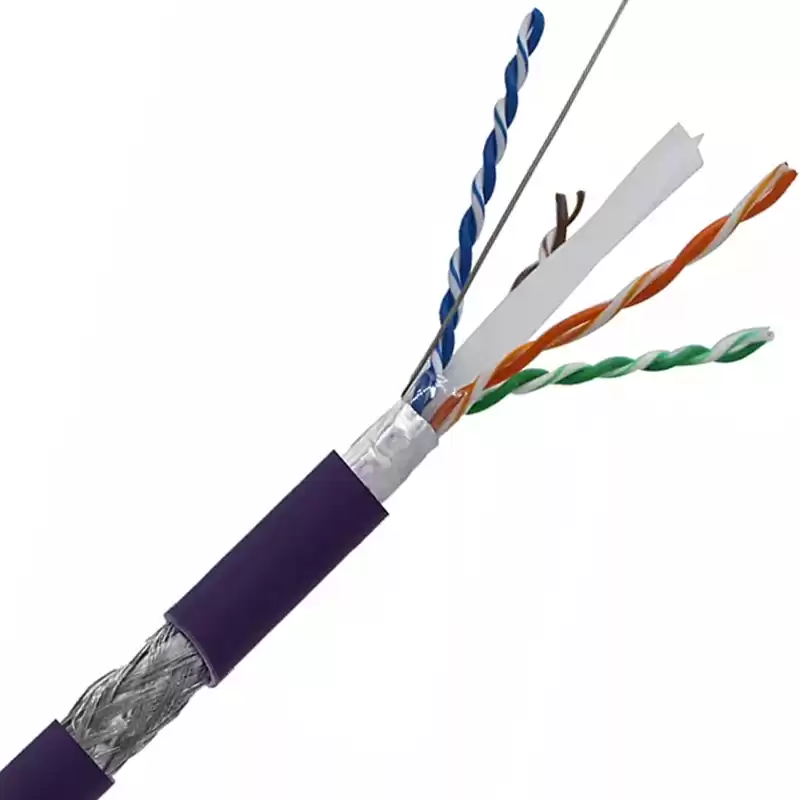

High Speed 23AWG Solid Bare Copper Cat6 SFTP Network Cable

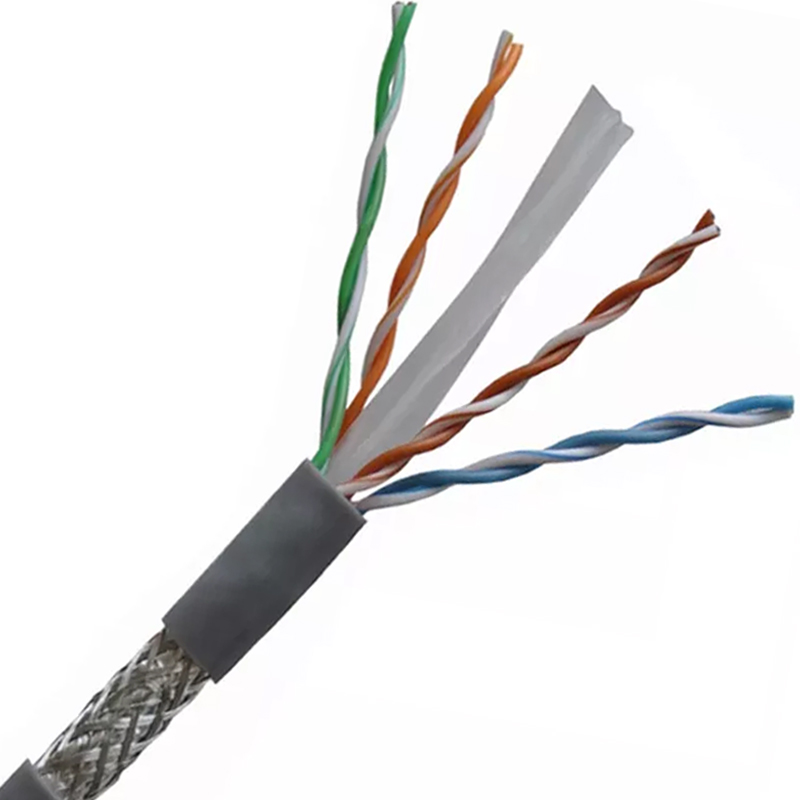

PRODUCTS FEATURES
- 4-pair shielded twisted pair cable
- 23 AWG solid copper conductor
- Overall aluminum foil and overall tinned copper or Al-Mg braiding
- High Density Polyethylene Insulation
- PVC Sheath
- Verified compliant with TIA/EIA-568A/568B & ISO 11801 standards

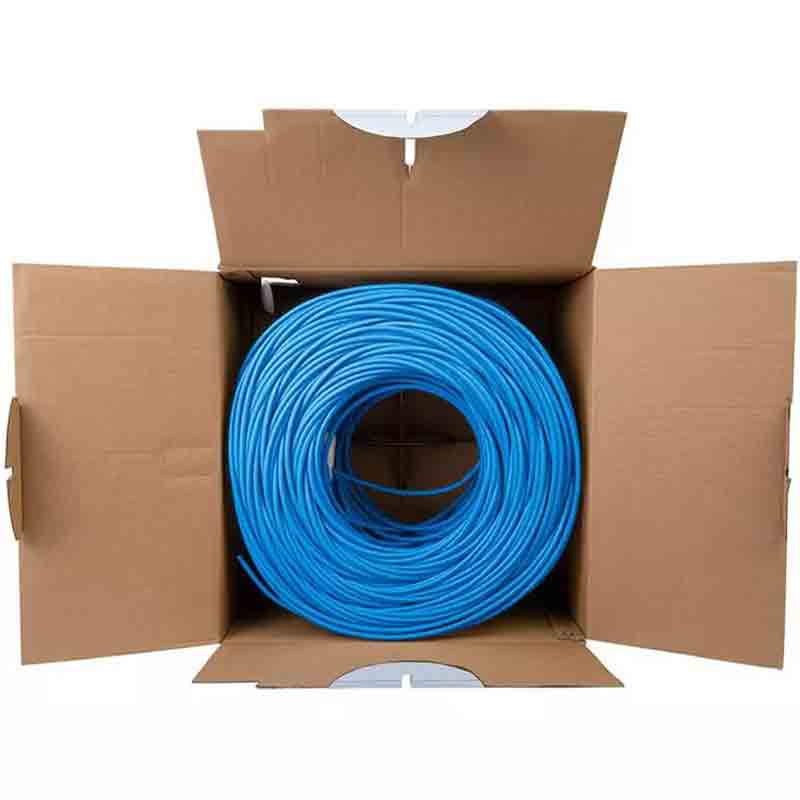

- Packaged in an easy-to-pull box for easier installation

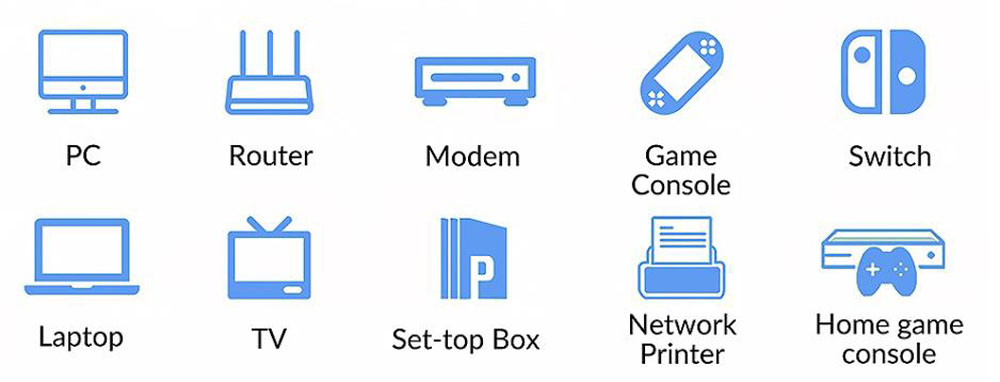

PRODUCTS APPLICATION
CAT6 SFTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. Tinned Copper Screening gives protection against EMI and avoid signal loss. Better Mechanical Properties of cable.

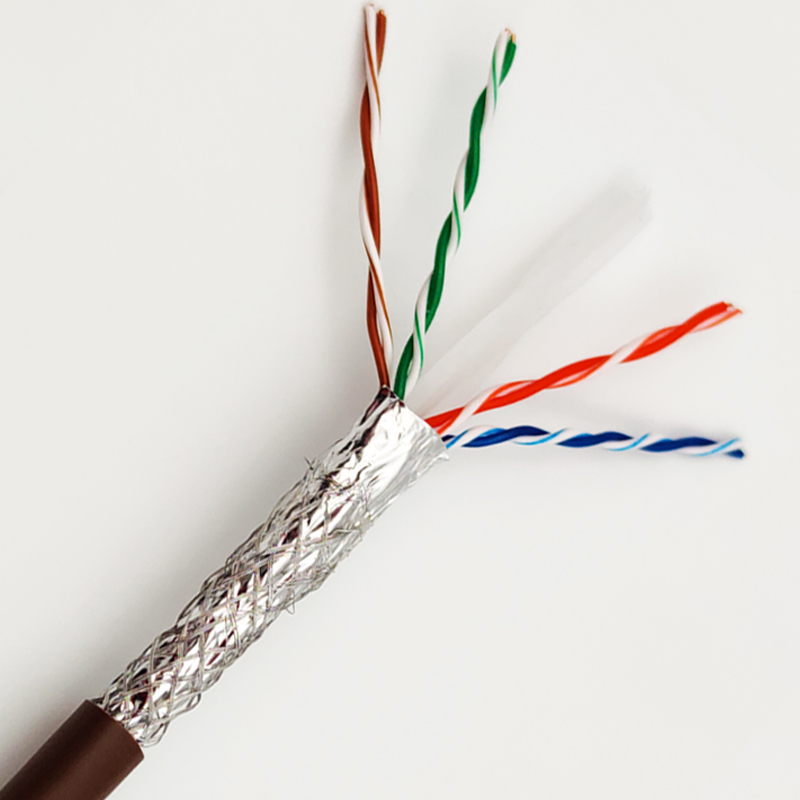

PRODUCTS SPECIFICATION
Description of Cable | Products Main Technical Sheet |
Products Name |
High Speed 23AWG Solid Bare Copper Cat6 SFTP Network Cable. |
Conductor Material | Plain annealed copper wires, bare copper, Class 1. |
Conductor Structure | 8C x 1/0.57 mm, 23 AWG. |
Insulation Material | HDPE (High Density Polyethylene). |
Insulation Thickness | 0.22 mm. |
Insulation Colour |
Brown, brown/white; blue; blue/white; orange, orange/white; green, green/white. |
Sheath Material | PVC (Polyvinyl Chloride). |
Sheath Thickness | 0.50 mm. |
Sheath Colour | White, brown, orange, grey, blue, or black. |
Screen | Aluminum Foil |
Braiding |
Tinned Copper or Aluminum Magnesium Alloy Braiding |
Core Number | 8 cores, 8C, 4x2 Cores. |
Out Diameter | 7.0 mm. |
About Net Weight | 14 kg/305m box. |
Production Standard | ANSI/EIA/TIA-568B, ISO/IEC 11801. |
Packing Type |
100meters or 305 meters per box, 2 boxes has been loaded into one outer carton. |
ELECTRICAL CHARACTERISTICS
Frequency (MHZ) |
Impendance (ohm) |
Return Loss (dB) |
Attenuation (dB/100m) |
NEXT Power Pair (dB) |
ACR (dB) |
Next Power Sum (dB) |
ELFEXT Worst Pair (dB/100m) |
ELEXT Power Sum (dB/100m) |
Nominal Velocity Propagation |
0.772 |
100 ± 15 |
19.4 |
1.8 |
76.0 |
74.0 |
74.0 |
70.0 |
67.0 |
0.65 |
1.0 |
100 ± 15 |
20.0 |
2.0 |
74.3 |
72.0 |
72.3 |
67.8 |
64.8 |
|
4.0 |
100 ± 15 |
23.0 |
3.8 |
65.5 |
61.0 |
63.3 |
55.8 |
52.8 |
|
8.0 |
100 ± 15 |
24.5 |
5.3 |
60.8 |
55.0 |
58.8 |
49.7 |
46.7 |
|
10.0 |
100 ± 15 |
25.0 |
6.0 |
59.3 |
53.0 |
57.3 |
47.8 |
44.8 |
|
16.0 |
100 ± 15 |
25.0 |
7.6 |
56.2 |
49.0 |
54.2 |
43.7 |
40.7 |
|
20.0 |
100 ± 15 |
25.0 |
8.5 |
54.8 |
46.0 |
52.8 |
41.8 |
38.8 |
|
25.0 |
100 ± 15 |
24.3 |
9.5 |
53.3 |
44.0 |
51.3 |
39.8 |
36.8 |
|
31.25 |
100 ± 15 |
23.6 |
10.7 |
51.9 |
41.0 |
49.9 |
37.9 |
34.9 |
|
62.5 |
100 ± 15 |
21.5 |
15.4 |
47.4 |
32.0 |
45.4 |
31.9 |
28.9 |
|
100.0 |
100 ± 15 |
20.1 |
19.8 |
44.3 |
24.5 |
42.3 |
27.8 |
24.8 |
|
200.0 |
100 ± 22 |
18.0 |
29.0 |
39.8 |
10.8 |
37.8 |
21.8 |
18.8 |
|
250.0 |
100 ± 22 |
17.3 |
32.8 |
38.3 |
5.5 |
36.3 |
19.8 |
16.8 |

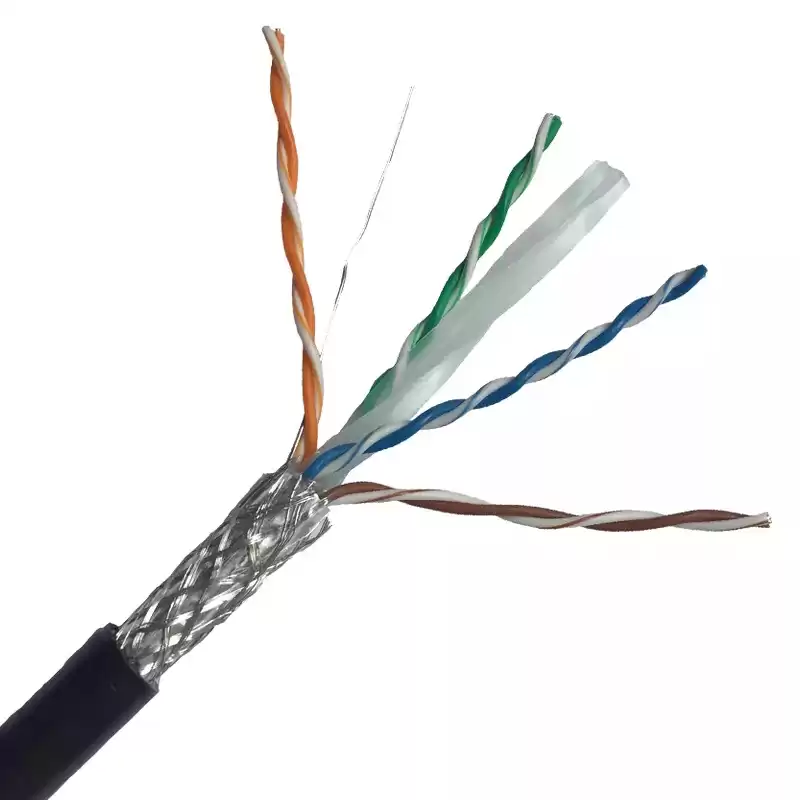

MORE INFORMATION
Cat 5e Network Cable Construction |
Cat 6 Network Cable Construction |
|||||
Cat 5e UTP |
Cat 5e FTP |
Cat 5e SFTP |
Cat 6 UTP |
Cat 6 FTP |
Cat 6 SFTP |
|
Number of Twisted Pairs |
4 |
4 |
4 |
4 |
4 |
4 |
Conductor |
24 AWG Solid Bare Copper (Class 1) |
23 AWG Solid Bare Copper (Class 1) |
||||
Insulation |
High Density Polyethylene (HDPE) |
High Density Polyethylene (HDPE) |
||||
Drain Wire |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Separator |
- |
- |
- |
Yes |
Yes |
Yes |
Screen |
- |
Aluminum Foil |
Aluminum Foil |
- |
Aluminum Foil |
Aluminum Foil |
Braiding |
- |
- |
Tinned Copper
or Al-Mg
|
- |
- |
Tinned Copper
or Al-Mg
|
Rip Cord |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Sheath |
PVC or LSZH |
PVC or LSZH |
PVC or LSZH |
PVC or LSZH |
PVC or LSZH |
PVC or LSZH |
