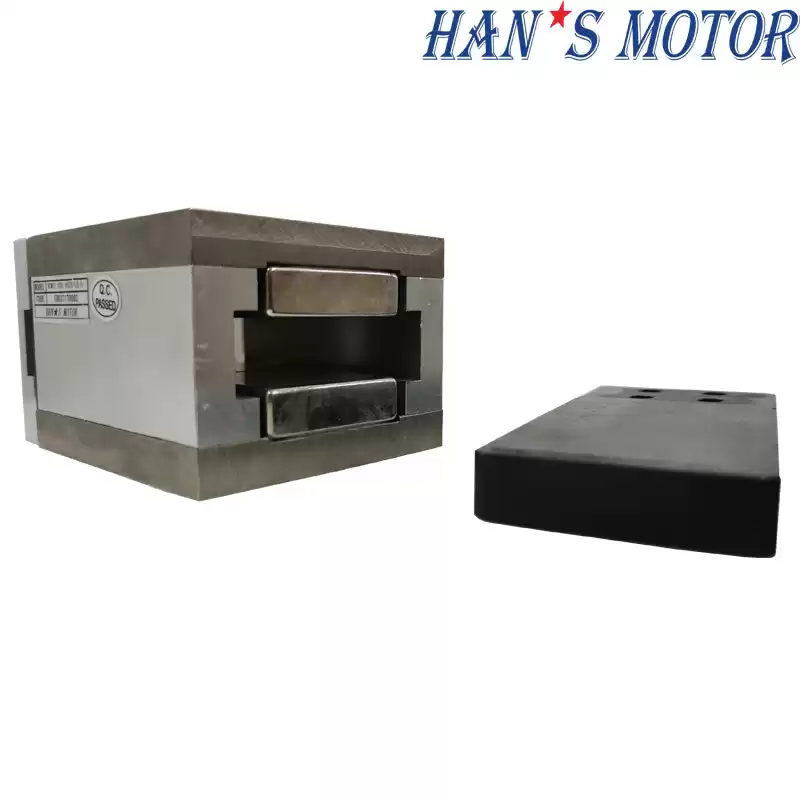

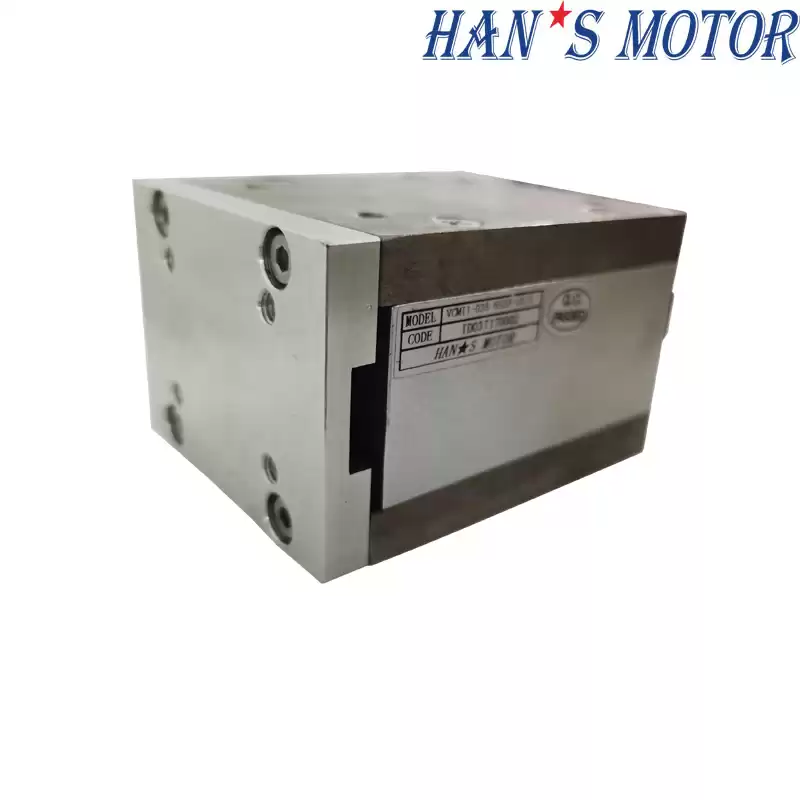

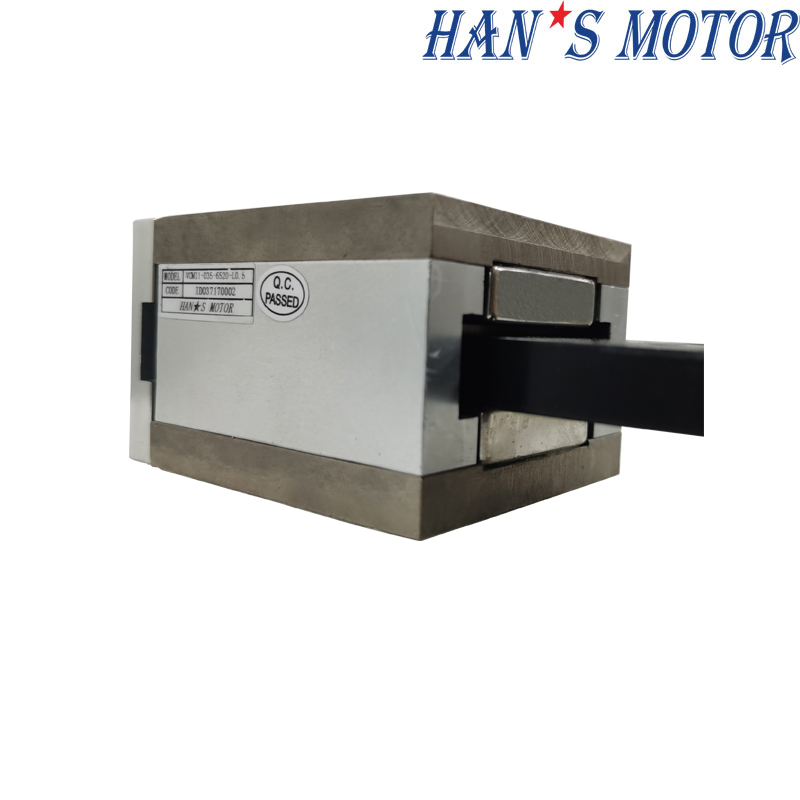

Product name：High Speed And Quick Response Voice Coil Motor For Optical Positioning Systems
Specifications
|
Mover Spec.：VCMF xxxxxxxx
|
301503A
|
401002A
|
|
PERFORMANCE PARAMETERS
|
Symbol
|
Unit
|
|
|
|
Stroke
|
S
|
°
|
2
|
-
|
|
Continuous Force (Tmax）
|
Fc
|
N
|
16
|
1
|
|
Peak Force
|
Fp
|
N
|
100.0
|
7.0
|
|
Motor Constant
|
Km
|
N/Sqrt(W)
|
5.5
|
0.9
|
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
8.4
|
1.7
|
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
1.5
|
0.5
|
|
Peak Current (1S)
|
Ip
|
Arms
|
9.0
|
2.8
|
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
11.0
|
2.5
|
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
11.0
|
2.5
|
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
2.7
|
5.1
|
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
2
|
3
|
|
Max Coil Temperature
|
Tmax
|
℃
|
120.0
|
120.0
|
|
Mover Mass
|
Mp
|
Kg
|
0.0
|
0.0
|
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
0
|
0
|
|
Stator model
|
|
|
VCMF301503B
|
VCMF401002B
|

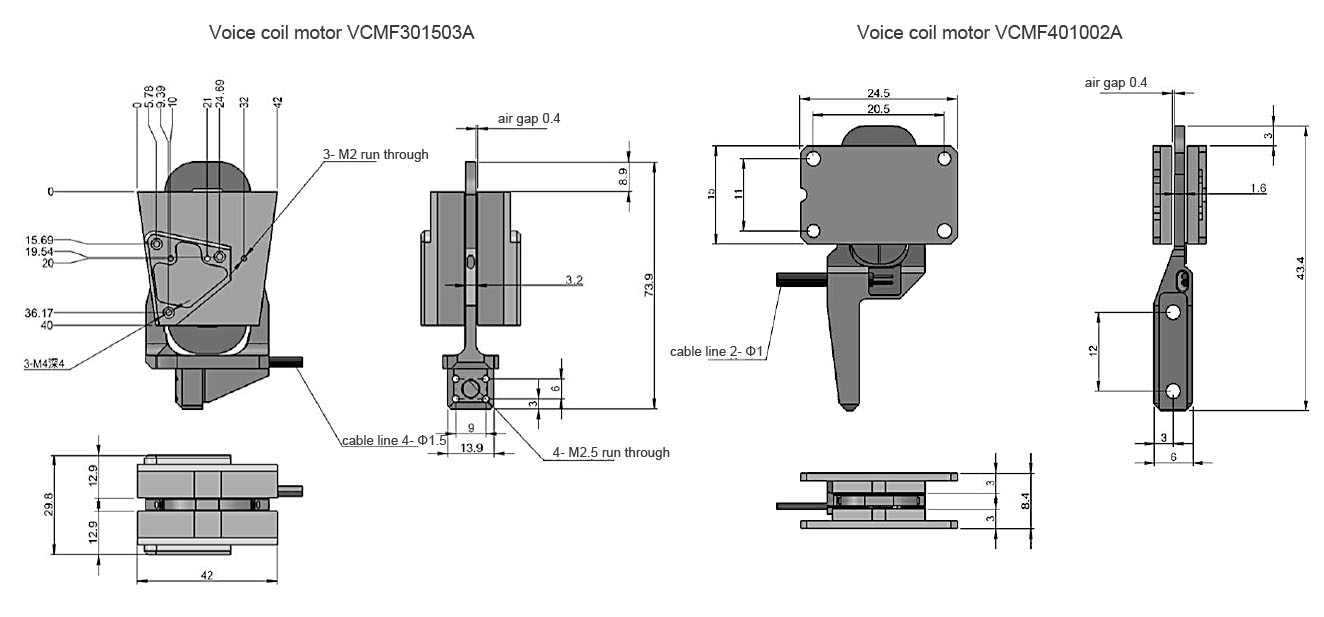

Dimension
Application Field:
1. Vibration System: Shaking table, vibration platform.
2. Micro Machine industry: Feed systems, micro drilling, precision stamping.
3. Semiconductor industry: Wiring, cutting, drilling, welding, transportation systems etc.
4. Medical field: Micro-injection system, respiratory equipment, testing equipment.
5. Valve operation in the field: Type metering valves, pressure test systems, pneumatic valve chemistry injection system etc.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order.
