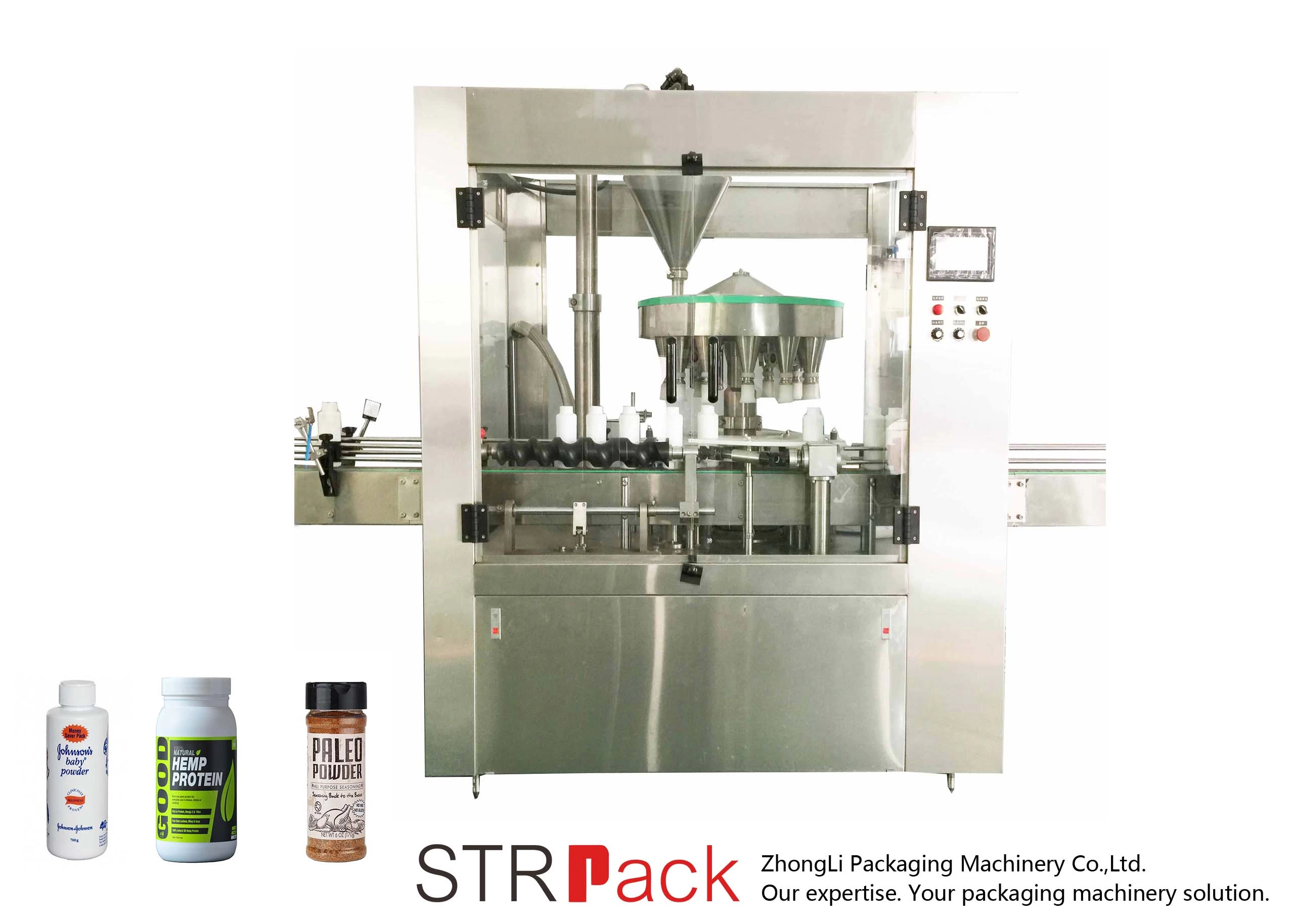

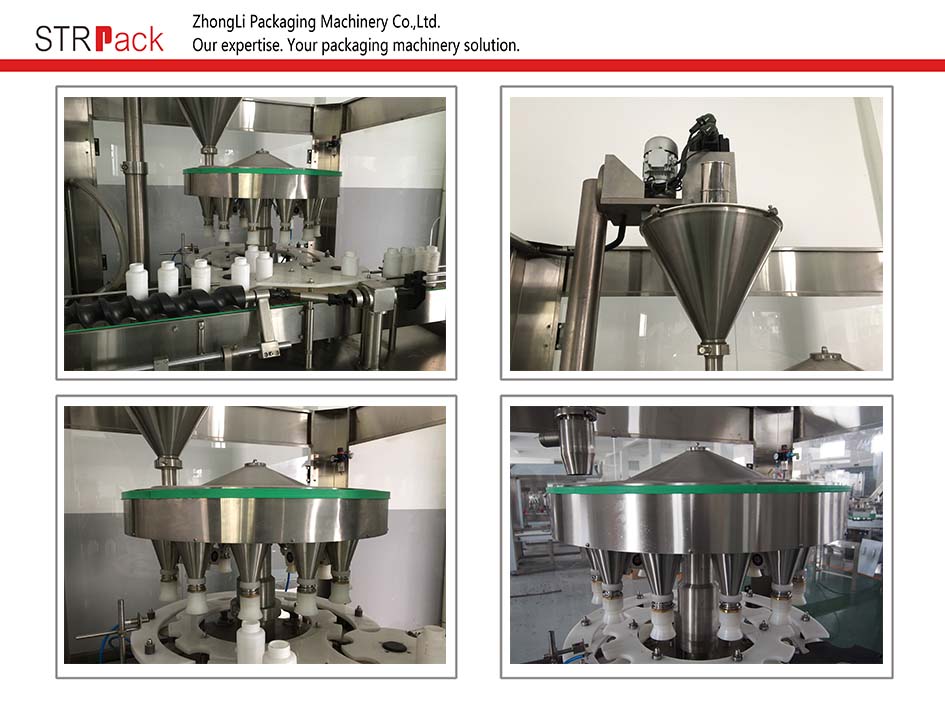

High Speed Automatic Rotary Auger Powder Filler
Brief Introduction:
Auger Powder Filling Machine is rotary type powder filling machine
which is suitable for filling high accuracy and variable density powder product
such as milk powder, protein powder, flour, fine sugar, seasoning flavor,
salt powder etc into containers like bottle, jar, can.
This machine is special for filling powder product into small opening bottles.
Features:
Ok for several size bottles by
different change parts, fast change over.
With bottle sensor, no bottle no filling.
Bottle holding turn plate is vibrative to make sure the powder is
full filled in the bottle.
Stainless steel machine structure, horizontal open type powder hopper, it
is easy to clean.
Servo system to drive the auger device which is high accuracy and stable.
With PLC controlling system and Touch screen , stable performance and easy
operation.
Powder feeding elevator is available for optional.
Main Parameter:
|
Model
|
Unit
|
SFPW
|
|
Packing
Weight
|
G
|
1-500
|
|
Hopper
|
L
|
25
|
|
Production
capacity
|
B/h
|
1500-3600
|
|
Quantitative
error
|
%
|
≤ 100g, Tolerance ≤≤±2%
|
|
Size
of the container
|
MM
|
φ26-60mm, H 40-200mm
|
|
Source
voltage
|
V
|
3P
AC208-415V 50/60Hz
|
|
Air
consumption
|
m3/min
|
0.1m3/min
|
|
Gas
supply pressure
|
MPA
|
0.4-0.6
|
|
Consumed
power
|
KW
|
2.5
|
|
Total
Weight
|
KG
|
500
|
|
Overall
Dimensions
|
MM
|
2000×1050×1610mm
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
