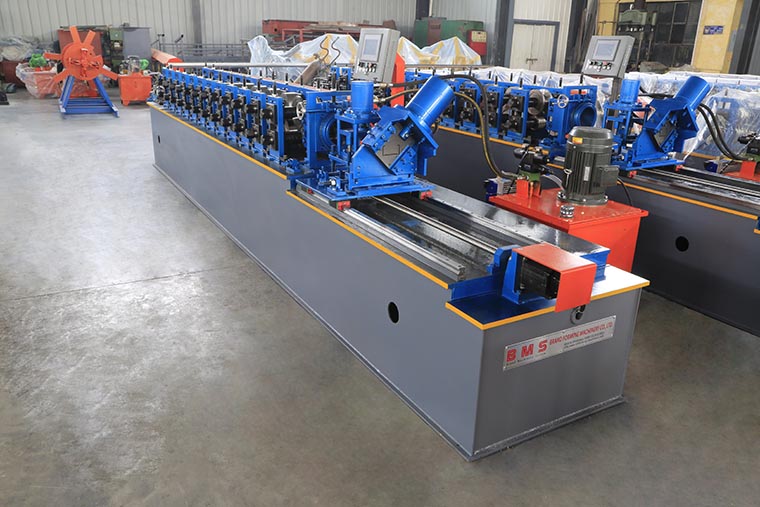

High Speed C
Section Roll Forming Machine
Click here to check the video:http://www.rollformingmachinerychina.com/high-speed-stud-and-track-roll-forming-machine_n91
1.Main features of high speed C section roll
forming machine
The advantages of high speed C section machine are as follows:
1.The speed can reach 30 meters per minute
2.Stable working
3.Easy operation, low maintenance cost
4.Beautiful appearance.
5.Customorized for any size you want
2.Detailed Images of C shaped
steel forming machine

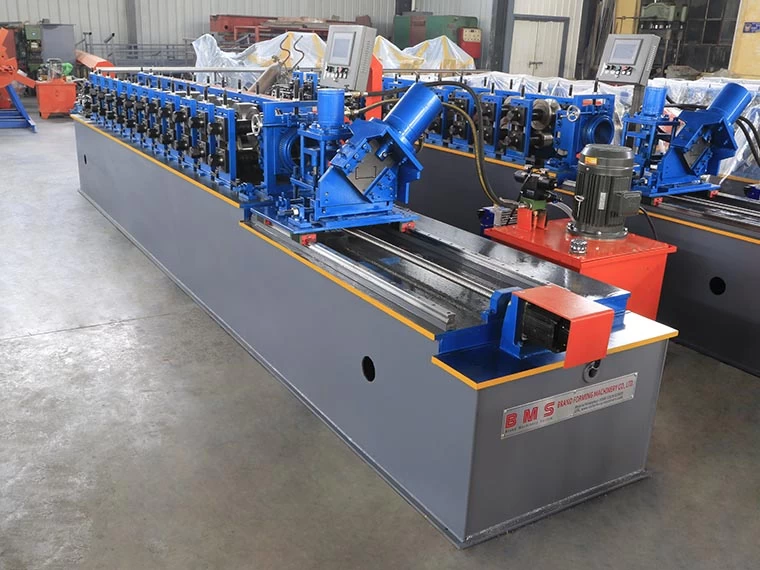

Machine Parts

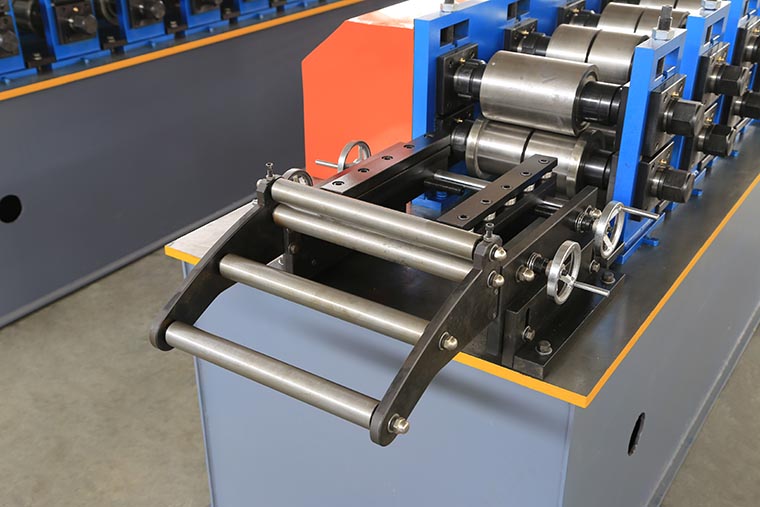

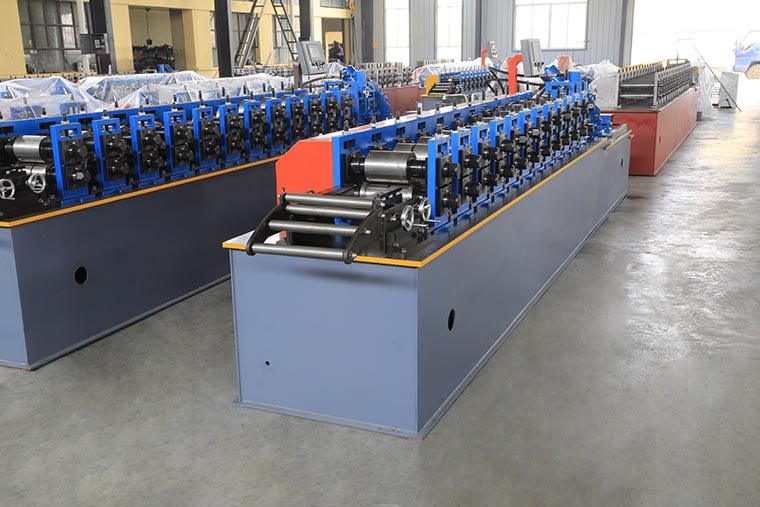

1) High speed C section machine arc feeding guide
Brand: BMS Original: China

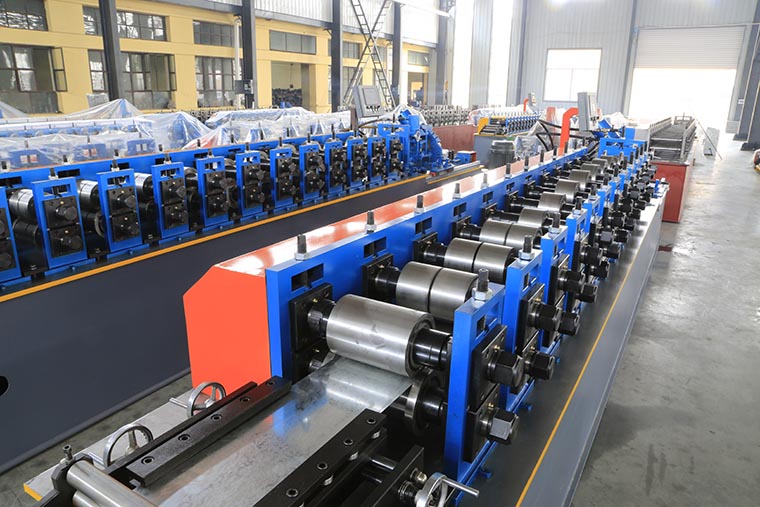

2)

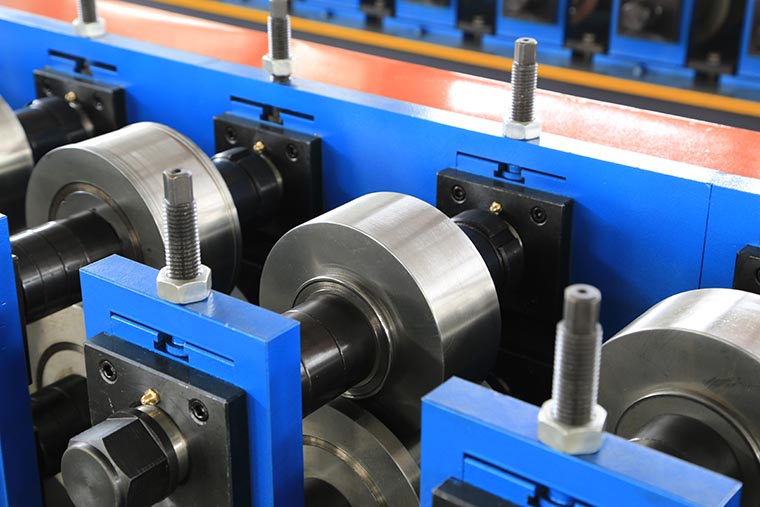

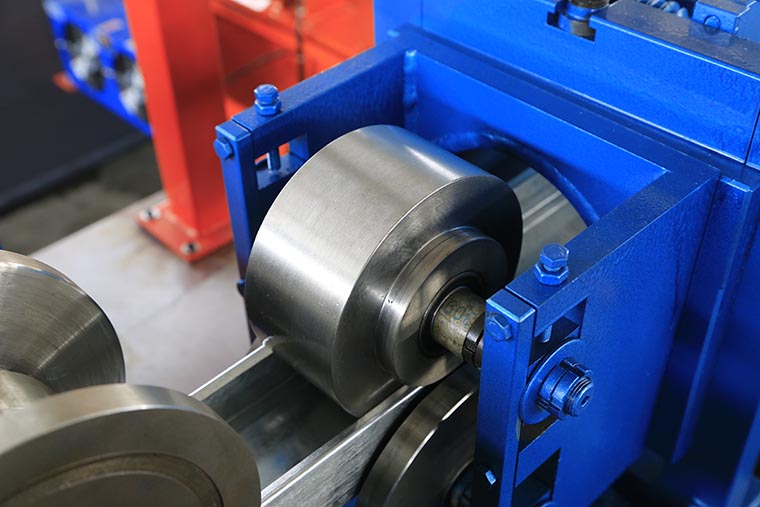

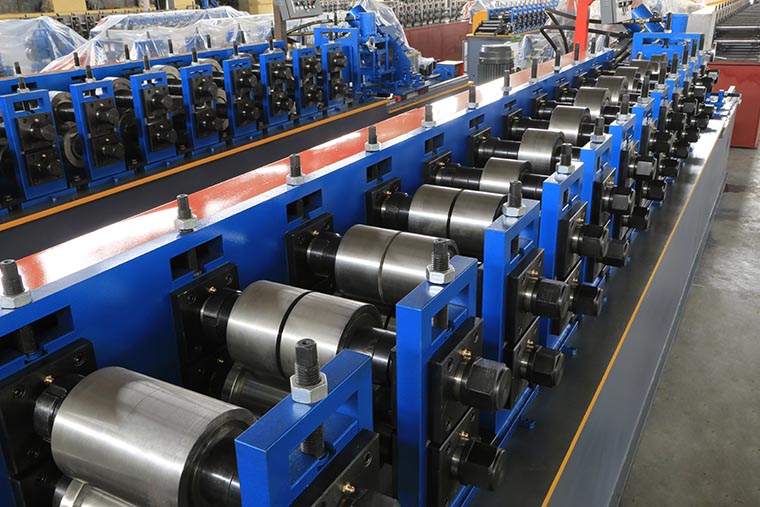

C section machine rollers
Rollers manufactured from
high quality mold steel Cr12(=D3 steel=SKD11 steel), CNC lathes, Heat Treatment.
with black
treatment for options.

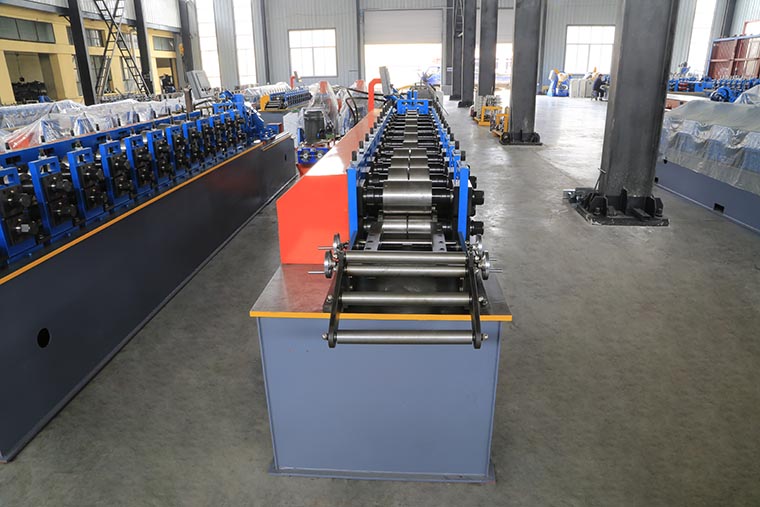

With feeding material

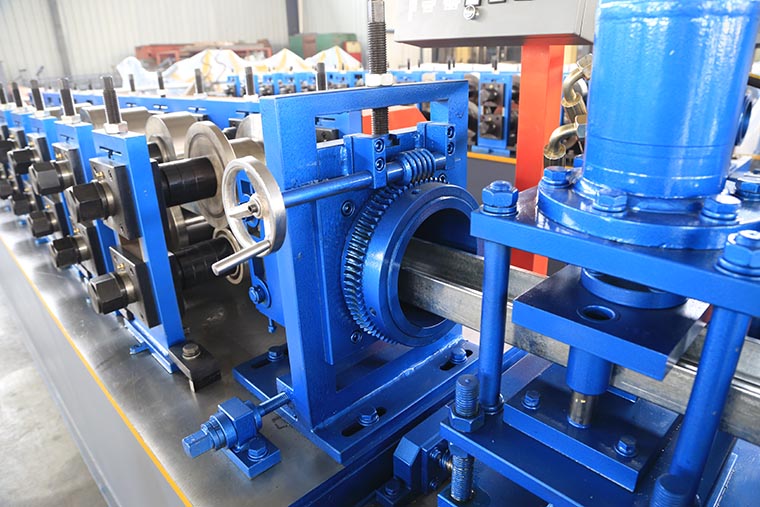

guide, body framemade from 350# H type steel by welding

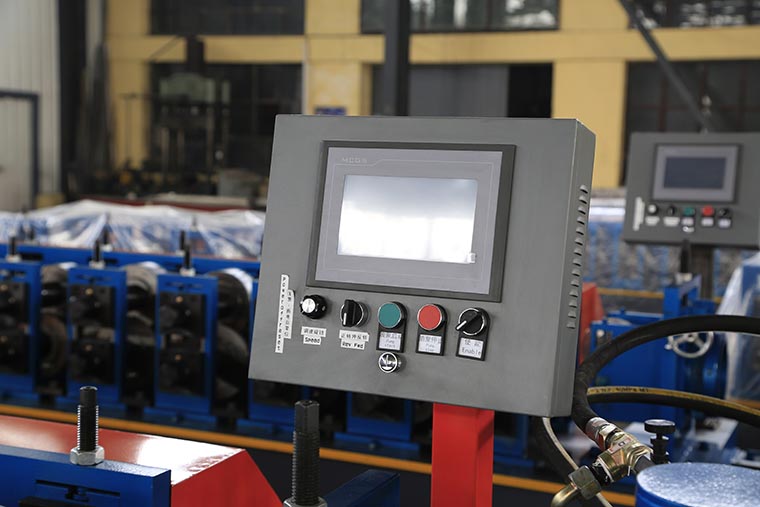

3) High speed C section machine straighting and logo punching device
4) High speed C section machine operation panel

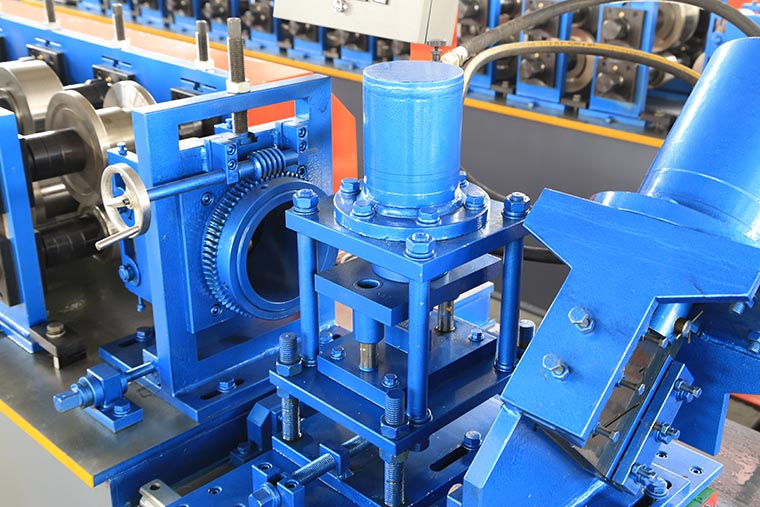

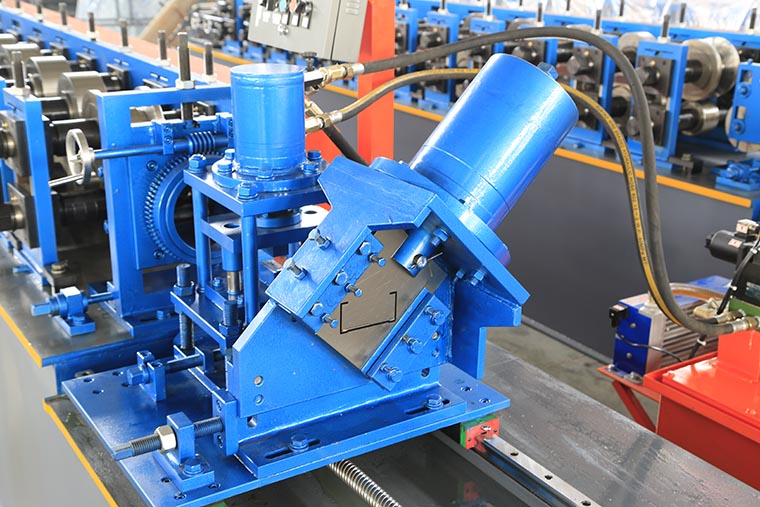

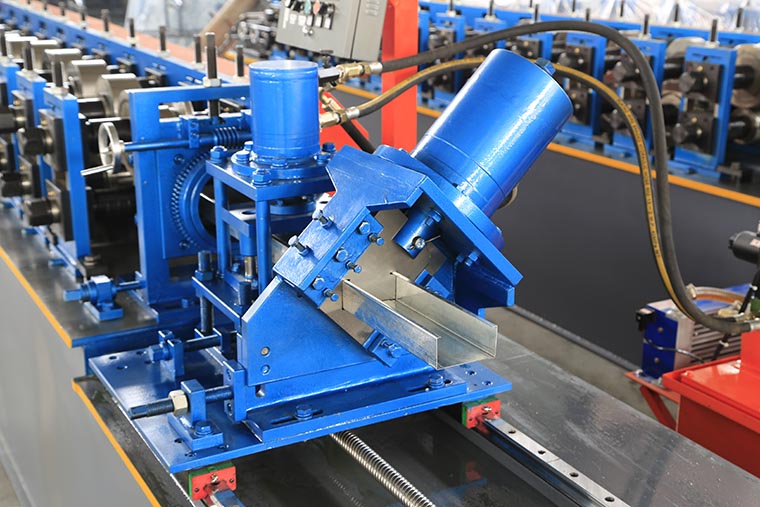

5) C
section machine post flying cutter
made by high quality mold
steel Cr12 with heat treatment
Cutter
frame made from high quality 30mm steel plate by welding

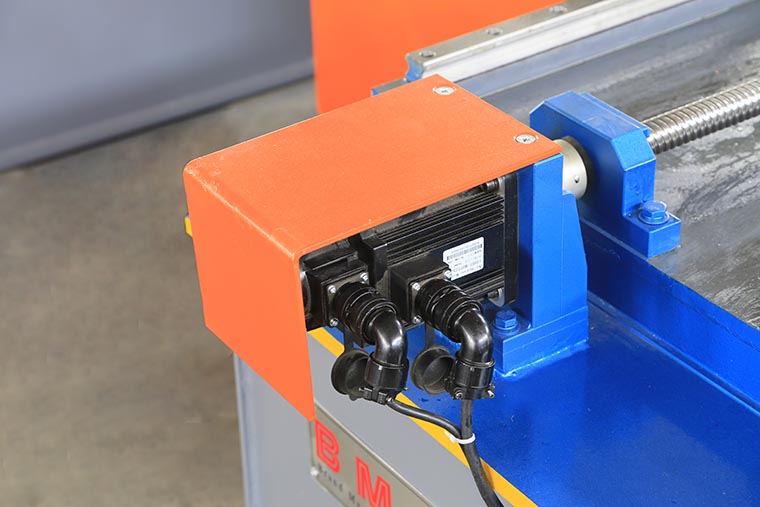

servo motor:2.2KW,
Hydraulic pressure range: 0-16Mpa

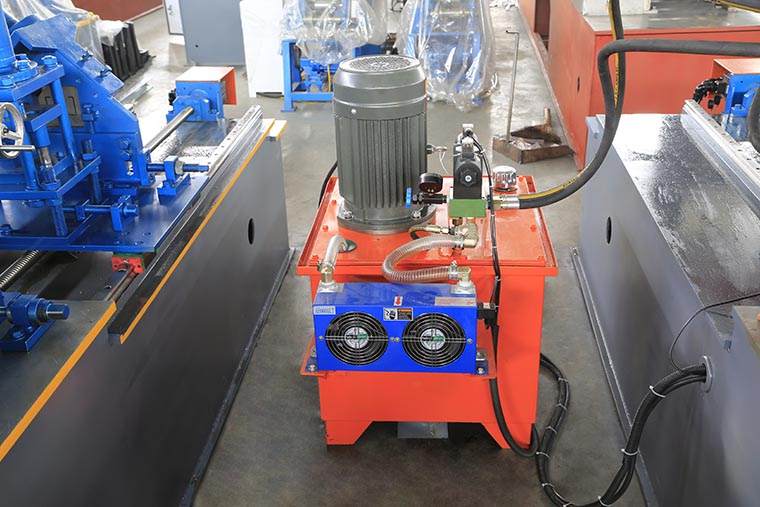

6) C
section machine hydraulic system

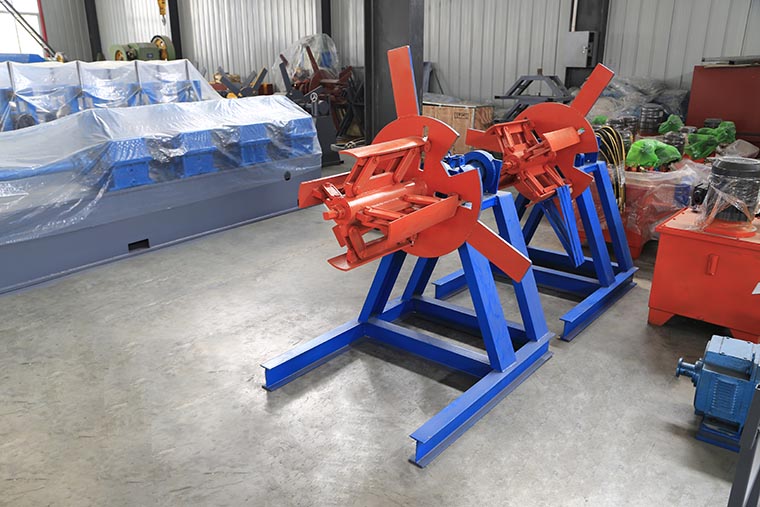

7) C
purlin machine decoiler
ManualDecoiler: one set
Un-powered,manually
control steel coil inner bore shrinkage and stop
Max.
feeding width: 500mm, coil ID range 470mm±30mm
Capacity:
Max. 3Ton
With
3 tons hydraulic decoiler for option

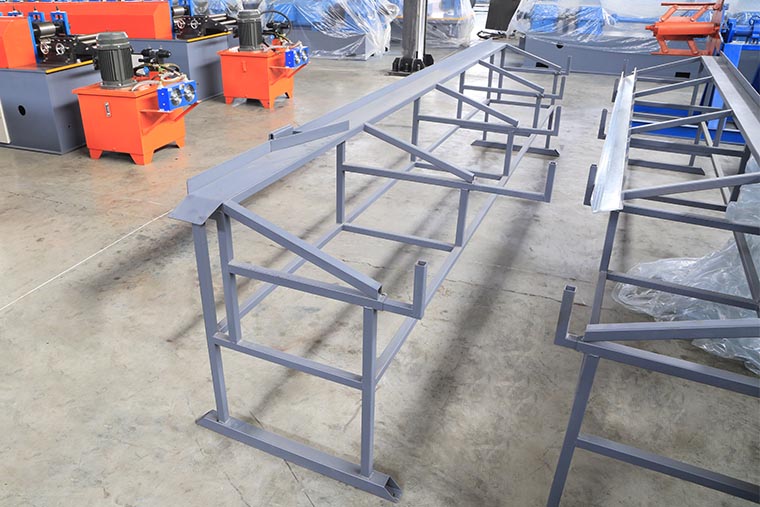

6) C purlin exit rack
Un-powered,4meters long ,one
unit
Other detailes of high speed C
purlin roll forming machine
Suitable for material with thickness 0.5-1.2 mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor
driving,Gear chain transmission, 12 rollers to form.
Main servo motor=2.0KW , Frequency speed control. Forming speed approx.25-30m/min
PLC Control System (Touch screenbrand:Taiwan WEINVIEW/OneTouch,
Inverter brand:Taiwan DELTA/Jiexun,Encoder brand:Japan Koyo/OMRON)
Combined with: Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of C section roll
forming machine
1. The warranty of c section roll forming machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia
,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
