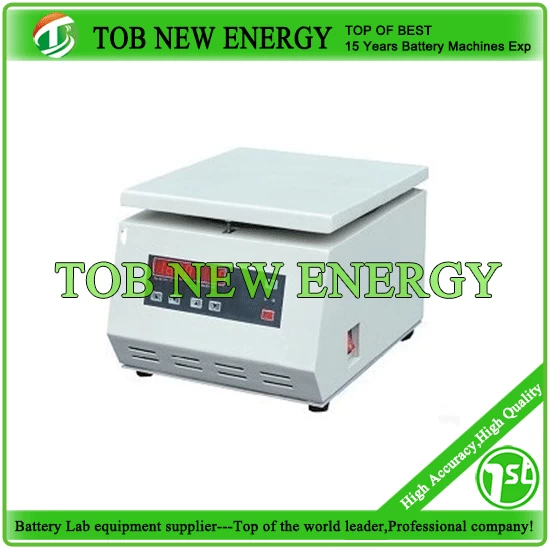

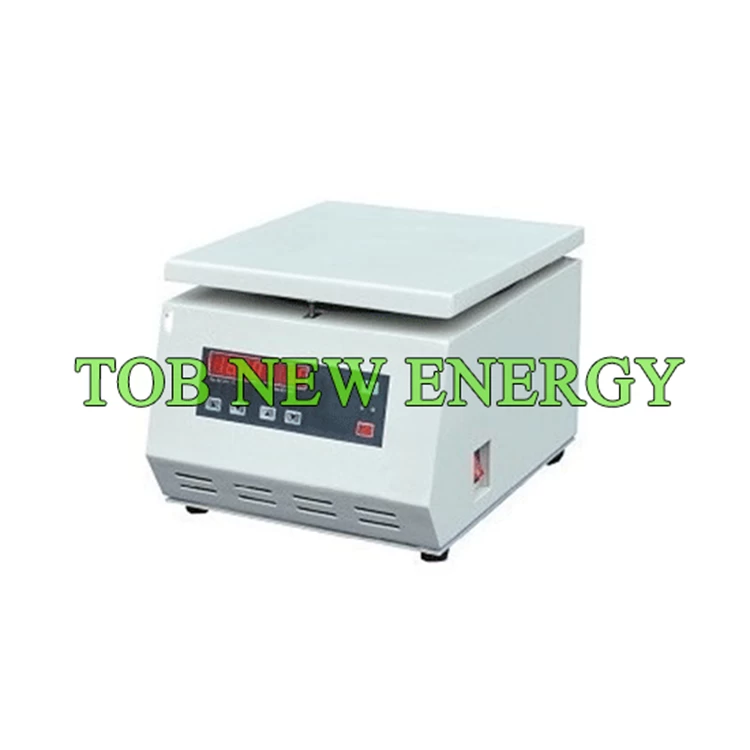

High Speed Laboratory Centrifuge For Lab Equipment
SPECIFICATIONS
1 Centrifuge (Centrifuge) is a common tool in the lab, mainly used for solid phase and liquid phase separation of colloidal solution.
2 Centrifuge is widely used in chemical, petroleum, food, pharmaceutical, mineral processing, coal, water treatment and shipping departments.
3 TOB-TG16G Laboratory centrifuge is high speed desktop centrifuge with speed up to 16600rpm, and capacity up to 300ml.
|
Model
|
TOB-TG16G
|
|
Max speed
|
16600rpm
|
|
Max relative
centrifugal force
|
19200×g
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Max capacity
|
300ml
|
|
Speed precision
|
±50r/min
|
|
Time setting
|
0-99min
|
|
Structure
|
1 Microcomputer control, touch panel, intuitive figures,
operation parameters can be automatically memory, convenient operation
2 Multilayer damping structure, small vibration, low noise,
environmental protection
3 Large torque brushless motor drive, smooth operation, free maintenance
|
|
Source voltage
|
AC220V 50HZ, 15A
|
|
Noise
|
≤65dB
|
|
Dimension(H*L*W)
|
400*350*340mm
|
|
Net weight
|
About 20kg
|
|
Configuration
|
12*10ml Angle rotor : one set
6×50ml Angle rotor : one set
|
Angle rotor spec:
|
Model
|
NO.
|
Capacity
|
Max speed
|
Max relative
centrifugal force
|
Tube dimension
|
|
Angle Rotor
|
No.10
|
12×1.5ml
|
16600 r/min
|
19200×g
|
Φ10×42mm
|
|
No.11
|
18×0.5ml
|
16600 r/min
|
19200×g
|
Φ8×32mm
|
|
No.17
|
24×1.5ml/2.0ml
|
13000 r/min
|
16060×g
|
Φ10×42mm
|
|
No.18
|
48×0.5ml
|
13000 r/min
|
14740×g
|
Φ8×32mm
|
|
No.19
|
10×5ml
|
13000 r/min
|
11500×g
|
Φ14×54mm
|
|
No.23
|
12×10ml
|
12000 r/min
|
14800×g
|
Φ16×81mm
|
|
No.25
|
6×50ml
|
11000 r/min
|
14610×g
|
Φ28×105mm
|
