High Speed Corrugated Roofing Tile Roll Forming Machine 5-6m/min

 Custom kinds of roll forming machines for roof tiles, IBR roof, crimping roof and floor deck are available.

Product Name: High Speed Corrugated Roofing Tile Roll Forming Machine 5-6m/min

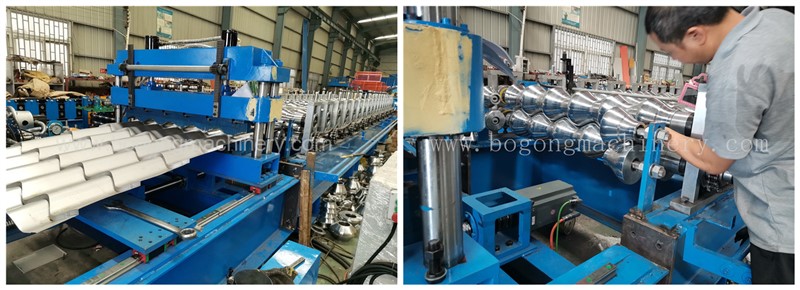

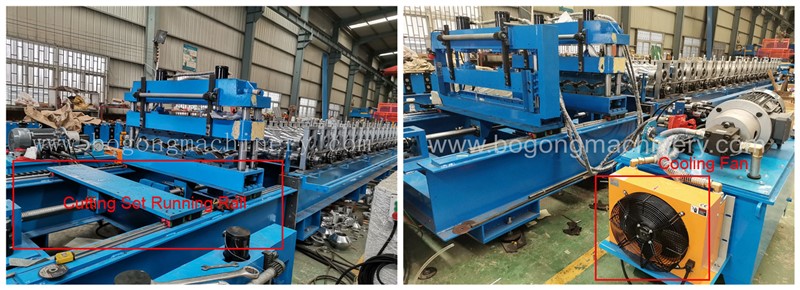

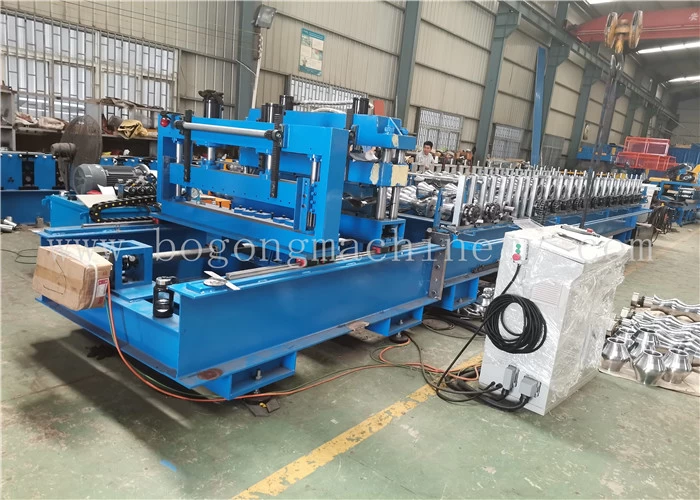

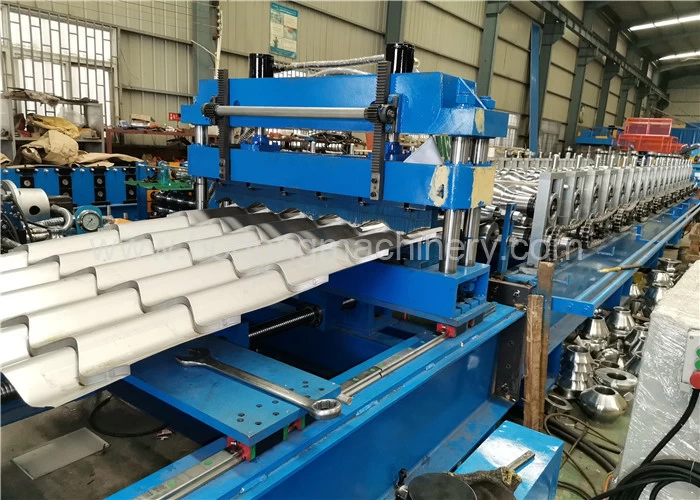

This High speed corrugated roofing tile roll forming machine is high speed type, there is running guider rail for pressing tile section and cutting off section at the end of machines. After finished roll forming roof sheet, the roof sheet will go inside the tile pressing mold and cutting section, both the tile pressing mold and cutting section are running on the guider rail then working at the same time. To do this work can improve the whole corrugated roofing tile roll forming machine line speed reach at about 5-6m/min

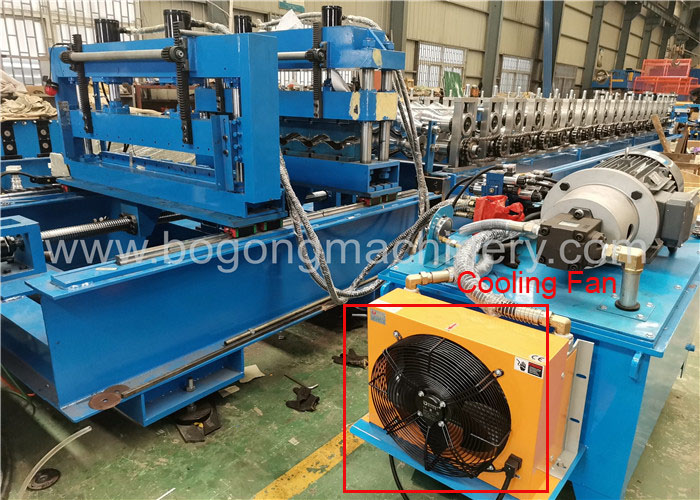

This High speed corrugated roofing tile roll forming machine is for India market, we have matched  heat dissipation fan for hydraulic station, because outside environment temperature is too hot some times, this fan can ensure the hydraulic part work more better under this type of environment.

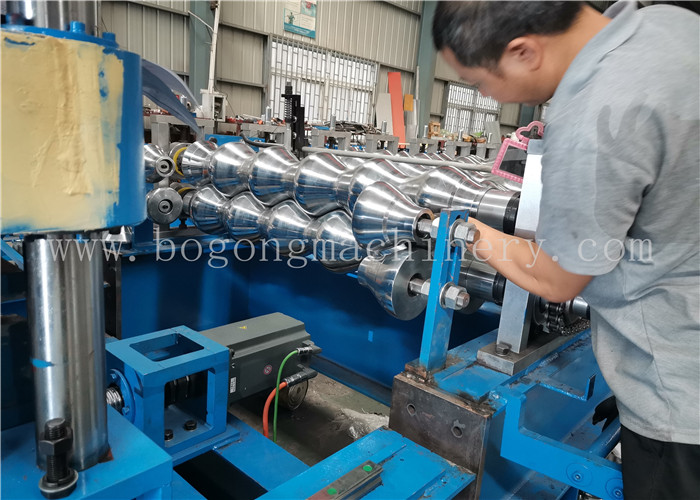

Hydraulic cutting and pressing system at whole High speed corrugated roofing tile roll forming machine finished end. In order to roll forming more beautiful roof tile sample, after changing to produce different material thickness, we need thickness measure meters to adjust correct span between upper and down rollers.

This high speed corrugated roofing tile roll forming machine is the full automatic producing line for our user, from hydraulic uncoiler to feeding material to product stacker, the product stacker is pneumatic driving, auto falling down to bottom layers and auto push product out after reached requirement pieces of roof samples.

Technical Parameters

Contact to us if you need more information about our roll forming machines.
