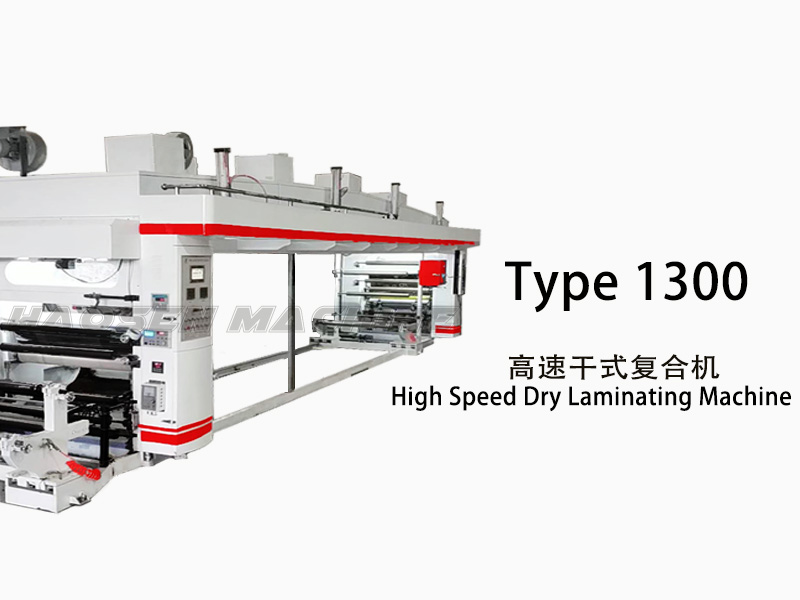

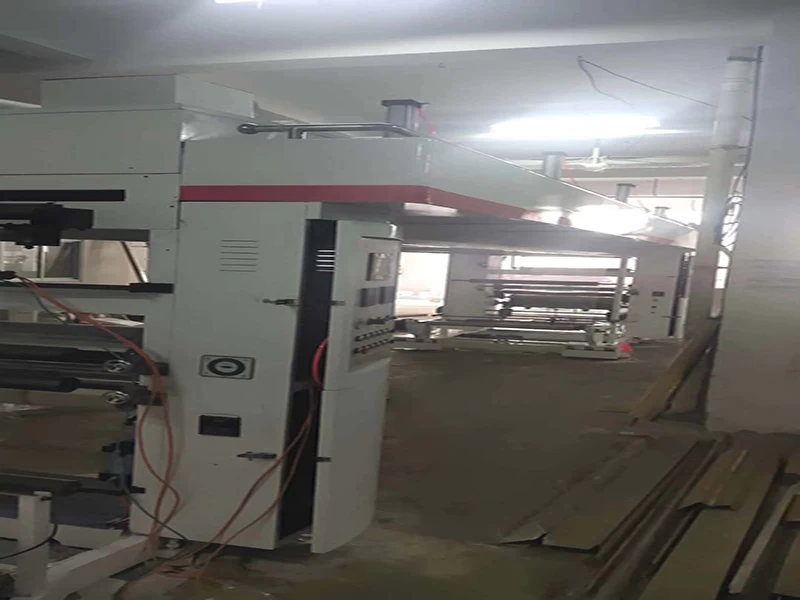

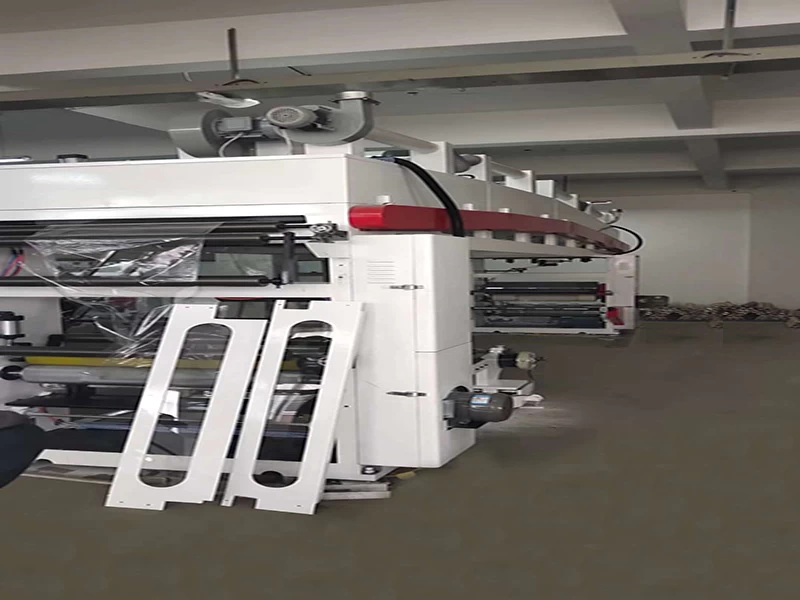

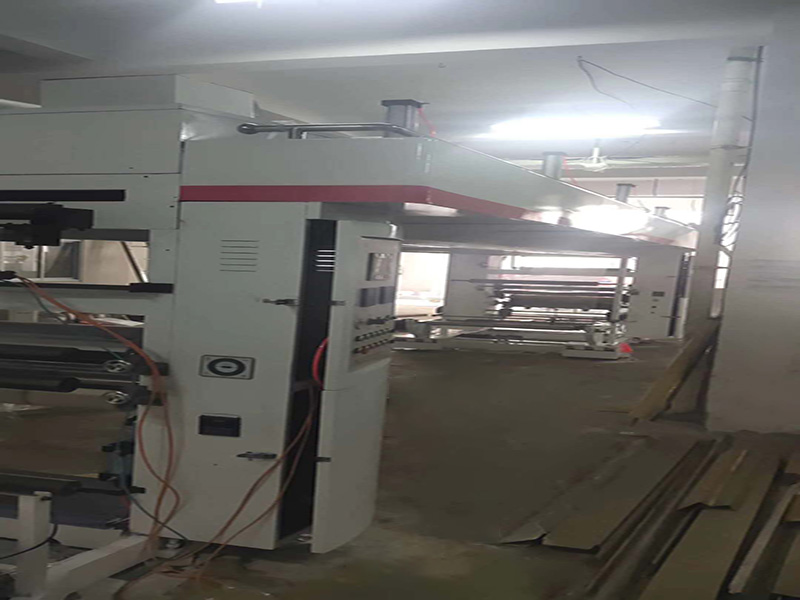

Type 1300 High Speed Dry Compound Machine (Standard type & PLC Control System)
I Technical Reference
1. Gluing form: direct gluing through anilox roller
2. Compound type: dry compound
3. Suitable base material: plastic film, BOPP, PET, nylon, PE: 25-150μm, Aluminum foil: 7-30(base material), paper: 30-150g/m
4. Mechanical speed: 150m/min
5. Max laminating speed: 130m/min
6. Max width of base material: 1300mm
7. Double variable frequency motors drive, double frequency converters adjust speed, PLC control system
8. Max unwinding diameter: 650mm
9. Max diameter of winding roller: 650mm
10. Diameter of rubber anilox roller: 160mm
11. Diameter of composite steel roll: 320mm
12. Diameter of base material core: 76mm
13. Total power: type 1300 88kw
14. Weight of machine: type 1300 6500kg
II Electronic Component
1. The first unwinding device
●Photoelectric deviation correction system
●Max unwinding diameter: 650mm
●Magnetic powder brake: 10kg
●Paper core size: 76mm
●Left and right adjustment of base material: 20mm
●Air shaft for unwinding
●Pneumatic feeding
2. The second unwinding device
●The upper and lower double unwinding structure, produce half metallized film
●Second unwinding upper device (adjustable before and after discharging)
●Max unwinding diameter: 650mm
●Magnetic powder brake: 10kg
●Paper core specification: 76mm
●Left and right adjustment of base material: 20mm
●Air shaft for unwinding
3. The second unwinding device (independent)
●photoelectric deviation correction system
●Max unwinding diameter: 650mm
●Magnetic powder brake: 10kg
●Paper core specification: 76mm
●Left and right adjustment of base material: 20mm
●Air shaft for unwinding
●Pneumatic loading
4. Rewinding device
●Max rewinding diameter: 650mm
●Rewinding motor, torque motor 60N
●Paper core specification: 76mm
●Left and right adjustment of base material: 20mm
●Air shaft for unwinding
5. Gluing device
●Top layout of rubber anilox roller (anilox roller without shaft)
●Independent variable frequency motor drive, independent frequency converter control
●Synchronous mode: frequency converter of main motor and that of motor for anilox roller are synchronized by PLC
●Synchronous/asynchronous electronic control. In asynchronous, gluing device independently controls rotary speed
●Anilox roller: 160mm
●Gluing roller: 120mm
●Pressurizing mode of gluing roller: pressurizing cylinder on both sides
●Scraper mode: pneumatic scraper, adjustable in 3D angle, horizontal direction, vertical direction and angle can manually adjusted
●Glue bucket lifting is manually adjusted
6. Composite device
●The compound hot roller is driven by an independent frequency conversion motor
●Composite hot roller is covered with hard chrome and processed with mirror treatment
●Composite hot roller: 320mm, oil heating in roller, automatically control temperature to constant level
●Composite press roll: 160mm
●Composite pressure: air pressure, 0-6kg/cm
7. Drying device
(1) Top cap is covered with insurance
(2) The oven has a total length of 8 meters, which is divided into 4 sections, with outside electric heating device
●Guide rollers of oven lay out in arch
●All of Guide rollers for oven are main transmission rollers
(3) Heating box
●Each section is equipped with external heating case with finned heating tube in stainless steel
●Blower for heating case: 2.2kw, adjustable blowing rate
(4) Exhausting tube
●Exhausting rate of each section of drying box is adjusted by air door
(5) Tension control system
●Pressure swing arm is installed in oven entrance
●Tension control mode: synchronizer control floating roller, imported accurate pressure release valve stabilizes tension
(6) Deviation correction in entrance of oven (deviation correction system)
●ultrasonic servo deviation correction device is installed in entrance of oven
