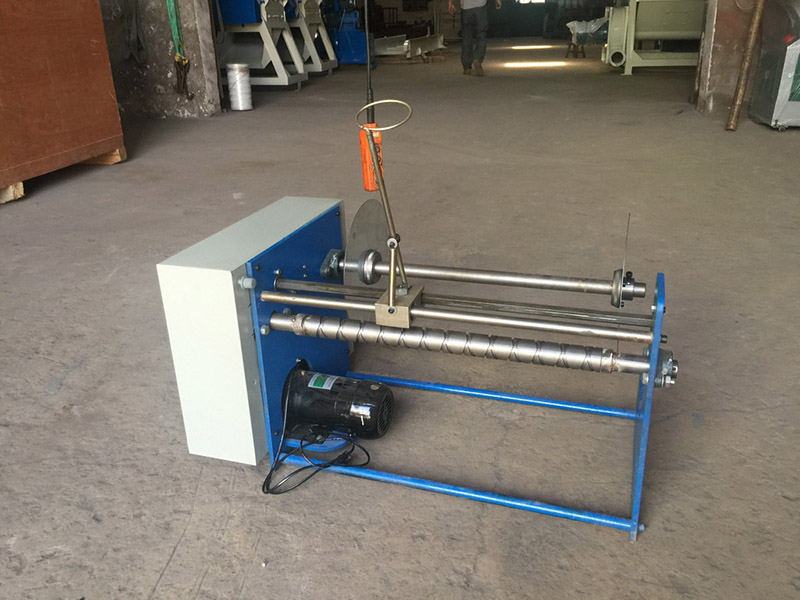

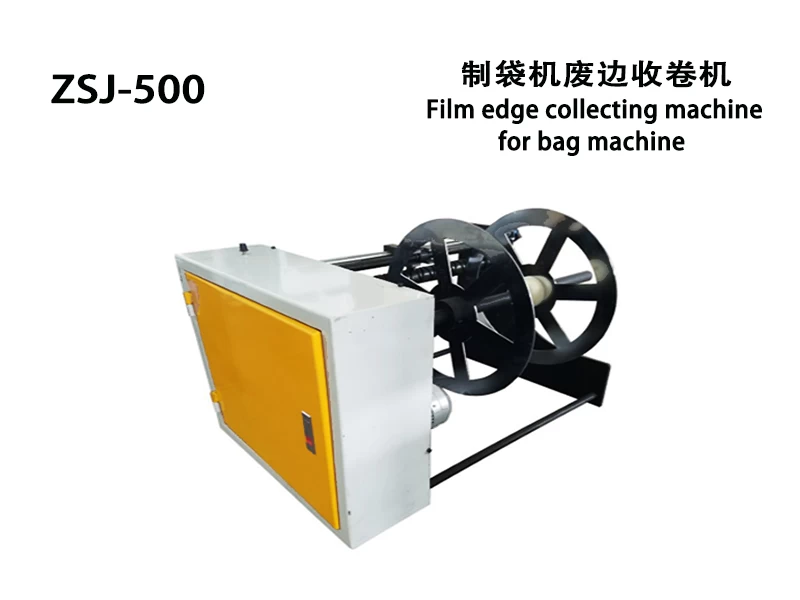

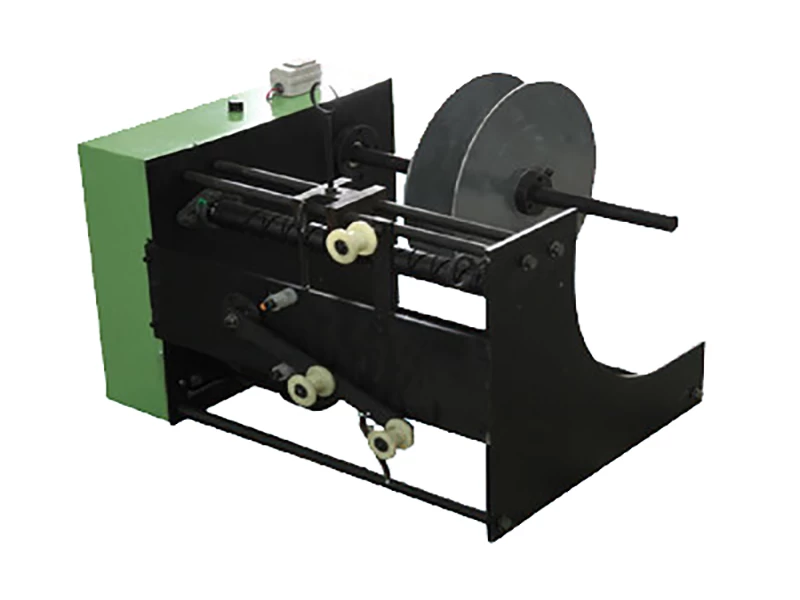

Film Edge Collecting Machine for Bag Machine
Application:
The ZSJ-500 film edge collecting machine for bag machine is designed to roll and collect wasted film edge from bag machine, also appropriate for sorts of bag machine such as three-side-sealing bag machine, four-side-sealing bag machine and middle-bottom-sealing bag machine.
Feature:
●ZSJ-500 film edge collecting machine for bag machine belongs to newly high-tech products made in our factory combining advanced technologies from domestic and overseas and practical experience for years.

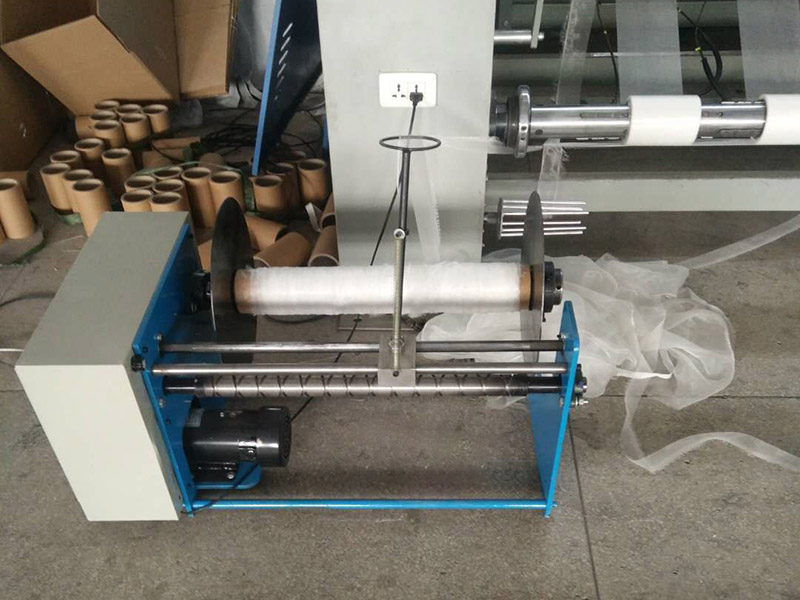

●It’s used to roll and collect film edge from bag machine, automatically rolling back and forth without touch point. The host is equipped with DC motor of 400w, 1000 RPM.
●The machine uses electronic ruler to control process of speed adjustment and achieve synchronous control for continuous rolling according to linear speed of the host with advantages of more quiet and stable operation.
●Supported by 220V power and running in linear speed of 40 m/min, the machine is designed to cooperate with bag machine to collect film edge, chiefly characterized by convenient operation, stable transmission and high efficiency quality of collecting.
Main technical parameter:
|
Customized or not
|
Yes
|
Purpose
|
Collecting film edge of bag machine
|
|
Brand
|
Haosen
|
Model
|
Type 500
|
|
Machine name
|
Film edge collecting machine
|
Thermal sealing area
|
500 (mm2)
|
|
Package type
|
Collecting film edge
|
Products size
|
450 (mm)
|
|
Suitable machine
|
others
|
Suitable industry
|
Machine package
|
Technical parameter of prototype:
|
Winding speed
|
50 m/min (may range by material sorts and cutting length)
|
|
Range of film size
|
Max diameter: ￠450mm
|
|
Machine dimension
|
Length*width*height: 820*750*650mm
|
|
Weight
|
85kg
|
More details
