LFR U groove track rollers bearings are the most widely-use and economy bearings among the linear motion track rollers, and they can suit to the cylindrical track.
There are two contact points between the roller and track, so the contact function is favorable.
Rollers feature double row angular contact ball bearing in its internal structure design and a thick-walled outer ring, so rollers can accommodate higher loads.

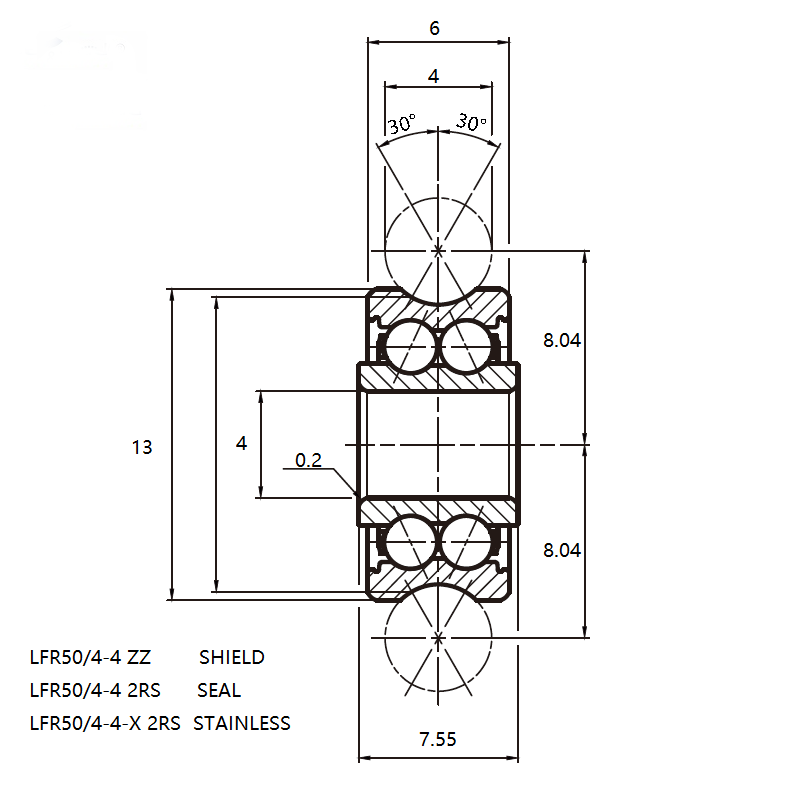

China Best Bearing LFR50/4NPP LFR50/4KDD Specification :
|
Type
|
U groove pulley ball bearings
|
Model
|
LFR50/4
|
|
Bearing No.:
|
LFR50/4NPP LFR50/4KDD
|
d (mm)
|
4 mm
|
|
Material
|
Chrome steel or Stainless steel
|
D (mm)
|
13 mm
|
|
Seal type
|
Open, KDD, NPP
|
C (mm)
|
6 mm
|
|
Precision rate
|
P0, P6
|
Material
|
Chrome steel
|

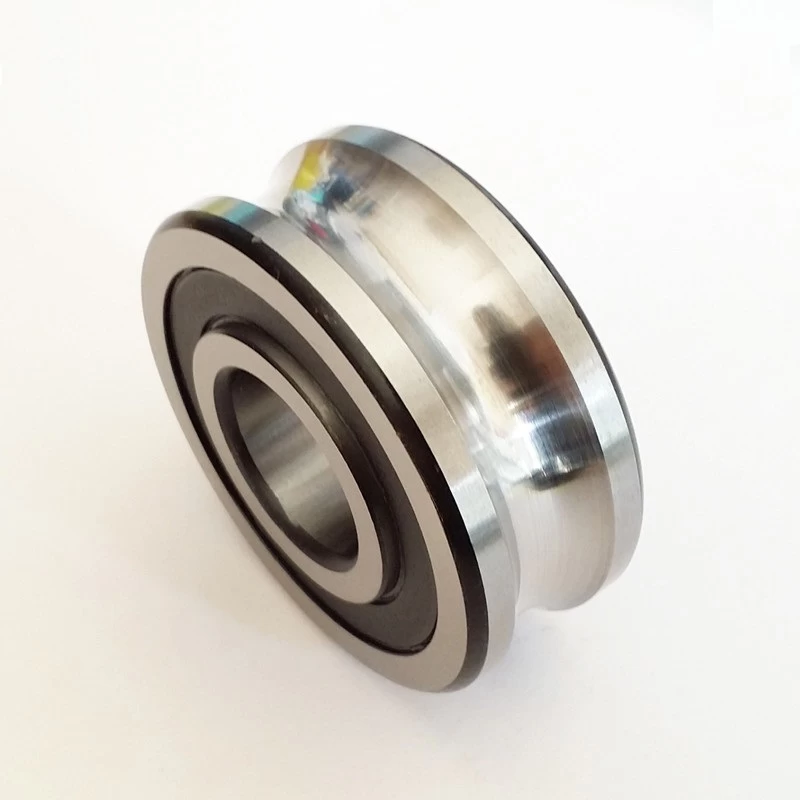

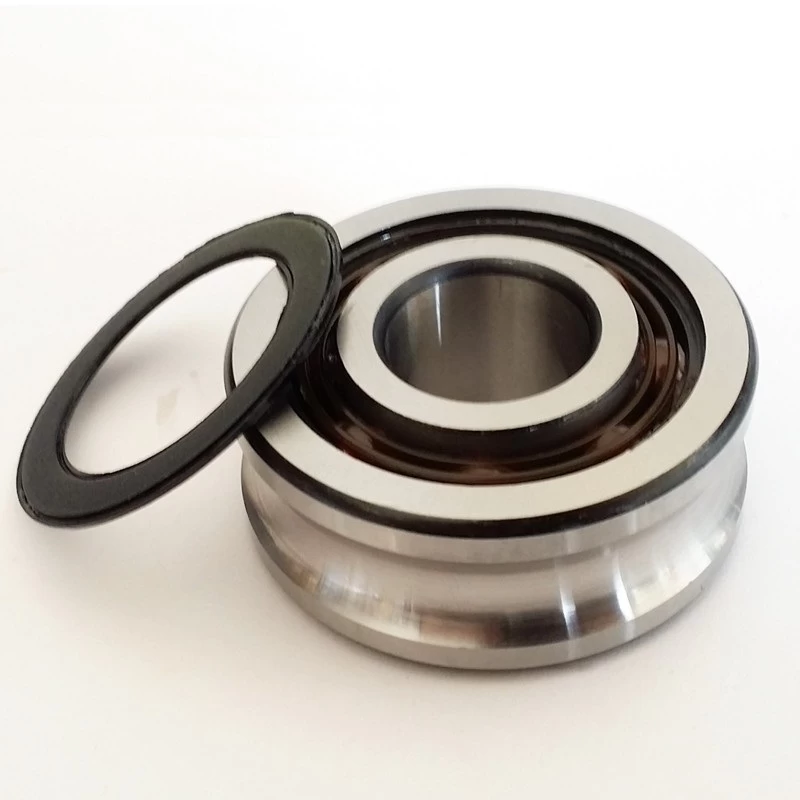

ChinaTrack bearing Pictures:
U Groove Ball Bearing LFR Series Number:
|
Bearing No.
|
Dimensions (mm)
|
Weight
|
|
|
dw
|
d +0/-0.008
|
D+0/-0.05
|
C
|
B +0/-0.12
|
A
|
rs
|
kg
|
|
LFR50/4-4
|
4
|
4
|
13
|
6
|
7.55
|
8.04
|
0,2
|
0,007
|
|
LFR50/5-4
|
4
|
5
|
16
|
7
|
8
|
9
|
0,2
|
0,01
|
|
LFR50/5-6
|
6
|
5
|
17
|
7
|
8
|
10,5
|
0,2
|
0,01
|
|
LFR50/6-6
|
6
|
6
|
19
|
8,5
|
9
|
11,5
|
0,3
|
0,013
|
|
LFR50/8-6
|
6
|
8
|
24
|
11
|
11
|
14
|
0,3
|
0,02
|
|
LFR50/8-8
|
8
|
8
|
24
|
11
|
11
|
14,75
|
0,3
|
0,02
|
|
LFR5201-10
|
10
|
12
|
35
|
15,9
|
15,9
|
20,65
|
0,3
|
0,08
|
|
LFR5201-12
|
12
|
12
|
35
|
15,9
|
15,9
|
21,75
|
0,3
|
0,08
|
|
LFR5201-10.40
|
10
|
12
|
39,9
|
18
|
20
|
22
|
0,3
|
0,12
|
|
LFR5201-14
|
14
|
12
|
39,9
|
18
|
20
|
24
|
0,3
|
0,1
|
|
LFR5202-12-ZZ
|
12
|
15
|
45
|
15,9
|
15,9
|
26,5
|
0,6
|
0,12
|
|
LFR5204-16-ZZ
|
16
|
20
|
52
|
20,6
|
22,6
|
31,5
|
0,6
|
0,23
|
|
LFR5206-20
|
20
|
25
|
72
|
23,8
|
25,8
|
41
|
0,6
|
0,435
|
|
LFR5206-25
|
25
|
25
|
72
|
23,8
|
25,8
|
43,5
|
0,6
|
0,425
|
|
LFR5207-30
|
30
|
30
|
80
|
27
|
29
|
51
|
1
|
0,660
|
|
LFR5208-40
|
40
|
40
|
98
|
36
|
38
|
62,5
|
1
|
1,360
|
|
LFR5301-10
|
10
|
12
|
42
|
19
|
19
|
24
|
0,6
|
0,130
|
|
LFR5301-20
|
20
|
12
|
42
|
19
|
19
|
28
|
0,6
|
0,125
|
|
LFR5302-10
|
10
|
15
|
47
|
19
|
19
|
26,65
|
1
|
0,163
|
|
LFR5308-50
|
50
|
40
|
110
|
44
|
46
|
72,5
|
1,1
|
1,400
|
We can provide Custom Service For U Groove Bearing ,Below Here Is Ball Bearing We Produce Before
|
Bearing
Name
|
Bearing Series
|
Can Be Used For
|
Detail Application
|
closure
|
Bearings Material
|
Cage
Material
|
Grease
|
Temp.
Range
|
|
Standard
Track
Rollers
|
LFR
|
General purpose
Factory floor conditions
|
Automation
Automative
Woodworking
Pringting
Packaging
Paper/Textile
|
Seal
Shield
|
52100
|
Nylon 66
|
Shell
Alvania EP2
|
-30ºC to +100ºC
|
V Guide
wheels
stainless
|
SLFR
|
Corrosive
|
Medical
Laboratory
Food & Beverage
|
Seal
Shield
|
440C
stainless
|
Nylon 66
|
Shell
Alvania EP2
|
-30ºC to +100ºC
|
|
Studded
Polymer
Track
Roller
|
SLFR…P
|
Corrosive
Low noise requirements
|
Electronics
Medical
Laboratory
|
Shield
|
Polymer
440C
stainless
|
304
stainless
|
Kluberplex
BEM034-132
|
-20ºC to +120ºC
|
|
Vacuum
Track
Roller
|
SLFR…VM
|
Vacuum
environments
|
Material science
Life sciences
|
Shield
|
440C
stainless
|
304
stainless
|
Lubcon
Ultrathern
2000
|
-35ºC to +250ºC
|
|
Washdown
Track
Roller
|
SLFR-WD
|
Washdown
Hygienic environments
|
Food processing
Food packaging
|
Double
Seal
|
440C
stainless
|
Nylon 66
|
FDA approved
Klubersynth
UH1 14-151
|
-30ºC to +100ºC
|
|
Food
Beverage
Pharma
Track
Roller
|
SLFR…FH
|
Washdown
Food equipment
Pharma equipment
|
Food processing
Food packaging
Pharmaceutical
|
Seal
Shield
|
440C
stainless
|
Nylon 66
|
FDA approved
Klubersynth
UH1 14-151
|
-30ºC to +80ºC
|
|
High
Temp.
Track
Roller
|
SLFR…227
|
High temp
Corrosive
|
Baking
Welding
Plasma cuttles
|
Shield
|
440C
stainless
|
304
stainless
|
Hrytox
GPL227
|
-30ºC to +260ºC
|
|
Low
Temp.
Track
Roller
|
SLFR…300
|
Low temp.
Subzero
Corrosive
|
Aerospace
Refrigeration
Flash freezing
|
Shield
|
440C
stainless
|
304
stainless
|
Kluber
Isoflex PDL
300A
|
-70ºC to +110ºC
|
U Groove Bearing Application :
Industrial machinery: printing machinery, paper machinery, automation machinery, textile machinery, vending machines, woodworking machinery, packaging machinery
• Electronic equipment: mechanical arm, measuring equipment, X-X platform, medical equipment, factory automation equipment
• Rotation machinery: metal heat treatment designed nuclear reactor, brakes, etc
• Aerospace industries: aircraft flaps brakes, seat brakes, missiles, airport apparatus and other equipment
• Other: radio antenna brakes, door and window control, medical bed control, parking facilities, machine tool doors, laboratory automation, etc.
