Machine Characteristics
- This machine belongs to vertical slitting machine with micro perforation function.
- Main control system PLC+ man-machine interface taper tension/independent microcomputer, control screen, easy to operate.
- Winding and unwinding, magnetic tension control.
- Sufficient material automatic meter recording, unwinding with photoelectric correction.
- The machine is equipped with edge waste air delivery device or waste winding device.
- Double inflatable shaft winding, slitting end surface keeping flat.
- For aluminum foil paper slitting, user needs to buy round knife accessories.
Technical Parameters
Model |
XBL-PS700
|
XBL-PS1100
|
XBL-PS1300
|
Width of Material Unwinding Roll
|
700mm
|
1100mm
|
1300mm
|
Dia of Unwinding roll |
Φ600mm
|
Φ600mm
|
Φ600mm
|
Dia of Rewinding roll |
2xΦ420mm
|
2xΦ420mm
|
2xΦ420mm
|
Width of slitting |
20-700mm
|
20-1100mm
|
20-1300mm
|
Slitting speed |
10-150m/min
|
10-150m/min
|
0-150m/min |
Accuracy of correction |
±0.5mm
|
±0.5mm
|
±0.5mm
|
Weight |
1100kgs
|
1300kgs
|
1500kgs
|
Machine Dimensions |
1250x2100x1300mm
|
1250x2300x1300mm
|
1250x2500x1300mm
|
Details Show

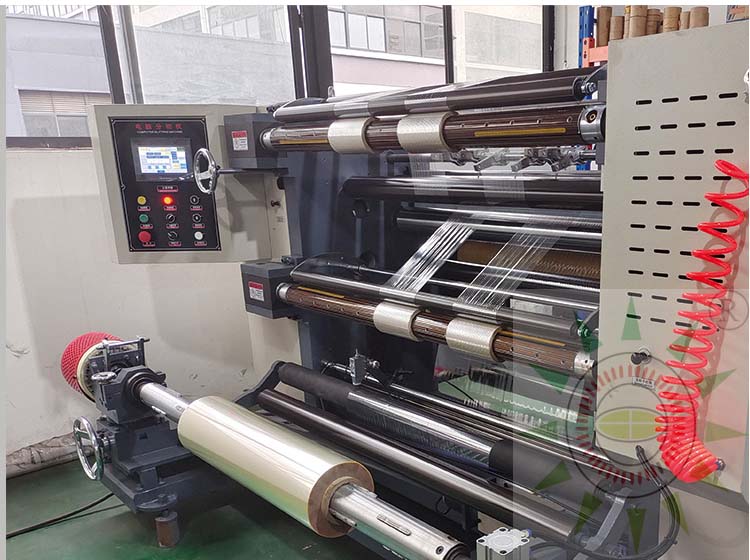

I. Easy to operate at a glance
![](/storage/uploads/images/202501/03/0964e5edd61953ca574a38c2c3907083.jpg)

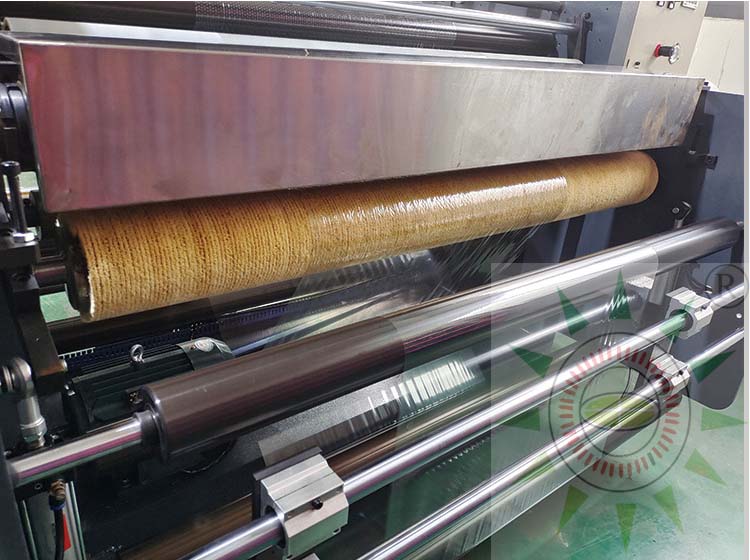

II. Stable performance, accurate slitting
![](/storage/uploads/images/202501/03/3036ed8833c6eaf963ba66014f5653f7.jpg)
III. Quality assurance, durable
![](/storage/uploads/images/202501/03/857355c81206c4a7fdac2285fd6d9414.jpg)

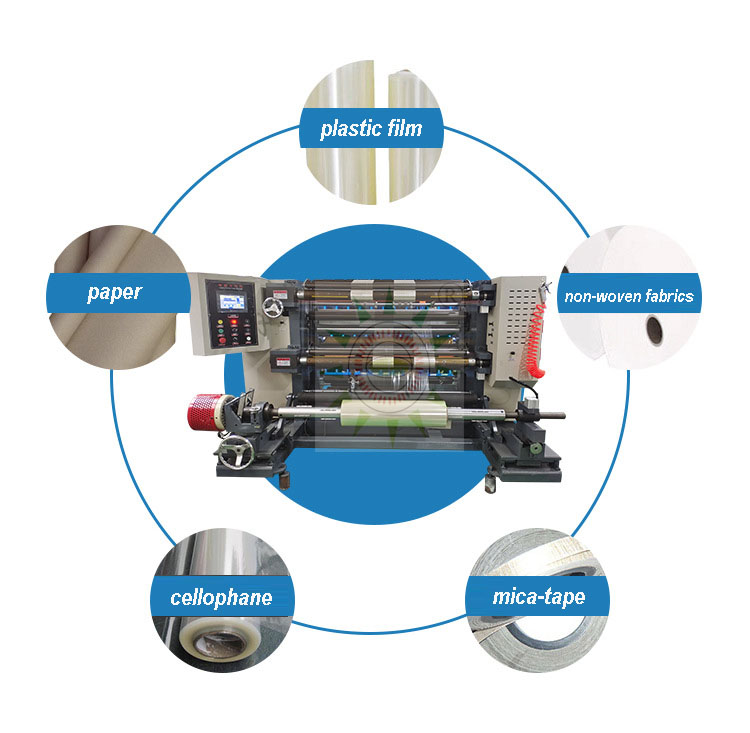

Application Range
![](/storage/uploads/images/202501/03/b591175be2e391304b801f24858d4e36.jpg)

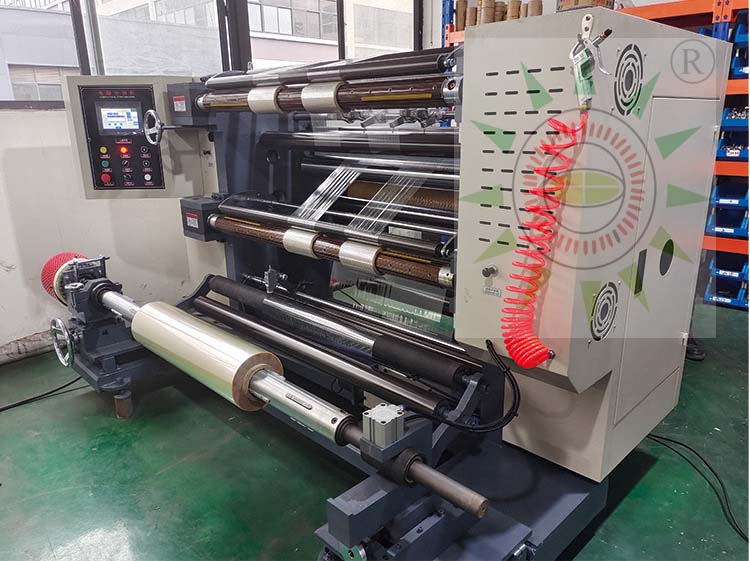

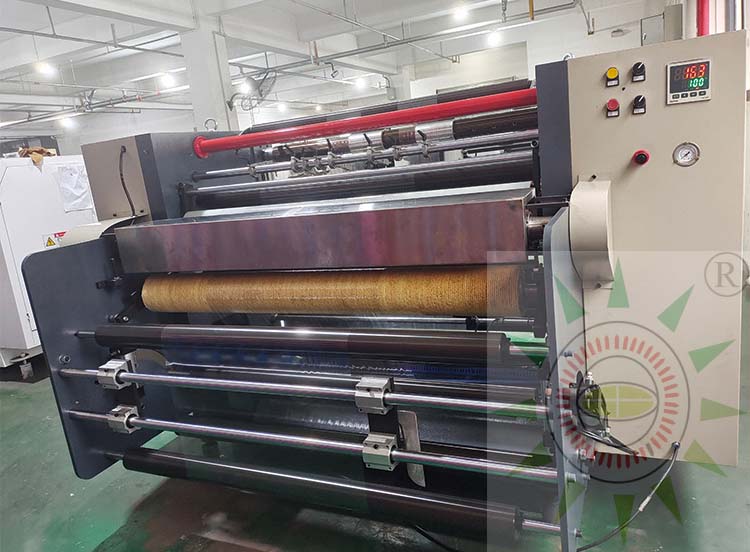

Physical demonstration of machine in factory
![](/storage/uploads/images/202501/03/38f41837f51b4318e698bef1276e6876.jpg)
![](/storage/uploads/images/202501/03/7a9f25475aa8b761e532f8c97c49342c.jpg)
