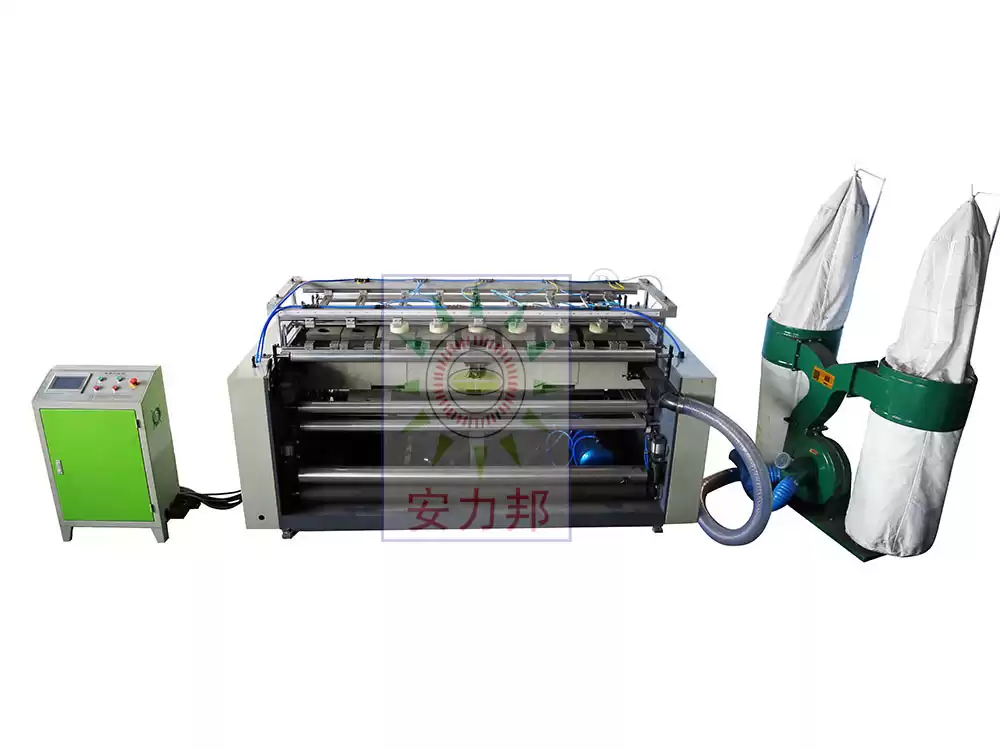

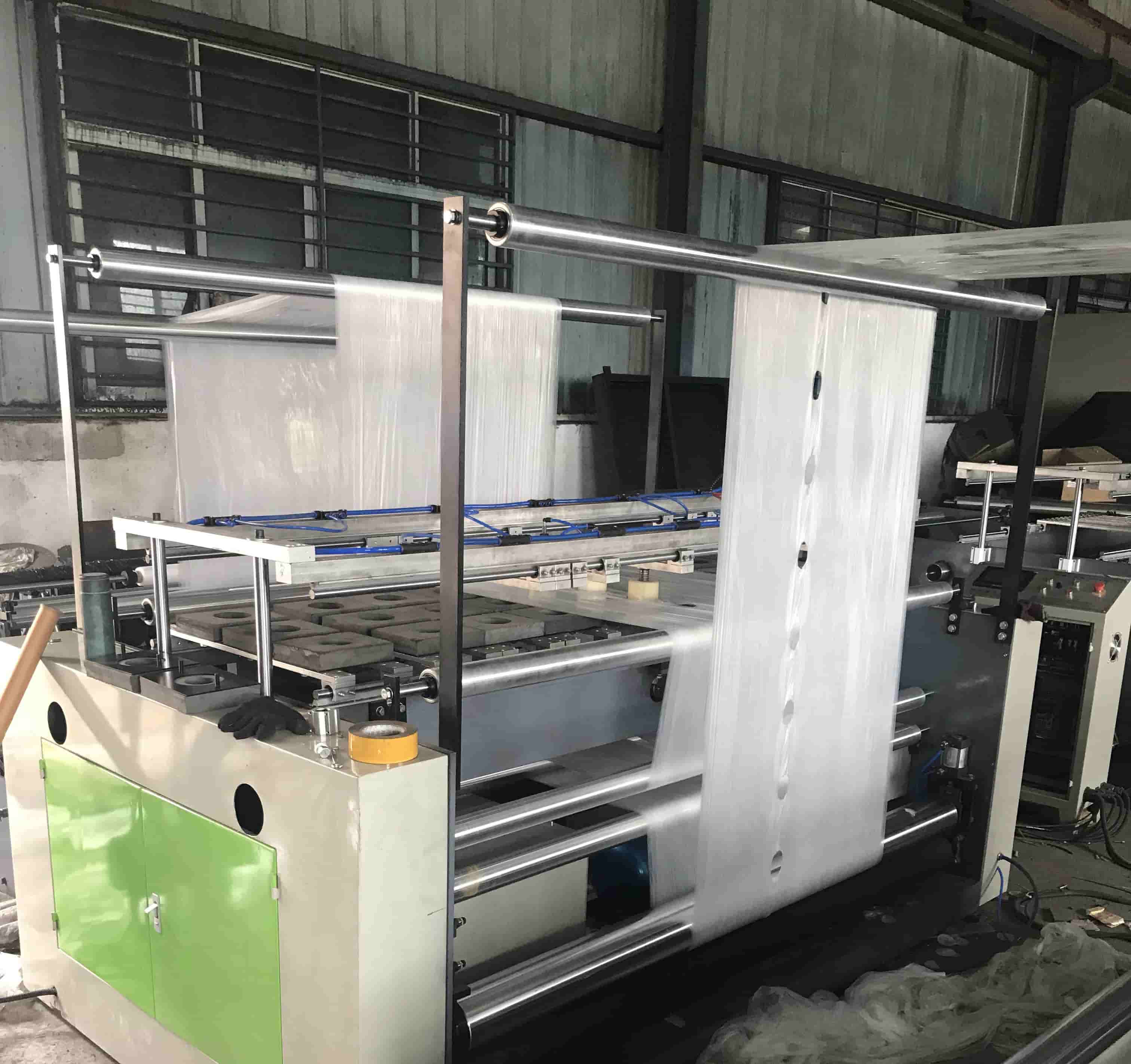

High Speed Mulching Film Punching Machine

Machine Characteristics & Technical Parameters

1. Punching form: double servo synchronous material feeding, follow -up punching.
2. Width range of mulch film : 400-2000mm.
3. Punching speed:40-120m/minute.

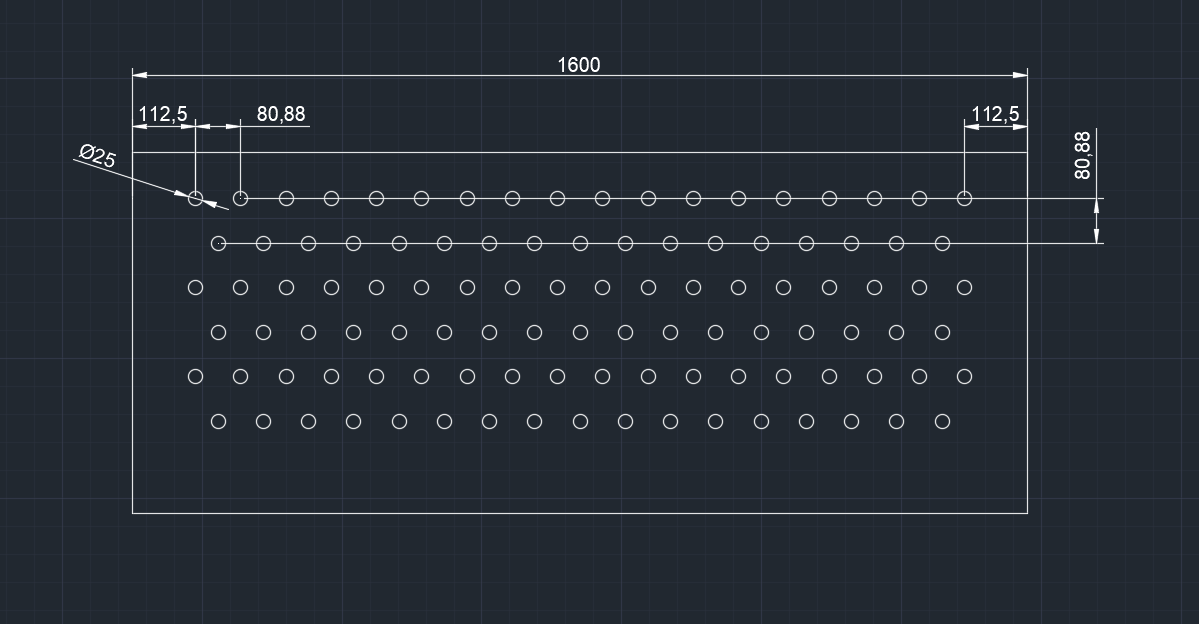

4. Hole distance range/film width:50-1500mm（if hole diameter smaller than 2mm.it will be calculated according to the mold.）

5. Plant spacing range: 50-2000mm (if hole diameter is smaller than 2mm, it will be calculated according to the mold.)

6. Hole diameter:  1~100mm , Optional.

7. Puncher holding frame: Aluminum frame.

8. Table device: fixed platform, the height of 4feet can be adjusted freely.

9. Punching motor: INVT servo motor.

10. Follow -up motor: INVT servo motor.

11. Follow -up punching structure: type of double servo motor follow -up.

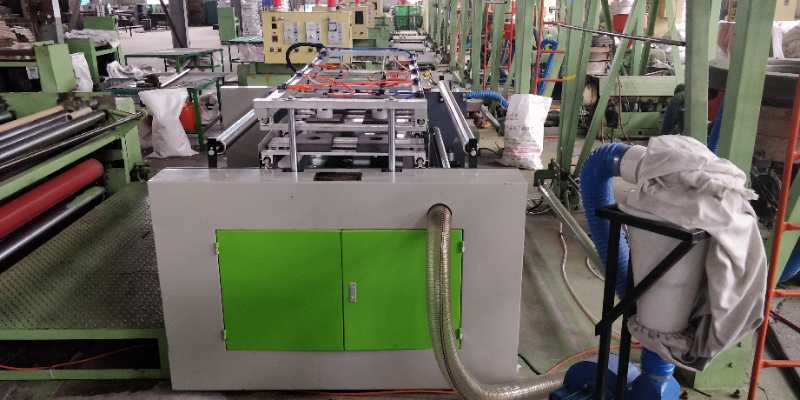

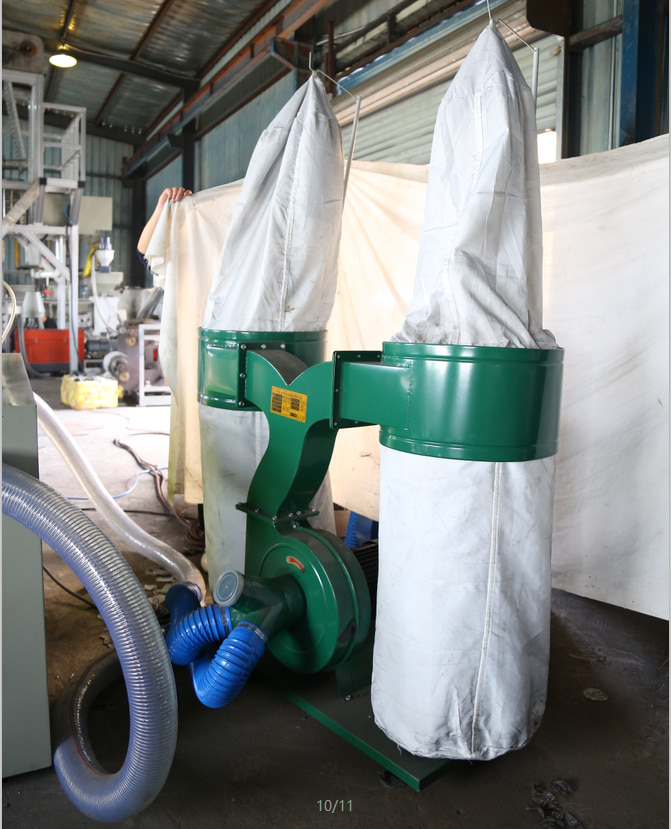

12. Waste recycling structure: conveyor belt transmission, negative pressure fan suction double bucket recycling.

 Details Show
