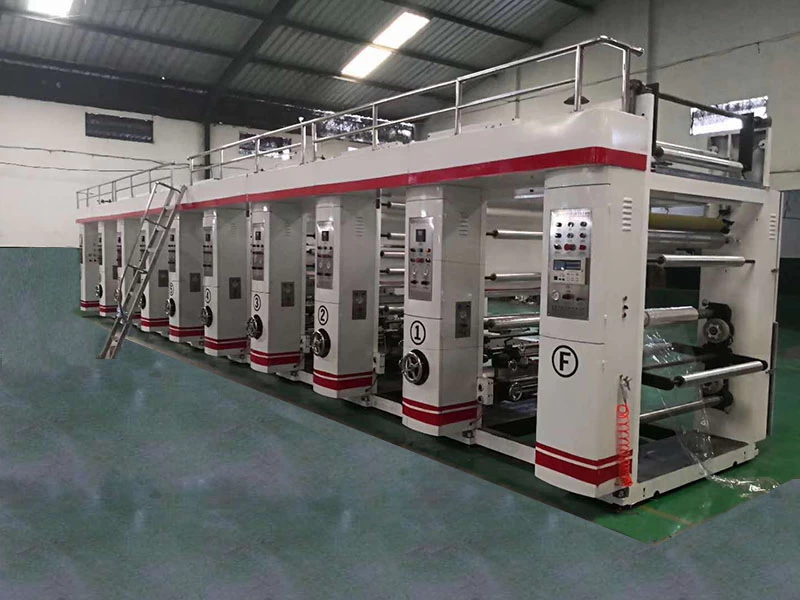

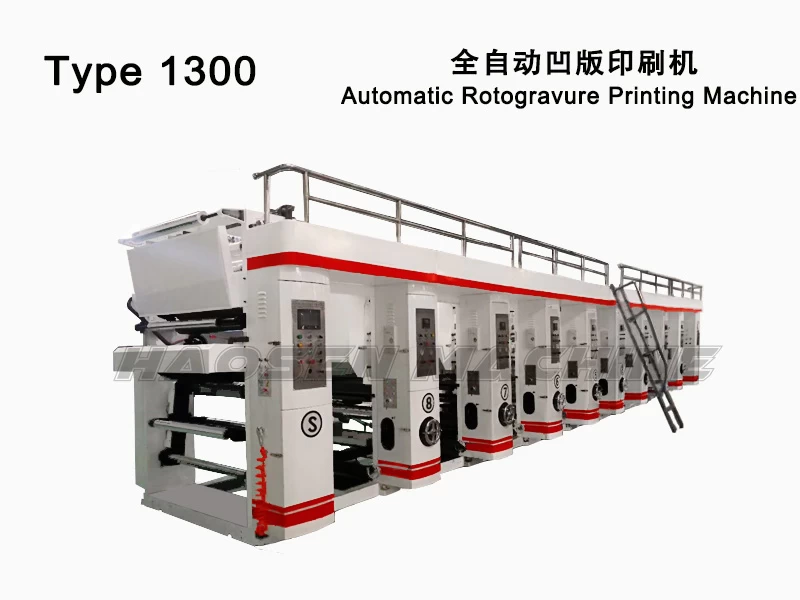

Type 1300 High-speed Rotogravure Automatic Computer Chromatography Color Printer Configuration (with 6 colors and 8 groups)
I Technical Parameter
1. Printing color number: 6 colors
2. Max printing range of base material: 1300mm
3. Suitable base material: Cellophane: 15-30μm, PET: 12-60μm, BOPP: 12-60μm, CPP: 15-60μm, PE: 20-80μm
4. Max mechanical speed: 150m/min
5. Printing speed: 10-120mm/min(printing speed depends on features of all base materials, version size, ink feature and operation level)
6. Longitudinal integrated chromatography accuracy:±0.15mm(manually) horizontal accuracy:±0.20mm(manually)
7. Diameter of printing plate roller:Φ100mm-Φ300mm
8. Max width of printing plate roller: 1350mm
9. Width of guide roller: diameter forΦ80mm and length for 1350mm
10. Width of machine cavity: 1580mm
11. Unwinding diameter and rewinding diameter: max diameter forΦ600mm(it can be customized according to clients’ requirements)
12. Main drive frequency conversion motor: 11kw
13. Total power: 108kw
14. The whole machine is designed with frame type quality cast iron structure and all wall panels are reverse loaded.
15. Automatic counting
16. Machine weight: around 15 tons
17. Dimension of machine: (L*W*H)10200*3500*2600mm
18. Color: color can be selected by clients
19. Paper tube for rewinding and unwinding: inside diameter for￠76mm*outer diameter for￠92mm
20. Drying mode: electric heating
21. Scraper movement:±5mm
II Electronic components
1. Machine frame
●Structure: the whole frame is a combination type with quality cast iron row covers in width of 400mm, height of 1800mm and thickness of 60mm
● The protective roll has high precision, the surface is oxidized and the balance is less than 5G. It can be adjusted from left to right. Aluminum rollers are installed at the corner of the bend, which is Φ100 x 1350 mm.
●Specification: transition rollerΦ80*1350mm
●Bearing: (gearbox imported bearings)
2. Transmission
●Structure: The vector inverter is used to control the vector motor, and the synchronous wheel on the motor shaft drives the synchronous wheel on the transmission shaft to drive each group of gear boxes to the printing plate. Flexible connection is at each joint of each gear box.
●Features: accurate transmission and saving power. Machine starts at low speed and full load as well as speed up automatically.
●Specification: 11w Main vector frequency conversion motor for 1 set (Germany BEDE frequency conversion motor). 11kw vector inverter for 1 set (Japan Yaskawa inverter)
●Gearbox bearing (imported bearing)(Japan NTN Model 6201ZZ)
3. Unwinding
●Structure:
Built-in double station flip frame
The tension is controlled by automatic tension to stabilize the unwinding tension
Adjust base material to left and right:±20mm
Unwinding air shaft
Rotating arm turns around by 360°in forward and reverse direction
●Features: constant tension, saving time when change roll and less waste when collecting materials.
●Specification:
5 magnetic for 2 pcs
Max unwinding diameter: 600mm
Paper core size:Φ76mm
Automatic tension controller
Rotary arm speed: 1R/min
Max unwinding width: 1300mm
Material lateral adjustment:±20mm
Paper tube: inside diameter for￠76mm*outer diameter for￠92mm
4. Unwinding and traction
●Structure: It adopts combination of hard and soft, double cylinder pressing and adjustable pressure, and the tension is controlled by vector swing arm voltage feedback to control vector motor to realize vector closed loop control line speed.
●It adopts film tension automatic control device before printing and pneumatic swing arm device.
●Tension control mode: it adopts floating roller and imported precision pressure regulating valve to stabilize tension.
●Steel roller is a power roller with weight less than 10g, driven alone by motor. The synchronous wheel of the motor drives that synchronous wheel of the steel roller to provide power.
●The clutch of the rubber roller: through the expansion and contraction of the cylinder, the electronic magnetic valve switch control realizes the clutch.
The pressure is controlled by a pneumatic pressure regulating valve.
●Features: constant tension, smooth feed, rigid and soft combination, tension section is assured, independent tension closed-loop control to provide stable printing tension and high accuracy of chromatography
●Specification:
2.2w main vector frequency conversion motor for 1 set (Germany BEDE)
2.2kw vector inverter for 1 set (Japan Yaskawa)
Traction steel roller:Φ125*1350mm
Traction rubber roller:Φ120*1350mm
Two cylinders:Φ50mm*25mm
5. Printing
1) Shaftless version
●Structure: it adopts shaftless version and the horizontal installation size ensures the initial position of the plate roller.
●It adopts the cylinder to pull the plate roller and the lateral manual adjustment adopts the screw movement.
●Features: it is easy to change version. With high concentricity to improve product quality.
●Specification:
One cylinder per group forΦ80-275mm, pneumatic components
Version width: 820mm-1380mm, diameter of printing plate 100mm-300mm
●Bearing (imported bearing)
2) Impression
●Structure: the swing arm type double cylinder lifting and self-locking position protects the cylinder from leaking and stopping the cylinder, and the pressure of each group is adjustable.
●Features: balanced pressure and guaranteed color chromatic aberration
●Specification: impression rubber rollerΦ120mm*1300mm, Shore hardness is 60°-70°
Two cylinders per groupΦ50mm*100mm
3) Scraper
●Structure: 3-direction adjustable heavy scraper can be adjusted up and down and worker can adjust scraper’s angle. The scraper’s pressure is in double pressure type. The lateral movement adopts independent synchronous motor to rotate the cam.
●Features: extended pattern life and balanced ink
●Specification:
two cylinders per group forΦ50mm*30mm
One gear motor per group (Suzhou)
Horizontal movement amount±5mm
4) Ink supply
●Structure: the ink is automatically circulated and the ink tray can be raised and lowered according to the size of the printing plate(manually)
●Features: good ink flow
●Specification: one pneumatic diaphragm pump per group(Foshan)
5) Drying
●Structure: the external closed oven adopts a centrifugal fan to blow the air, is equipped with secondary return air to form a hot air circulation system and is equipped with air inlet preheating.●The electric heating tube is distributed in the air outlet of each group of ovens for heating. The temperature is controlled by intelligent temperature control. Each oven outlet is equipped with a cooling bellows to ensure film cooling.
●Features: constant temperature, fast temperature rise adjustable component
●Specification:
Hot air 2.2kw centrifugal fan for one set per group
Cold air 550w centrifugal fan for one set per group
1.5kw electric heating tube each group for 12 units per group
Intelligent temperature controller for one pc per group
Each group of drying system power 18kw
6) Chromatography system
●Structure: it adopts synchronous motor and transmission screw that drives the slide to move left and right to form the chromatography system
●Features: manual rough chromatography, high precision and low waste
6. Rewinding and traction
●Structure: it adopts rigid-flexible combination, double cylinder pressing, adjustable pressure, tension vector control motor with vector swing arm voltage feedback
●Specification:
2.2w main vector frequency conversion motor for one set(Germany BEDE)
2.2kw vector inverter for one set (Japan Yaskawa) to achieve vector closed loop control line speed
●A film tension automatic control device after printing is equipped with a pneumatic swing arm device
●Tension control mode: floating roller. Imported precision pressure regulating valve stabilizes tension.
●Steel roller is a power roller with weight less than 10g driven alone by the motor. The synchronous wheel of the motor drives the synchronous wheel of the steel roller to realize the power.
●The clutch of the rubber roller: through the expansion and contraction of the cylinder, the electronic magnetic valve switch control realizes the clutch.
●Pressure is controlled by pneumatic pressure regulating valve
●Features:
Constant tension, smooth feeding
Rigid-soft combination, tension section is guaranteed, independent tension closed-loop control for stable print tension
Tension control, high chromatography precision
●Specification:
Traction steel rollerΦ125*1350mm
Traction rubber rollerΦ120*1350mm
Two cylindersΦ50mm*25mm
7. Rewinding
●Structure:
It adopts built-in double station flip frame.
Tension is controlled by automatic tension to stabilize unwinding tension.
Adjust base materials to left and right:±20mm
Unwinding air shaft
Rotating arm 360°forward and reverse direction.
●Features:
Constant tension, saving time when change materials, less waste when collecting materials
●Specification:
40N/M torque motor for two sets
Torque controller for two sets
Max unwinding diameter: 600mm
Paper core size:Φ76mm
Automatic tension controller
Rotary arm speed: 1R/min
Max unwinding width: 1300mm
Material lateral adjustment:±20mm
Paper tube: inside diameter￠76mm*outer diameter￠92mm

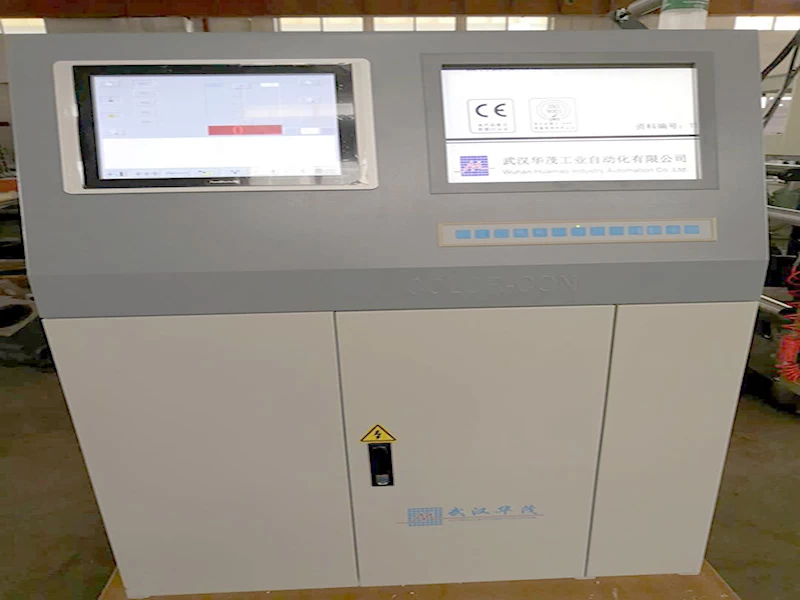

III Electrical parts
●It adopts multi-level protection safety explosion-proof, reliable performance, low-voltage electrical appliances(Zhengtai), buttons(Schneider)
●If configuration above is changed, it should be approved by the purchaser.
●Random accessories: 1 set of rubber roller, 1 set of tools, one ink tray, 6 ink sticks
