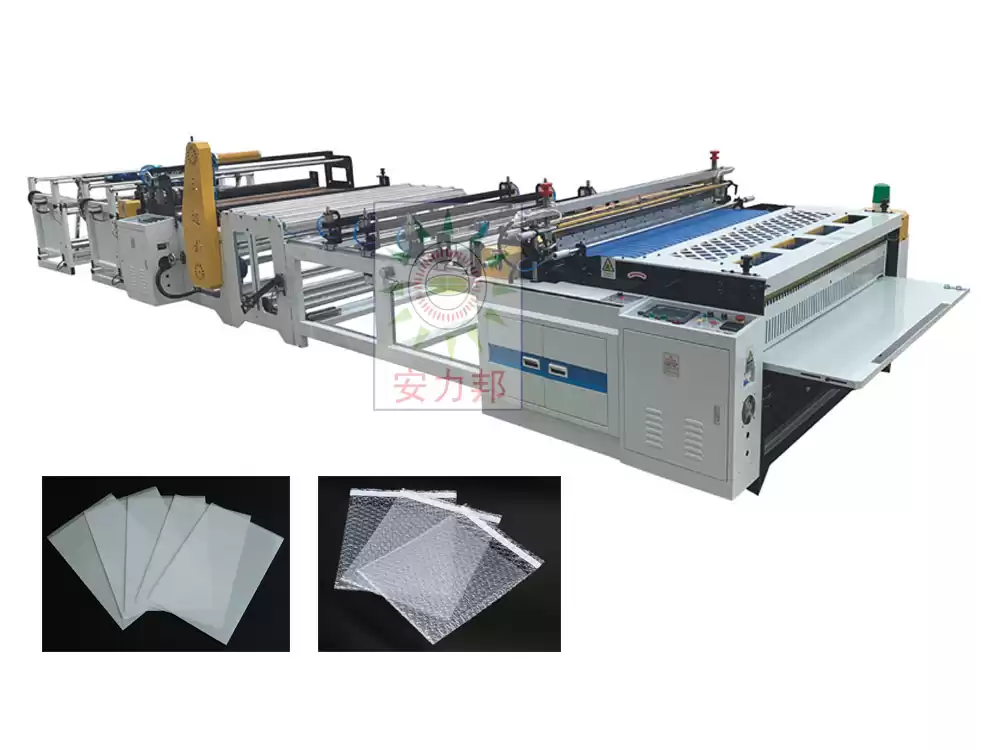

Machine Characteristics
- The machine can perfectly process the EPE foam & Bubble film into three-sides sealing pouch. Equipped with automatic waste winding device.
- This machine adopts a full digital AC servo drive. The host incoming material and feeding can be frequency control. It is easy to operate and precise controlling. The finished bag is sealed firmly.

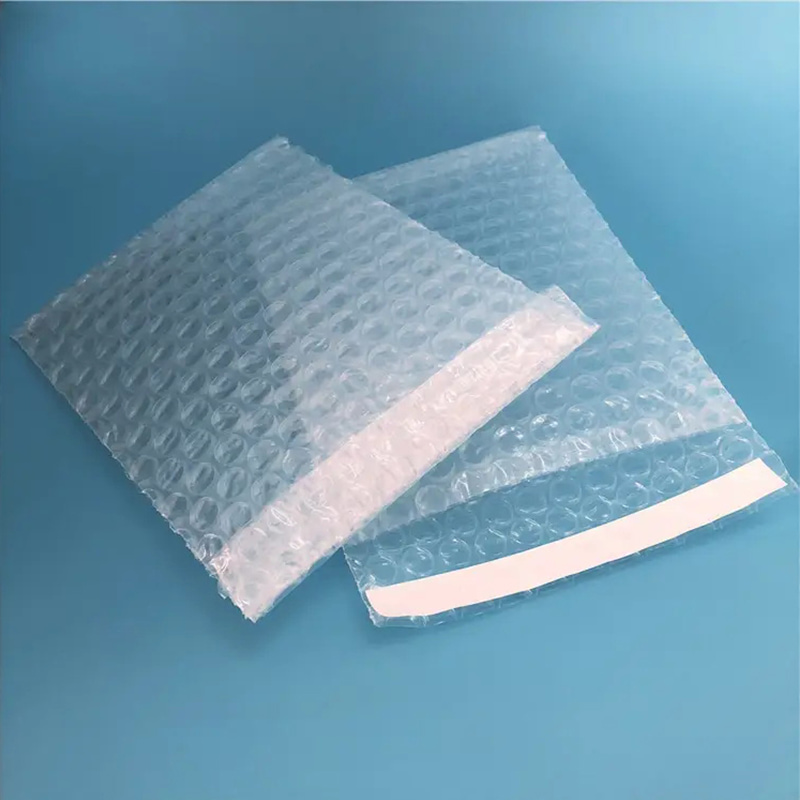

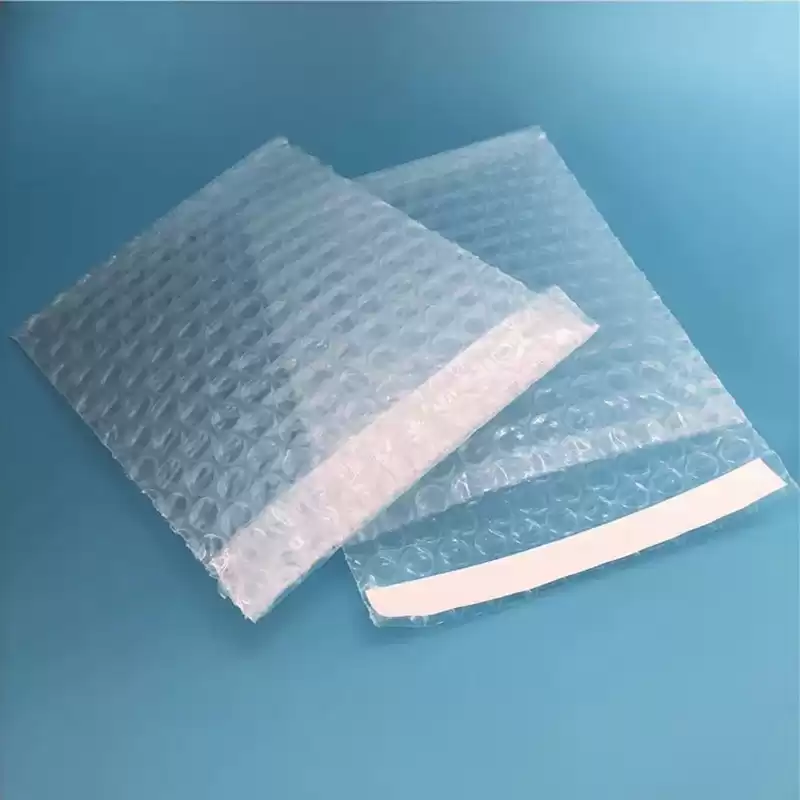

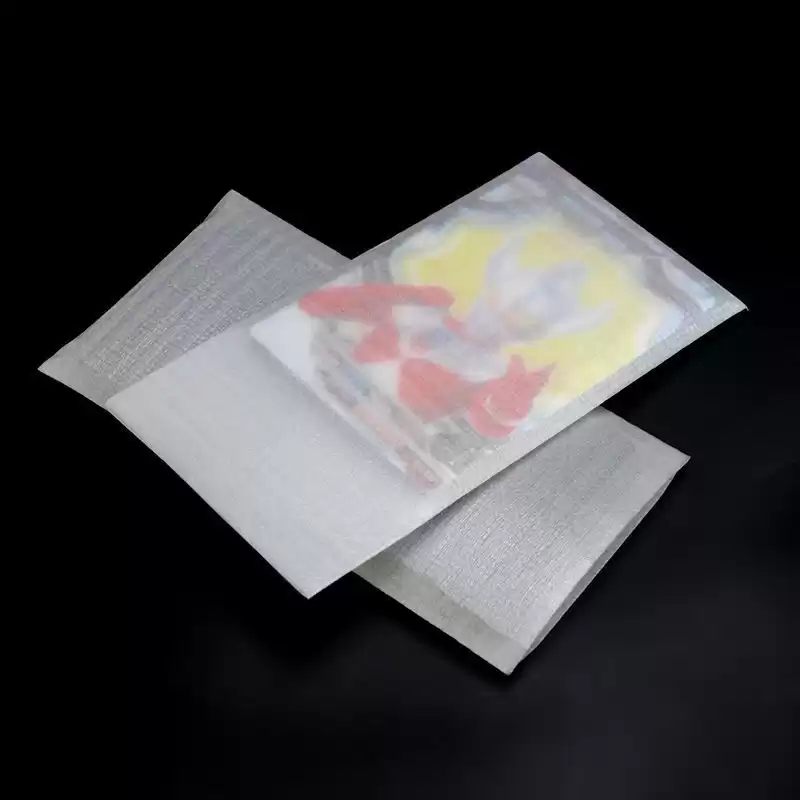

- This machine is specially used for processing laminating & non-laminating PE Foam in bags , it can also be used for heat sealing and cutting Bubble film. It is an ideal equipment for making cushioning package bags of electronic component bags, wooden handicraft bags, LCD screen, etc.
- Computer color chasing, arbitrary fixed length, step-size photoelectric tracking, with punching holding frame. Micro Computer control, automatic counting & a counting alarm can be set.
- Automatic thermostatic heat sealing, the sealing edge is firm and smooth.
- Automatic lifting and discharging platform is optional.
Technical Parameters
| Model |
Voltage |
Speed (min) |
Sealing Cutting Width (mm) |
Sealing Cutting Thickness (mm) |
Sealing Knife Width (mm) |
| EPE Foam Bag |
Air Bubble Bag |
| 50" |
220V |
30-120PCS |
1180 |
0.5-1.5MM |
25-80g |
1270 |
| 60" |
220V |
30-110PCS |
1380 |
0.5-1.5MM |
25-80g |
1500 |
| 65" |
220V |
30-100PCS |
1580 |
0.5-1.5MM |
25-80g |
1680 |
| 75" |
220V |
30-80PCS |
1800 |
0.5-1.5MM |
25-80g |
1880 |
| 2000mm |
220V |
20-80PCS |
1920 |
0.5-1.5MM |
25-80g |
2000 |
| 2200mm |
380V |
20-80PCS |
2000 |
0.5-1.5MM |
25-80g |
2200 |
| 2500mm |
380V |
20-80PCS |
2400
|
0.5-1.5MM |
25-80g |
2500 |
Details Show

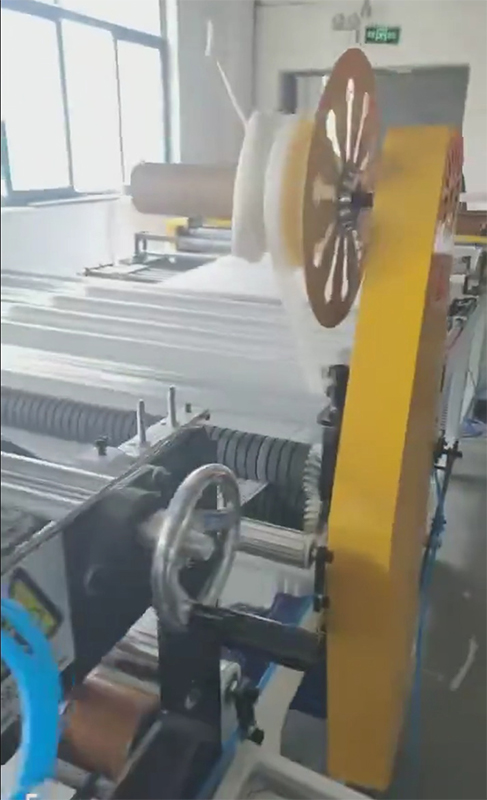

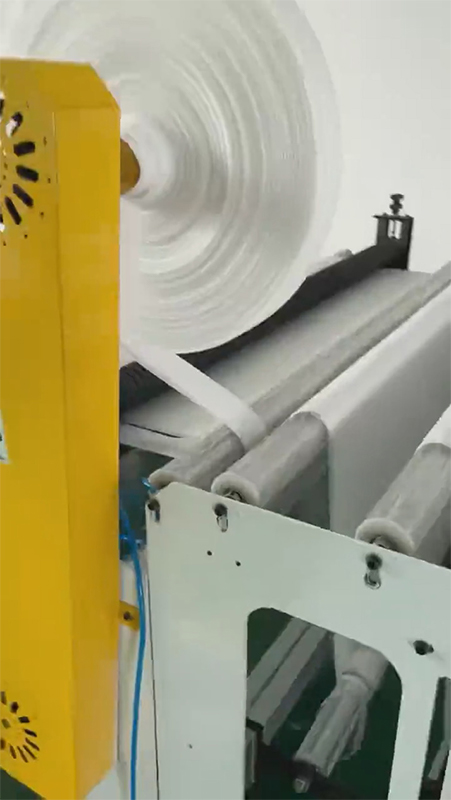

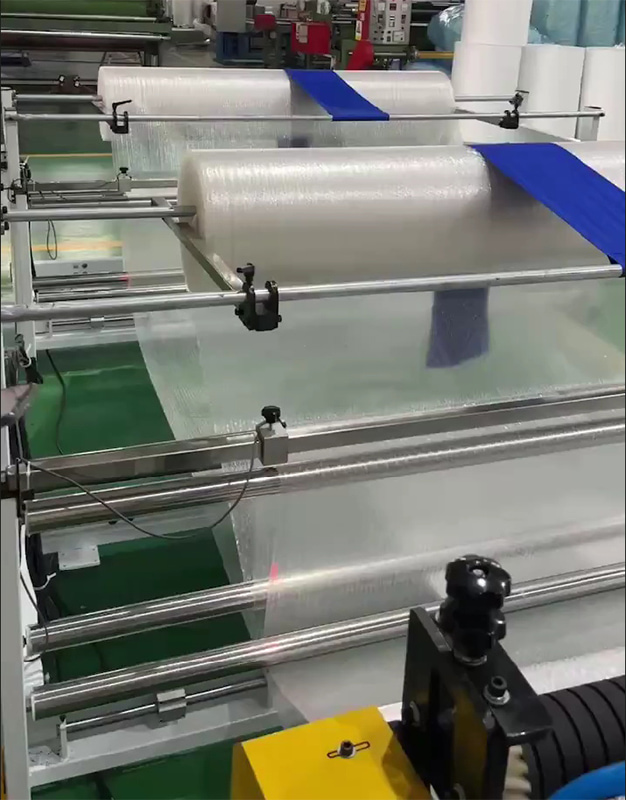

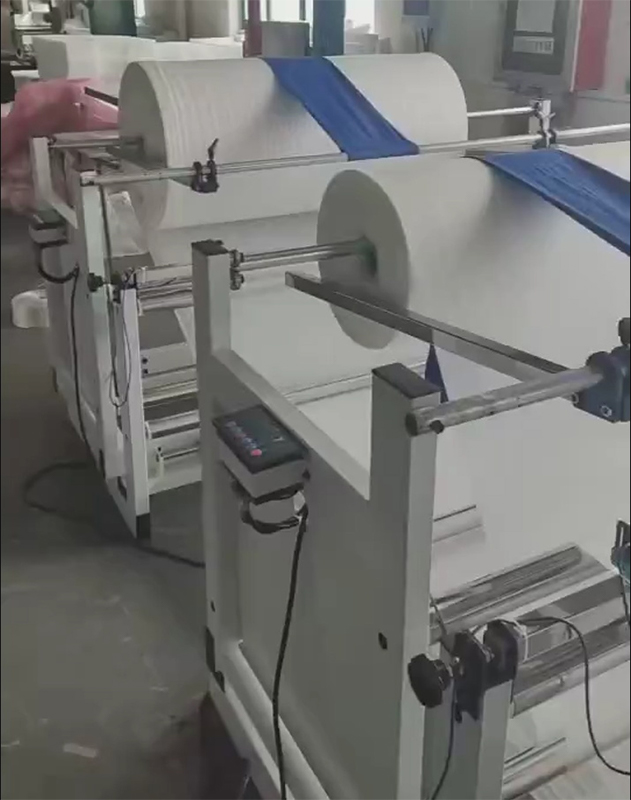

Material feeding Unwinder： 2sets
With automatic edge corrector and tension control

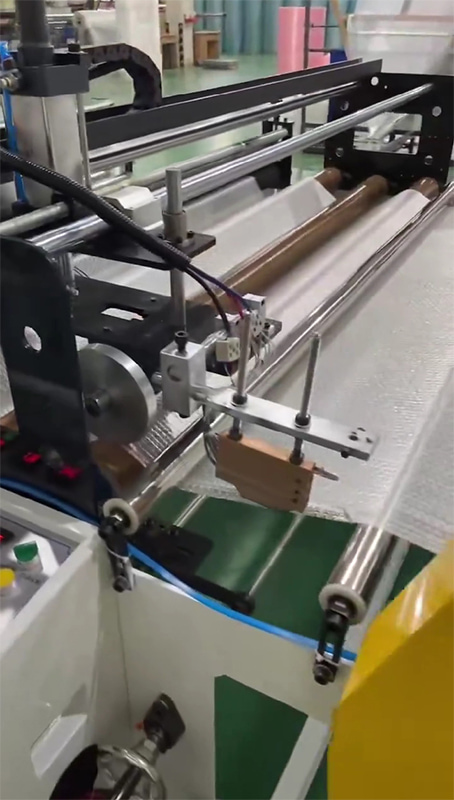

Heat sealing-flattening-slitting
PE Foam & Air Bubble film are available to automatic thermostatic heat sealing,
the sealing edge is firm and smooth

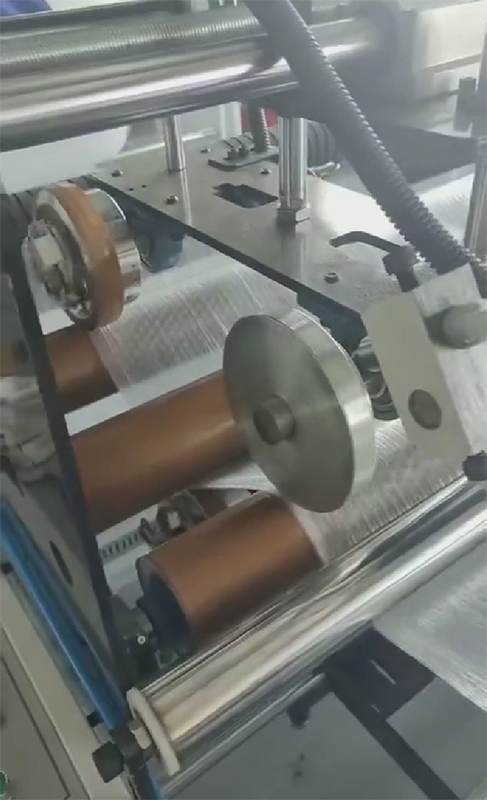

Waste edge collection device

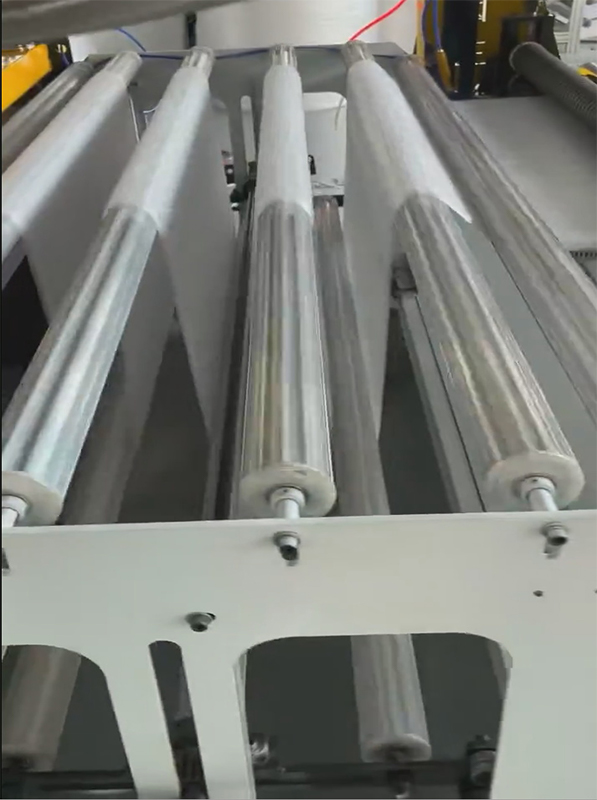

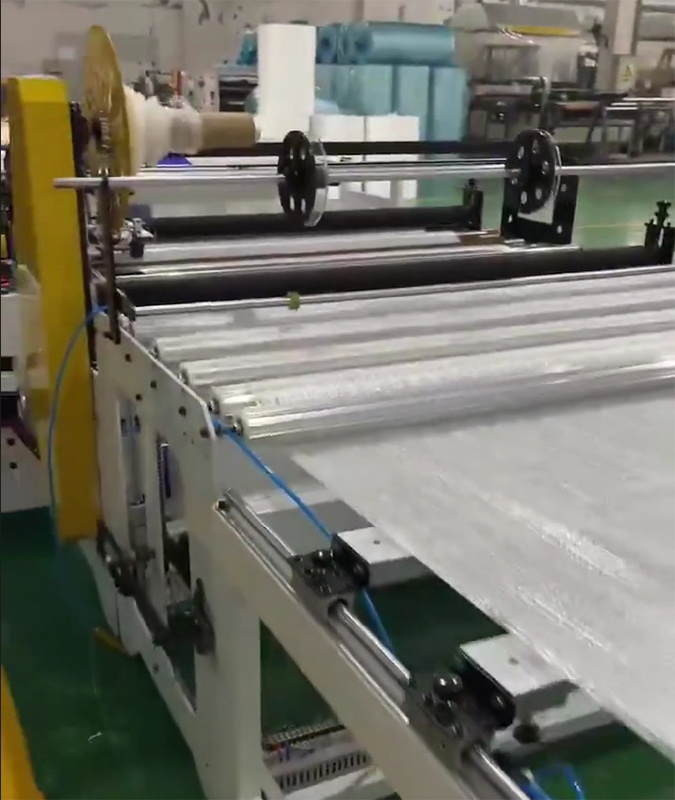

The storage rack device enables the material to be smoothly transferred forward

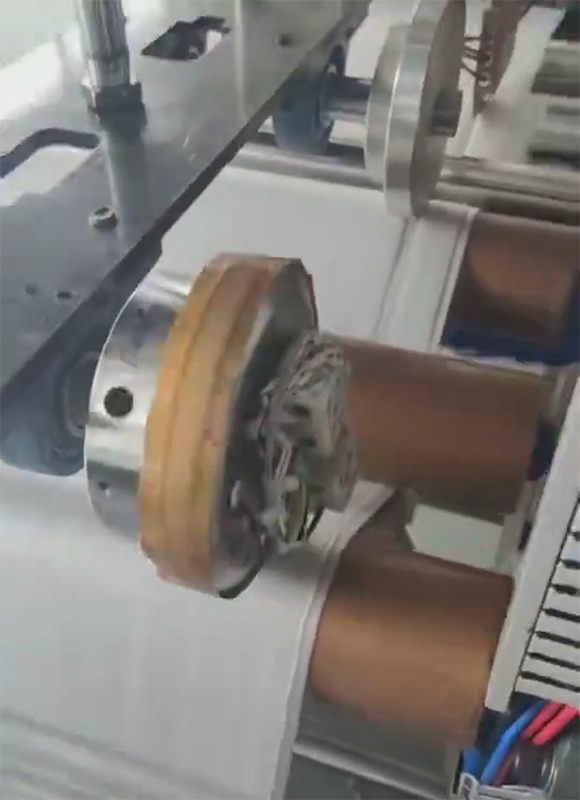

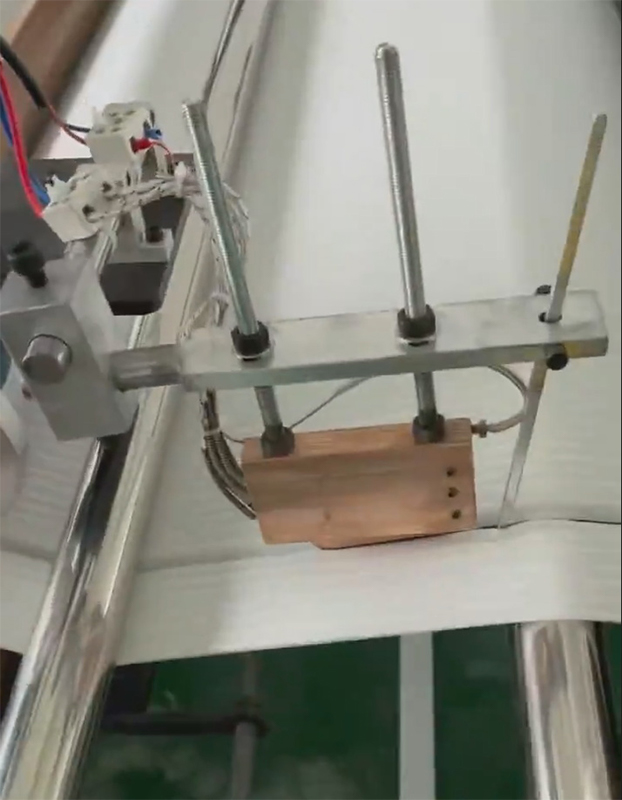

Bag sealing tape feeding device

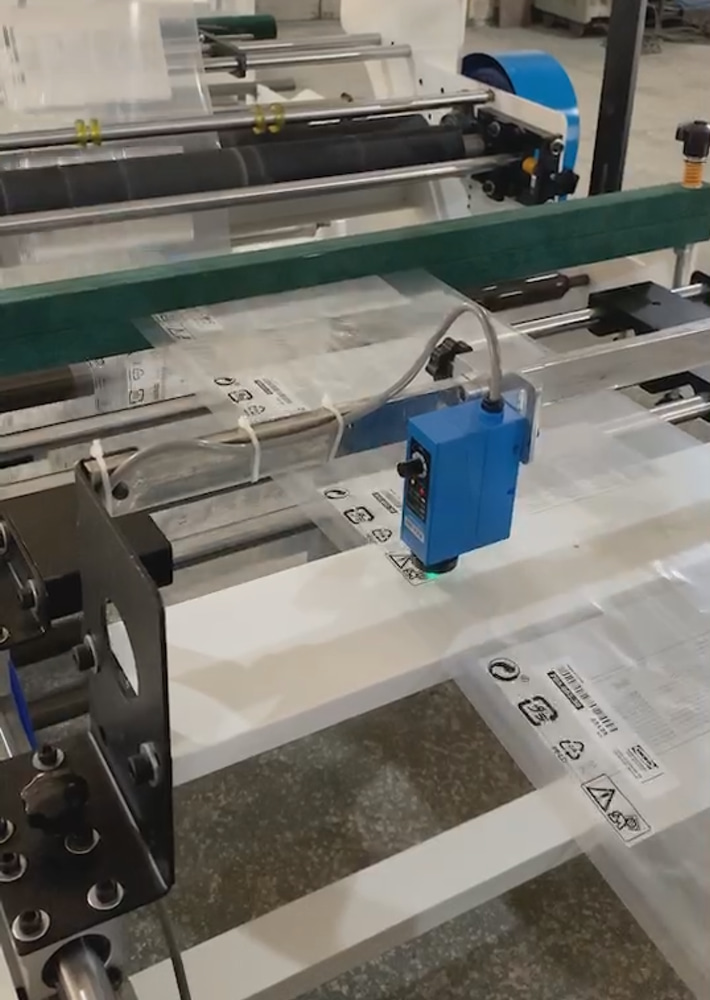

Photocell sensor device for printing bag

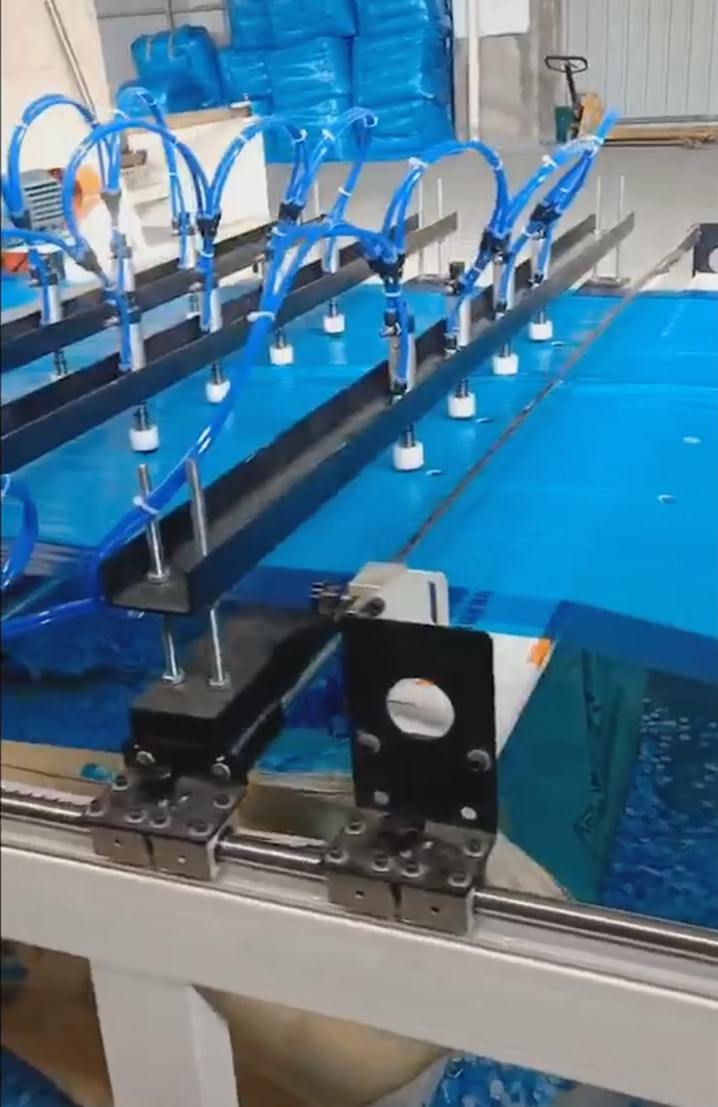

Multi-hole puncher for banana Packaging

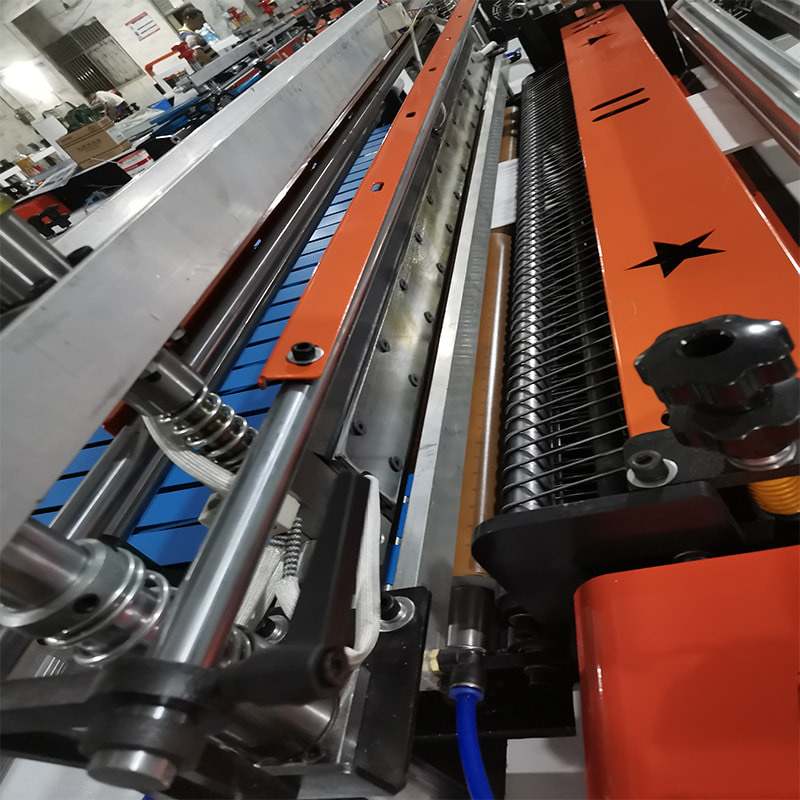

Sealing & cutting knife (The knife with two sides, one for EPE foam and the other side for bubble film)
Easy to operate & saves space

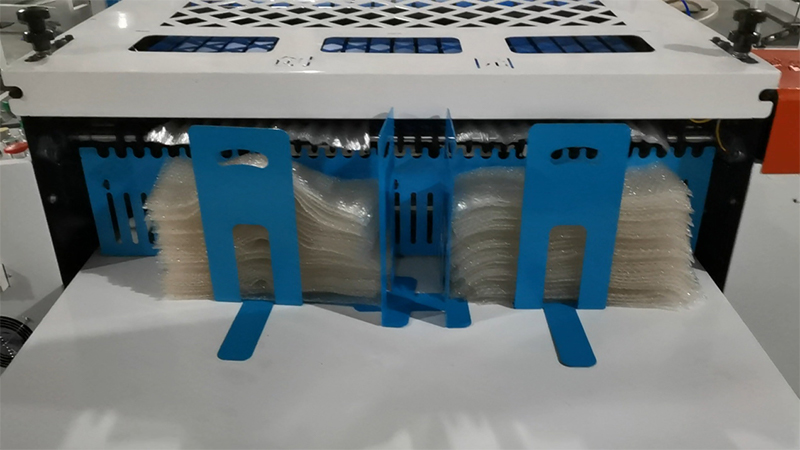

Optional : Automatic lifting discharge platform

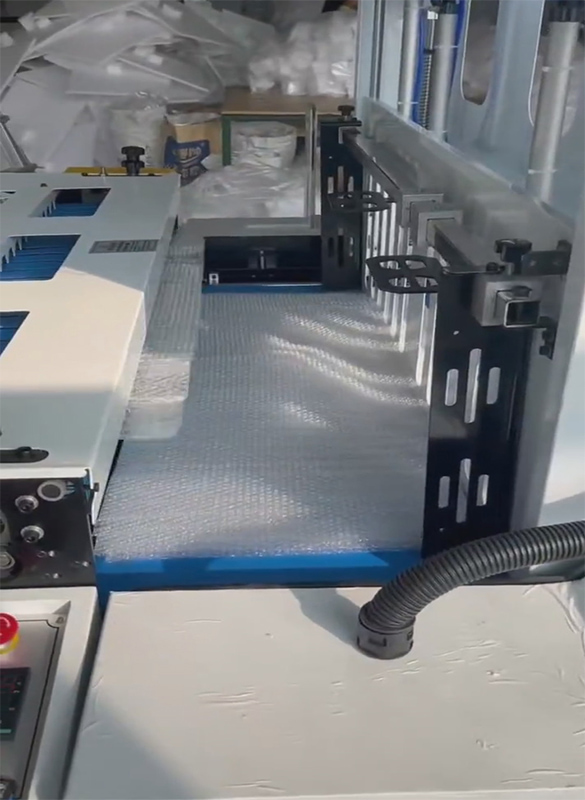

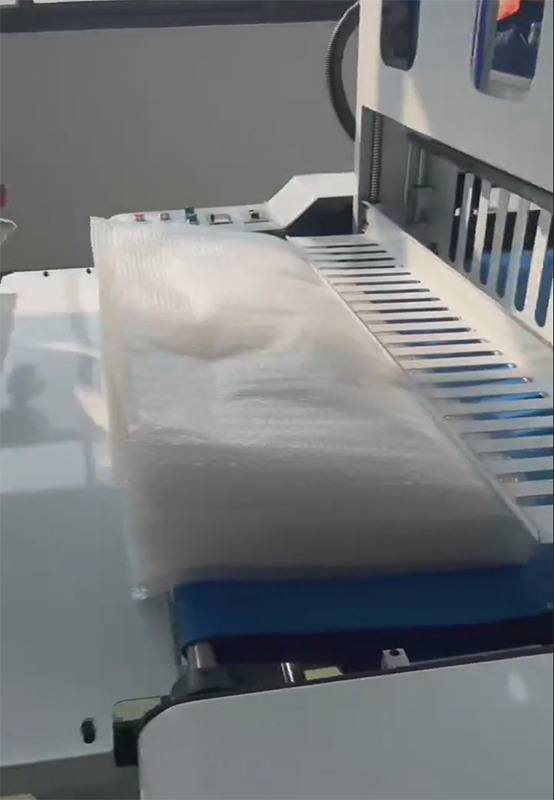

Main Function: Automatically stack the finished bags to the set number, clamp and then send out by the conveyor belt.
