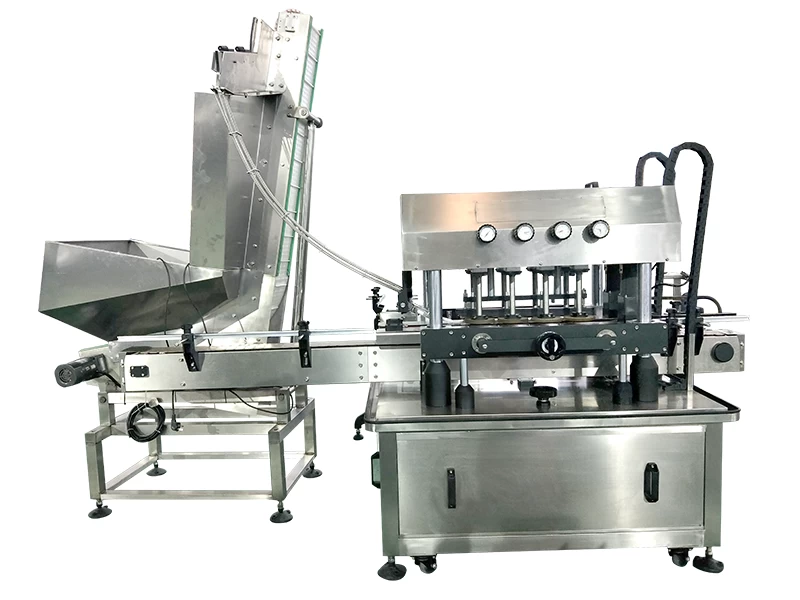

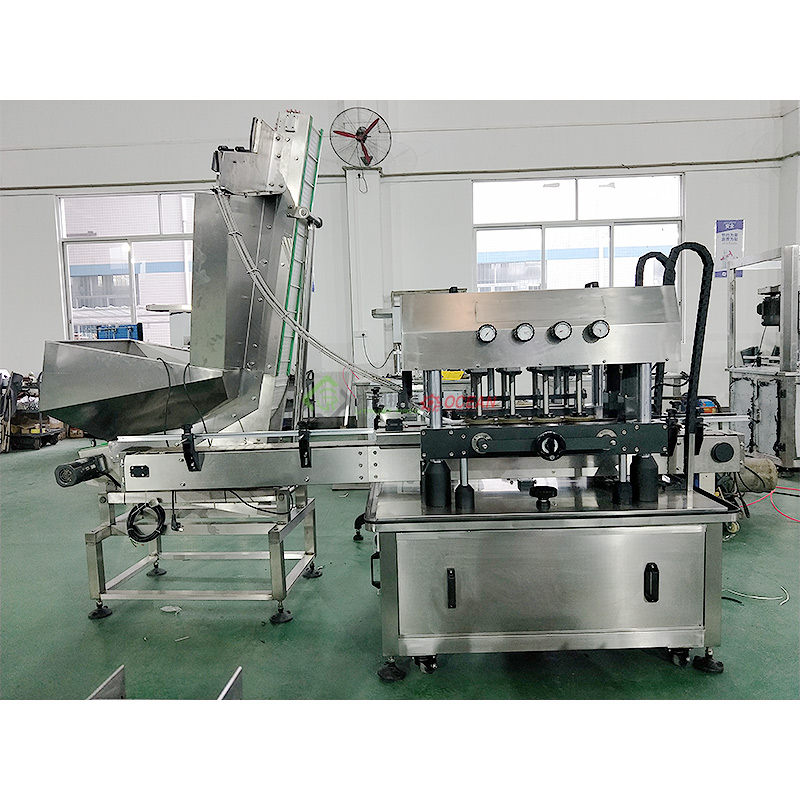

High Speed Twist Off Capping Machine Operation Briefing

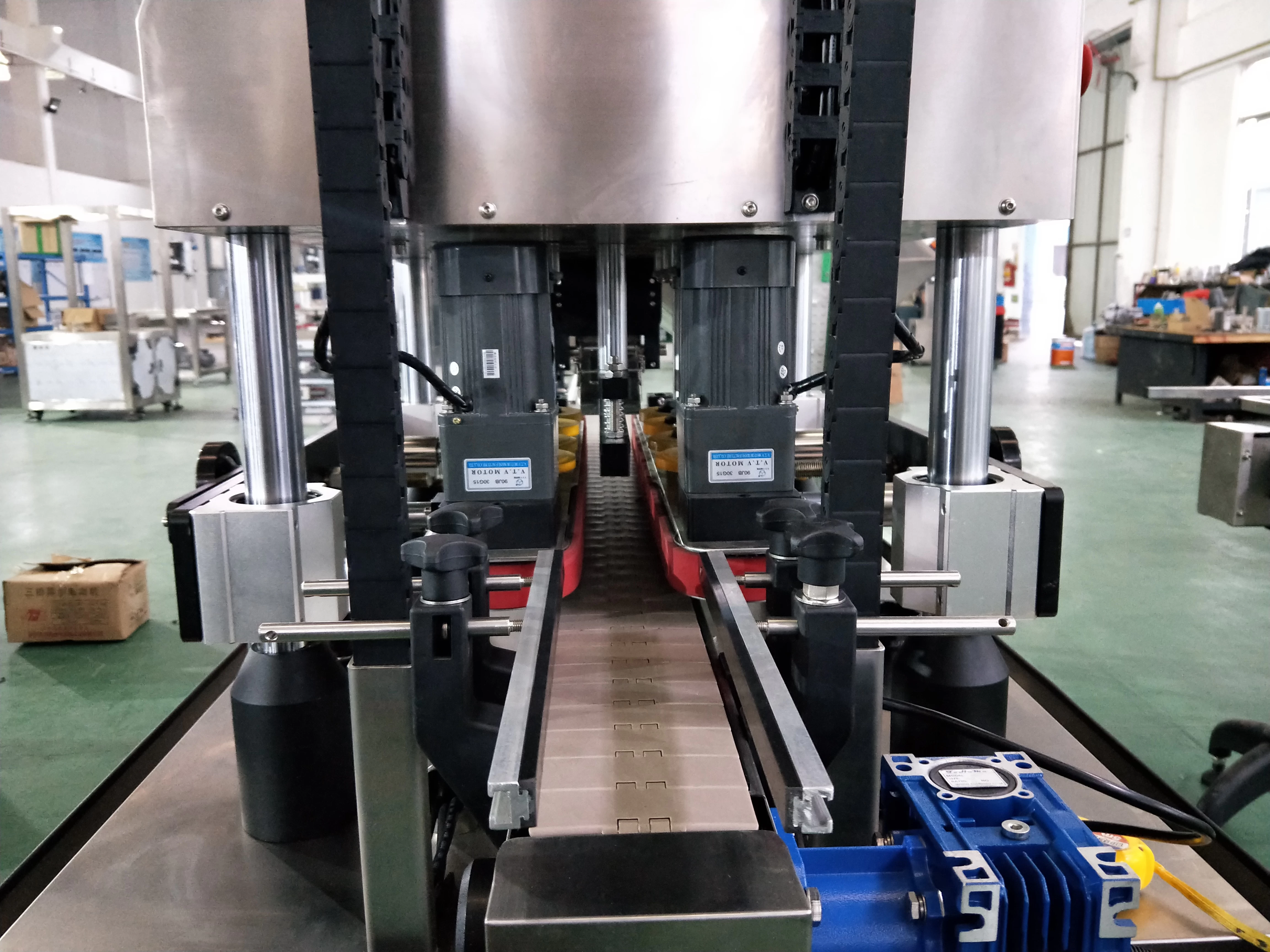

1, When the bottle is moving forward, the caps conveyor will automatically drop the cap, and the cap will be fastened by 4 sets of caps screwing wheels.
2, The automatic caps conveyor include vertical lift conveying type and vibrate conveying type, which can be selected according to actual needs.
Spray Bottle Lid Twist Off Capping Machine Specifications
Speed, 50-100 cans/min
Jars height, 80-250mm
Bottles diameter size, 70-110mm
Lid diameter size, 30-110mm
Qualified rate, ≥99%
Dimension 3650X1500X2550mm
Weight, 650kg
Power, 3.8kw
Voltage, 220V/50Hz
High Speed Twist Off Capping Machine Advantages
1, Bottle sensor makes the machine only feed in caps when bottle is ready, assure good capping effect and less error.
2, Adjustable according to height, diameter, speed, it need not to change parts for different bottles.
The screwing thread is also adjustable and readable, so the caps won't be too tight nor too loose.

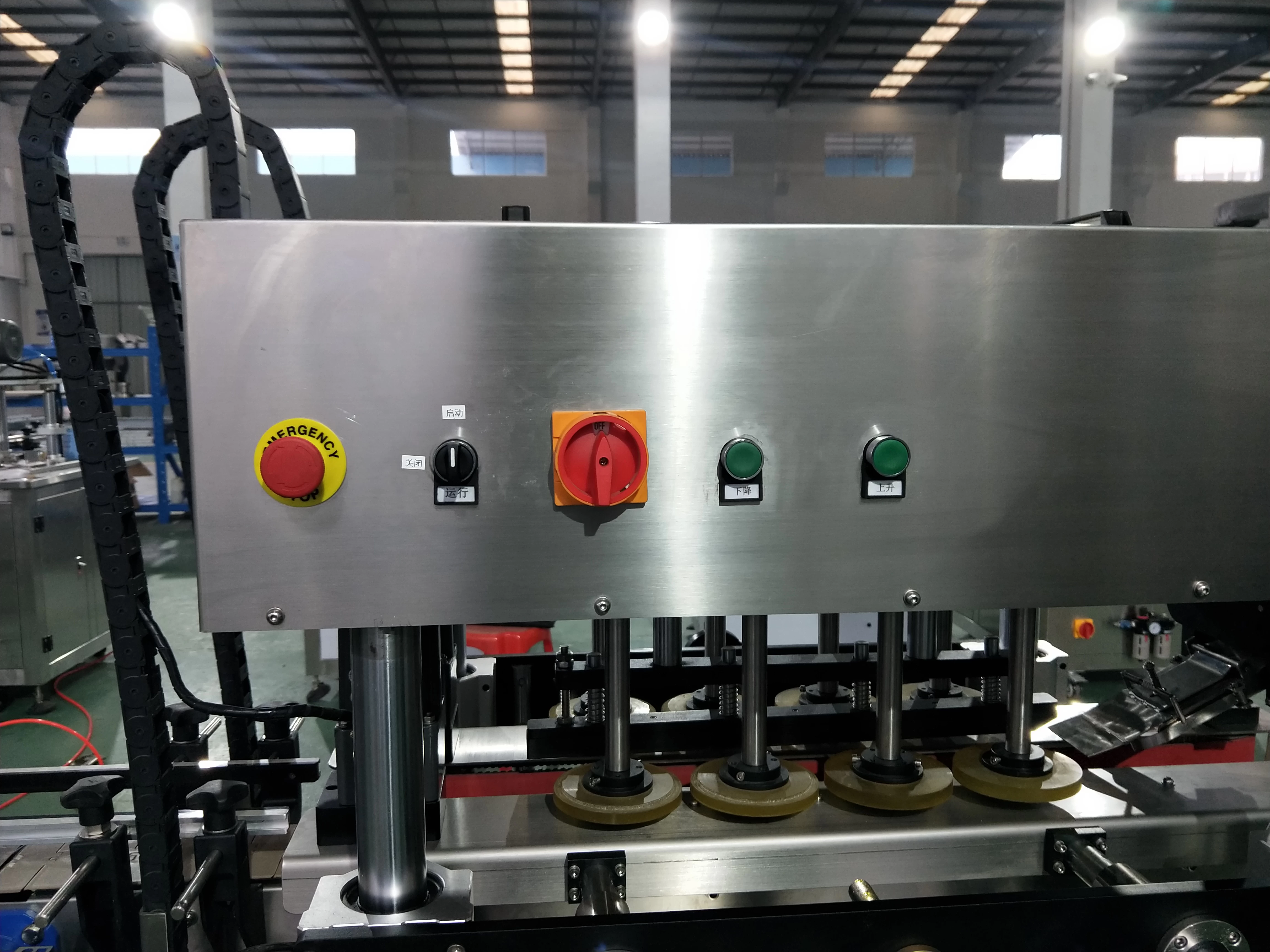

3, PLC& touch screen control system, all SS304 machine body, high performance, stable working,
easy to operate and maintenance, widely used in food, beverage, pharmacy, chemical industries.
