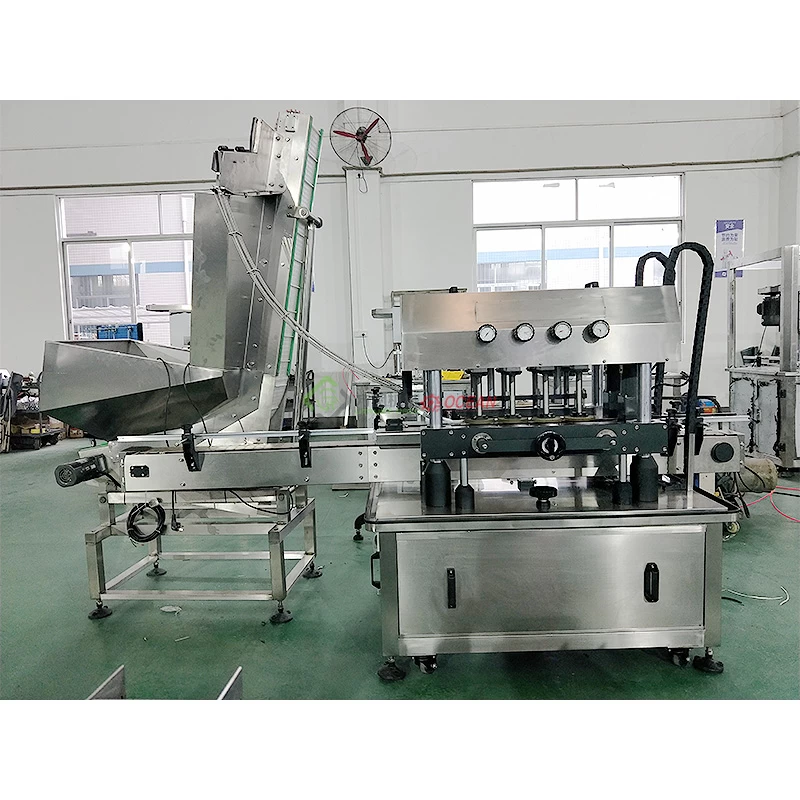

Machine Operation Briefing

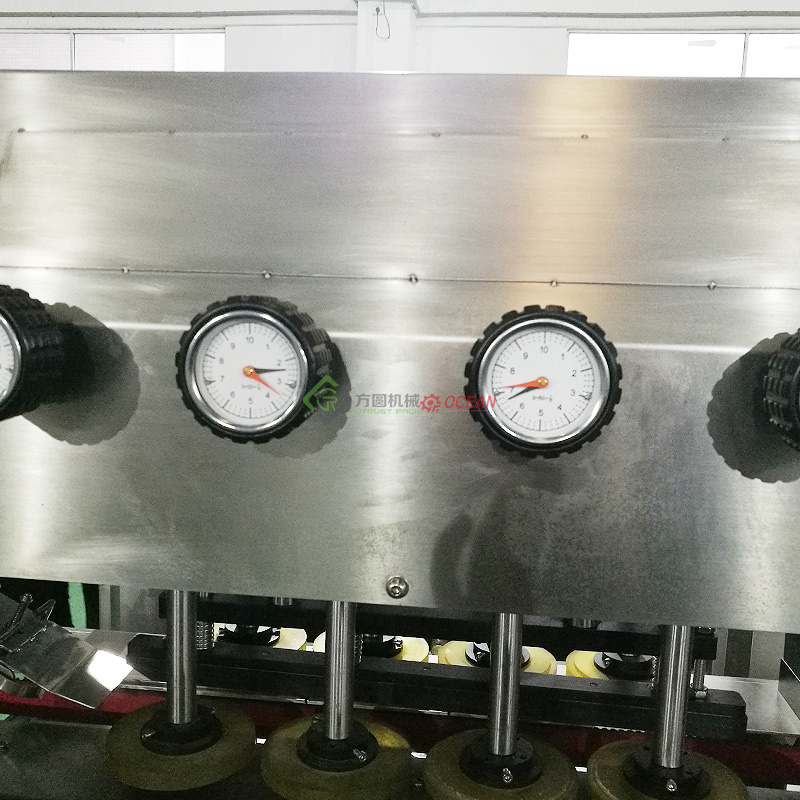

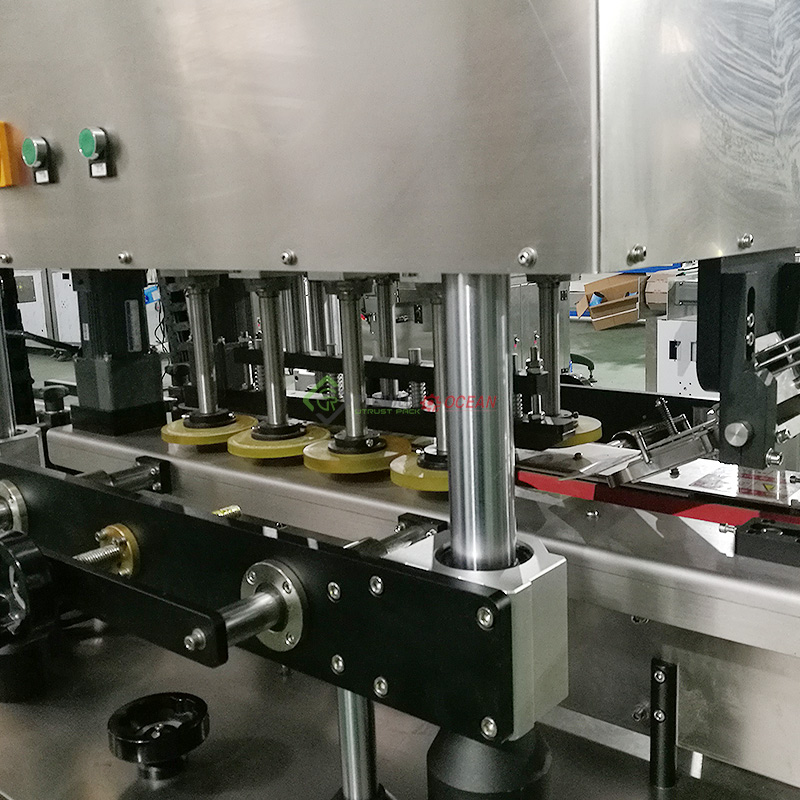

1, When the bottle is moving forward, the caps conveyor will automatically drop the cap, and the cap will be fastened by 4 sets of caps screwing wheels.
2, The automatic caps conveyor include vertical lift conveying type and vibrate conveying type, which can be selected according to actual needs.
Machine Specifications
Speed, 50-100 cans/min
Jars height, 80-250mm
Bottles diameter size, 70-110mm
Lid diameter size, 30-110mm
Qualified rate, ≥99%
Dimension 3650X1500X2550mm
Weight, 650kg
Power, 3.8kw
Voltage, 220V/50Hz
Advantages
1, Bottle sensor makes the machine only feed in caps when bottle is ready, assure good capping effect and less error.
2, Adjustable according to height, diameter, speed, it need not to change parts for different bottles.
The screwing thread is also adjustable and readable, so the caps won't be too tight nor too loose.
3, PLC& touch screen control system, all SS304 machine body, high performance, stable working,
easy to operate and maintenance, widely used in food, beverage, pharmacy, chemical industries.
Contact supplier
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
FAQ
|
|
1, What is your Installation Services?
|
2, What about your Guarantee of quality?
|
|
User
manual and videos to support for installing, debugging, operation of
this capping machine, it will indicate you how to use this machine well
|
The High speed twist off capping machine is 1 year warranty, this screw caps capping machine part can be replaced within 1year if broken (not including man made)
|
|
3, If we have very special request for the production line,could you help me to do the design?
|
4, Can I visit your factory?
|
|
Experienced mechanical designer customized-design provided.
|
Yes, welcome please.
|
|
5, If we have samples of new products, can you help to analysis and design the machine?
|
6, Do you have certificate?
|
|
Yes, Our technical department can help to analysis, design and test the new products you offered.
|
Yes, we have some, like CE / SGS.
|
