High-speed vibration ball mill machine for lab
SPECIFICATIONS
|
Model
|
TOB-DSP-GB80 High-speed vibration ball mill machine
|
|
Spec
|
50ml,80ml
|
|
Each max loading capacity
|
1/3 of the milling tank volume
|
|
Feed size
|
<1mm
|
|
Discharge size
|
Mix 0.1μm
|
|
Shimmy frequency
|
1200 Circumferential / min
|
|
Timing range
|
0~999S and normally open file
|
|
Motor spec
|
Single-phase 220V 180W
|
|
Current input
|
Single-phase 220V 50Hz
|
|
Size
|
405×365×260mm
|
|
Characteristic
|
High-speed vibrating ball mill has an eccentric pendulum shaft,
When the motor at high speed, generating eccentric swing tank;
Bring the whole bracket down vibration, so that the grinding
process is finished in a high speed wobble and vibration
of three-dimensional space.
Greatly improving the speed and efficiency of grinding.
|

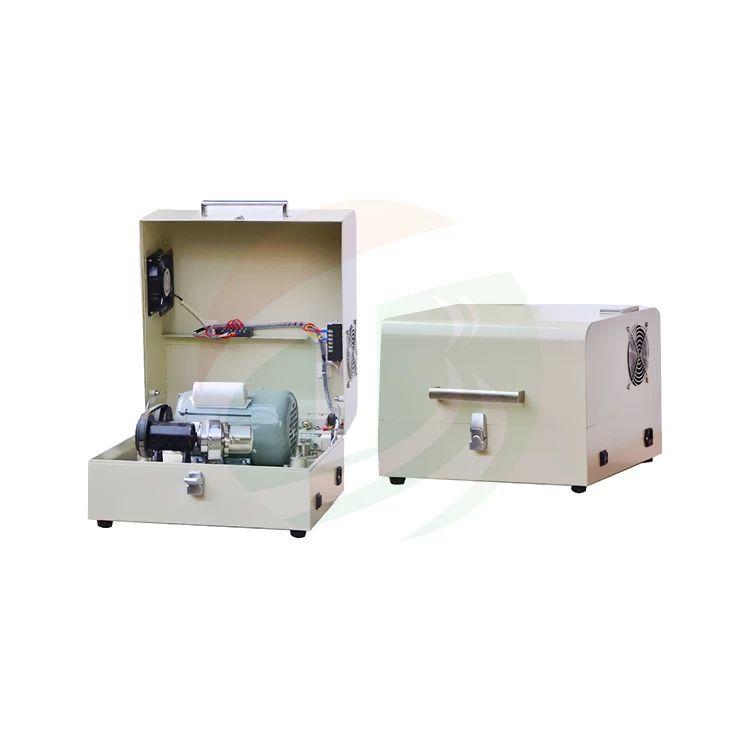

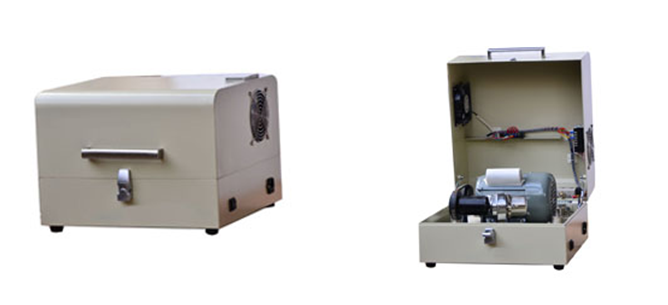

PRODUCT DISPLAY

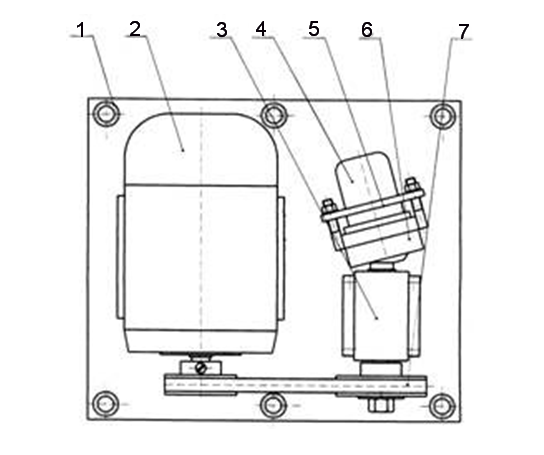

1). compression spring 2).motor 3). bearing housing
4). mill pot 5). platen 6). Rocker 7). triangle belt
